Belkin F9K1007V1 Bedienungsanleitung

N300 Wi-Fi ROUTER

USER MANUAL

Model Name: N300 Wi-Fi Router

Model Number: F9K1007V1

TABLE OF CONTENTS

Getting Started

What’s in the Box

Initial Setup

Manually Set Up Your Internet Connection

Additional Capabilities

Guest Access

Content Filtering by Norton

Getting to Know Your Router

Technical Details

Technical Features

System Requirements

Using Your Router

Enabling Auto Update on Your Router

Updating the Router’s Firmware via the Web Interface

Resetting the Router

Restoring your Router to Factory Default

Troubleshooting, Support, and Warranty

Troubleshooting

Technical Support

Belkin International, Inc., Limited 2-Year Product Warranty

Regulatory Information

FCC Statement

Getting Started

What’s in the Box

N300 Wi-Fi Router

Ethernetcable(attachedtorouter)

Powersupply(attachedtorouter)

Networkinformationcard(attachedtorouter)

Quick Setup Guide

Initial Setup

WheretoPlaceYourRouter

Forthebestresults,placetheRouternexttoyourmodeminan

openlocation,awayfromlargemetalobjectsandmagnetssuchas

thosefoundinspeakers.RaisingtheRouterabovefloorlevelcan

improvethestrengthofyourwirelesssignal.

HowtoSetItUp

Connect Your N300 Router

Turn off your modem by disconnecting its power supply. Some modems have a battery

backup; this will need to be disconnected at this time as well.

Connect your Router to your modem using the cable (already attached).

Power up your modem by plugging in its power supply. If your modem has a battery

backup, it can be reconnected at this time; you may need to hold the reset button for

10 seconds.

Power up your Router by plugging in its power supply.

Connect to Your Router

The default network ID and password information for your Router

can be found on the product label on the bottom of the Router.

<please use image 1 from step 2 of the new welcome card p#

8820-01278 Rev A00>

Use your computer, tablet, or smartphone to connect to the

wireless network shown on the router product label.

For information on how to connect your wireless devices, please see the “Connect Your

Wireless Devices” section on page 20.

When requested, please enter the password (security key) provided

on the card.

When your device has connected to the Router, use a

browser to visit http://router/.The router homepage will

appear.

If the page does not load, then try visiting http://192.168.2.1 to see

the router homepage.

Click the “Detect my connection” button in green. (If you would

rather set up the Router manually, click the “set it up manually”

link and proceed to page 10.)

After several moments, your Router should automatically detect

your Internet connection and restart. This can take anywhere from

30 seconds to 3 minutes depending on your connection type.

If your Router is unable to establish an Internet connection on its

own, you may be asked to restart your modem or provide a

username and password if your connection requires one. Follow

the on-screen instructions provided.

Once your Router is online, it will determine if there is a firmware

update available and offer to install it. Please allow up to 5 minutes

for the firmware to update.

If there are no updates available, then setup will proceed.

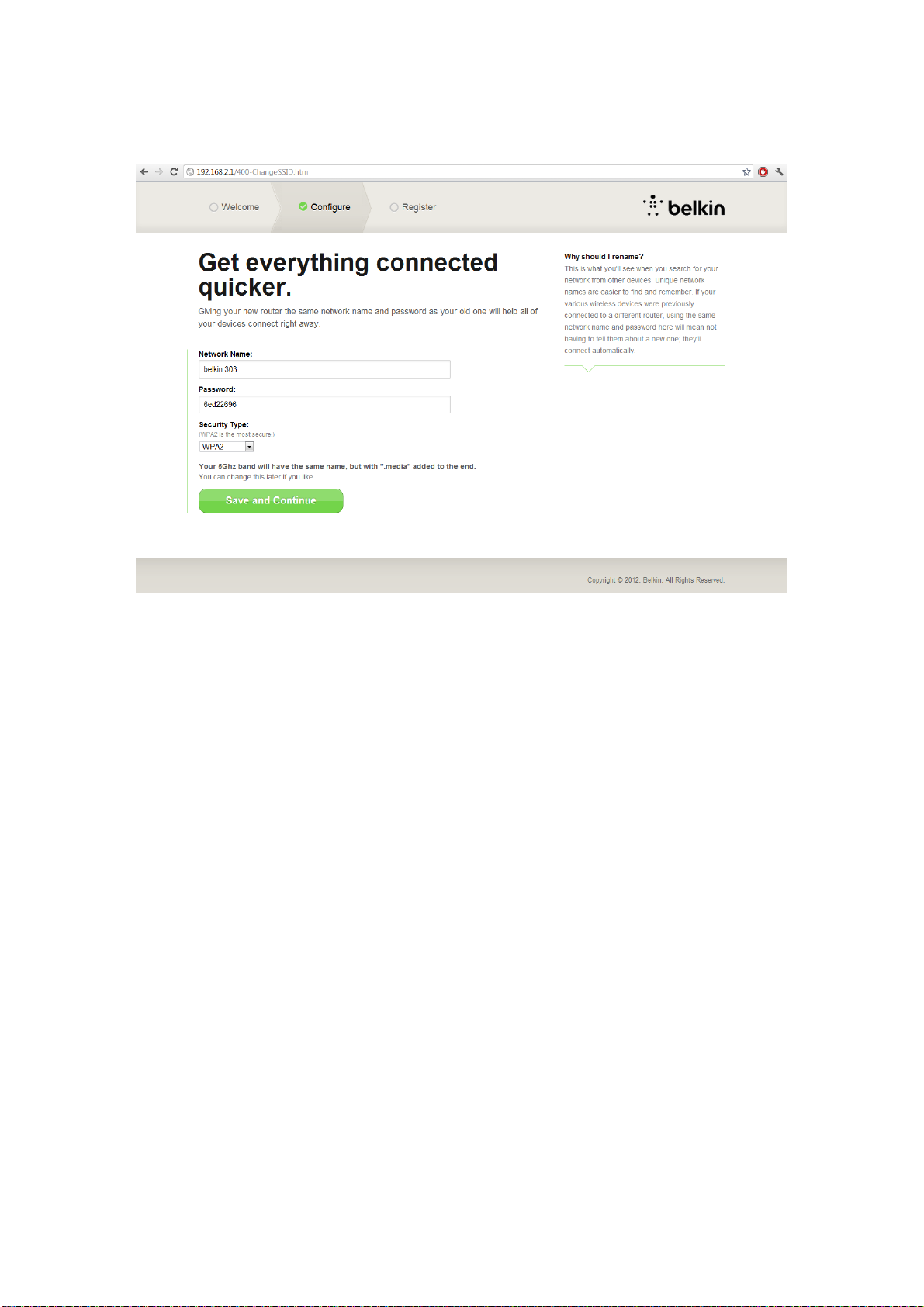

At the next screen you will be invited to change your network

name and password. Re-using your previous network name (SSID)

and password makes connecting your existing devices to the new

router much easier.

If you decide to change these settings, then enter the new values

and click “Save and Continue.” (Note: The password must be at

least 8 characters long.)

If you changed your network name and password, make note of it

on the service card located on the foot of the Router. You will then

have to connect to the new network.

Please take this opportunity to register your Router. This will help

technical support if there is a problem with your Router.

Simply complete each of the required fields and click “Complete

Registration.” If you don’t want to register right now, click

“Register Later” to proceed.

At the next screen you can download optional software that was

bundled with your Router.

This screen shows you optional software that is available for your

Router, such as the Belkin Wi-Fi app used to access your router’s

homepage quickly. If you wish to download and install this

software program, simply click on the button appropriate for your

device.

When finished installing optional software, click “Thanks, take me

to the dashboard.”

Congratulations! You are now at your Router’s dashboard. Your

Router is set up and ready to use.
