®Self Help Guide

TSG-UK-1-001 | www.belkin.com | Page 1 of 1

®Self Help Guide

IMPORTANT!

This Guide refers to the

following Products:

How To Establish An Internet Connection

Synopsis:

Please read the following carefully;

Requirements:

This guide is designed to assist those with Belkin

Modem Routers to establish an Internet

Connection.

We assume that customers have to have hand

their Internet Service Provider (ISP) User Details as

these are required to form a connection.

In order to complete the process described in this

document the following is required;

•A Belkin Modem Router (connected as described

in the Products User Manual or Quick Install

Guide).

•A Computer currently connected to the Modem

Router (preferably via Ethernet Cable).

•ISP Settings (Username, Password)

•Phone line (fitted if required with an ADSL Filter)

TSG-UK-1-005 | www.belkin.com | Page 1 of 3

All Belkin Modem

Routers

®Self Help Guide

TSG-UK-1-001 | www.belkin.com | Page 1 of 1

®

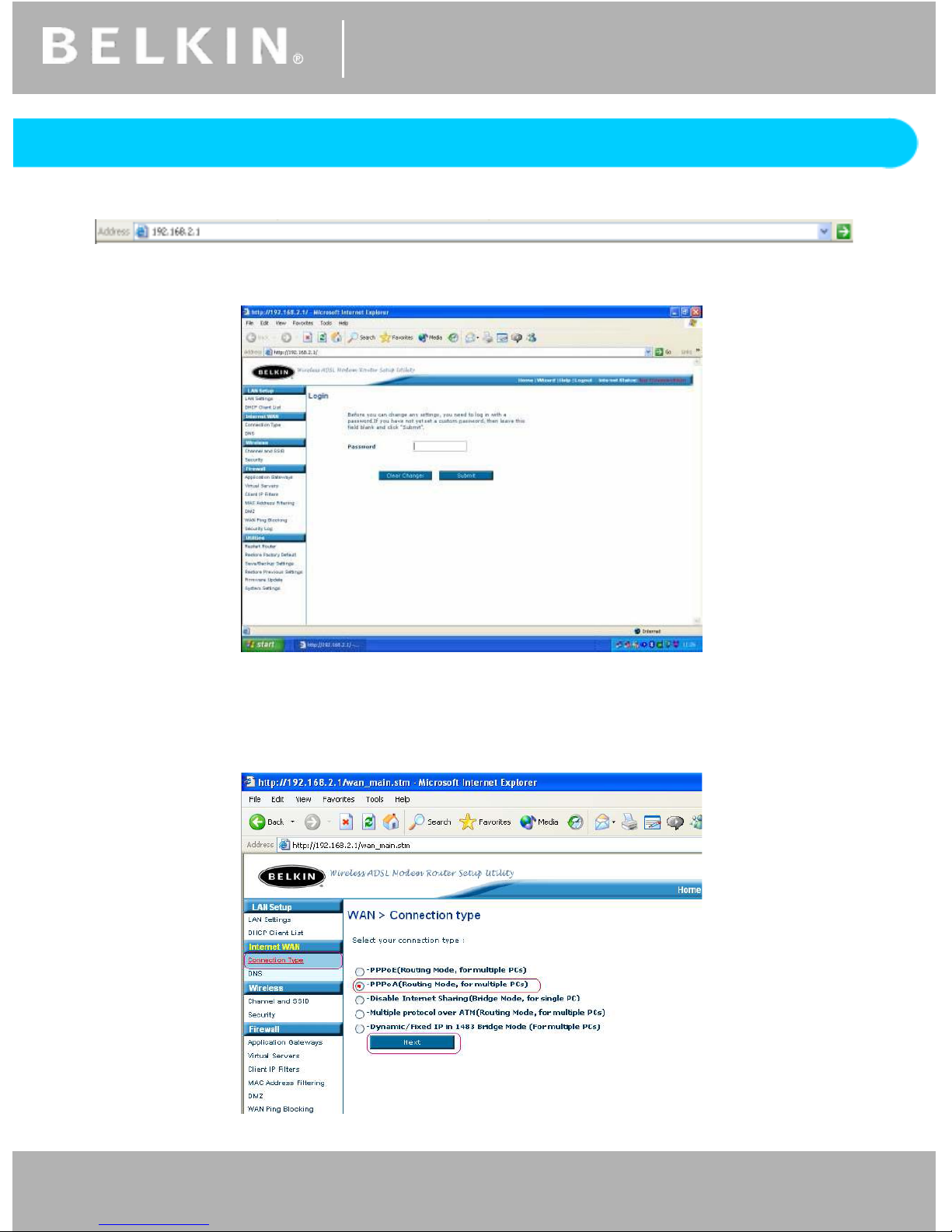

Open your Internet Browser and type ‘192.168.2.1’ into the Address Bar.

This should result in a User Interface appearing similar to the one shown below;

Leave the ‘Password’ field empty unless you have already configured one yourself.

Next, Locating the Menu heading ‘Internet WAN’ and click on the first sub-heading

‘Connection Type’ so that a page similar to the following is displayed;

Self Help Guide

How To Establish An Internet Connection Via Your Modem Router

TSG-UK-1-005 | www.belkin.com | Page 2 of 3

®Self Help Guide

TSG-UK-1-001 | www.belkin.com | Page 1 of 1

®

Choose the connection: ‘PPPoA’ as indicated and press ‘Next’.

You will need to enter the settings as provided by your Internet Service Provider (ISP).

If you have options such as Encapsulation and MTU, then these should be set to

VCMUX and 1454 respectively.

Once all the appropriate settings have been entered, you may click on ‘Apply Changes’

so that the Modem Router can save the data and attempt a connection on the basis of

the information.

You will see a notification that your ‘Data Is Being Saved’ after which you may be

returned to the same page again. Navigate to the ‘Home’ page by using the

navigational bar at the top of the Interface.

The Modem Router should now show you that the ‘Internet Status’ is ‘Connected’ in the

top right-hand corner of the interface. On some Modem Router models you may need to

select the ‘Connect’ button found on the ‘Home’ page first.

Self Help Guide

TSG-UK-1-005 | www.belkin.com | Page 3 of 3
