Beyerdynamic iDX 200 iE Bedienungsanleitung
iDX 200 iE
IN-EAR HEADPHONE
IN-EAR-KOPFHÖRER
ÉCOUTEURS INTRA-AURICULAIRES
INTRA-AURICULARES
ВСТАВНЫЕ НАУШНИКИ
入耳式耳机
인-이어 이어폰
インイヤーヘッドホン
User Manual
Bedienungsanleitung
Mode d'emploi
Instrucciones de uso
Руководство по эксплуатации
使用说明书
사용 설명서
取扱説明
__ _
__ _
iDX 200 iE
English . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Deutsch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Français. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Español . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Русский
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
中文 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
한국어. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
日本語. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
__ _
Thank you for selecting the iDX 200 iE in-ear headphone. Please take a few mi-
nutes to read these instructions carefully before using the product.
1. Safety Instructions
Warning: When connecting the in-ear headphone, make sure that you have
turned the volume down to the minimum. Adjust the volume only
after the in-ear headphones are in place. To avoid any potential
damage to your hearing, do not use the in-ear headphones at loud
volumes for extended periods of time. As a rule of thumb, when you
have the in-ear headphones on, set the volume to a level at which
you can still hear your own voice when you speak at a normal volume
while listening.
We would like to point out that listening at high volumes over a long
period of time may damage your hearing irreversibly.
Make sure that the set volume is not too high. Rule of thumb: The higher the
volume, the shorter the time of listening. According to employer’s regulations for
safety and health the noise exposure should not exceed 85 dB (low volume) when
working with an allowed time of listening of 8 hours at maximum. If the volume is
increased by 3 dB, the allowed time of listening is halved, i.e. with 88 dB the time
of listening is 4 hours, with 91 dB 2 hours and so on.
Danger!
In-ear headphones dramatically reduce your ability to hear ambient noise. Using
the in-ear headphones while in road traffic is potentially very dangerous and is
therefore prohibited by law. Also, please make sure that you do not use your in-ear
headphones when in the vicinity of possibly dangerous machines and tools.
Risk of injury!
When wearing wired in-ear headphones, avoid any sudden movements. You could
seriously injure yourself, especially if you have any piercings or wear earrings or
glasses, etc. that can get caught in the wire.
__ _
english
4 | 5
Altered auditory perception
Many people need some time to get used to wearing in-ear headphones. Your audi-
tory perception of your own voice and body, and even the sounds in your inner ear
while walking, are different from “normal” situations when you are not wearing an
in-ear headphone. This strange sensation will usually abate after wearing in-ear
headphones for a while.
2. Eartips
Selecting the right eartips
Your in-ear headphone is supplied with different sets of eartips made of silicone or
foamed material.
Select the right size of eartips before using the in-ear headphone. You can find out
which eartips fit best by trying on each of the different eartips one after another
with the headphones, placing the eartips carefully inside your ear. The eartips are
the right size if they do not fall out when you move your head moderately quickly
and you can hear the low-frequency bass sounds clearly and ambient noises only
slightly.
When using the T-400 foam eartips from Comply™
• Roll the eartip attached to the in-ear headphone between your fingers into a
tight cylinder.
• Pull the ear slightly upward with one hand and insert the rolled eartip deep into
the ear canal with the other.
• Use a finger to hold the in-ear headphone in place until the eartip has expanded
and is in a secure and comfortable position.
Maintenance of the eartips
• Use a soft, damp cloth to clean the eartips of your in-ear phones regularly,
drying them afterwards with a soft cloth.
• Never use chemical agents, such as solvent-based cleaner, to clean your eartips.
Such agents can corrode the eartips.
• When you are not using the in-ear headphones, store them in the case provided.
__ _
How to change the eartips
• Remove the eartip from the in-ear headphone.
• Clean the nozzle of the in-ear headphone of any debris by using a soft, damp cloth.
Make sure that no liquid will enter the nozzle. Use a soft cloth to dry the nozzle.
• Attach the new eartip to the in-ear headphone.
• We recommend replacing the eartips after 3 months of regular use.
• For replacement of silicone eartips, please visit the spare parts store on the
beyerdynamic website.
Visit us at http://shop.beyerdynamic.de/ersatzteile. Select your model from the
list and complete your purchase online.
• For replacement of foam eartips from Comply™, please visit www.comply-
foam.com, where shops will be listed to order the eartips.
Used types of the eartips: T-400
__ _
english
6 | 7
3. Connection
How to connect to Apple and other compatible devices
The connecting cable of the in-ear headphone has a
mini stereo jack plug to connect directly to your iPod,
iPhone, iPad or compatible devices.
• If you would like to extend the connecting cable,
connect the jack plug of the in-ear headphone to
the jack socket of the supplied extension cable
for Apple devices (jack plug with white isolation
rings).
How to connect to devices incompatible to Apple
Depending on the device, use the extension cable
or for a proper function. You can simply try out the
cables without worrying that the player could be
damaged.
3-button controller
Connecting cable with jack plug
Extension cable for Apple and compatible devices
with jack socket (top) and jack plug with white
isolation rings (bottom)
Extension cable for devices incompatible to Apple
with jack socket (top) and jack plug with black
isolation rings (bottom)
__ _

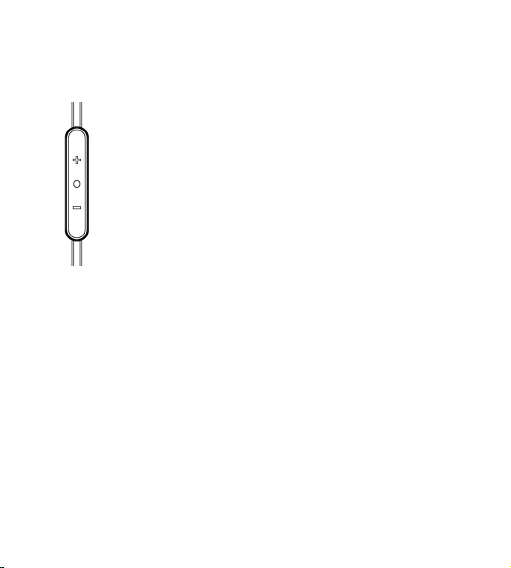

4. How to operate the 3-button controller with Apple devices
Via a 3-button controller with integrated microphone incorporated in the cable
you can make phone calls with your Apple device and control the music
playback.
Music playback
• Press the middle button to stop the music. Press the middle button
again to start the music.
• Press the middle button twice quickly to track forward.
• Press the middle button once quickly and hold it to fast forward.
• Press the middle button three times quickly to jump to the beginning
of the title or to track backward.
• Press the middle button twice quickly and hold it to fast backward.
Incoming calls
• Press the middle button once quickly to answer an incoming call. Press the
middle button once again to end the call.
• Press and hold the middle button for about 2 seconds to reject an incoming call.
• Press the middle button once to accept another incoming call. Press the middle
button once again to return to the original call.
Increase volume
• Press the + button to increase the volume.
Reduce volume
• Press the - button to reduce the volume.
__ _
english
8 | 9
Note
• The remote and mic are supported only by iPhone 3GS or later, iPad, iPod touch
(2nd generation or later), iPod classic (120GB, 160 GB), and iPod nano (4th
generation or later). The remote is supported by iPod shuffle (3rd generation or
later). Audio is supported by all iPad and iPod models.
5. How to operate the 3-button controller with devices incompatible to Apple
• For the function of the microphone select the appropriate extension cable or .
• The functionality of the middle button depends on the device you are using.
• The + button and - button do not work.
6. Service
If you require service, please contact qualified service personnel or directly:
beyerdynamic Service- und Logistik Center
E-mail: [email protected]
Dismantling the in-ear headphone yourself will invalidate the guarantee.
7. Supplied accessories
• 2 x extension cables
• 1 x cable clip
• Hard carry case
• 7 pairs of silicone eartips in different sizes
• 3 pairs of ComplyTM T-400 foam eartips, size S, M, L, black
You will find more optional accessories and spare parts at
www.beyerdynamic.com
The ComplyTM T-400 eartips are available at www.complyfoam.com
__ _
8. Disposal
This symbol on the product, in the instructions or on the packaging
means that your electrical and electronic equipment should be
disposed at the end of its life separately from your household waste.
There are separate collection systems for recycling in the EU. For
more information, please contact the local authority or your retailer
where you purchased the product.
9. Technical specifications
You will find the technical specifications for this product on the packaging or internet
at www.beyerdynamic.com.
