INSTRUCTION MANUAL

Catalog Number PSV1800

THANK

HANK YOU

YOU FOR

FOR CHOOSING

CHOOSING B

BLACK

LACK &

DECKER

ECKER!

OWWW

WWW.B

.BLACKAND

LACKANDD

DECKER

ECKER.

.COM

COM/N

/NEW

EWO

OWNER

WNER

OREGISTER

YOUR NEW

NEW PRODUCT

PRODUCT.

BEFORE RETURNING THIS PRODUCT

FOR ANY REASON PLEASE CALL

1-800-544-6986

BEFORE YOU CALL, HAVE THE CATALOG No. AND DATE CODE AVAILABLE. IN MOST CASES,ABLACK &

DECKER REPRESENTATIVE CAN RESOLVE THE PROBLEM OVER THE PHONE. IF YOU HAVE A SUGGESTION

OR COMMENT, GIVE USACALL. YOUR FEEDBACK IS VITAL TO BLACK & DECKER.

To purchase replacement filters

call 1-888-678-7278.

SAVE THIS MANUAL FOR FUTURE REFERENCE.

FOR HOUSEHOLD USE ONLY.

VEA EL ESPAÑOL EN LA CONTRAPORTADA.

INSTRUCTIVO DE OPERACIÓN, CENTROS DE SERVICIO Y PÓLIZA DE GARANTÍA.

ADVERTENCIA: LÉASE ESTE INSTRUCTIVO ANTES DE USAR EL PRODUCTO.

PPII

IIVV

VVOO

OOTT

CCOO

OORR

RRDD

DDLL

LLEE

EESS

SSSS

VVAA

AACC

90528647 01 PSV1800 PIVOT CRDL VAC 10/16/08 7:47 AM Page 1

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed,

including the following:

PLEASE READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE USING THE

UNIT.

SAFETY GUIDELINES - DEFINITIONS

It is important for you to read and understand this manual. The information it contains

relates to protecting YOUR SAFETY and PREVENTING PROBLEMS. The symbols

below are used to help you recognize this information.

DANGER: Indicates an imminently hazardous situation which, if not

avoided, will result in death or serious injury.

WARNING: Indicates a potentially hazardous situation which, if not

avoided, could result in death or serious injury.

CAUTION: Indicates a potentially hazardous situation which, if not

avoided, may result in minor or moderate injury.

CAUTION: Used without the safety alert symbol indicates a potentially

hazardous situation which, if not avoided, may result in property damage.

WARNING: Some household dust contains chemicals known to the

State of California to cause cancer, birth defects or other reproductive harm such as

asbestos and lead in lead based paint.

WARNING: To reduce the risk of fire, electrical shock or injury:

• Close supervision is necessary when any appliance is used by or near children. Do

not allow to be used as a toy.

•Shock Hazard. To protect against risk of electrical shock, do not put unit or charging

base in water or other liquid.

• Do not use dry vacs to pick up liquids, toxic substances, flammable or combustible

liquids such as gasoline or use in areas where they may be present.

• Do not operate in the presence of explosives and/or flammable fumes or liquids.

•Shock Hazard. Do not operate any appliance with a damaged cord or charger or after

the appliance malfunctions, is left outdoors, dropped into water or is damaged in any

manner. Return the appliance to any authorized service facility.

• Do not abuse the cord. Never carry the charger or base by the cord or yank to

disconnect from an outlet; instead grasp the charger and pull to disconnect. Keep cord

away from heated surfaces. Do not pull cord around sharp edges or corners.

• Do not allow the cord to hang over the edge of a table or counter or touch hot surfaces. The

unit should be placed on the floor away from sinks and hot surfaces.

• Do not use an extension cord. Plug the charger directly into an electrical outlet.

• Use the charger only in a standard electrical outlet (120V/60Hz).

• Do not attempt to use the charger with any other product; do not attempt to charge this

product with any other charger. Use only the charger supplied by the manufacturer to

recharge.

• Keep hair, loose clothing, and all parts of body away from openings and moving parts.

•Shock Hazard. Do not handle plug or appliance with wet hands.

• Do not put any object into unit openings. Do not use with any openings blocked; keep

free of dust, lint, hair, and anything that may reduce air flow.

•Fire Hazard. Do not vacuum burning or smoking materials, such as lit cigarette butts,

matches or hot ashes.

90528647 01 PSV1800 PIVOT CRDL VAC 10/16/08 7:47 AM Page 2

• Do not use on or near hot surfaces.

• Use extra caution when cleaning on stairs.

• This appliance is intended for household use only and not for commercial or industrial

use.

• Use only as described in this manual. Use only manufacturer’s recommended

attachments.

• Unplug the charger from outlet before any routine cleaning or maintenance.

• This product includes rechargeable nickel cadmium batteries. Do not incinerate

batteries as they will explode at high temperatures.

• Leaks from battery cells can occur under extreme conditions. If the liquid, which is a

20-35% solution of potassium hydroxide, gets on the skin (1) wash quickly with soap

and water or (2) neutralize with a mild acid such as lemon juice or vinegar. If the liquid

gets into the eyes, flush them immediately with clean water for a minimum of 10

minutes. Seek medical attention.

• Do not look into the air vents when the unit is switched on, as sometimes

there is a possibility of small debris being discharged from the air vents, especially

after cleaning / replacement of the filters as debris inside the unit can be disturbed.

• To prevent tripping accidents, store vacuum after each use.

• Do not pick up any sharp objects that may damage vacuum or filters.

• Do not operate the unit without both filters in place. Replace a damaged filter promptly.

SAVE THESE INSTRUCTIONS

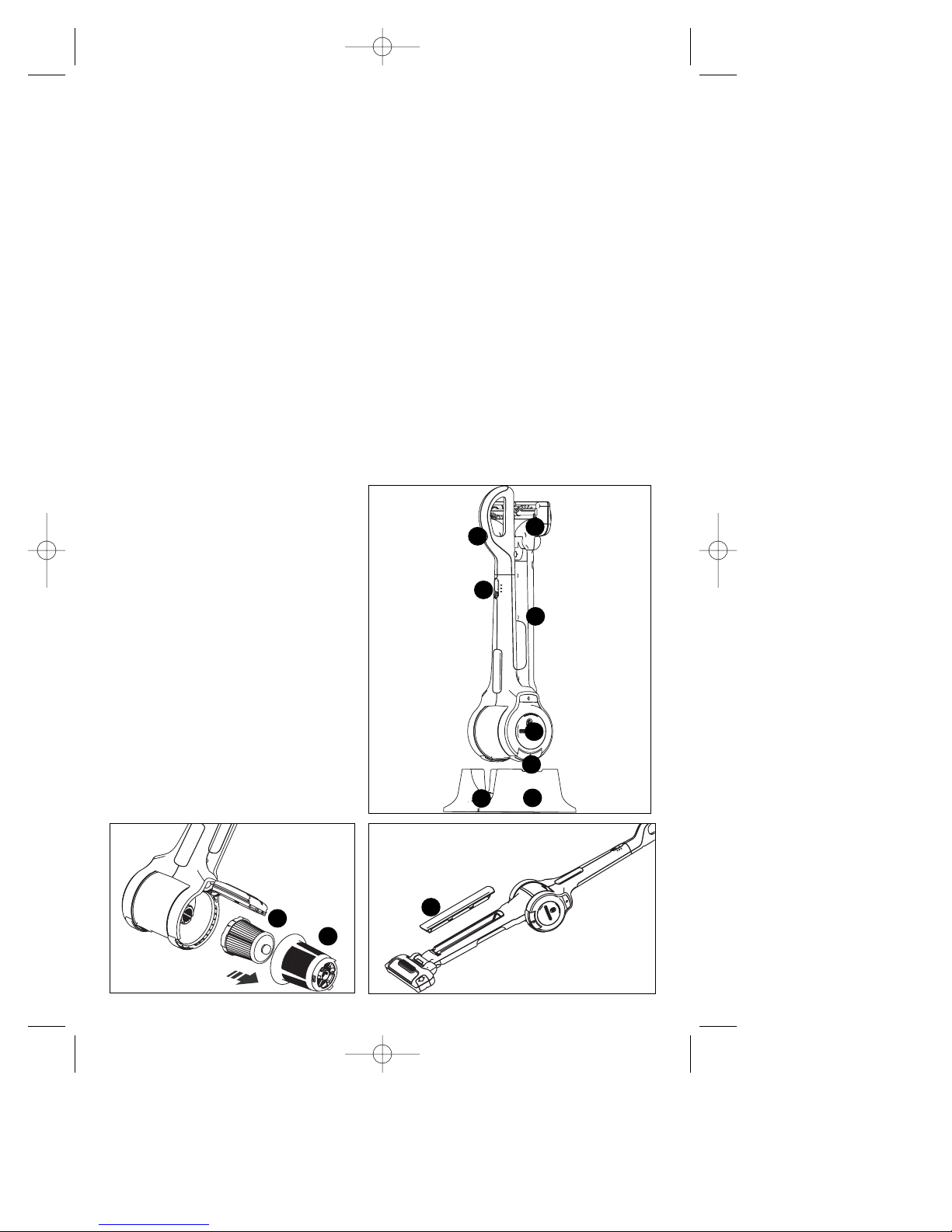

PRODUCT FEATURES

1. Release latch for container door

2. Container door

3. Pivot lock release button

4. Beater Bar/Vac On/Off switch

5. Charging indicator

6. Charging base

7. Pivoting arm

8. Beater bar/vac head

9. Pre-filter

10. Inner filter

11. Maintenance access

10 9

90528647 01 PSV1800 PIVOT CRDL VAC 10/16/08 7:47 AM Page 3

90528647 01 PSV1800 PIVOT CRDL VAC 10/16/08 7:47 AM Page 4

90528647 01 PSV1800 PIVOT CRDL VAC 10/16/08 7:47 AM Page 5

ASSEMBLY

Assembly tools required (not supplied)

• Phillips screwdriver

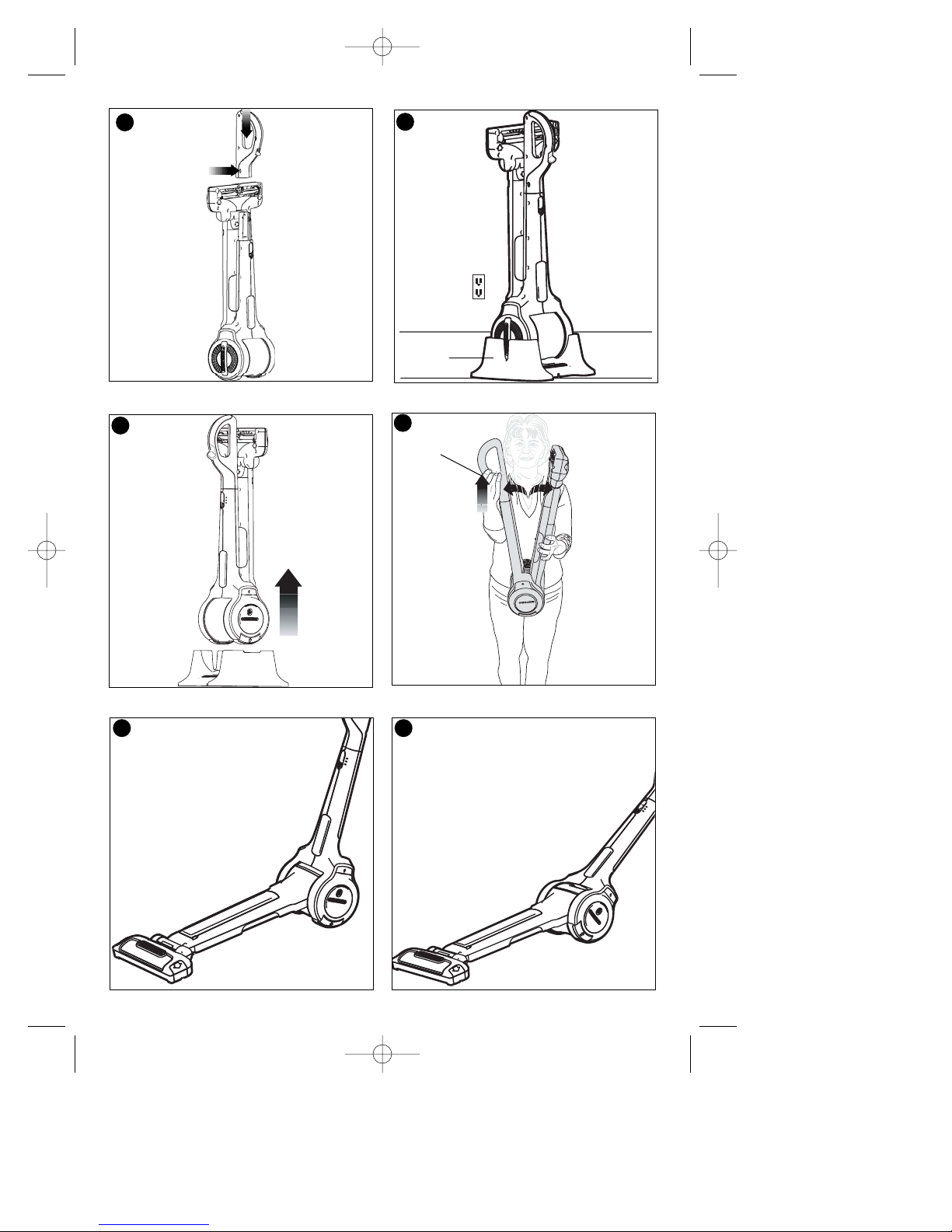

ATTACHING HANDLE TO UNIT (FIGURE A)

• Align the D-handle with the main body of the unit and push it down until it is fully seated

as shown in figure A.

• Remove the phillips head screw from the plastic bag.

• Insert the screw into the hole indicated by the arrow in figure A.

• Tighten screw securely using a phillips screwdriver.

CHARGING BASE (FIGURE B)

• Place the charging base (6) on the floor, convenient to an electrical outlet. The

PSV1800 stores and charges in the base whenever it is not in use.

WARNING: Falling/Tripping Hazard. Do not place charging base on any elevated

surface. The product is designed to be placed into and removed from the charging

base when it is sitting on the floor convenient to an electrical outlet.

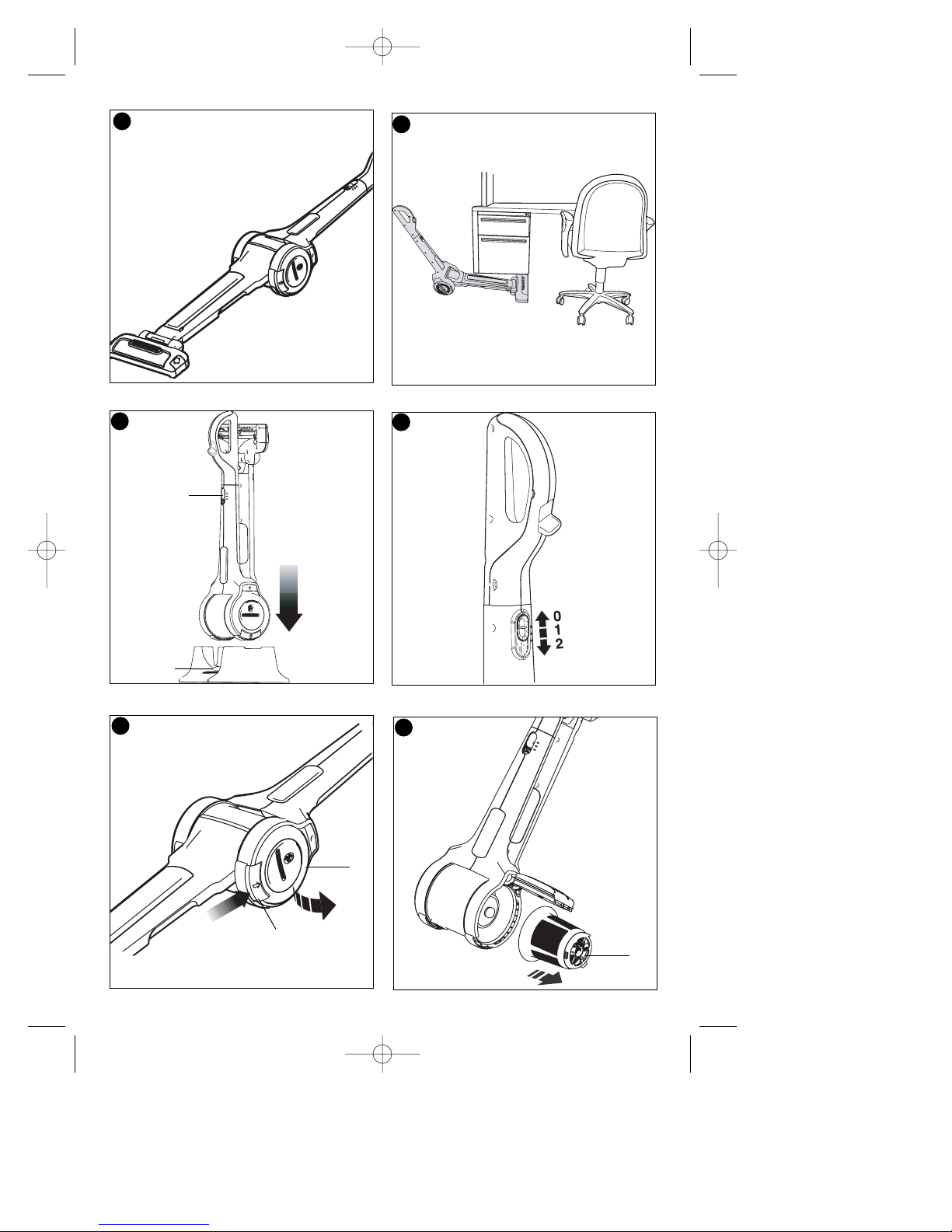

OPENING THE VACUUM (FIGURES C - H)

• To open the vac for use, lift it from the charging base (6) (figure C).

• Push back the pivot lock trigger (3) on the handle and rotate the vacuum head

(figure D).

90528647 01 PSV1800 PIVOT CRDL VAC 10/16/08 7:47 AM Page 6

• Release the pivot lock trigger (3) to lock the vac in any of the three different

working positions (figures E,F & G).

• Figure H illustrates a typical application of vacuuming under furniture and other

hard to reach places.

OPERATION

• Before first use, the battery must be charged for at least 21 hours.

• Place the appliance on the charging base (6) whenever it is not in use.

CHARGING THE BATTERY (FIGURE I)

• Make sure that the appliance is switched off.

The battery will not be charged with the on/off switch (4) in the on position.

• Place the appliance on the charging base as shown.

• Plug in the charger.

The charging indicator (5) will be lit.

• Leave the appliance to charge for at least 21 hours.

SAFETY WARNINGS AND INSTRUCTIONS: CHARGING

• While charging, the charger may become warm. This is normal and does not indicate a

problem.

• The appliance can be left connected to the charger indefinitely. The charging indicator

(5) will be lit as long as the appliance is connected to the plugged-in charger.

• Do not charge the battery at ambient temperatures below 39° F (4 °C) or above 104°

(40 °C).

SWITCHING ON AND OFF (FIGURE J)

• To switch the appliance on, slide the on/off switch (4) forward to the 1st position

(vacuum only).

• For vacuuming with beater bar operation slide the on/off switch forward to the 2nd

position.

• To switch the appliance off, slide the on/off switch back.

CLEANING AND MAINTENANCE

CAUTION: Regularly clean the filters (9 & 10).

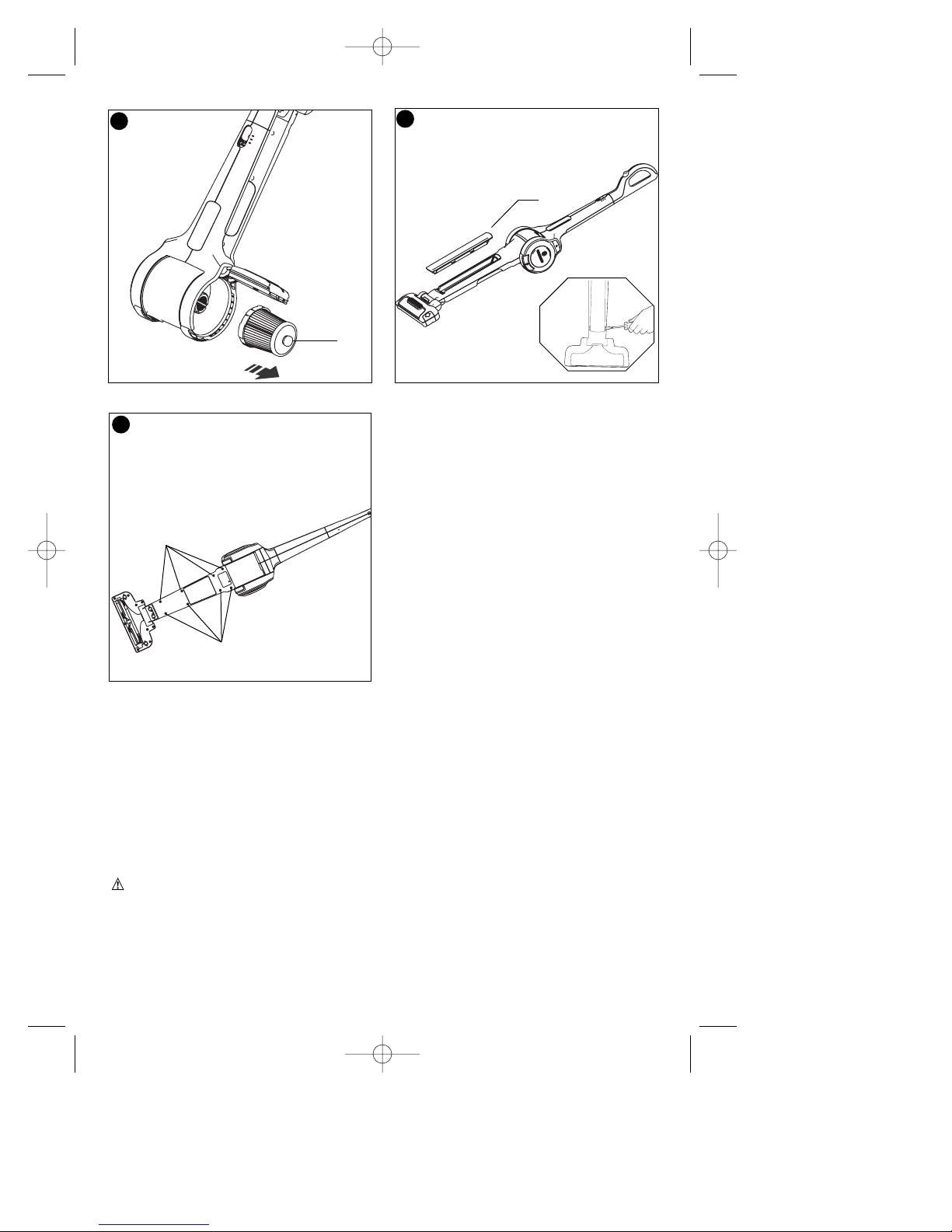

CLEANING THE DUST CONTAINER AND FILTERS (FIGURES K - N)

The filters are re-usable and should be cleaned regularly.

• Press the release latch (1) and open the container door (2) (figure K).

• Remove the filters (9 & 10) (figures L & M).

• Empty the dust container.

• Brush any loose dust off the filters.

• Wash the filters in warm, soapy water.

• Make sure that the filters are dry.

A section (11) of the unit can be removed to aid cleaning should the product become

blocked resulting in a loss of suction (figure N).

• Remove the section using a flat bladed screwdriver (figure N inset) to release the

front clip features.

Once released, the section will pivot free of the main assembly to give access for

cleaning.

• Never immerse the product in water. A damp cloth and soapy water should be used

to clean the exterior of the motor section. Always ensure the product is completely dry

before re-use or storing.

ACCESSORIES

To purchase replacement filters call 1-888-678-7278.

ECONOMIC USAGE

• Your product is very economical to charge. While it is charging it uses less than half

the amount of electricity used by a common night light.

• When fully charged, the average effective usage times are between 10-12 minutes

with brush on (carpet), 12-14 minutes with brush on (hard floor) and 14-16 minutes

with vac only.

• It may take several chargings before these times can be achieved.

90528647 01 PSV1800 PIVOT CRDL VAC 10/16/08 7:47 AM Page 7

TROUBLESHOOTING

If the product does not work, check the following:

• The charger was correctly plugged in for recharge. (It feels slightly warm to the touch.)

• The charger cord is not damaged and is correctly attached to the base.

• The charger is plugged into a working electrical outlet.

• The appliance was switched to the off position to charge. The battery will not be

charged with the on/off switch in the on position.

• The filter is clogged. Press the release latch and open the container door. Remove the

plastic pre-filter and the paper filter. Brush any loose dust off the filters and wash them

in warm, soapy water. Make sure the filters are dry before placing back in the vacuum.

BATTERY REMOVAL AND DISPOSAL

This product uses nickel-cadmium (Ni-Cd) rechargeable and recyclable batteries. When

the batteries no longer hold a charge, they should be removed from the Vac and

recycled. They must not be incinerated or composted.

The batteries can be taken for disposal to a Black & Decker, Company-Owned or

Authorized Service Center. Some local retailers are also participating in a national

recycling program (see “RBRCTM Seal”). Call your local retailer for details. If you bring

the batteries to a Black & Decker Company-Owned or Authorized Service Center, the

Center will arrange to recycle old batteries. Or, contact your local municipality for proper

disposal instructions in your city/town.

To remove the battery pack for disposal:

1.) First, before attempting to disassemble the product, turn it on and leave it on until the

motor completely stops insuring a complete discharge of the batteries.

2.) Ensure nozzle is rotated out of storage position.

3.) Using a screwdriver, remove the eight screws (12) securing the two housing halves.

(figure O)

4.) Lift the housing cover away from the assembly.

5.) Detach the wire connections to the battery pack.

6.) Remove battery pack from the unit.

7.) Dispose of batteries as per recommended guidelines.

MAINTENANCE

Use only mild soap and damp cloth to clean the vac. Never let any liquid get inside the

vac; never immerse any part of the vac into a liquid.

NOTE: Make sure the vacuum is completely dry before using it.

IMPORTANT: To assure product SAFETY and RELIABILITY, repairs, maintenance and

adjustment (other than those listed in this manual) should be performed by authorized

service centers or other qualified service organizations, always using identical

replacement parts.

THE RBRC™ SEAL

The RBRC™ (Rechargeable Battery Recycling Corporation)

Seal on the nickel-cadmium battery (or battery pack) indicates that the costs to

recycle the battery (or battery pack) at the end of its useful life have already been paid by

Black & Decker. In some areas, it is illegal to place spent nickel-cadmium batteries in the

trash or municipal solid waste stream and the RBRC program provides an

environmentally conscious alternative.

RBRC in cooperation with Black & Decker and other battery users, has established

programs in the United States and Canada to facilitate the collection of spent nickel-

cadmium batteries. Help protect our environment and conserve natural resources by

returning the spent nickel-cadmium battery to an authorized Black & Decker service

center or to your local retailer for recycling. You may also contact your local recycling

center for information on where to drop off the spent battery, or call 1-800-8-BATTERY.

90528647 01 PSV1800 PIVOT CRDL VAC 10/16/08 7:47 AM Page 8

SERVICE INFORMATION

Black & Decker offers a full network of company-owned and authorized service

locations throughout North America. All Black & Decker Service Centers are staffed

with trained personnel to provide customers with efficient and reliable power tool

service.

Whether you need technical advice, repair, or genuine factory replacement parts,

contact the Black & Decker location nearest you. To find your local service location,

refer to the yellow page directory under “Tools—Electric” or call: 1-800-54-HOW TO

(544-6986).

FULL TWO-YEAR HOME USE WARRANTY

Black & Decker (U.S.) Inc. warrants this product for two years against any defects in

material or workmanship. The defective product will be replaced or repaired at no charge

in either of two ways.

The first, which will result in exchanges only, is to return the product to the retailer from

whom it was purchased (provided that the store is a participating retailer). Returns

should be made within the time period of the retailer’s policy for exchanges (usually 30

to 90 days after the sale). Proof of purchase may be required. Please check with the

retailer for their specific return policy regarding returns that are beyond the time set for

exchanges.

The second option is to take or send the product (prepaid) to a Black & Decker owned or

authorized Service Center for repair or replacement at our option. Proof of purchase may

be required.

Black & Decker owned and authorized Service Centers are listed under “Tools-Electric”

in the yellow pages of the phone directory.

This warranty does not apply to accessories. This warranty gives you specific legal

rights and you may have other rights which vary from state to state. Should you have

any questions, contact the manager of your nearest Black & Decker Service Center.

This product is not intended for commercial use.

FREE WARNING LABEL REPLACEMENT: If your warning labels become illegible or

are missing, call 1-800-544-6986 for a free replacement.

See ‘Tools-Electric’

– Yellow Pages –

for Service & Sales

Imported by

Black & Decker (U.S.)

Inc.,

701 E. Joppa Rd.

Towson, MD 21286

U.S.A.

90528647 01 PSV1800 PIVOT CRDL VAC 10/16/08 7:47 AM Page 9

CONSERVER CE MODE D’EMPLOI POUR UN USAGE

ULTÉRIEUR.

POUR UN USAGE DOMESTIQUE UNIQUEMENT.

MODE D’EMPLOI

AASS

SSPP

PPII

IIRR

RRAA

AATT

TTEE

EEUU

UURR

SSAA

AANN

NNSS

FFII

IILL

ÀÀ

TTÊÊ

ÊÊTT

TTEE

PPII

IIVV

VVOO

OOTT

TTAA

AANN

NNTT

TTEE

N° de catalogue PSV1800

AVANT DE RETOURNER CE PRODUIT POUR

QUELQUE RAISON QUE CE SOIT, COMPOSER LE

1-800-544-6986

AVANT D’APPELER, AYEZ EN MAIN LE N° DE CATALOGUE ET LE CODE DE DATE. DANS LA PLUPART

DES CAS, UN REPRÉSENTANT DE BLACK & DECKER PEUT RÉSOUDRE LE PROBLÈME PAR

TÉLÉPHONE. SI VOUS AVEZ UNE SUGGESTION OU UN COMMENTAIRE, APPELEZ-NOUS. VOS

IMPRESSIONS SONT CRUCIALES POUR BLACK & DECKER.

MERCI

ERCI D

D’

’A

AVOIR

VOIR CHOISI

CHOISI B

BLACK

LACK & D

& DECKER

ECKER !

VISITEZ

ISITEZ WWW

WWW.B

.BLACKAND

LACKANDD

DECKER

ECKER.

.COM

COM/N

/NEW

EWO

OWNER

WNER

POUR

POUR ENREGISTRER

ENREGISTRER VOTRE

VOTRE NOUVEAU

NOUVEAU PRODUIT

PRODUIT.

Pour l´achat d´un filtres de rechange

composer le 1-888-678-7278.

90528647 01 PSV1800 PIVOT CRDL VAC 10/16/08 7:47 AM Page 10

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Black & Decker Staubsauger Handbücher

Black & Decker

Black & Decker 587143-00 Bedienungsanleitung

Black & Decker

Black & Decker Dustbuster ACV1205 Bedienungsanleitung

Black & Decker

Black & Decker NV2410N Bedienungsanleitung

Black & Decker

Black & Decker VO1700A Bedienungsanleitung

Black & Decker

Black & Decker ADV1210 Bedienungsanleitung

Black & Decker

Black & Decker VM1630 Bedienungsanleitung

Black & Decker

Black & Decker Dust Buster CHV1218 Bedienungsanleitung

Black & Decker

Black & Decker HNV115J06 Bedienungsanleitung

Black & Decker

Black & Decker Dust Buster V4800 Bedienungsanleitung

Black & Decker

Black & Decker Dirt Buster 244279-00 Bedienungsanleitung

Black & Decker

Black & Decker Dust Buster 90501843 Bedienungsanleitung

Black & Decker

Black & Decker AV1500LA Bedienungsanleitung

Black & Decker

Black & Decker BXVC20PE Bedienungsanleitung

Black & Decker

Black & Decker Powerful Solutions NW36XXY Bedienungsanleitung

Black & Decker

Black & Decker VSC02A861 Bedienungsanleitung

Black & Decker

Black & Decker BHFE520J Bedienungsanleitung

Black & Decker

Black & Decker Dust Buster AV1250LA Bedienungsanleitung

Black & Decker

Black & Decker HSV320J32 Bedienungsanleitung

Black & Decker

Black & Decker Dustbuster Plus 9338 Montageanleitung

Black & Decker

Black & Decker HFEJ520JWMF Bedienungsanleitung

Black & Decker

Black & Decker HLVA320JP Bedienungsanleitung

Black & Decker

Black & Decker Powerseries HSVB420J Bedienungsanleitung

Black & Decker

Black & Decker NVB115W Bedienungsanleitung

Black & Decker

Black & Decker HHVJ315BMF Bedienungsanleitung

Beliebte Staubsauger Handbücher anderer Marken

Bissell

Bissell LittleGreen Proheat 1425 Series Bedienungsanleitung

Panasonic

Panasonic MC-YL637S147-AE Bedienungsanleitung

NEFF

NEFF N17XH10 0 Series Bedienungsanleitung

LG A9 Series Bedienungsanleitung

Oreck

Oreck Cordless Captura BK51700 Series Bedienungsanleitung

Kogan

Kogan KAVACROBVWA Bedienungsanleitung

Kränzle

Kränzle VENTOS 50 ID Benutzerhandbuch

EVVO

EVVO Ai35 Bedienungsanleitung

DeWalt

DeWalt DWH200D Bedienungsanleitung

Pontec

Pontec Pondomatic Vacuum Cleaner Bedienungsanleitung

Cleanmaxx

Cleanmaxx PC-P007E Bedienungsanleitung

Exido

Exido 240-114 Bedienungsanleitung

RIDGID

RIDGID WD1685AU0 Bedienungsanleitung

Ezviz

Ezviz RE4P Bedienungsanleitung

STG global

STG global TANVAC HDV3000 Bedienungsanleitung

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Bedienungsanleitung

Factory

Factory M3340 Bedienungsanleitung

Shop-Vac

Shop-Vac VN92 SERIES Bedienungsanleitung
