ENGLISH
(Original instructions)
Intended use
Your Black & Decker ORB handheld vacuum cleaner has
been designed for light dry vacuum cleaning purposes.
This appliance is intended for household use only.
Safety instructions
@Warning! Read all safety warnings and all
instructions. Failure to follow the warnings
and instructions listed below may result in
electric shock, re and/or serious injury.
@Warning! When using battery-powered ap-
pliances, basic safety precautions, including
the following, should always be followed
to reduce the risk of re, leaking batteries,
personal injury and material damage.
uRead all of this manual carefully before using the
appliance.
uThe intended use is described in this manual. The use
of any accessory or attachment or the performance
of any operation with this appliance other than those
recommended in this instruction manual may present
a risk of personal injury.
uRetain this manual for future reference.
Using your appliance
uDo not use the appliance to pick up liquids.
uDo not use the appliance to pick up any materials that
could catch re.
uDo not use the appliance near water.
uDo not immerse the appliance in water.
uNever pull the charger lead to disconnect the charger
from the socket. Keep the charger lead away from
heat, oil and sharp edges.
uThis appliance is not intended for use by young or
inrm persons without supervision. Children must be
supervised to ensure they do not play with the appli-
ance.
After use
uUnplug the charger before cleaning the charger or
charging base.
uWhen not in use, the appliance should be stored in a
dry place.
uChildren should not have access to stored appliances.
Inspection and repairs
uBefore use, check the appliance for damaged or
defective parts. Check for breakage of parts, damage
to switches and any other conditions that may affect
its operation.
uDo not use the appliance if any part is damaged or
defective.
uHave any damaged or defective parts repaired or
replaced by an authorized repair agent.
uRegularly check the charger lead for damage. Replace
the charger if the lead is damaged or defective.
uNever attempt to remove or replace any parts other
than those specied in this manual.
5
ENGLISH
(Original instructions)
Additional safety instructions - batteries and
chargers
Batteries
uNever attempt to open for any reason.
uDo not expose the battery to water.
uDo not expose the battery to heat.
uDo not store in locations where the temperature may
exceed 40°C.
uCharge only at ambient temperatures between 10°C
and 40°C.
uCharge only using the charger provided with the appli-
ance/tool. Using the wrong charger could result in an
electric shock or overheating of the battery.
uWhen disposing of batteries, follow the instructions
given in the section "Protecting the environment".
uDo not damage/deform the battery pack either by
puncture or impact, as this may create a risk of injury
and re.
uDo not charge damaged batteries.
uUnder extreme conditions, battery leakage may occur.
When you notice liquid on the batteries carefully wipe
the liquid off using a cloth. Avoid skin contact.
uIn case of skin or eye contact, follow the instructions
below.
Warning! The battery uid may cause personal injury or
damage to property. In case of skin contact, immediately
rinse with water. If redness, pain or irritation occurs seek
medical attention. In case of eye contact, rinse immedi-
ately with clean water and seek medical attention.
Chargers
Your charger has been designed for a specic voltage.
Always check that the mains voltage corresponds to the
voltage on the rating plate.
Warning! Never attempt to replace the charger unit with a
regular mains plug.
uUse your Black & Decker charger only to charge the
battery in the appliance/tool with which it was sup-
plied. Other batteries could burst, causing personal
injury and damage.
uNever attempt to charge non-rechargeable batteries.
uIf the supply cord is damaged, it must be replaced by
the manufacturer or an authorised Black & Decker
Service Centre in order to avoid a hazard.
uDo not expose the charger to water.
uDo not open the charger.
uDo not probe the charger.
uThe appliance/tool/battery must be placed in a well
ventilated area when charging.
Safety of others
uThis appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning the use of the appliance by a
person responsible for their safety.
uChildren should be supervised to ensure that they do
not play with the appliance.
6
ENGLISH
(Original instructions)
Residual risks.
Additional residual risks may arise when using the tool
which may not be included in the enclosed safety warn-
ings. These risks can arise from misuse, prolonged use
etc.
Even with the application of the relevant safety regulations
and the implementation of safety devices, certain residual
risks can not be avoided. These include:
uInjuries caused by touching any rotating/moving parts.
uInjuries caused when changing any parts, blades or
accessories.
uInjuries caused by prolonged use of a tool. When
using any tool for prolonged periods ensure you take
regular breaks.
uImpairment of hearing.
uHealth hazards caused by breathing dust developed
when using your tool (example:- working with wood,
especially oak, beech and MDF.)
Electrical safety
Your charger has been designed for a specic voltage.
Always check that the mains voltage corresponds to the
voltage on the rating plate. Never attempt to replace the
charger unit with a regular mains plug.
Symbols on the charger
Warning! Read all of this manual carefully
before using the appliance.
#This charger is double insulated; therefore no
earth wire is required. Always check that the
power supply corresponds to the voltage on
the rating plate.
wShort circuit proof safety isolating transform-
er. The mains supply is electrically separated
from the transformer output.
xThe charger automatically shuts off if the
ambient temperature becomes too high. As a
consequence the charger will be inoperable.
The charging base must be disconnected
from the mains supply and taken to an
authorised service centre for repair.
$The charging base is intended for indoor
use only.
7
ENGLISH
(Original instructions)

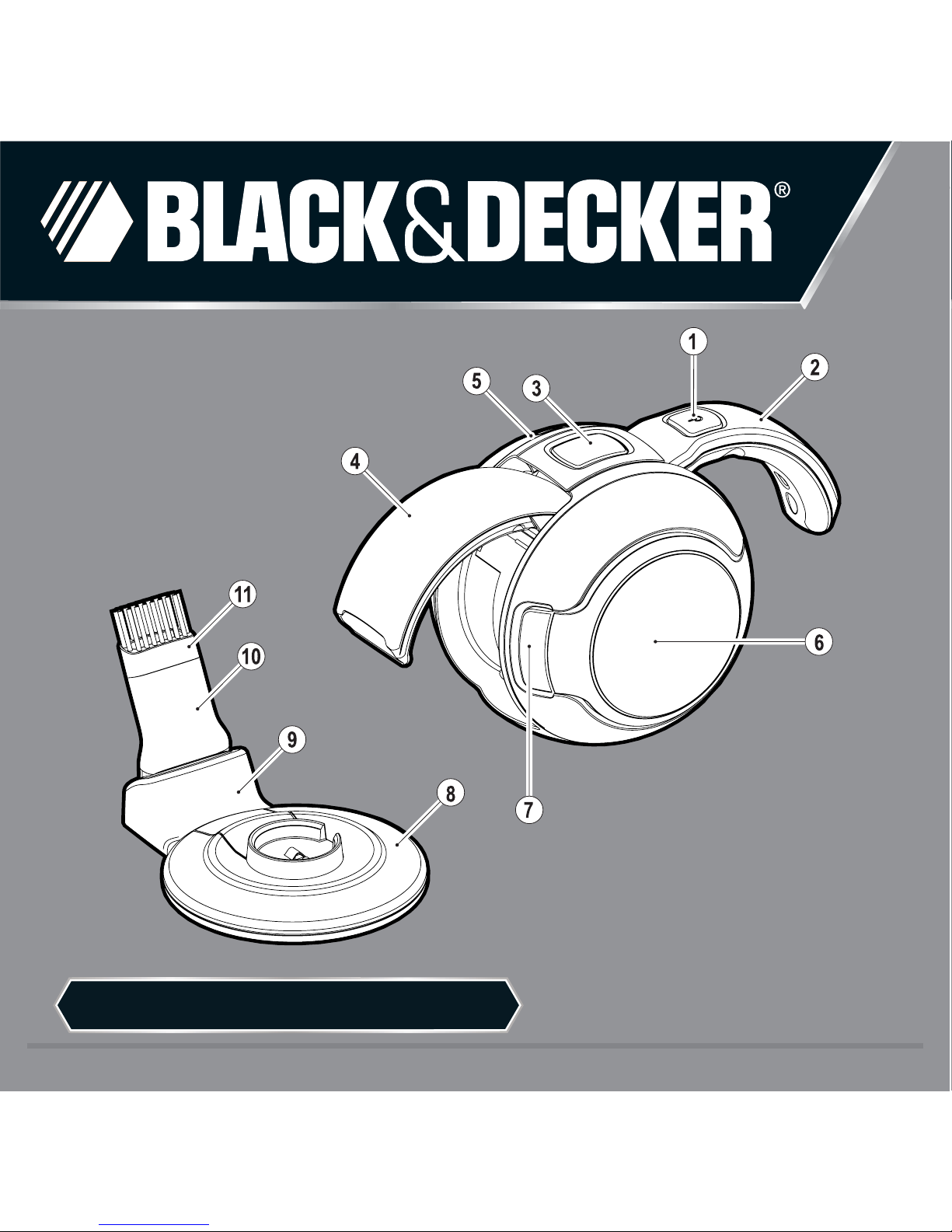

Features
This tool includes some or all of the following features.
1. On/Off button
2. Handle
3. Handle reset button
4. Nozzle
5. Charging indicator
6. Dust collector cover
7. Cover release button
8. Charging base
9. Accessory caddy
10. Crevice tool
11. Brush tool
Assembly
Accessories (g. A & B)
These models may be supplied with some of the following
accessories:
uAn accessory caddy for storing your accessories.
uA crevice tool (10) for conned spaces.
uBrush tool (11) for furniture and stairs.
Fitting the accessory caddy (Fig.A)
uPlace the edge of the charger base (8) on to the edge
of the accessory caddy (9).
uInsert the brush tool (11) into the front of the crevice
tool (10) then push the crevice tool into the accessory
caddy.
Fitting the accessories (Fig. B)
uLift the handle (2) until it clicks into place. The nozzle
(4) will automatically lift at the same time.
uInsert the crevice tool (10) into the front of the nozzle
(4). Make sure that it is pushed fully in. If the brush
tool (11) is required then insert the brush tool (11) onto
the front of the crevice tool (10).
Use
uBefore rst use, the battery must be charged for at
least 24 hours.
uPlace the appliance on the charging base whenever it
is not in use.
Charging the battery (Fig. C)
uPlace the appliance on the charging base (8)
uPlug in the charger. Switch on at the mains. The
charging indicator (5) will be lit.
uLeave the appliance to charge for at least 16 hours.
While charging, the charger may become warm. This is
normal and does not indicate a problem. The appliance
can be left connected to the charger indenitely. The
charging indicator (5) will be lit as long as the appliance is
connected to the plugged-in charger.
Warning! Do not charge the battery at ambient tempera-
tures below 10 °C or above 40 °C.
To open the appliance (g. D)
uLift the handle (2) until it clicks into place.
The nozzle (4) will automatically lift at the same time.
8
ENGLISH
(Original instructions)
To close the appliance (Reset the handle and
nozzle) (g. D)
uPress the handle release button (3).
The nozzle (4) and the handle (2) will fall together.
Switching on and off (g. E)
uTo switch the appliance on, press and hold the power
button (1).
uTo switch the appliance off, release the power button
(1).
Note: The handle must be in the open position or the
appliance will not turn on.
Optimising the suction force
In order to keep the suction force optimised, the lters
must be cleared regularly during use.
Emptying the appliance (g. F)
uHold the appliance so that the dust collector cover (6)
is facing upwards.
uPress the cover release button (7) the dust collector
cover (6) will open.
uWhile holding the appliance over a bin or sink, lift out
the lter (12) and empty the contents of the appliance.
uReplace the lter.
uClose the dust collector cover (6).
Note: The lters are re-usable and should be cleaned
regularly.
Warning! Never use the appliance without the lters.
Optimum dust collection will only be achieved with clean
lters.
Maintenance and cleaning
Your Black & Decker cordless appliance has been
designed to operate over a long period of time with a mini-
mum of maintenance. Continuous satisfactory operation
depends upon proper appliance care and regular cleaning.
Warning! Before performing any maintenance on cordless
appliances:
uSwitch off and unplug the appliance.
uOr switch off and remove the battery from the appli-
ance if the appliance has a separate battery pack.
uOr run the battery down completely if it is integral and
then switch off.
uUnplug the charger before cleaning it. Your charger
does not require any maintenance apart from regular
cleaning.
Cleaning the appliance
uRegularly clean the ventilation slots in your appliance
using a soft brush or dry cloth.
uRegularly clean the outside of your appliance using a
damp cloth. Do not use any abrasive or solvent-based
cleaner.
uThe inside of the dust bowl can be cleaned using a
soft brush or dry cloth.
Cleaning the lters
uThe lters can cleaned using a soft brush or dry cloth.
uThe lters can be washed in warm soapy water.
uMake sure that the lters are dry before re-tting.
9
ENGLISH
(Original instructions)
Replacing the lters
The lters should be replaced every 6 to 9 months and
whenever worn or damaged.
Replacement lters are available from your Black &
Decker dealer: Filter part number VFORB10-XJ
Protecting the environment
ZSeparate collection. This product must not be
disposed of with normal household waste.
Should you nd one day that your Black & Decker product
needs replacement, or if it is of no further use to you, do
not dispose of it with household waste. Make this product
available for separate collection.
zSeparate collection of used products and
packaging allows materials to be recycled
and used again. Re-use of recycled materials
helps prevent environmental pollution and
reduces the demand for raw materials.
Local regulations may provide for separate collection of
electrical products from the household, at municipal waste
sites or by the retailer when you purchase a new product.
Black & Decker provides a facility for the collection and
recycling of Black & Decker products once they have
reached the end of their working life. To take advantage of
this service please return your product to any authorised
repair agent who will collect them on our behalf.
You can check the location of your nearest authorised
repair agent by contacting your local Black & Decker ofce
at the address indicated in this manual. Alternatively, a list
of authorised Black & Decker repair agents and full details
of our after-sales service and contacts are available on the
Internet at: www.2helpU.com
Battery (Fig. G)
ZIf you want to dispose of the product
yourself, the battery must be removed as
described below and disposed of in accord-
ance with local regulations.
uDischarge the battery by operating the appliance until
the motor stops.
uUsing a screwdriver, carefully remove the decorative
facia (13) by inserting it into the recess (14) and lifting.
uRemove the four screws (15) holding the body of the
appliance together.
uLift the housing cover away from the assembly.
uLift out the battery pack / motor assembly.
uDetach all lead connections from the battery pack /
motor assembly.
uRemove battery pack / motor assembly.
uPlace the battery pack in a suitable package to ensure
that the terminals can not be short-circuited.
uTake the battery to your service agent or to a local
recycling station.
Once removed, the battery can not be retted.
10
ENGLISH (Original instructions)
Technical data
ORB48 (H1)
Voltage Vdc 4.8
Battery Type NiMH
Weight kg 0.75
Charger
Input voltage Vac 230
Output voltage Vac 9
Current mA 200
Approximate
charge time
h16
Weight kg 0.22
Service Information
Black & Decker offers a full network of company-owned
and authorized service locations throughout Asia. All
Black & Decker Service Centers are staffed with trained
personnel to provide customers with efficient and reliable
power tool service.Whether you need technical advice,
repair, or genuine factory replacement parts, contact the
Black & Decker location nearest to you.
Notes
Black & Decker's policy is one of continuous
improvement to our products and, as such, we reserve
the right tochange product specifications without prior
notice.
Standard equipment and accessories may vary by country.
Product specifications may differ by country.
Complete product range may not be available in all
countries. Contact your local Black & Decker dealers
for range availability.
Andere Handbücher für Orb-it ORB48
1
Inhaltsverzeichnis
Sprachen:
Andere Black & Decker Staubsauger Handbücher
Black & Decker
Black & Decker Powerful Solutions Dustbuster Flexi PD1200 Bedienungsanleitung
Black & Decker
Black & Decker DustBuster CHV1408 Bedienungsanleitung
Black & Decker
Black & Decker WD4810-XE Bedienungsanleitung
Black & Decker
Black & Decker CHV415J Bedienungsanleitung
Black & Decker
Black & Decker NVB12AV Bedienungsanleitung
Black & Decker
Black & Decker 6600 Bedienungsanleitung
Black & Decker
Black & Decker Dustbuster AV1210 Bedienungsanleitung
Black & Decker
Black & Decker CHV1410L Series Bedienungsanleitung
Black & Decker
Black & Decker dustbuster pad1200 Bedienungsanleitung
Black & Decker
Black & Decker BDH1600PL Bedienungsanleitung
Black & Decker
Black & Decker HSVJ415JMPS Bedienungsanleitung
Black & Decker
Black & Decker Dustbuster NW4860SPT-B3 Bedienungsanleitung
Black & Decker
Black & Decker BDRV1 Bedienungsanleitung
Black & Decker
Black & Decker CV7205T Bedienungsanleitung
Black & Decker
Black & Decker dustbuster pad1200 Bedienungsanleitung
Black & Decker
Black & Decker CHV7202 Bedienungsanleitung
Black & Decker
Black & Decker orb-it ORB72 Bedienungsanleitung
Black & Decker
Black & Decker CHV7250 Bedienungsanleitung
Black & Decker
Black & Decker FSM1605 Bedienungsanleitung
Black & Decker
Black & Decker BDH2000L Bedienungsanleitung
Beliebte Staubsauger Handbücher anderer Marken
Bissell
Bissell LittleGreen Proheat 1425 Series Bedienungsanleitung
Panasonic
Panasonic MC-YL637S147-AE Bedienungsanleitung
NEFF
NEFF N17XH10 0 Series Bedienungsanleitung
LG
LG A9 Series Bedienungsanleitung
Oreck
Oreck Cordless Captura BK51700 Series Bedienungsanleitung
Kogan
Kogan KAVACROBVWA Bedienungsanleitung
