Black & Decker VM425 Bedienungsanleitung

VM425 1400 Watt Canister Vacuum Cleaner

VM425

Please read through this booklet for safe and efficient use of the appliance.

We urge you to read the "Hint's" section and also follow all detailed

instructions even if you are familiar with a similar appliance.

Keep this guide handy for future reference.

First Use Safety Recommendation

While using electrical appliances, in order to reduce the risk of fire, electric shock,

and / or injury to persons, basic safety precautions should be followed, including the

following:

• Read all instructions carefully, even if you are familiar with the appliance.

• To protect against the risk of electric shock, DO NOT IMMERSE the appliance,

cord set or plug in water or other liquids.

• To clean, wipe the exterior with a damp cloth.

• Close supervision is necessary when any appliance is used near children. Never

leave an appliance unattended when in use.

• Switch off and remove the plug from the power outlet when not in use, before

assembling or disassembling parts, cleaning or carrying out any maintenance of

the appliance. Never pull the cord while unplugging out from power outlet.

• Do not operate any appliance with a damaged cord or plug, or after the appliance

malfunctions, or is dropped or damaged in any manner. Return the complete

appliance to your nearest authorized service facility for examination, electrical

repair, mechanical repair or adjustment to avoid any hazard.

• The use of attachments or accessories not recommended or sold by this

appliance manufacturer may result in fire, electric shock or personal injury.

• Do not let the cord hang over the edge of a table, counter, or touch hot surfaces.

• Avoid touching hot surfaces, use handles and knobs.

• Do not operate or place any part of this appliance on or near any hot surfaces

(such as gas or electric burner or in a heated oven).

• Do not abuse the cord. Never carry the appliance by the cord or yank it to

disconnect it from the outlet; instead, grasp the plug and pull to disconnect.

• When using an extension cord with your appliance, make sure the extension cord

is correctly wired, and rated for its use.

• This product is intended for household use only.

• Do not attempt to repair the appliance yourself; instead, take it to your Black &

Decker-owned or Authorized Service Centre for repair.

IMPORTANT SAFEGUARDS

SAVE THESE INSTRUCTIONS

Parts Identification

1. Air flow handle

2. Speed regulation knob

3. Switch button

4. Cord rewind button

5. Dust full indicator

6. Suction tube head

7. Handle

8. Hose

9. Connecting tube

10. Power cord

11. Floor brush

Features

• 4.0 Ltr. Cloth Dustbag allows longer use without stoppage

• Plastic Tube & Floor Brush allows convenient usage and minimizes fatigue

• Fully Rotary Hose Socket rotates 360 degrees for usage convenience

• Foot pedal controls greater operational convenience

• Automatic cord rewinder for easy storage

• Three stage filteration for cleaner air

How to use your Vacuum Cleaner

Your new vacuum cleaner is intended for household usage only.

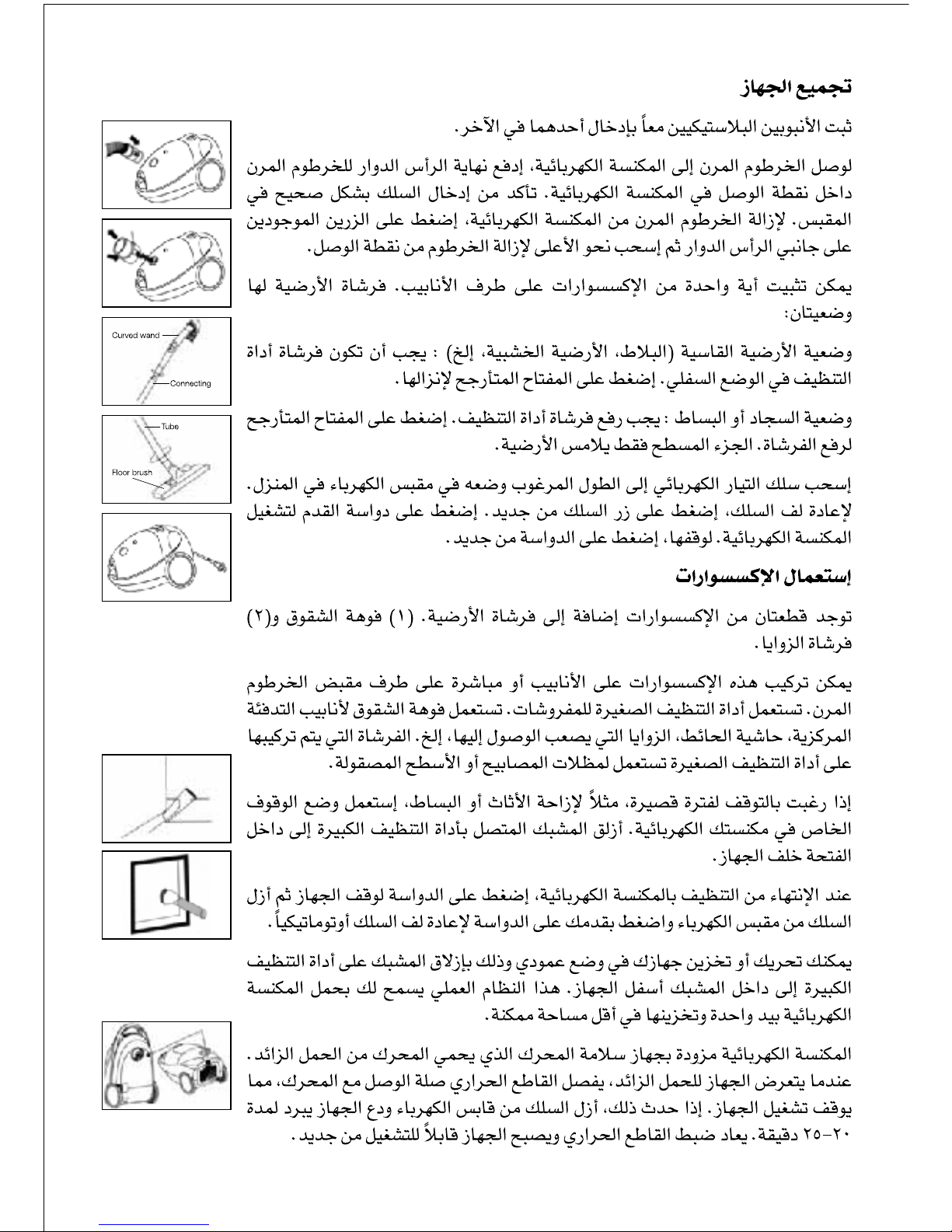

Assembling The Appliance

Fix the two plastic tubes together by inserting one into the other.

To attach the flexible hose to the vacuum cleaner, push the end of the

pivoting head on the flexible hose into the attachment point on the vacuum

cleaner. Make sure that the plug is correctly inserted into the socket. To

remove the flexible hose from the vacuum cleaner, press on the two

buttons situated on the either side of the pivoting head then pull upwards to

remove it from the attachment point.

Any of the accessories could be fitted onto the end of the tubes. The floor

accessory has two positions:

Hard Floor (tiles, parquet floors, etc.) position - The cleaning tool's brush

must be in the lower position. Press on the rocker switch to lower it.

Carpet or rug position - The cleaning tool's brush should be raised. Press

the rocker switch to lift the brush up. Only the flat part of the tool is in

contact with the floor.

Pull the mains lead out to the desired length and plug it into a standard

domestic outlet. To retract press the cord button again. Press the foot

pedal to start the vacuum cleaner. To stop it press the pedal again.

Using the Accessories

There are two accessories provided in addition to the floor brush. (i) Crevic

nozzle (ii) Cornerbrush.

These accessories could be fitted on to the tubes or directly onto the end

of the flexible hose handle. The small cleaning tool is used for upholstered

furniture. The crevice nozzle is used for radiators, skirting boards, hard to

reach corners, etc. The brush which fits onto the small cleaning tool is used

for lampshades or polished surfaces.

If you wish to pause briefly during vacuuming ie. to move a small piece of

furniture or a rug, use the special parking position on your vacuum cleaner.

Slide the hook attached to the large cleaning tool into the slot on the rear of

the appliance.

When you have finished vacuuming, press pedal to stop the appliance then

unplug it at the mains and press your foot on the pedal to automatically

rewind the cord.

You can move or store your appliance in a vertical position by sliding the

hook on the large cleaning tool into the clip on the underside of the

appliance. This practical system allows you to carry the vacuum cleaner

around in one hand and to store it in the minimum of space.

Your product is fitted with a motor safety device, which protects the motor

from overloading. When the unit is overloaded, the thermal-cut-off will trip

the connection to the motor, thus preventing the unit from further operation.

If this does happen, unplug the unit from main and let the unit cool down

for 20-25 minutes. The thermal-cut-off will reset and the unit will be

operational once again.

Curved wand

Floor brush

Connecting

Tub e

How to care for your Vacuum Cleaner

Your appliance is equipped with a fabric dust bag. If you notice, the vacuum

cleaner's suction power is below normal levels, check the dust indicator by

selecting the maximum power and lifting the cleaning tool off the floor. If it

turns red, change/clean the bag.

To change the dustbag, turn off the appliance and unplug it. Lift up the

latch to gain access to the dustbag compartment and raise the cover. Pull

the handle up to remove the bag holder. Handle the bag carefully. Refer

the 'Dust Bag Emptying' instructions to empty it. Do not forget to regularly

clean the dustbag and filter. The efficiency of your cleaner and the life of the

motor depends on it.

Clean the vacuum cleaner body with a damp cloth. Do not use any

abrasives.

Change of Filters

Motor protection air filter is located in the dust bag compartment and

protects the motor from dust. To reach this filter, lift up the grill which

secures it and replace it with a new one after emptying the dust bag 5

times.

Attention: Dot not use the vacuum cleaner without the motor protection

filter. There are also filters at the end of the unit. Press the lever down to

gain access to this filter. Clean this filter regularly for more purified air.

Dust Bag Indicator

When the dust bag or air filters are full of dust, the "dust full indicator" on top

of the body will be covered by red indications. This shows that your need to

empty the dust bag or clean the air filters.

Dust Bag Emptying

Make sure to empty the dust bag after every five uses. The motor life will be

effected if worked with full dust bag.

You can empty the dustbag in the following ways:

• Hold the dustbag over a dustbin. Remove the clip by sliding it off the

dustbag sideways.

• Shake the contents of the dustbag in to the dustbin.

• Close the dustbag by sliding the clip back onto the bottom edge of the

dustbag.

Hint's

• Never put the appliance in water

• Do not touch the plug or the vacuum cleaner with wet hands

• Dot not use your vacuum cleaner outside the house, on wet surfaces, or

to pick up wet or humid dirt.

• Do not suck up inflammable liquids such as cleaning fluids, gasoline, etc,

or their vapours.

• Do not vacuum hard, sharp or over-large objects, matches, hot ashes,

cigarette butts or similar materials

Red

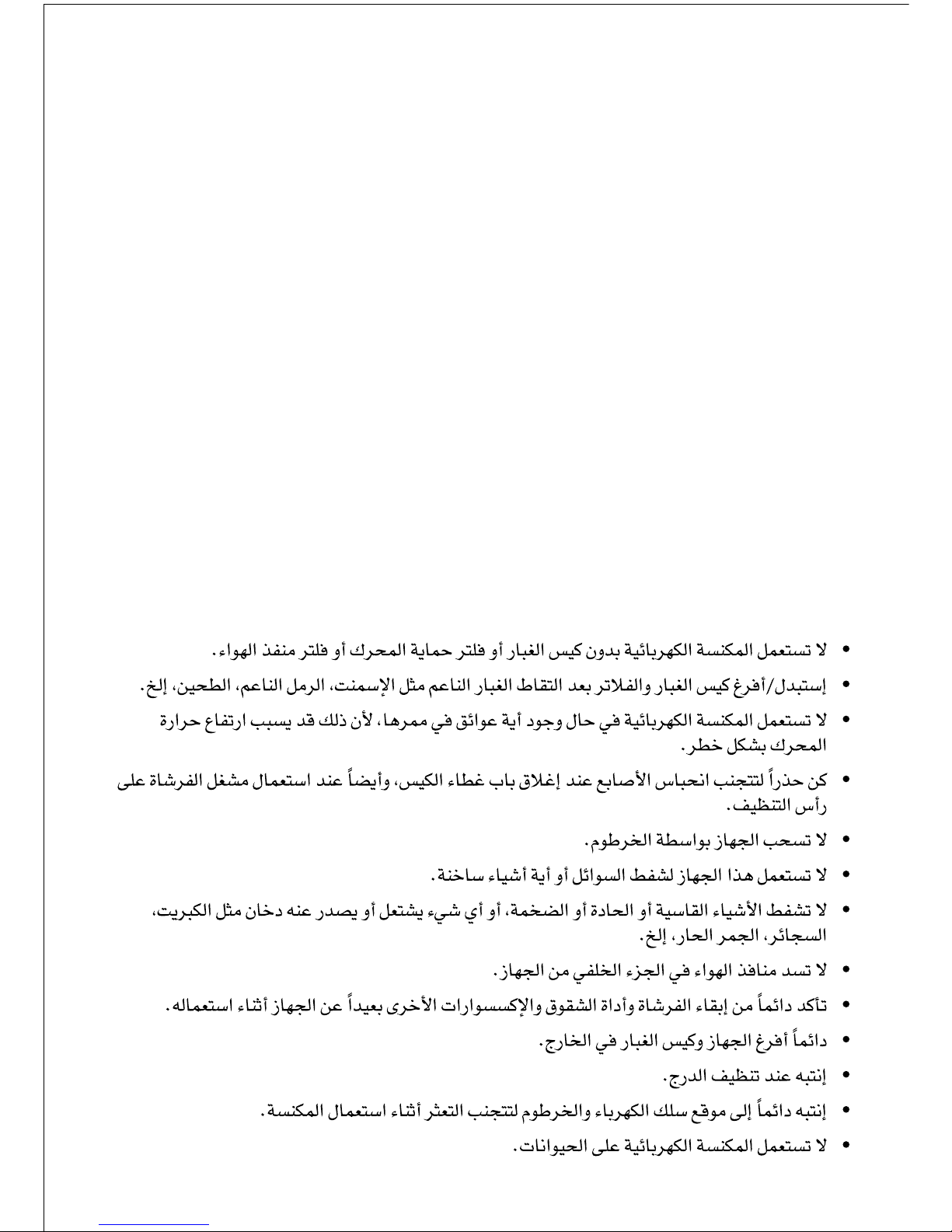

• Do not use the vacuum cleaner without its dustbag or motor protection and air outlet filters.

• Replace/empty the dust bag and filters after picking up fine dust such as cement, very fine

sand, flour, etc.

• Dot not use the cleaner if there is any obstruction in its passages, for this may dangerously

overheat the motor.

• Be careful to avoid trapping fingers when closing the bag cover door, also when using the

brush actuator on cleaning head.

• Dot not pull the appliance by the hose.

• Do not use this appliance to pick up liquids and any hot items.

• Do not vacuum hard, sharp or over-large objects, or anything burning or smoking like

matches, cigarettes, hot ashes etc.

• Do not block the vents at the back of the unit.

• Avoid inhaling the dust when emptying the dust bag.

• Always keep the brush, crevice tool and other accessories away from the body while the

unit is in operation.

• Always empty the appliance and dust bag outside.

• Take extra precaution while cleaning the stairs

• Always be aware of the position of power cable and hose so as to avoid a tripping hazard

during use.

• Do not use the vacuum cleaner on animals.
