SP12AB-V2 QUICK REFERENCE GUIDE

www.blustream.co.uk

Quick Reference Guide

SP12AB-V2

Our SP12-V2 4K HDMI 2.0 splitter distributes a single HDMI source to two simultaneousoutputs. The splitter

supports full HDMI 2.0 and HDCP 2.2 with video resolutions up to and including 4K @ 60Hz 4:4:4.

Introduction

Key Features:

• Features 1x HDMI input that is replicated to 2x HDMI outputs

• Supports full HDMI 2.0 4K UHD video including HDR (up to 4K @60Hz 4:4:4)

• HDCP 2.2 compliant

• Supports 3D signal display

• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K

• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and

DTS-HD Master Audio transmission

• Advanced EDID management

Power Input Output 1 Output 2

2-way 4K HDMI 2.0 Splitter

Input

EDID

3 2 1 0

Update Output 1 Output 2 Coaxial

Audio Out

L/R

DC 5V

SP12AB-V2

Power Input Output 1 Output 2

2-way 4K HDMI 2.0 Splitter

Input

EDID

3 2 1 0

Update Output 1 Output 2 Coaxial

Audio Out

L/R

DC 5V

SP12AB-V2

All manuals and user guides at all-guides.com

all-guides.com

SP12AB-V2 QUICK REFERENCE GUIDE

contact support@blustream.co.uk / support@blustream.com.au

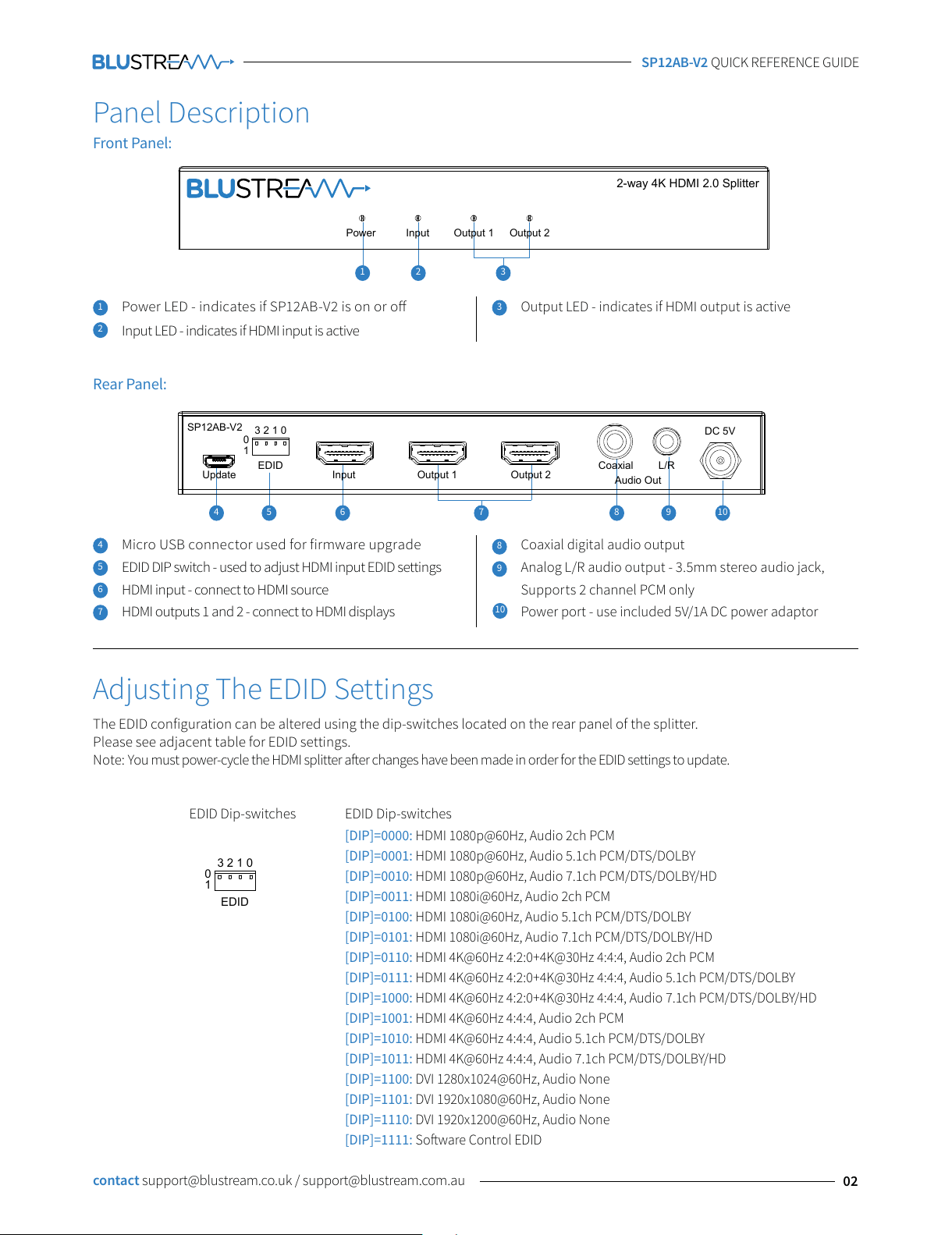

Panel Description

Front Panel:

Rear Panel:

The EDID configuration can be altered using the dip-switches located on the rear panel of the splitter.

Please see adjacent table for EDID settings.

Note: You must power-cycle the HDMI splitter aer changes have been made in order for the EDID settings to update.

Adjusting The EDID Settings

EDID Dip-switches

[DIP]=0000: HDMI 1080p@60Hz, Audio 2ch PCM

[DIP]=0001: HDMI 1080p@60Hz, Audio 5.1ch PCM/DTS/DOLBY

[DIP]=0010: HDMI 1080p@60Hz, Audio 7.1ch PCM/DTS/DOLBY/HD

[DIP]=0011: HDMI 1080i@60Hz, Audio 2ch PCM

[DIP]=0100: HDMI 1080i@60Hz, Audio 5.1ch PCM/DTS/DOLBY

[DIP]=0101: HDMI 1080i@60Hz, Audio 7.1ch PCM/DTS/DOLBY/HD

[DIP]=0110: HDMI 4K@60Hz 4:2:0+4K@30Hz 4:4:4, Audio 2ch PCM

[DIP]=0111: HDMI 4K@60Hz 4:2:0+4K@30Hz 4:4:4, Audio 5.1ch PCM/DTS/DOLBY

[DIP]=1000: HDMI 4K@60Hz 4:2:0+4K@30Hz 4:4:4, Audio 7.1ch PCM/DTS/DOLBY/HD

[DIP]=1001: HDMI 4K@60Hz 4:4:4, Audio 2ch PCM

[DIP]=1010: HDMI 4K@60Hz 4:4:4, Audio 5.1ch PCM/DTS/DOLBY

[DIP]=1011: HDMI 4K@60Hz 4:4:4, Audio 7.1ch PCM/DTS/DOLBY/HD

[DIP]=1100: DVI 1280x1024@60Hz, Audio None

[DIP]=1101: DVI 1920x1080@60Hz, Audio None

[DIP]=1110: DVI 1920x1200@60Hz, Audio None

[DIP]=1111: Soware Control EDID

EDID Dip-switches

Power LED - indicates if SP12AB-V2 is on or o

Input LED - indicates if HDMI input is active

Output LED - indicates if HDMI output is active

Micro USB connector used for firmware upgrade

EDID DIP switch - used to adjust HDMI input EDID settings

HDMI input - connect to HDMI source

HDMI outputs 1 and 2 - connect to HDMI displays

Coaxial digital audio output

Analog L/R audio output - 3.5mm stereo audio jack,

Supports 2 channel PCM only

Power port - use included 5V/1A DC power adaptor

4 65 8 9 10

710

Power Input Output 1 Output 2

2-way 4K HDMI 2.0 Splitter

Input

EDID

3 2 1 0

Update Output 1 Output 2 Coaxial

Audio Out

L/R

DC 5V

SP12AB-V2

Power Input Output 1 Output 2

2-way 4K HDMI 2.0 Splitter

Input

EDID

3 2 1 0

Update Output 1 Output 2 Coaxial

Audio Out

L/R

DC 5V

SP12AB-V2

Power Input Output 1 Output 2

2-way 4K HDMI 2.0 Splitter

Input

EDID

3 2 1 0

Update Output 1 Output 2 Coaxial

Audio Out

L/R

DC 5V

SP12AB-V2

All manuals and user guides at all-guides.com

SP12AB-V2 QUICK REFERENCE GUIDE

www.blustream.co.uk

Example Schematic

SP12AB-V2

Stereo Audio

HDMI

Input

EDID

3 2 1 0

Update Output 1 Output 2 Coaxial

Audio Out

L/R

DC 5V

SP12AB-V2

1 x 4K SOURCE

DISPLAY 1

DISPLAY 2

All manuals and user guides at all-guides.com

SP12AB-V2 QUICK REFERENCE GUIDE

contact support@blustream.co.uk / support@blustream.com.au

Package Contents:

Specifications:

• 1x SP12AB-V2

• 1x 5V/1A DC power supply

• 1x Mounting kit

• 1x Quick reference guide

Video Input Connectors: 1x HDMI Type A, 19-pin, female

Video Output Connectors: 2x HDMI Type A, 19-pin, female

Audio Output Connectors: 1x RCA (SPDIF), 1x 3.5mm stereo jack (L/R)

EDID: 4-Pin DIP switch

Casing Dimensions (W x D x H): 159mm x 64mm x 22mm

Dimensions Inc. Connections (W x D x H): 159mm x 71mm x 22mm

Shipping Weight: 0.4kg

Operating Temperature: 32°F to 104°F (0°C to 40°C)

Storage Temperature : -4°F to 140°F (-20°C to 60°C)

Power Supply : 5V/1A DC

Audio Breakout

The splitter includes audio breakout from the selected HDMI input to associated analogue L/R audio and coaxial digital outputs.

Extracted audio will be concurrent with the corresponding HDMI video output. Note: Source input must be PCM 2ch audio for

analogue audio outputs to work. The splitter does not down-mix multi-channel audio signals.

Coaxial digital output - Output 1

Analogue fixed line level output 3.5mm stereo jack - Output 2

Power Input Output 1 Output 2

2-way 4K HDMI 2.0 Splitter

Input

EDID

3 2 1 0

Update Output 1 Output 2 Coaxial

Audio Out

L/R

DC 5V

SP12AB-V2

RevA4_QRG_SP12AB-V2_180420_Web Layout
