Bodyworx JX150 Bedienungsanleitung

Treadmill

Model No:

Retain this owner’s manual for future reference

Read and follow all instructions in this owner’s manual

Version A

JX150

BODY WORX

All manuals and user guides at all-guides.com

all-guides.com

- 1 -

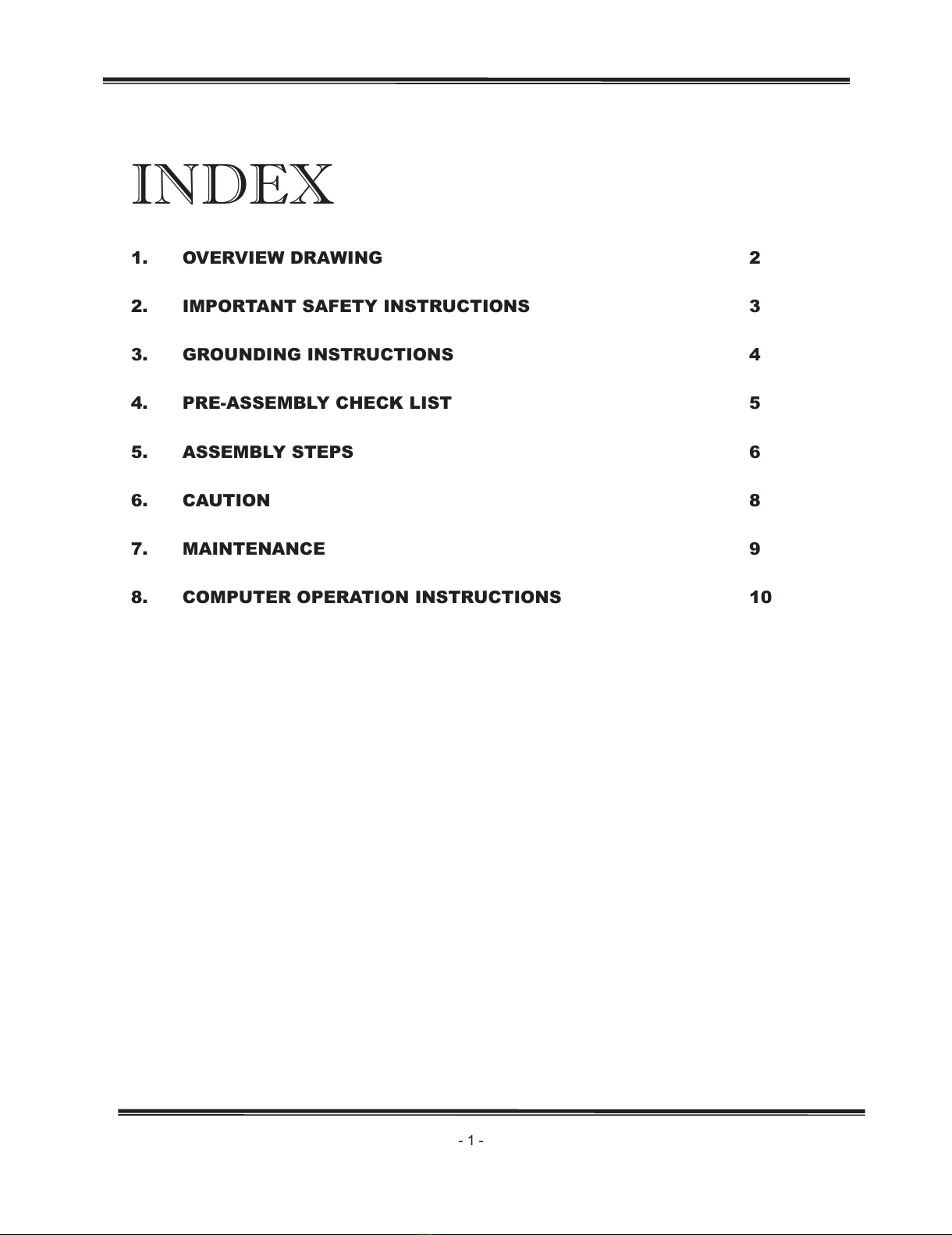

INDEX

1. OVERVIEW DRAWING 2

2. IMPORTANT SAFETY INSTRUCTIONS 3

3. GROUNDING INSTRUCTIONS 4

4. PRE-ASSEMBLY CHECK LIST 5

5. ASSEMBLY STEPS 6

6. CAUTION 8

7. MAINTENANCE 9

8. COMPUTER OPERATION INSTRUCTIONS 10

All manuals and user guides at all-guides.com

- 2 -

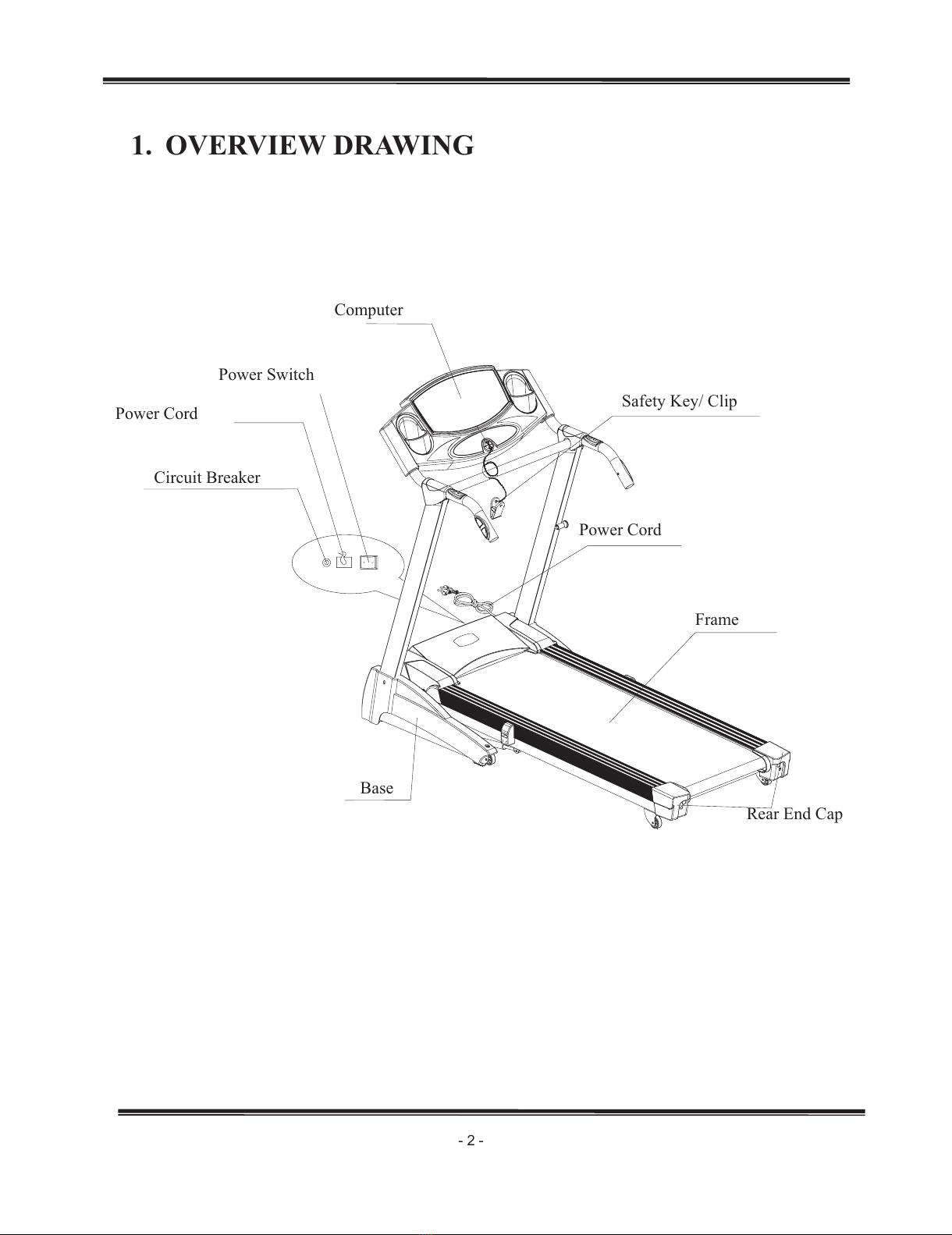

1. OVERVIEW DRAWING

電源開關

電源線

Computer

Safety Key/ Clip

Power Switch

Power Cord

Frame

Base

Rear End Cap

Circuit Breaker

All manuals and user guides at all-guides.com

- 3 -

2. IMPORTANT SAFETY INSTRUCTIONS

When using this product, basic precautions should always be followed, including the following:

Please read the instructions carefully before starting to use this product.

Danger – To reduce the risk of electric shock：

1. Always unplug this product from the electrical outlet immediately after using and before

cleaning the treadmill.

Warning – To reduce the risk of burns, fire, electric shock, or physical injury：

1. The product should never be left unattended while plugged in.

Unplug the product from the outlet when not in use or before putting on or taking off the

clothes and other belongings.

2. To avoid any danger, close supervision is necessary when this product is used by children,

invalids or disabled persons.

3. Be sure to use the product only for its intended use as described in this manual. Do not use any

attachment not recommended by the manufacturer in order to avoid any dangers or accidents.

4. Never operate the product if it has a damaged cord or plug; if it is not working properly; if it

has been damaged; or dropped into water. Please return the product to the service center or

seller for examination and repair.

5. Do not carry this product by the supply cord or use the cord as a handle.

6. Keep the cord away from hot surfaces or ground.

7. Never operate the product with the air vents blocked. Keep the air vents free of lint, hair, et cetera.

8. Never drop or insert any objects into any vent of the treadmill.

9. Do not use or operate outdoors.

10. Do not operate where aerosol (spray) products are being used or where oxygen is thin.

11. Before turning the product power off, turn all controls to the off position then remove the plug

from the outlet.

12. Connect the product to a properly grounded outlet only.

13. If the power cord is damaged, be sure to ask the manufacturer for replacement to avoid

accidents.

All manuals and user guides at all-guides.com

- 4 -

3. GROUNDING INSTRUCTIONS

The product must be grounded first. If malfunction or breakdown occurs, grounding will provide a

path of least resistance for electric current to reduce the risk of electric shock.

The product is equipped with an equipment-grounding conductor and a grounding plug.

The plug must be plugged into an appropriate outlet that is properly installed and grounded in

accordance with all local codes and ordinances.

Danger – Improper connection of the equipment-grounding conductor can result in a risk of

electric shock. Check with a qualified electrician or serviceman if you doubt whether the product

is properly grounded. Do not modify the plug provided with the product - if it will not fit the

outlet, have a proper outlet installed by a qualified electrician.

The product is for use on normal 220V-240V circuit and contains a plug that looks like the one

illustrated in the figure below. Make sure that the product is connected to an outlet having the same

configuration as the plug. No adapter should be used with the product.

Figure

Grounding methods

GROUNDED

OUTLET

GROUNDED PIN

All manuals and user guides at all-guides.com

- 5 -

4. PRE-ASSEMBLY CHECK LIST PRE-ASSEMBLY CHECK LIST

a b c d e

EFG

ITEM Description Qty ITEM ption Descri Qty

A Frame 1 a Truss Hex Screw M8xP1.25x40 2

B Left Decoration Cover 1 b Truss Hex Screw M8xP1.25x15 4

C Right Decoration Cover 1 c Truss Philips Screw M5xP0.8x20 6

D Bottle 1 d Plastic Washer Ø8xØ22x6t 4

E Handrail Cover-Left 1 e Hex Wrench + Screwdriver 5mm(70mmX70mm) 1

F Handrail Cover-Right 1 f Safety Key/Clip 1

G Cup Holder 2 g SLILCON 1

All manuals and user guides at all-guides.com

all-guides.com

- 6 -

5. ASSEMBLY STEPS

Two persons are required to finish the

assembly steps.

(Caution!! Please follow exactly the

assembly steps below to avoid injury.)

1. Put up the two computer handrail tubes

of Frame (A) as shown in the right

drawing and tighten with hex screw (a).

PS. To avoid danger, always assemble

the treadmill with two people or more,

do not assemble by yourself.

2. Then raise the left and right

uprights as shown in the right drawing

and tighten with hex screw (b).

PS. To avoid danger, always assemble

the treadmill with two people or more,

do not assemble by yourself.

All manuals and user guides at all-guides.com

- 7 -

3. After tightened the left and right uprights,

insert left and right decoration covers (B, C) onto

frame respectively as the right drawing shows

and tighten with Philips Screw (c) and Plastic

Washer (d).

4. Insert the cup holder (G) and left & right

handrail covers (E,F) on the corresponding

position as shown in the right drawing.

All manuals and user guides at all-guides.com

- 8 -

6. CAUTION

Note: The Cylinder contains high pressure gas.

Please avoid colliding with other objects to avoid

danger.

Note: If the Cylinder is hit, it might be damaged

and interrupt normal usage. The treadmill may

fall while folding.

This treadmill has a foldable mechanism for storage.

Stop all the movements (including stop the running belt

and take off the power cord) before storage, then pull out

the POP-Pin of the folding fixing mechanism as the

directions shown in the drawing and then lift up the frame

until the POP-Pin inserts into the frame. On the contrary,

if you want to use the treadmill, pull out the POP-Pin of

the folding mechanism as the arrow shows in the drawing

and put down the frame slowly.

(PS.1. To prevent from danger, be careful if children are

around.)

(PS.2. If you want to move the treadmill, fold the

treadmill first, hold the rear and adjust cap with your hands,

then lean the treadmill and prevent moving until the roller

can be moved smoothly.)

(PS.3. Do not move the treadmill on uneven ground to

avoid danger.)

All manuals and user guides at all-guides.com

- 9 -

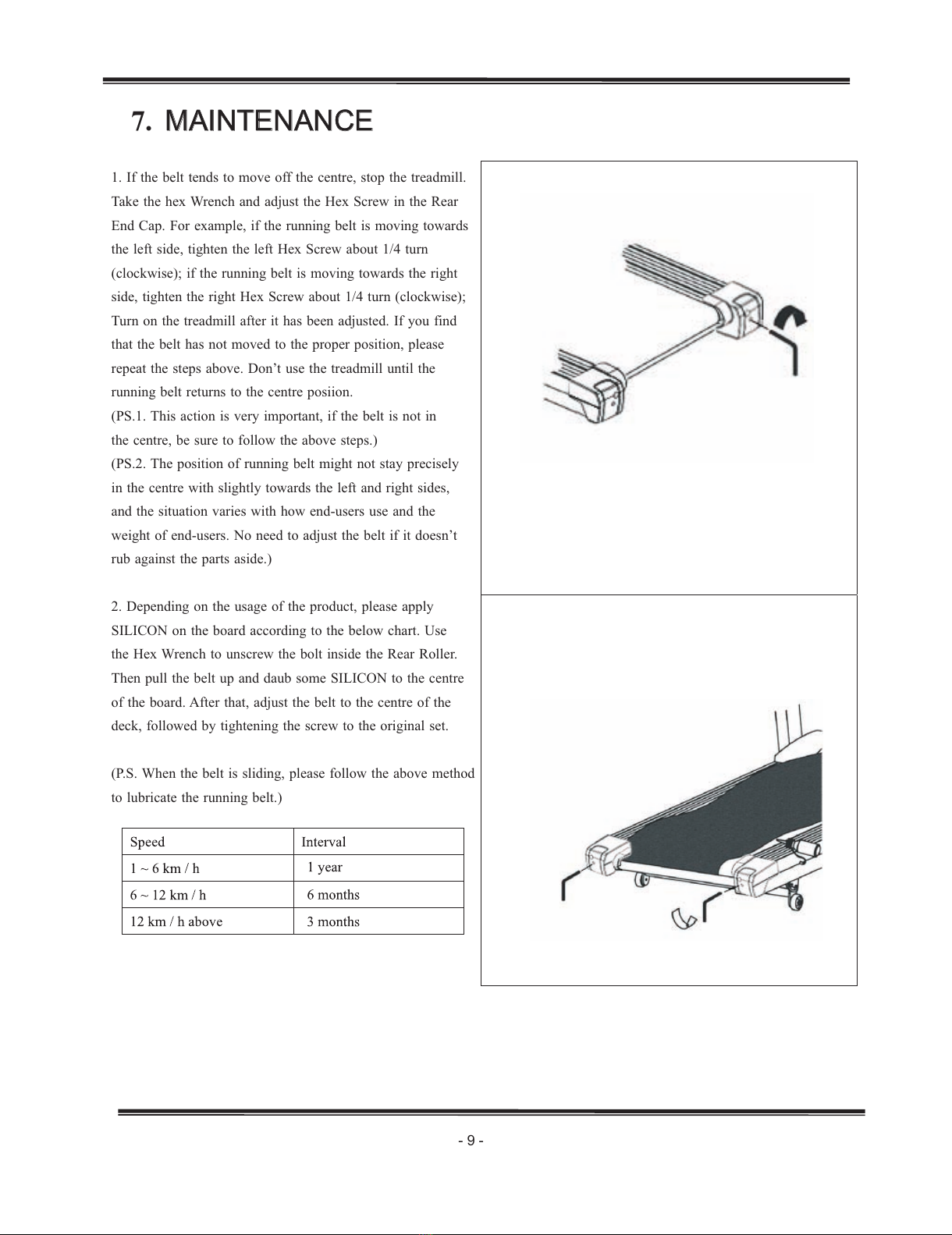

7. MAINTENANCE MAINTENANCE

1. If the belt tends to move off the centre, stop the treadmill.

Take the hex Wrench and adjust the Hex Screw in the Rear

End Cap. For example, if the running belt is moving towards

the left side, tighten the left Hex Screw about 1/4 turn

(clockwise); if the running belt is moving towards the right

side, tighten the right Hex Screw about 1/4 turn (clockwise);

Turn on the treadmill after it has been adjusted. If you find

that the belt has not moved to the proper position, please

repeat the steps above. Don’t use the treadmill until the

running belt returns to the centre posiion.

(PS.1. This action is very important, if the belt is not in

the centre, be sure to follow the above steps.)

(PS.2. The position of running belt might not stay precisely

in the centre with slightly towards the left and right sides,

and the situation varies with how end-users use and the

weight of end-users. No need to adjust the belt if it doesn’t

rub against the parts aside.)

2. Depending on the usage of the product, please apply

SILICON on the board according to the below chart. Use

the Hex Wrench to unscrew the bolt inside the Rear Roller.

Then pull the belt up and daub some SILICON to the centre

of the board. After that, adjust the belt to the centre of the

deck, followed by tightening the screw to the original set.

(P.S. When the belt is sliding, please follow the above method

to lubricate the running belt.)

All manuals and user guides at all-guides.com
