Bodyworx JX325 Bedienungsanleitung

INDEX

1. OVERVIEW DRAWING..............................................................................2

2. IMPORTANT SAFETY INSTRUCTIONS..................................................3

3. GROUNDING INSTRUCTIONS ................................................................4

4. PRE-ASSEMBLY CHECK LIST.................................................................5

5. ASSEMBLY STEPS.....................................................................................7

6. CAUTION ....................................................................................................8

7. MAINTENANCE.........................................................................................9

8. COMPUTER OPERATION INSTRUCTIONS.....................................................10

1. OVERVIEW DRAWING

Safety Key / Clip

Computer Console

On-off Switch

Circuit Breaker

Grip Pulse Sensor

Frame

Rear End Cape

2. IMPORTANT SAFETY INSTRUCTIONS

When using this product, basic precautions should always be followed, including the

following:

Please read the instruction carefully before starting to use this product.

Danger– To reduce the risk of electric shock：

1. Always unplug this product from the electrical outlet immediately after using and before

cleaning.

Warning – To reduce the risk of burns, fire, electric shock, or physical injury：

1. The product should never be left unattended while plugged in. Unplug the product from the

outlet when not in use.

2. Close supervision is necessary when this product is used by or near children, invalids, or

disabled persons.

3. Be sure to use the product only for its intended use as described in this manual. Do not use any

attachment not recommended by the manufacturer in order to avoid any danger or accidents.

4. Never operate the product if it has a damaged cord or plug, if it is not working properly, if it

has been damaged, or dropped into water. Please return the product to the service center of

seller for examination and repair.

5. Do not carry this product by the supply cord or use the cord as a handle.

6. Keep the cord away from hot surfaces or ground.

7. Never operate the product with the air vents blocked. Keep the air vents free of lint, hair, etc.

8. Never drop or insert any objects into any openings.

9. Do not use or operate outdoors.

10. Do not operate where aerosol (spray) products are being used or where oxygen is thin.

11. Before turning the product power off, turn all controls to the off position then remove the plug

from the outlet.

12. Connect the product to a properly grounded outlet only.

13. The product is only intended for household use.

14. If the power cord is damaged, be sure to ask the manufacturer for replacement to avoid

accidents. The seller and correlative qualified professionals are as well as eligible.

3. GROUNDING INSTRUCTIONS

The products must be grounded first. If malfunction or breakdown occurs, grounding will provide a

path of least resistance for electric current to reduce the risk of electric shock.

The product is equipped with a cord having an equipment-grounding conductor and a grounding

plug.

The plug must be plugged into an appropriate outlet that is properly installed and grounded in

accordance with all local codes and ordinances.

Danger – Improper connection of the equipment-grounding conductor can result in a risk of

electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the

products are properly grounded. Do not modify the plug provided with the product – if it will not fit

the outlet, have a proper outlet install by a qualified electrician.

The products is for use on nominal 220-240 volt and has a grounding plug that looks like the

plug illustrated in the figure . Make sure that the product is connected to an outlet having the same

configuration as the plug.

There is no need to use any adapter for this product.

Figure

Grounding methods

GROUNDED

OUTLET

4. PRE-ASSEMBLY CHECK LIST

ITEM Description Qty

A Computer Console 1

B Frame 1

C Upright (L) 1

D Upright (R) 1

ITEM Description Qty

a Allen Bolt M8xP1.25x15 12

b Allen Wrench 6mm 1

c Allen Wrench 5mm 1

d Safety Key/Clip 1

e SILICON 1

f Bottle 1

g Allen Bolt M8xP1.25x40 4

5. ASSEMBLY STEPS

Two persons are required to finish the

assembly steps.

(Caution!! Please follow exactly the

assembly steps below to avoid injury. )

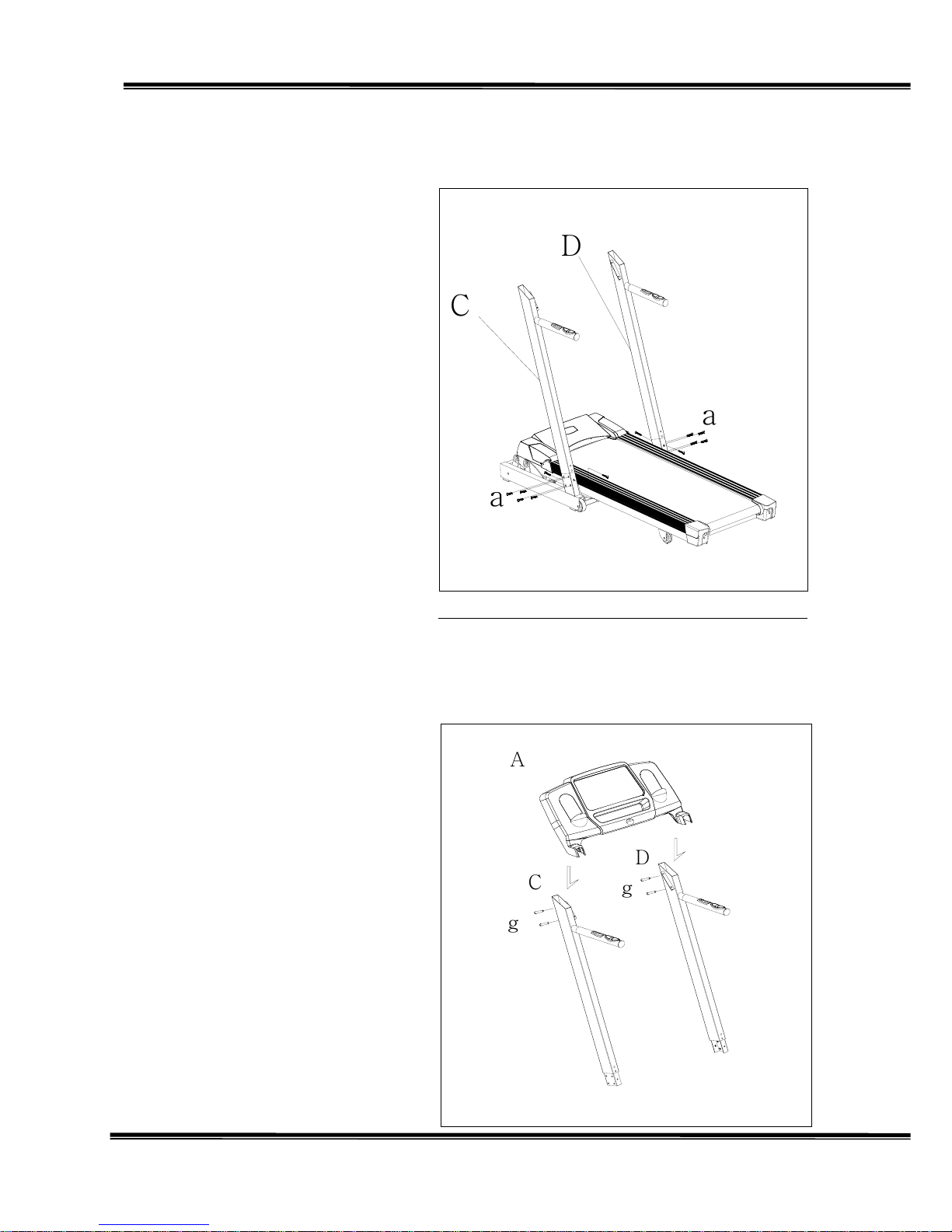

1. After pull out Control Wire with Guide

Thread in right Upright (D), cap it into the

wire clip and fix it inside hole of right

Upright. After insert left and right Uprights

(C, D) to the proper place, tighten with

Allen Bolt (a) according to right drawing.

Ps.1. To avoid unexpected accident, always

assemble the treadmill with an assistant, do

not assemble by oneself.

Ps.2. When assemble the Upright, one person

should hold the Upright to prevent it from

falling.

2. To assemble the Computer：

Connect control wires between left and

right Handrails and the Computer. Then

insert left and right Handrails (C, D) into

the Computer (A), tighten with Allen Bolt

(g) according to right drawing.

6. CAUTION:

Note: The Cylinder is made of high pressure, so it must be

extra careful not to impact with other objective to

avoid deformation.

Note: When the cylinder is hit, possibly will cause the

damage and make the usage not smooth.

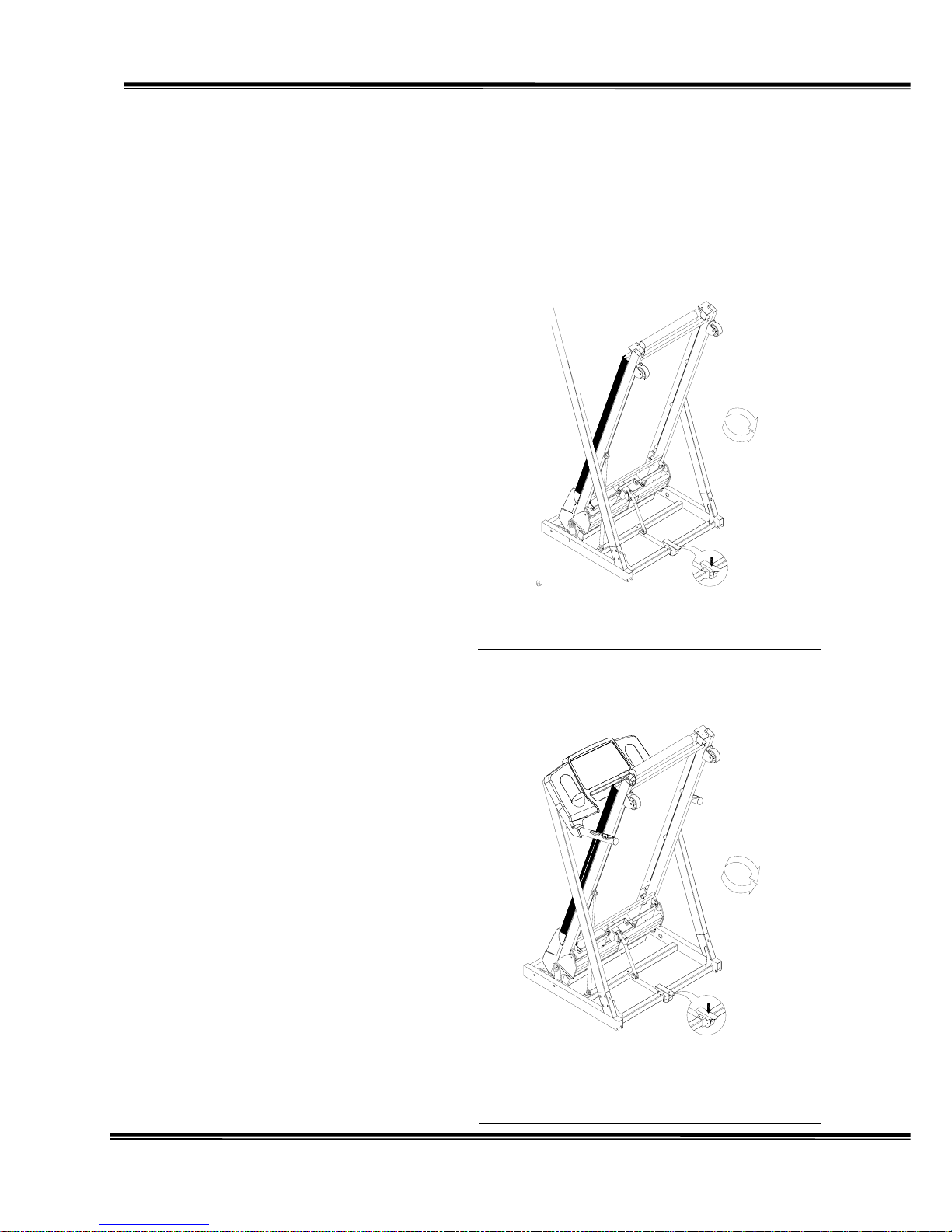

This treadmill have the foldable mechanism for storage,

when storage must stop all movement (include treadmill

belt stop, take off the power cord). Then fold the main

frame as the direction shown in the picture. Be sure the

foot plate inserts the tube of base frame. Opposite, if want

to use treadmill，step on the fixing plate as the direction.

When it disjoins from tube of base frame, be careful to pull

down the main frame. One person stands beside the

treadmill, the main frame will be slowly to the ground

automatically.

(Ps.1 To prevent from causing danger, be careful if the

kids are around. If you want to move the treadmill,

fold the treadmill at first, hold the rear adjust cap with

your hands, then let the treadmill descend and do not

move the treadmill until the roller can be moved

smoothly.)

(Ps.2. Do not move the treadmill on uneven ground.)

(Ps.3. To prevent the injury, the main body should be

put on the even ground. Person can’t stand under the

frame.)

7. MAINTENANCE

1. When running belt is off the center, stop the

treadmill immediately, use Allen Wrench to

adjust the hex head screw. For example, the

running belt is offset to the left it should adjust

1/4 circle clockwise; if the running belt is offset

to the right, adjust 1/4 circle counterclockwise.

After adjustment, start the treadmill again, if the

running belt still off the center, repeat the

adjusting procedure till the running belt is in the

center position.

(Ps.1. This action is very important, if a deviated

belt is found, be sure to follow above

procedure.)

(Ps.2. Belt may move away from center status

due to user’s weight and running condition. The

belt needs not to be adjusted as long as it doesn’t

rub against the parts aside.)

2. It is strongly suggested to follow the below table

to apply lubrication on running board. Please use

Allen Wrench to loosen bolts in rear adjusting

boxes. Pull up the running belt and apply

lubrication evenly on the center of the running

board, then adjust the belt to the center of deck,

follow by tighten the screw to the original set up.

(Ps. When the belt is sliding, please follow

the above method to apply lubricant on the

running board. )

Speed Interval

1~6 km 1 year

6~12 km 6 months

12~16 km 3 months
