Boss Audio Systems BV12.1BGT Bedienungsanleitung

Contents

Caution

Features and Controls

Power and Mode Selection

Releasing The Monitor

Mute Function

Picture Control

Contrast/Brightness/Color/FM

DVD Setup

Setup Menu

General Setup

TVAspect Ratio

Angle Viewing

OSD Language

Captions

Screen Saver

Last Position memory

Audio Setup

Speaker Setup

Equalizer Settings

Preferences Setup

TVType

Parental

Audio

Subtitle

Default

Password Setup

Password Mode

Password Change

DVD Functions

Eject

Vol+/Vol-

Mute

Play or Pause

Audio

Stop

Arrows

Setup

Display

Number Buttons

Subtitle

Title

Slow

Fast Reverse Searching

Fast Forward Searching

RepeatA-B

Repeat

NTSC/PAL

Angle

PBC

Zoom

GOTo

Connection Diagram

Installation

Disc Information

Troubleshooting

Specifications

Turning onThe Monitor

Selecting anAV mode

Remote Control

Monitor/DVD Player

SD/USB Functions

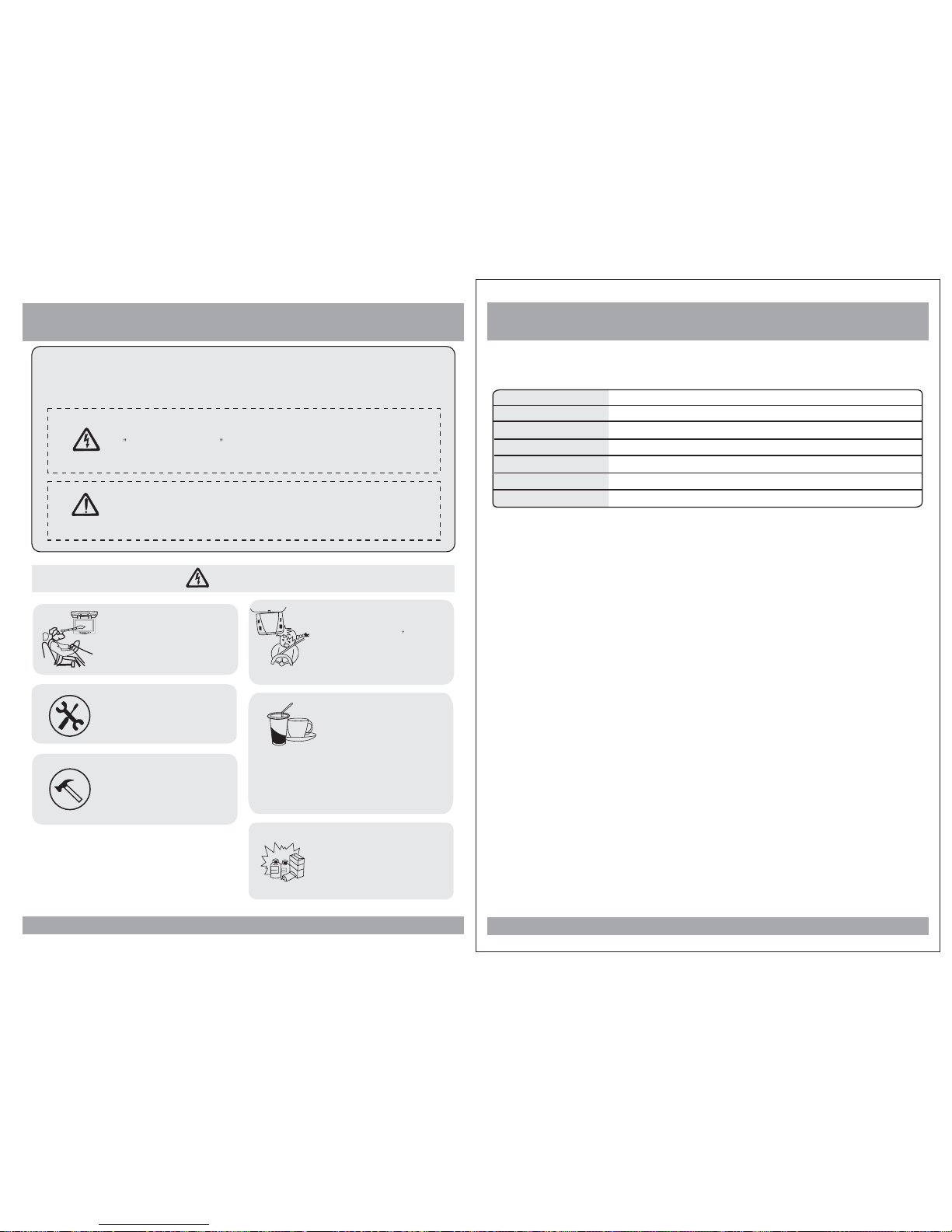

Caution

Please read and observe all warnings and instructions in this manual

and those marked on the unit. Retain this booklet for future reference.

There are two kinds of alarm symbols as follows:

WARNING

CAUTION

The lightning bolt with arrowhead inside in an equilateral

triangle is intended to alert the user to the presence of

dangerous voltage within the product s enclosure that may be

of sufficient magnitude to constitute a risk of electric shock to

people.

The exclamation point inside an equilateral triangle is intended

to alert the user to the presence of important operating and

maintenance (servicing) instructions in the literature accompanying

the product.

Installation of all TV monitors

must be out of the driver s

field of vision.

Do not try and service these

products yourself, a

qualified service center or

factory service center for all

repairs.

locale

Be careful not to drop or

apply under pressure to the

front panel of your video

monitor. If the screen cracks

due to misuse, your warranty

will be void!

Do not mount the product where

it will obstruct the deployment of

the airbag or in an area where it

would affect the driver s ability

to control the vehicle.Also be

careful to avoid mounting the

product where it can become

hazardous during sudden stops

or in the event of an accident.

Use extra caution with any liquids

in your car. If you or your child

spills any liquid on these products,

pull your vehicle to the roadside

and turn the key off to disconnect

or wipe the products with a towel. Do not

operate the equipment until all liquids have

either evaporated or you have had the monitor

inspected at a service center by a qualified

technician. Severe harm or danger can result.

Use only a damp cloth to clean

the screen and use only purified

water on the cloth. wring out all

excess water prior to wiping the

screen. Do not use any cleaners

or chemicals to clean the screen.

In most cases a dry cloth will do!

OWER

MEN

SPECIFICATIONS

DC 12V

4:3

1152x234

NTSC/PALAuto Select

DVD-AV1-AV2

1EA

15.1(L)X13.4(W)X3.3(H)inches

Power

Screen Format

Resolution Pixel

Color System

A/V Input

A/V Output

Dimension

Note: This equipment has been tested and has been found to comply

with the limits for a ClassA digital device, pursuant to part 15 of the

FCC Rules. These limits are designed to provide reasonable protection

against harmful interference when the equipment is operated in a

commercial environment. This equipment generates, uses, and can

radiate radio frequency energy and, if not installed and used in

accordance with the instruction manual, may cause harmful interference

to radio communications. Operation of this equipment in a residential

area is likely to cause harmful interference. In some cases, the user will

be required to correct the interference at his own expense.

Quality installations are best

performed by qualified and

certified installers.

Don t touch the unit if there is

a flash of lightning. You may

receive an electric shock.

Do not cover or stop up heater

ducts or vents. It may cause a

fire or receive an electric shock.

Watching the monitor for an

extended period of time

without the engine running

may deplete the vehicle s

battery charge.

This product is designed for

operation with a 12 Volt DC,

negative ground vehicle. It

is not suitable for operation

under other conditions or

voltages.

CAUTION

Operating Notes

Do not bring magnetic devices

such as credit card or magnetic

card near the magnets.

Caution

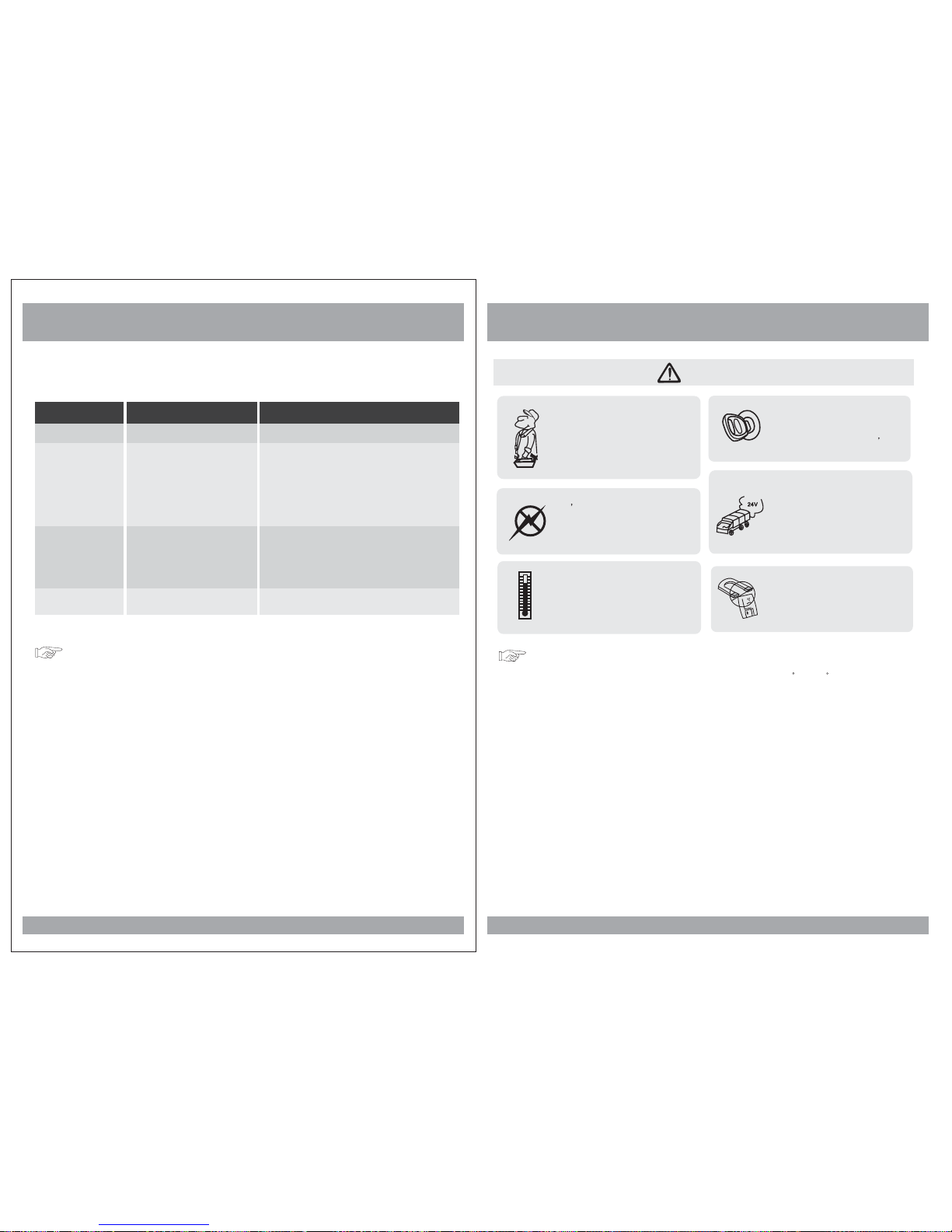

Troubleshooting

Symptom Items to Check Actions to be Taken

Remote control does

not work properly.

Is the power turned on?

Is the audio which is connected with

the audio cable set to receive

the DVD signal output?

Is audio cable connected securely?

Is the monitor which is connected

with the audio cable turned on?

Is the audio output set in the correct

position?

Is the remote control facing

the remote sensor?

Is the distance too far?

Is there any obstacle in the middle?

Is the battery weak?

Check the car battery capacity.

Select the correct input mode for the audio receiver.

Connect the audio cable into the jacks securely.

Turn on the monitor connected with the audio cable.

Set the Audio Output to the correct position,

and then turn on the DVD player again by pressing

the POWER button.

Point the remote control toward the remote sensor of

the product.

Use the remote control within 15 feet.

Remove the obstacle.

Replace with new battery.

Buttons do not work.

No sound

When a disc is brought from a cold environment to a warm one, there may be moisture

on the the disc, or condensation on the pickup lens. It will affect disc playback.

1. Remove the disc from the DVD player.

2. Turn on the power and leave it on for an hour to vaporize the condensation.

Moisture or condensation on lens

1. The operating temperature of this product is limited to 14 ~+140 F.

2. If your vehicle is extremely hot or cold you must allow time for your air

conditioner or heater to cool or heat the vehicle until operating temperatures

have returned to normal operating ranges.

3. Optimal picture quality is achieved when viewed from directly front of the

monitor (+/-30degrees).

4. Do not open the housing and yourself. Refer

servicing to qualified personnel.

5. DVD Players use an invisible laser beam which can cause hazardous radiation

exposure. Be sure to operate the unit correctly as instructed.

6. Do not cut the car power supply off while a disc is playing. It can cause

damage to the DVD Player.

attempt to make any repairs

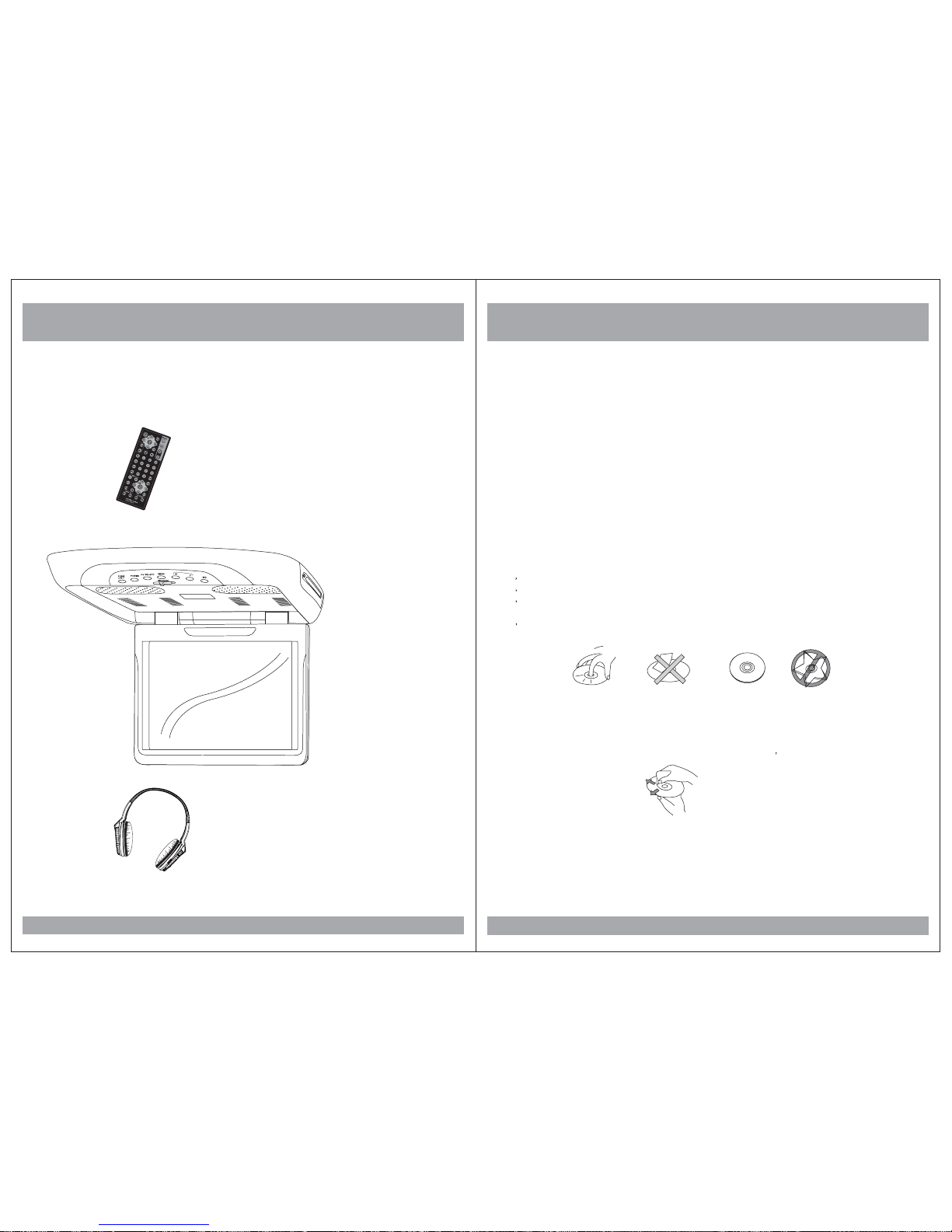

Monitor / Player System Components

Disc Information

Remote Control

Wireless Headphones

(Sold Separately)

Monitor/DVD Player

DVD features

DVD discs provide high-resolution images with high-quality sound. This DVD player

can play not only DVD discs of various versions, but also S-VCD, VCD, audio CD and

Mp3 discs.

Discs that cannot be played

DVD-RW, DVD-REM, CD-ROM, CD-EXTRA discs cannot be played on this unit. In

addition, a CD or a CD-RW which was recorded on special software cannot be played.

Region code

Your DVD player is designed and manufactured to region management information

that is recorded on a DVD disc. Please check the region code.

1: NorthAmerica 2: Japan 3: Korea and SoutheastAsia

4:Australia, Mid & South America 5: Russia 6: China

How to handle the disc

Don t touch the shiny side of the disc (the side with the embedded information).

Don t stick a label or a glue-based note on either side of the disc.

Don t use discs that have glue or a damaged label with exposed adhesive residue.

It might result in damage to your DVD player.

Don t put discs in the sunshine.

Park your car in the shade.

How to handle the discs

Only use round discs. Discs with other shapes like a star, a heart, etc. may cause

damage to the player. If a disc is dirty, wipe softly with a wet cloth and then with a dry

one. Before playback, wipe the disc outward from the center with a clean cloth. Do not

use any type of solvent such as thinner, benzene, commercially available cleaners or

antistatic spray. To avoid damaging your DVD player, don t use a scratched disc.

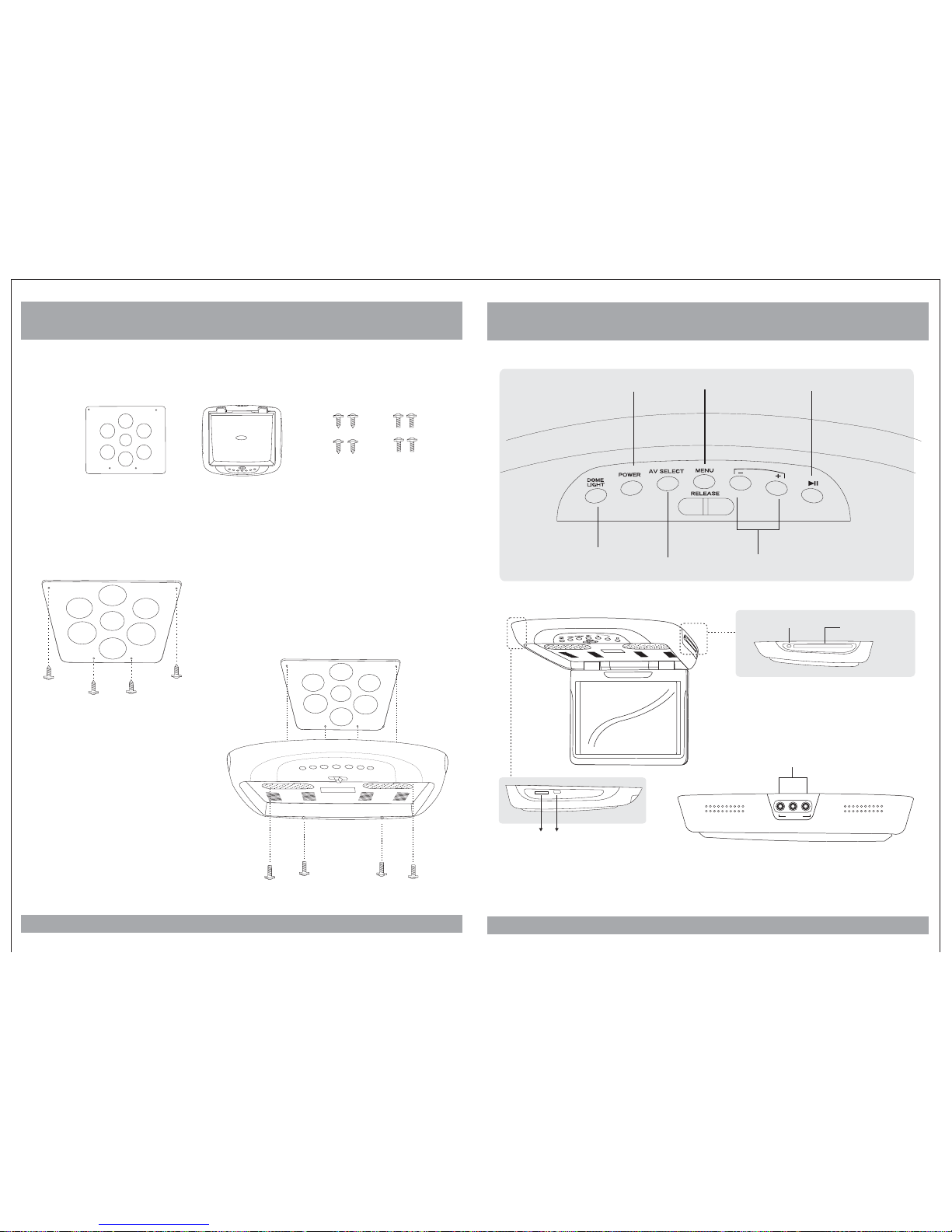

Features And Controls

Installation

EJECT Button Disc loading slot

Caution

Do not bring magnetic devices

such as credit cards or magnetic

cards near the monitor.

SD Input USB Input

AUX Input Jack

AUDIO VIDEO

AV2 INPUTS

Dome Light Button

POWER Button

AV Select Button

MENU Button

+/- Buttons

PLAY/PAUSE Button

1. Open the package and check that these items are presents.

INSTALLATION PLATE UNIT SCREWA SCREW B

2. Connect the external compoments to the RCAcable or AV output.

(Refer to the connection diagram on page 33)

3.Match the position of installation bracket and

installation plate with screwA.

4. Tighten the unit with the supplied

screw B.

Features and Controls

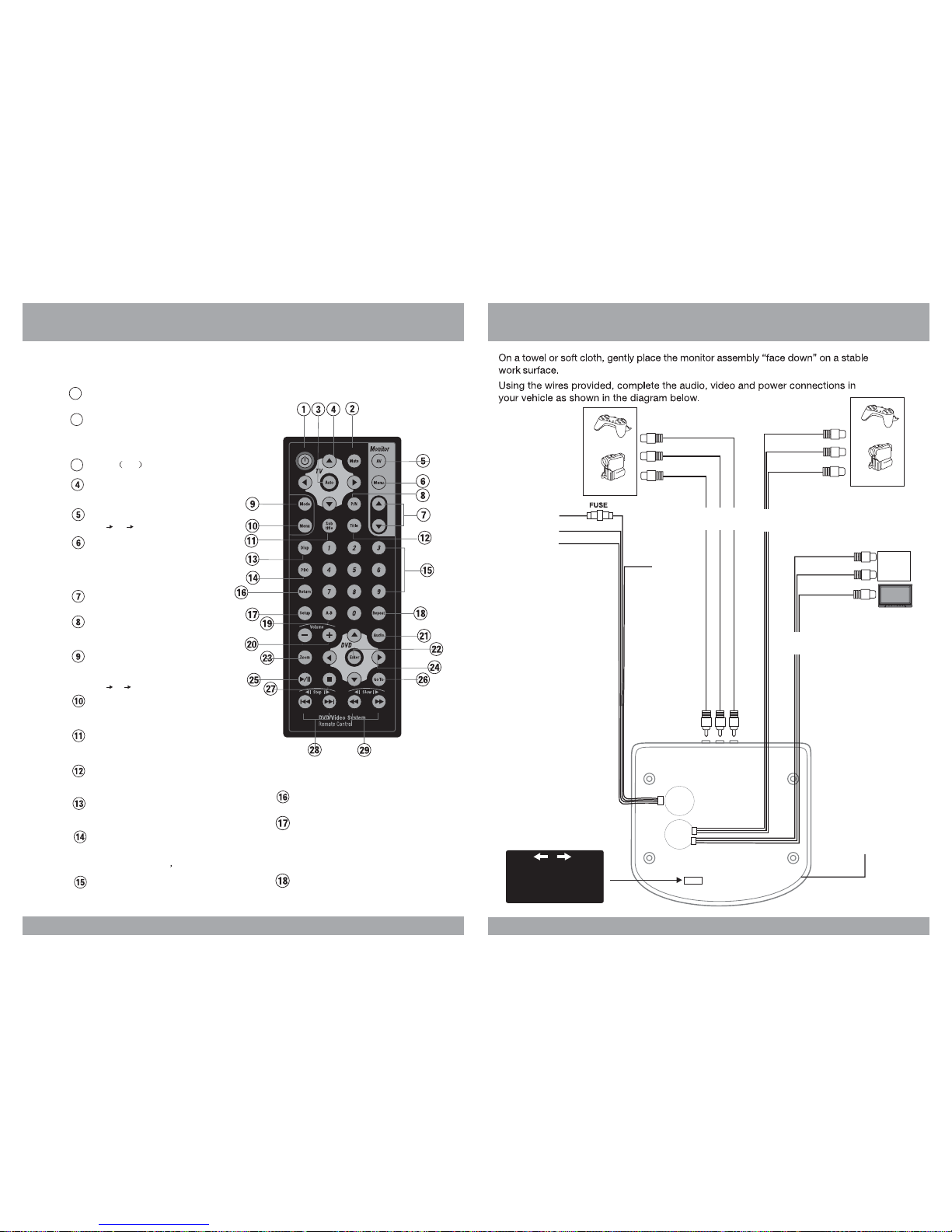

Connection Diagram

CAMCORDER

GAME

White AUDIO(L)

Red AUDIO(R)

Yellow VIDEO CAMCORDER

GAME

White AUDIO(L)

Red AUDIO(R)

Yellow VIDEO

AV Input

(AV 2) (AV 1)

White AUDIO(L)

Red AUDIO(R)

Yellow VIDEO

Output

AMP

POWER VOL- VOL+

MONITOR

AV Input

YELLOW

Switched 12 Volts

BLACK

RED

Constant 12 Volts

Ground

Car dome lamp

WHITE

FM ANTENNA

Positive Negative

Trigger Door Trigger Door

Switch Switch

Dome Light Trigger

Remote Control

Turns the DVD Player/Monitor on or off.

Auto TV (not function in this unit)

DVD AV1 AV2

A/V SELECT

P/N

This button permits you to choose

among Multi, PAL and NTSC.

Use to move to the desired menu.

DISPLAY

Press to show elapsed or remaining

time of a chapter or a title.

NUMERIC button

Use when making a selection on the

menu screen.

MODE

RETURN

(not function in this unit)

DVDSDUSB

POWER

MUTE

Press this button to switch off the

audio during playback. Press again

to restore the audio.

UP/DOWN/RIGHT/LEFTARROWS

MENU (OSD on monitor)

Press this button to open the on-

screen menu system to setup and

control various parameters of the

monitor and DVD player.

UP/DOWN

MENU (DVD menu)

This button permits you to view the

menu on the DVD.

SUBTITLE

Use this button to select the menu

for choosing a subtitle language.

TITLE (Title menu)

When a DVD is playing, press this

button to view the Title Menu.

PBC (Video CD only)

Press this button to access the special

Playback Control functions for VCD

2.0 format Video CD S.

SETUP

Press this button to display the Setup

menu. The Setup menu enables you

to enter the settings required for the

unit to work properly.

REPEAT

Press this button to change the playback

mode to repeat.

Press this button to return to the root menu.

Use this button to switch between

three modes

Name And Function Of Each Part

SD/USB Functions

1. When USB or SD is inputed, the monitor will be displayed as shown below. But when

you input USB that the function can not change into SD state (only the SD is

moving).And you can select the desired menu by

pressing the MODE button on the

remote control of monitor.

Use the (arrow and ENTER) buttons to select and set desired settings.

00:00

000/003

00:00 kbps

A-B (repeat fromAto B)

VOL-/+ button

AUDIO

ENTER

ZOOM

UP/DOWN/RIGHT/LEFTARROWS

PLAY/PAUSE

GOTO

STOP

SKIPFORWARD/BACK

FAST FORWARD/REVERSE PLAY

Use these buttons to select either fast

forward or fast reverse playback.

Use this button to select the beginning

and end of a track which you wish to have

repeat in playback.

Use to incease or decrease volume level.

Use this button to select one of the

audio soundtracks programmed on a

DVD disc. It is alse used to select the

audio output mode for the DVD

playback.

Press this button to confirm the item

you have found and highlighted using

the arrow buttons. Usually this is done

to confirm a selection or item to be

played on the DVD.

If your DVD disc supports zooming in

to see the program differently, pressing

this button will enable you to change

the amount of zoom.

Use thes buttons to navigate the

various menus and screens for the

monitor and DVD systems.

To start playback of a disc, press this

button. Press again to pause the

playback. If playback is paused, press

this button to resume playback.

Use to search for a title or a chapter on

your DVD disc.

Press this button to stop the playback

of the current disc.

Use these buttons to skip to the next

or last track, chapter or file on the

disc in the player.

Power And Mode Selection

DVD Functions

PBC

[DVD]/[AUDIO]/[MP3]

[VCD]

You can turn the PBC (Play Back Control) function on or off by pressing this button.

When PBC is loaded, the PBC function is enabled automatically. This function is

similar to selection of DVD title. Please note that this function does not work with

MP3 dics.

Zoom

[DVD]

Some DVDs are programmed to allow you to zoom into

the image, magnifying it. Pressing the ZOOM button

does this in steps, according to the chart to the right.

[VCD]/[AUDIO]/[MP3]

GO TO

The GO TO function allows you to begin playback at a specific location on the disc.To

do this, press GO TO and navigate the screen which follows to select this playback

location.

Title

Move to the desired title.

Chapter

Move to the desired chapter.

Audio

Selects the desired audio output.

Subtitle

Select the desired subtitle.

Angle

Watch the different view angle.

TT Time

Total time.

CH Time

Chapter time.

Repeat

Sets the repeat play.

Time Display

Watch play time.

OSD

1/2

1/3

1/4

ZOOM X 2

CONDITION

ZOOM X 3

ZOOM X 4

ZOOM X 1 / 2

ZOOM X 1 / 3

ZOOM X 1 / 4

Off

Title

Chapter

Audio

Subtitle

01/0201 /02

06/6106 /61

5.1CH Chinese5.1CH Chinese

OFF

Bitrate 31Bitrate 31 Title Elapsed 0:20:02Title Elapsed 0:20:02

This button does not function in PBC mode.

This button does not function in this mode.

Mute Function

1. Press the button on the remote control to mute the audio.MUTE

2. Press the button again on the remote control to return to theMUTE

previous volume level.

Releasing The Monitor

Push the release button (located on the front edge of the screen housing) and

lower the monitor. You can also adjust the swivel angle.

Turning on The Monitor

POWER

UNIT

REMOTE CONTROLLER

Make this arrow in DOWN

direction only.

1. Connect the monitor to external devices.

2. Press the POWER button on either the remote control or the unit once to turn

the power on.

Press the same POWER button to turn the power off.

3.Power on the external devices and play.

RELEASE BUTTON

Andere Handbücher für BV12.1BGT

Inhaltsverzeichnis

Andere Boss Audio Systems Auto-Videosystem Handbücher

Boss Audio Systems

Boss Audio Systems BV9979B Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems ELITE BV755B Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV8950 Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV-640M Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV7985 Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV10.4FB Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems HIR8BGTM Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV9968BI Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems HIR8BGTA Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV2000 Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV9250 Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems DVD-4000B Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV9600 Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV860B Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV775B Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV7HIR Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV8.5GA Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV7950 Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV9380NV Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV12.1MCH Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems DVD9900B Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems DVD-9800B Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems HIR7UBL Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV9980 Bedienungsanleitung

Beliebte Auto-Videosystem Handbücher anderer Marken

Stinger

Stinger HEIGH10 RB10RAM13B Bedienungsanleitung

Eonon

Eonon E1057 Bedienungsanleitung

Milion

Milion D2223 Bedienungsanleitung

Metra Electronics

Metra Electronics 99-8153 Bedienungsanleitung

Voxx Electronics

Voxx Electronics HR8MA1 Bedienungsanleitung

Axxera

Axxera AV604Bi Bedienungsanleitung

Clarion

Clarion NX706E Bedienungsanleitung

Pyle view

Pyle view PLDN74BTi Bedienungsanleitung

Clarion

Clarion NX602 Bedienungsanleitung

PowerAcoustik

PowerAcoustik PTID-5850N Bedienungsanleitung

RCA

RCA DRC6296 - Twin 9" Mobile DVD System Benutzerhandbuch

Lanzar

Lanzar SVDVD5 Bedienungsanleitung

Kia

Kia MTXM100YPPE Bedienungsanleitung

Eonon

Eonon E1060 Bedienungsanleitung

Macrom

Macrom M-AN900 Bedienungsanleitung

Hyundai

Hyundai BAPE-L3000N Bedienungsanleitung

r.LiNK

r.LiNK RL2-UCON8-SM Bedienungsanleitung

Blaupunkt

Blaupunkt DVP 01C Bedienungsanleitung
