SERVICE MANUAL
SERVICE MANUAL
EVT-168
EVT-168
Table of Contents
1. Front Cover
2. Seat
3. Center Cover
4. Left Side Cover
5. Right Side Cover
6. Footrest Board
7. Tail Bracket
8. Rear Body Cover
9. Lower Cover
10. Fairing
11. Front Fender
12. Rear Fender
13. Head Lamp Bulb
14. Front Direction Lamp Bulb
15. Tail Lamp Bulb
16. Rear Direction Lamp Bulb
17. Main Switch
18. Seat Lock Assembly
19. Horn
20. Flasher Relay
21. DC to DC Converter
22. Controller
23. Rear Shock Absorber
24. Rear Caliper
25. Brake Master Cylinder
26. Brake Hose
27. Brake Fluid
28. Brake Pad
29. Direct Driven Hub-Motor
30. Brake Disk
31. Rear Fork
32. Front Shock Absorber
33. Head Lamp
34. Front Direction Lamp
35. Current Meter and Speedometer
36. Left Handle Switch
37. Right Handle Switch
38. Tail Lamp Assembly
39. Front Brake Cable
40. Throttle Cable
41. Handle
42. Steering Bracket
43. Front Fork and Ball Race
44. Part Summary
1

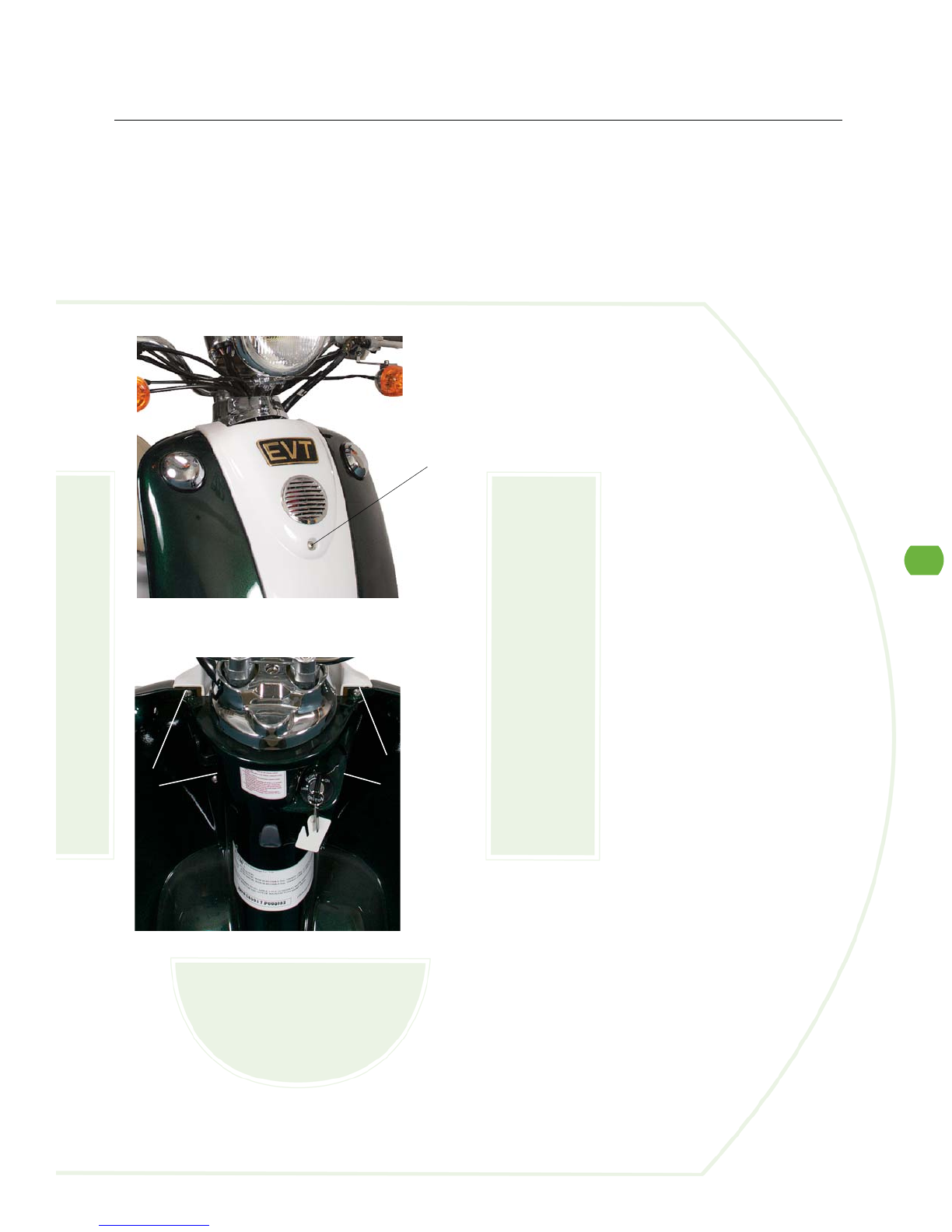

Front Cover
1. Release the screw on the front cover.
2. Release four screws on the back of the front cover.
3. Remove the front cover.
4. Follow with the reversed steps to restore.
Tools Required: Phillips screwdriver
Time: Allow 10 minutes for procedure
2
Seat
1. Release two nuts on the seat.
2. Remove the seat.
3. Follow with the reversed steps to restore.
Tools Required: T-bend socket wrench, 10mm
Time: Allow 10 minutes for procedure
3
Center Cover
1. Release the screw on the center cover.
2. Remove the center cover.
3. Follow with the reversed steps to restore.
Tools Required: T-bend socket wrench, 8mm
Time: Allow 10 minutes for procedure
4
Left Side Cover
1. Remove the center cover.
2. Release four screws on the left side cover.
3. Remove the left side cover.
4. Follow with the reversed steps to restore.
Tools Required: Phillips screwdriver
Time: Allow 10 minutes for procedure
5
Right Side Cover
1. Release the screw on the cover.
2. Remove the cover.
3. Release four screws on the right side cover.
4. Remove the right side cover.
Tools Required: Phillips screwdriver
Time: Allow 10 minutes for procedure
6
Footrest Board
1. Release four screws on the footrest board.
2. Remove the footrest board.
3. Follow with the reversed steps to restore.
Tools Required: T-bend socket wrench, 10mm
Time: Allow 10 minutes for procedure
7

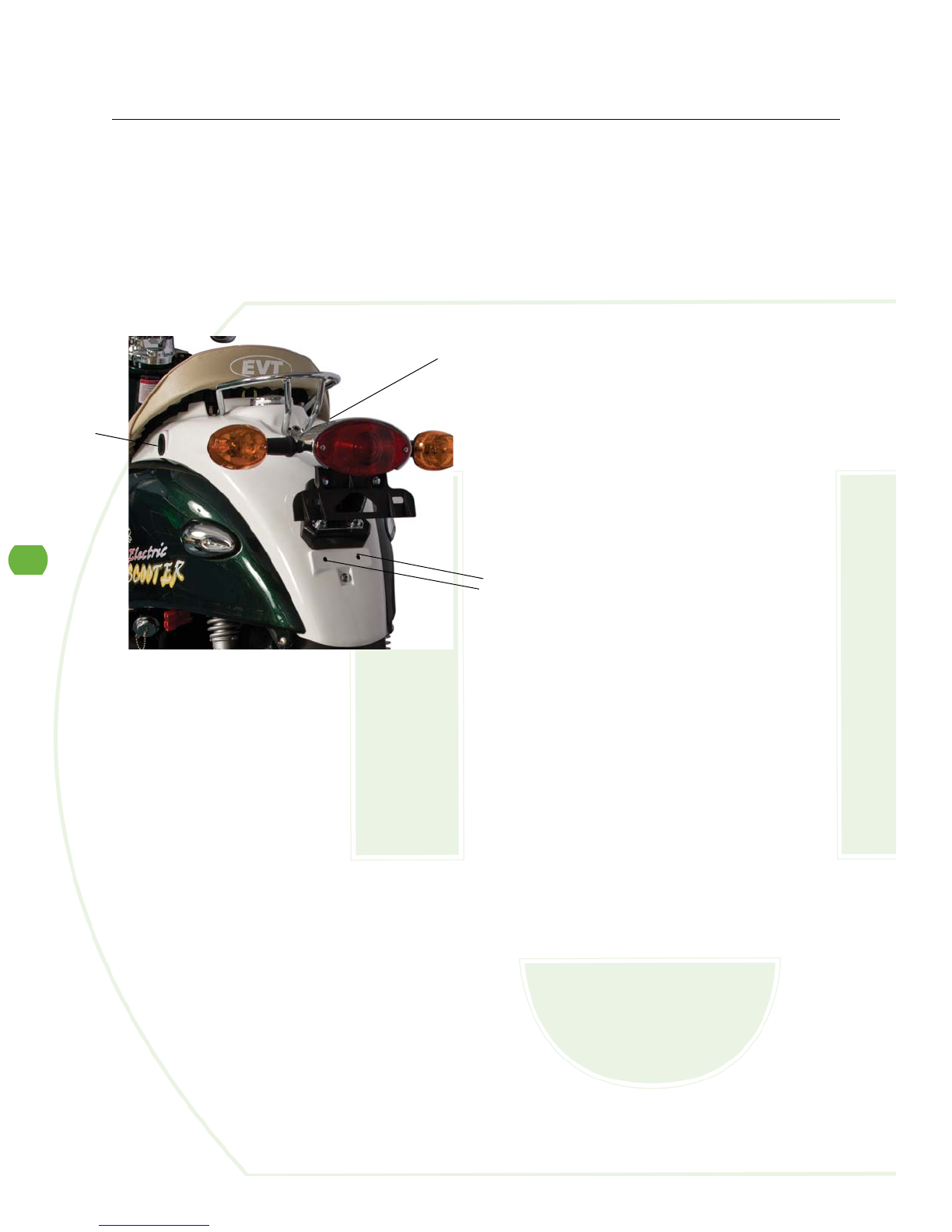

Tail Bracket
1. Release the screw on the tail bracket.
2. Release two nuts on the tail bracket.
3. Remove the tail bracket.
4. Follow with the reversed steps to restore.
Tools Required: Y-bend socket wrench, 10mm; hex-key wrench, 6mm
Time: Allow 10 minutes for procedure
8
Rear Body Cover
1. Release four screws on the rear cover.
2. Remove the plastic cover on the seat lock.
3. Release the 6-pin connector and 2-pin connectors.
4. Remove the rear cover.
5. Follow with the reversed steps to restore.
Tools Required: Phillips screwdriver
Time: Allow 10 minutes for procedure
