Brickcom VD-100A Gebrauchsanweisung

Hardware User’s Manual

Megapixel Day & Night

Vandal Dome Network Camera

Quality Service Group

Vandal Dome V2 Series

Review History:

1. Separate User Manual into HW and SW.

2. Merge VD-100A-series/ VD-130Np/ VD-300Ap /VD-502A series into this

Hardware User Manual.

Product name: Network Camera (Vandal Dome series)

Release Date: 2011/09

Manual Revision: V3.0

Web site: www.brickcom.com

Email: technical@brickcom.com

[email protected]

Table of Contents

Before You Use This Product ....................................................................................... 1

Regulatory Information ................................................................................................. 2

Chapter 1 - Package Contents ...................................................................................... 3

Chapter 2 - Vandal Dome Network Camera Overview ................................................ 4

Chapter 3 - Device Appearance Description ............................................................... 6

Chapter 4 - LED Behavior ............................................................................................. 8

Chapter 5 - Installation .................................................................................................. 9

5.1 Hardware Installation..................................................................................... 10

5.2 Camera Connection ....................................................................................... 16

5.3 System Requirements ................................................................................... 18

5.4 Software Installation ...................................................................................... 19

5.3.1 EasyConfig ........................................................................................... 27

Before You Use This Product

In many countries, there are laws prohibiting or restricting the use of surveillance

devices. This Network Camera is a high-performance, web-ready camera which can be

part of a flexible surveillance system. It is the user’s responsibility to ensure that the

operation of this camera is legal before installing this unit for its intended use.

Upon opening the product’s package, verify that all the accessories listed on the

“Package Contents” are included. Before installing the Network Camera, read the

warnings in the “Quick Installation Guide” to avoid misuse. When installing the Network

Camera, carefully read and follow the instructions in the “Installation” chapters to avoid

damages due to faulty assembly or installation.

Regulatory Information

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party

responsible for compliance could void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) This device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that may cause undesired

operation.

IMPORTANT NOTE:

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an

uncontrolled environment. This equipment should be installed and operated with

minimum distance 20cm between the radiator & your body.

This transmitter must not be co-located or operating in conjunction with any other

antenna or transmitter.

The availability of some specific channels and/or operational frequency bands are

country dependent and are firmware programmed at the factory to match the

intended destination. The firmware setting is not accessible by the end user.

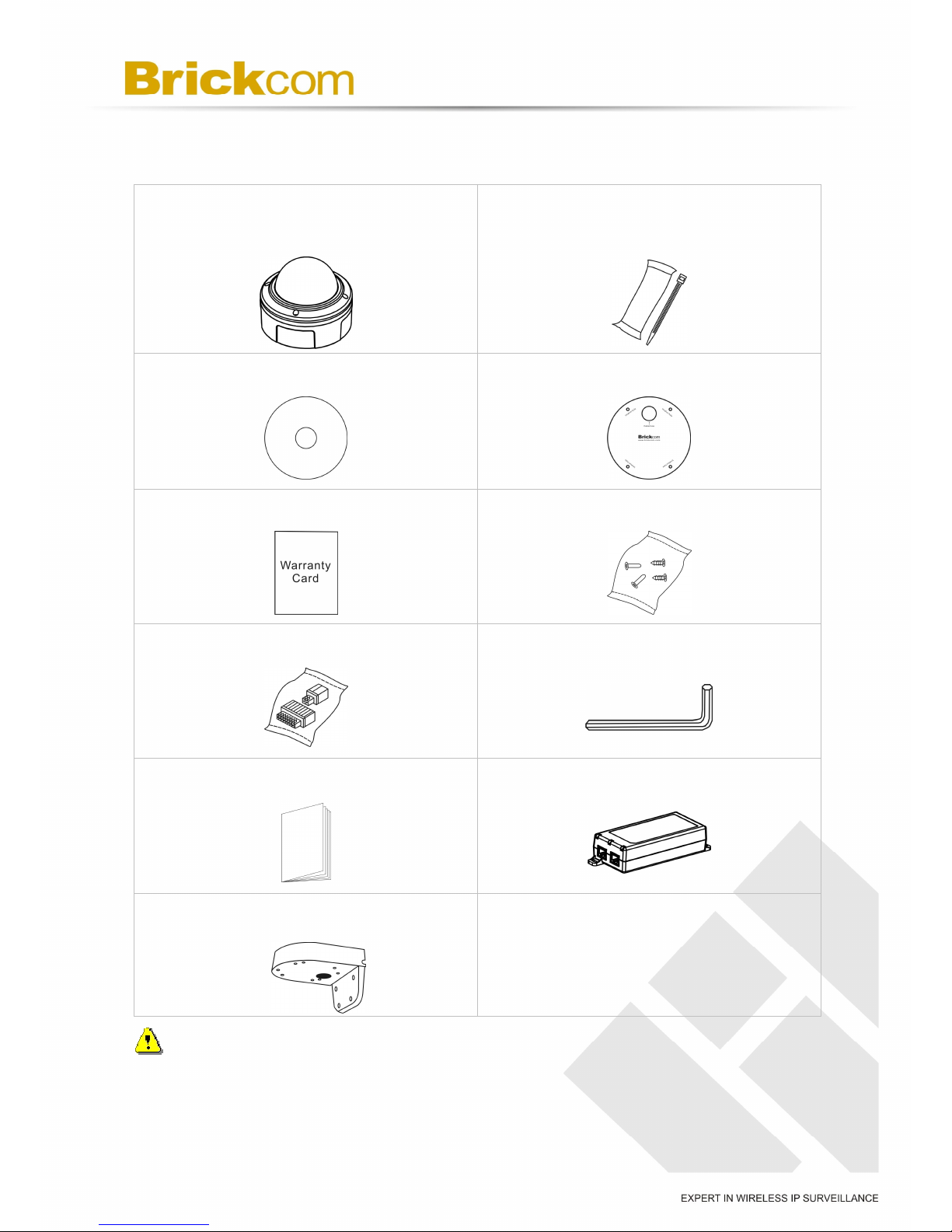

Chapter 1 - Package Contents

a. Network Camera

(Vandal Dome V2 Series)

b. Dry Bag, Strap Tie

c. Product CD d. Location Sticker

e. Warranty Card f. Screw Bag

g. Terminal Block h. Allen Key

i. Easy Installation Guide j. High Power PoE (Optional)

k. L-WM-01(Optional)

NOTE - (*) These are optional features. Please refer to the Product List for the

full list of optional features that are available for this product.

Chapter 2 - Vandal Dome Network Camera

Overview

The VANDAL DOME SERIES is a full-featured, 3-axis, fixed-dome, network camera.

With a megapixel progressive sensor and built-in IR-cut filter/ IR illuminator LEDs/

Auto Light sensor, it can provide 24-hour, indoor surveillance. The VANDAL DOME

SERIES features a wide-angle and vari-focal lens, which offers wide view coverage of

all angles.

The VANDAL DOME SERIES is designed to provide end users with high quality video

feed for an easily accessible security system. The embedded high performance

image sensor and CPU allow for each camera to stream real time, high resolution

video at 30 fps. It can transmit video using many codec compression options,

including MPEG-4/MJPEG/H.264, which reduce bandwidth and storage requirements

without compromising image quality. For easy viewing of the video feed, users can

view the live feed from anywhere through internet browsers or 3G portable devices.

Installation is simplified by the added support for Power over Ethernet which enables

each camera to receive power through the same cable as for data transmission. The

DI/DO function allows users to connect the VANDAL DOME SERIES to external alarm

and sensor devices for added security protection.

Users do not have to worry about their camera as its vandal proof enclosure protects it

from damage caused by vandalism or harsh environments. With an IP66 certified

enclosure, the VANDAL DOME SERIES is not only weather proof, but also dust and

rust resistant. By utilizing a built-in industrial fan and heater, it can perform well in

extreme temperatures.

With the included EasyConfig installation software, this series offers end-users easy

installation without the need for a strong technical background. The 3-axis

mechanical design makes the VANDAL DOME SERIES the perfect security camera

for any school, bank, or corporate office surveillance system.

Chapter 3 - Device Appearance Description

1. Below “ Device Appearance Description” is for VD-130Np/VD-502A-series

2. Below “ Device Appearance Description” is for VD-100A-series/VD-300Ap

RJ45

Connector

DIDO, A

udio

Terminal Block

Power Terminal Block

Conduit Plug and

Conduit Hole

SD/SDHC

Card Slot (*)

LENS

IR LEDs

Focus Control Bar

View Angle

Control Bar

Video

Adjustment Screw

Tilt Screw

Reset Button

NOTE

1. SD Card Capacity (*) - The network camera is compatible with SD/SDHC (Maximum

32GB) cards.

2. (*) These are optional features. Please refer to the Product List for the full list of

optional features available for the product.
