Brightek E16 Gebrauchsanweisung



QUICK INSTALL

快速安装

北京炜煌科技发展有限公司

Beijing Bright Technology Development Co.,Ltd





E16

快速安装手册

http://www.whkj.com.cn010‐51655555

●打印机各部件一览 Printer Parts Names



1.纸仓盖 Paper Case Cover

2.固定架 Holder

3.指示灯 Indicator Light

4.纸卷 Paper Roll

5.纸轴 Paper Roller

6.SEL 键 SEL Button.

7.LF 键 LF Button

8.防尘盖 Dust cover

9.电源接口 Power Connector

10.数据接口 Interface Connector



按钮开关的操作及指示灯

打印机上电后电源指示灯保持常亮状态，状态指示灯常亮为正常待机状态，

即在线，打印机可以接收数据，状态指示灯灭为离线状态，不能接收数据。

热敏型打印机缺纸时状态指示灯闪，不能接收数据。

SEL 键切换打印机在线离线，离线状态下 LF 键为走纸键。

自检测方式

打印机上电之后，按 SEL 键使打印机离线(新针打和热敏型省略此步骤)，按

住 LF 键不放，接着按下 SEL 键，同时放开 LF 键和 SEL 键，即打出自检条。

Operation Specification

After turning on the printer, the indicator light is on, shows that

the printer is online, and it is ready to receive data. The light is

off, shows that the printer is offline, and it can not receive data.

When the light flash to show the paper is lacking, and the printer

can not receive data.

The SEL button can switch online or offline status. When the printer

is offline, press the LF button, and the printer will feed paper.

The Self Test

Turn on the printer, press the SEL button to make printer offline (when

use new dot matrix printing and thermal printing model, no need to

refer this step), press the LF button, and don’t release, then press

the SEL button, and then release the both two buttons at the same time,

and then the printer will print out the self-check scrip.

快速安装手册

http://www.whkj.com.cn010‐51655555



●尺寸 Size



WH-E16 型尺寸 Product Size:

外形尺寸：Outline Dimension： 120.3mm×120.3mm×55.4mm

开口尺寸：Installation Dimension： 115+0.5mm（W）×115+0.5mm（H）

嵌入深度：Inlaid Deepness： 52.4mm

快速安装手册

http://www.whkj.com.cn010‐51655555

●安装 Installation



安装方法：



把打印机嵌入部分插入仪器或设备面板的安装孔内，并把塑料卡子从设备面板后面夹紧打

印机(如图),左右对称各一套,安装方法相同。

WH-E16 型不需要用螺丝和螺母固定。

所安装的面板厚度为 0.5～9mm 厚的金属板或塑料板;厚薄不会影响打印机安装的牢固性。

开口尺寸:115mm+0.5 X 115mm+0.5

Installation Method

Insert the built-in part of printer into the installing orifice of instrument or

equipment. As the picture show, fix the fastener onto the printer and tighten the

printer.

The faceplate that will be fixed could be metal plate or plastic plate with

thickness from 0.5mm to 9mm. Neither too thick nor too thin would affect the

fastness of the printers.

Installation dimension: 115mm+0.5 X 115mm+0.5

快速安装手册

http://www.whkj.com.cn010‐51655555

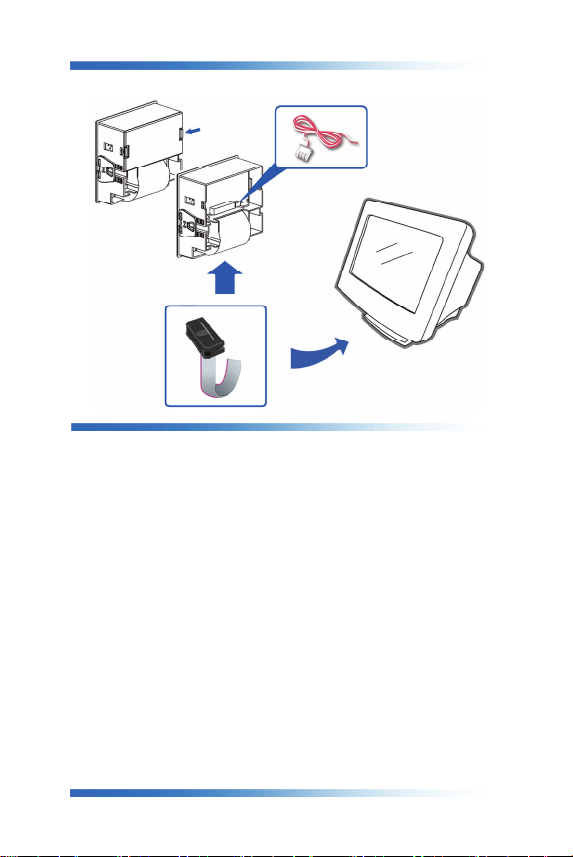

●连接 Connection



通讯连接：

请严格参照公司网站所提供说明书所示引脚定义连接。

电源连接：

请严格参照产品背面标签所注参数进行连接。

注意:不要将交流 220V 与打印机电源插座直接相连，工作电压应在额定电压

±5%以内,电源极性一定要接正确,否则会给打印机造成永久性损坏,炜煌公

司对此不承担保修义务。

Communication Connection

Please refer to the printer manual on company website.

Power Connection

Notice the power cable, connect the red cord to positive pole, connect the white cord to

the negative pole.

Attention: Do not connect AC to the printer directly, operating voltage should

be within 5% rated voltage. Power polarity must be correct, otherwise it will cause

permanent damage to printer, brightek company do not assume maintenance compulsory

upon this.

快速安装手册

http://www.whkj.com.cn010‐51655555

●装纸 Paper Roll



安装步骤：

1.如图 1 所示,箭头位置轻轻扣下，打开纸仓盖。

2.将新纸卷套在纸轴上，并装入打印机纸仓内。纸轴两边固定在卡槽内。拉出一截（超出

一点撕纸牙齿），把纸放整齐。

3.接通打印机的电源，按 SEL 键使指示灯灭，并将打印纸送到进纸口，然后按 LF 键使机

头转动，这时看一下纸是否走歪，再按下 SEL 键，或者关上电源（如图 3）。

4.合上纸仓盖,使打印纸从纸仓盖的出纸口穿出。

Replacing the Paper Roll

1. As the Fig.1shows, open the paper cover follow the arrow.

2. Put the new paper on the paper roller holder, and insert the roller firmly on

the printer. Pull a smart amount of paper out of hatch tooth. Notice the

direction of the paper when use thermal series printer.

3. Power the printer on, then press SEL button, and then press LF button, make

the print head to run, and the paper will come out. Turn off the power.

4. Close the paper cover, make the paper come out of the outlet of the cover.

快速安装手册

http://www.whkj.com.cn010‐51655555

●色带 Ribbon



色带更换：

1.如图 1 箭头指示方向打开纸仓盖

2.从打印机头上轻轻取下旧色带盒。注意:请先抬起色带盒的左端,然后再抬起色带盒的右

端,取下色带盒。

3.换新的色带盒。首先将色带盒的右端轻轻放在机头右端的齿轮轴上,左端稍微抬起,不要

放下。如色带盒右端未落到底,请按住色带盒上的旋钮,顺时针方向稍微转动一下,直到

色带盒的右端落到底后再放下色带盒的左端。

4.装上活动盖板，并关上活动纸仓盖即可。

注意:E16 热敏型无需此步骤。我们建议您不定期做好清理。方法是打开纸舱

盖，用棉棒沾少许酒精，轻轻擦拭打印机热敏头，及纸仓上的滚轴。

Ribbon Installation

1. Open the paper cover of printer as shown in the Fig.1.

2. Take down the old ribbon cassette, notice: lift up the left end of the ribbon

cassette, then lift up the right end, and then take down the ribbon cassette.

3. Installing new one: put down gently the right end of ribbon cassette on the

gear wheel in the print head, lift up the left a little, don’t put down, if

the right edge is not down to the bottom, rotate the knob of the ribbon cassette

slightly in clockwise direction as shown in the image, until the ribbon cassette

is down to the bottom, then put down the left.

4. Install the movable cover panel and close the paper cover.（Note: When use E16

thermal printer, no need.to refer this step.) Close the printer cover, and push

the printer head to the original position.



●产品规格一览表 Product Specification

项目 ITEMS 规格 SPECIFICATION

针式型 DOT MATRIX 热敏型 THERMAL

打印方式 Printing method 针式打印 Dot matrix printing method 热敏行式打印 Direct thermal line printing

纸宽 Paper width 44mm/57mm 57mm

打印宽度 Print width 32mm/48mm 48mm

分辨率 resolution ration 96 dots/line / 144 dots/line / 240 dots/line 8 dots/mm(384 dots/line)

每行字符数 Character per line 16/24/40 64/32/24

打印速度 Printing speed 1line/sec, 0.7line/sec, 0.4line/sec 30mm/sec(when the utilization rate is 25%)

字符大小 Character size 6x8dots, 8x16dots, or 6x12dots 6x8dots, 8x16dots, or 12x24dots

汉字库 Chinese character library GB2312, 12x12dots, or 16x16dots GB2312, 16x16dots, or 24x24dots

纸的规格 Paper supplied 44mm/57mm wide,50mm

57mm wide,50mm

接口 Interface Serial(RS232C,TTL)/Parallel interface Serial(RS232C,TTL)/Parallel interface

输入电源 Input power 参照开发手册 According to the development manual DC 5V, 3A

操作温度 Operating temperature 0℃～50℃ 5℃～50℃

存储温度 Storage temperature -20℃～60℃ -20℃～60℃

操作湿度 Operating humidity 10%～85% 10%～80%

存储湿度 Storage humidity 10%～90% 10%～90%
