Brodit 521945 Bedienungsanleitung

Product 521945

521945 Active holder with cig-plug With cig-plug adapter. With tilt swivel.

The active holder charges your Galaxy A5 (2017) when it is in the holder. You can choose to connect the cig-plug

to the car's 12 Volt socket, or to remove the cig-plug adapter and connect the USB cable to the car's (or stereo's)

USB connector.

The holder is attached onto a tilt swivel and can be adjusted in order to avoid light reflection. 12 Volt. Attach the

holder onto a ProClip Mounting Platform in your car.

Important note!

In order to be able to transmit audio files from your device through the USB-cable, this feature must be supported

by the stereo in your car. You can easily test if this works by connecting your device to the stereo with the

USB/charging cable that comes with your device. Charging through USB works regardless.

Dimensions: 70 x 95 x 47 mm (W x H x D mm)

Weight: 111 g

Cable length (+connector with plug 85 mm): 145 cm

This product supports Qualcomm QC 2.0 quick charge (provided the device supports Qualcomm QC 2.0 quick

charge).

EAN: 7320285219458

Item no 521945 fits:

Samsung Galaxy A5 (2017) (For all countries)

1. 2.

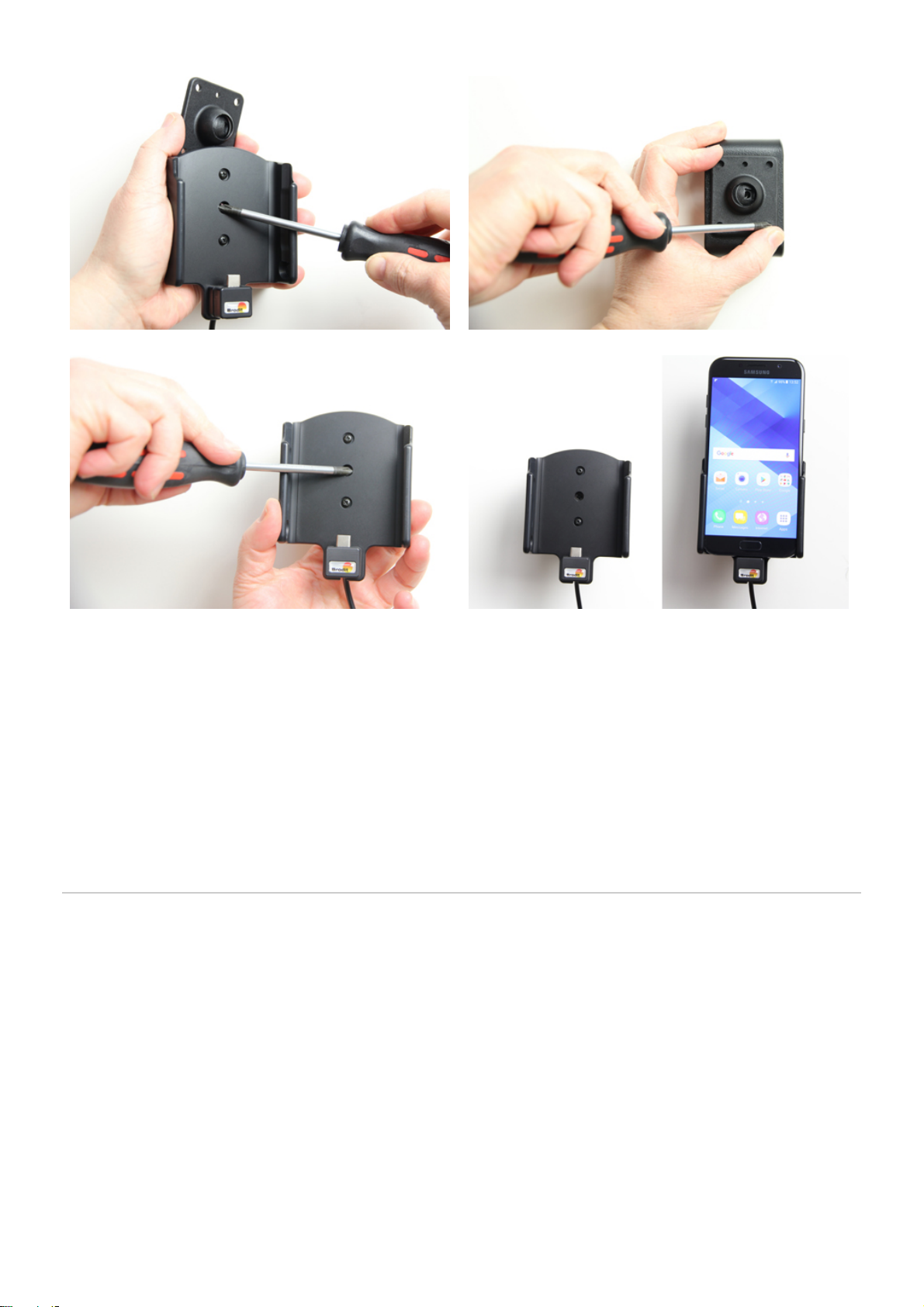

INSTALLATION INSTRUCTIONS

4.3.

Please read all of the instructions and look at the pictures before attaching the holder.

1. Loosen the screw in the center of the holder so you can remove the tilt swivel attaching plate on the back.

2. Place the attaching plate onto the desired position. Screw the attaching plate into place with the enclosed

screws.

3. Place the holder over the attaching plate so the screw fits in the hole in the tilt swivel. Screw a few turns on the

screw, just so the thread starts to pull. Pull the holder toward you and hold it slightly tensed, in the same time

tighten the screw so the holder is pulled toward the tilt swivel. Tighten the screw until the holder is firmly in place,

but still can be adjusted.

4. The holder is in place.
