Brodit 810698 Bedienungsanleitung

Product 810698

810698 Device Mounting Adapter With tilt swivel. Wtih headrest mount. For Nextbase Universal Mount.

Headrest mount

Mounting adapter with tilt swivel and a headrest mount. To be used with Nextbase original Universal Mount. The

mounting adapter consists of an adapter plate that is to be attached onto the back of the Universal Mount, which

then is to be attached onto a tilt swivel mount on the headrest mount.

Tilts 20°, swivels 360°. Made of black ABS/Acetal plastic. Made in Sweden.

EAN: 7320288106984

Item no 810698 fits:

Nextbase Universal Mount (For all countries)

Volvo C70 97-05 (England)

Volvo C70 97-05 (For all countries)

Volvo S60 00-15 (For all countries)

Volvo S70 99-00 (For all countries)

Volvo S80 99-16 (For all countries)

Volvo V60 11-18 (For all countries)

Volvo V70 99-00 (For all countries)

Volvo V70 II 08-16 (For all countries)

Volvo V70 N 00-08 (For all countries)

Volvo XC60 09-17 (For all countries)

Volvo XC70 00-16 (For all countries)

Volvo XC90 02-14 (For all countries)

Volvo XC90 02-14 (For Europe)

Volvo XC90 09-12 (For USA)

1. 2.

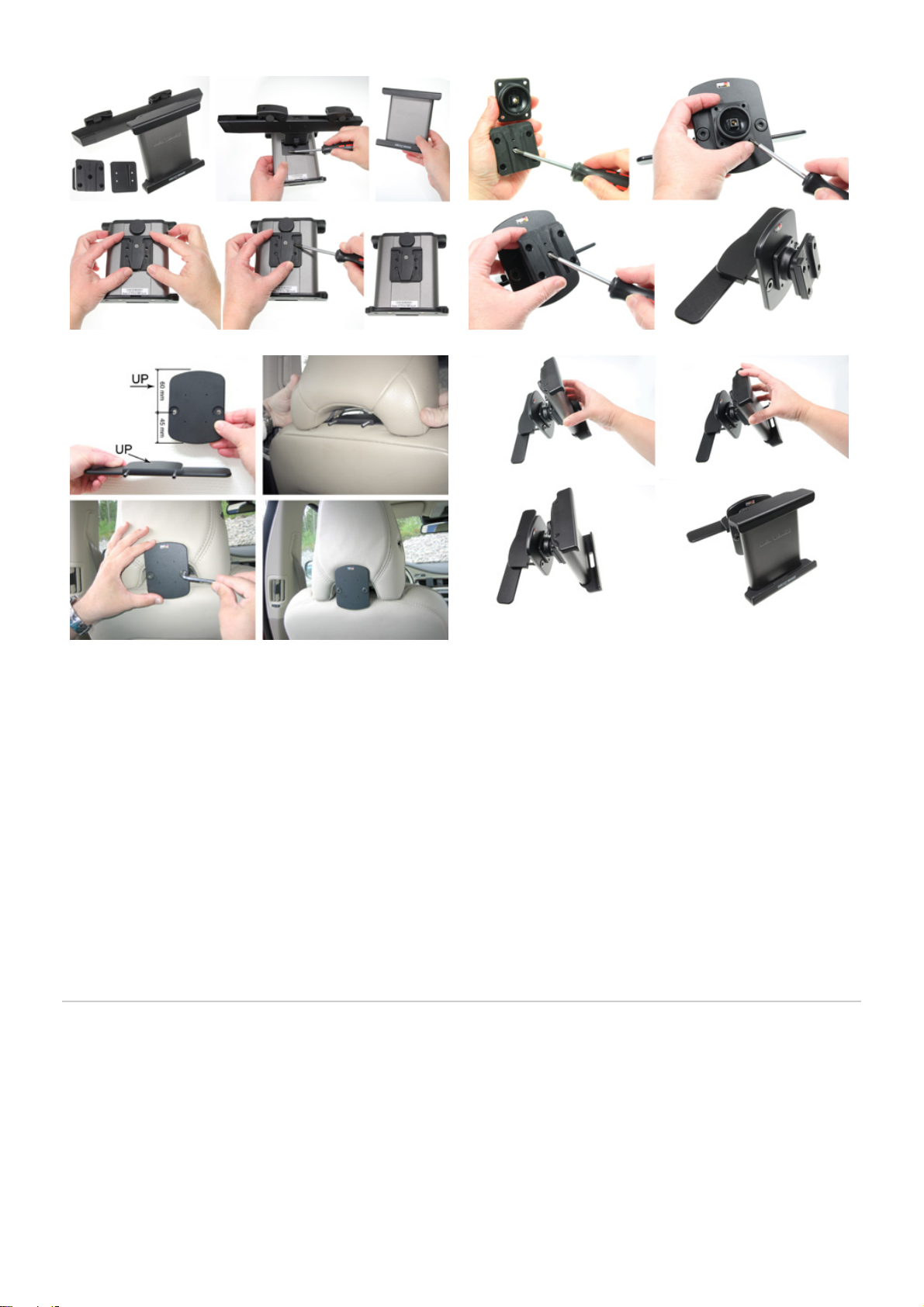

INSTALLATION INSTRUCTIONS

4.3.

Please read all of the instructions and look at the pictures before installation.

1. Remove the original Universal Mount from the Nextbase headrest mount by loosening the screws. Place the

mounting adapter plate onto the back of the Universal Mount and screw it into place with the removed screws.

2. Loosen the screw in the center of the mounting adapter tilt swivel so you can remove the attaching plate on the

back. Place the attaching plate onto the Brodit headrest mount. Screw the attaching plate into place with the

enclosed screws. Tighten the screw so the tilt swivel is firmly in place, but still can be adjusted/angled.

3. The headrest mount parts are to be installed the way that is shown the picture. Place the back part of the

headrest mount onto the front side of the headrest. Press it toward you, into the gap between the seat's headrest

and back support. Place the mounting plate onto the back part of the headrest mount so the screws match the

holes. Tighten the two screws using the enclosed tool so the headrest mount is firmly in place. The headrest

mount is in place.

4. Place the Universal Mount with the attached mounting adapter plate over the mounting adapter tilt swivel and

press/slide it downward so it is properly in place. To remove the Universal Mount: Press/slide it straight upward.
