Brodit 213549 Bedienungsanleitung

Product 213549

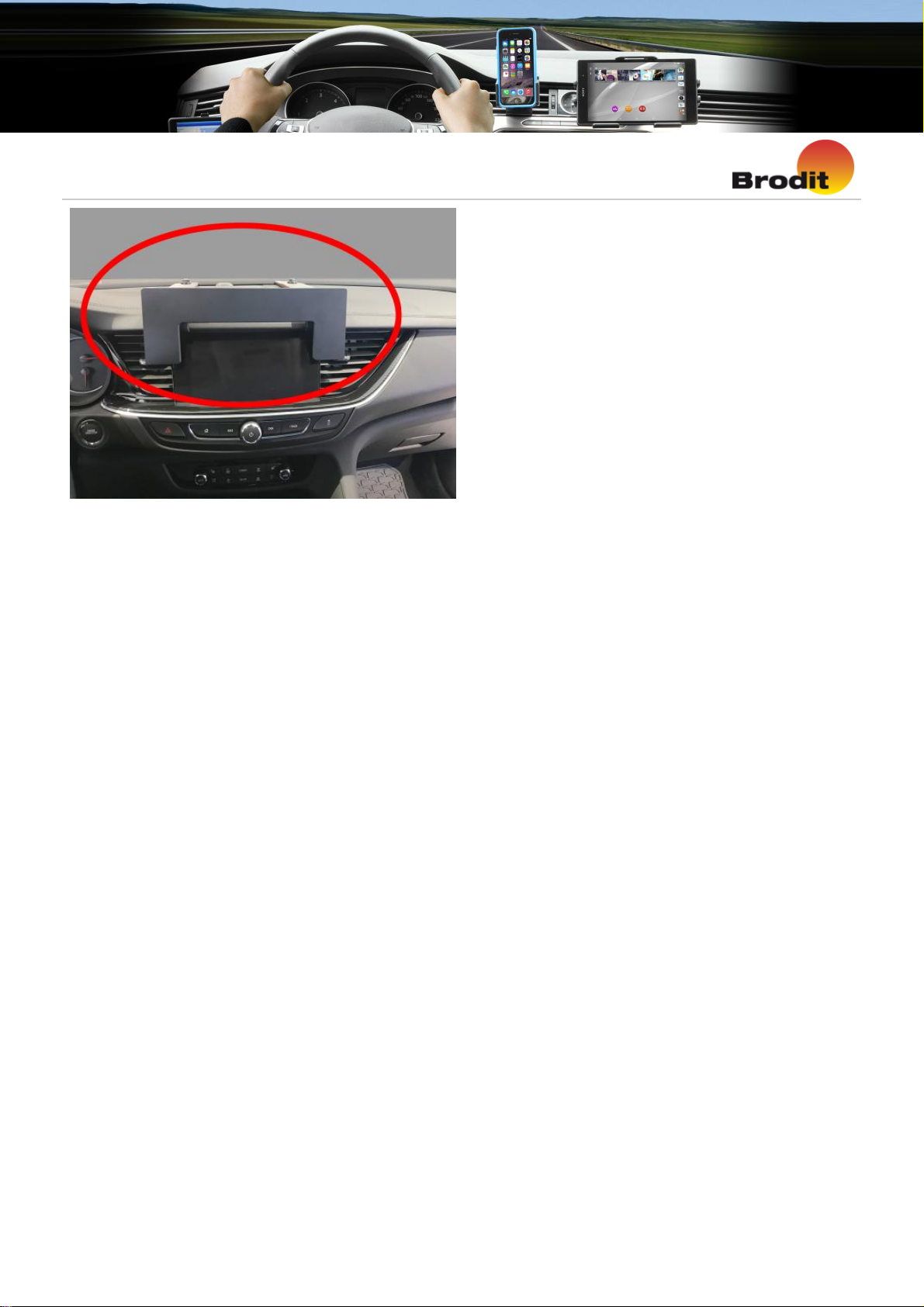

213549 Heavy Duty ProClip

Center mount ,High strenth mounting platform

Extra strength mounting platform for installation of heavier devices. You can keep your device in a holder or

attach it directly onto the mounting platform. The placement is optimized for touch screens, PDAs, taximeter

screens and printers. You will have your device within easy reach, safe and convenient! The installation is quick

and easy and will not damage the interior. Detailed installation instructions included.

EAN: 7320282135492

Item no 213549 fits:

Opel Insignia B 18-20 (For Europe)

1. 2.

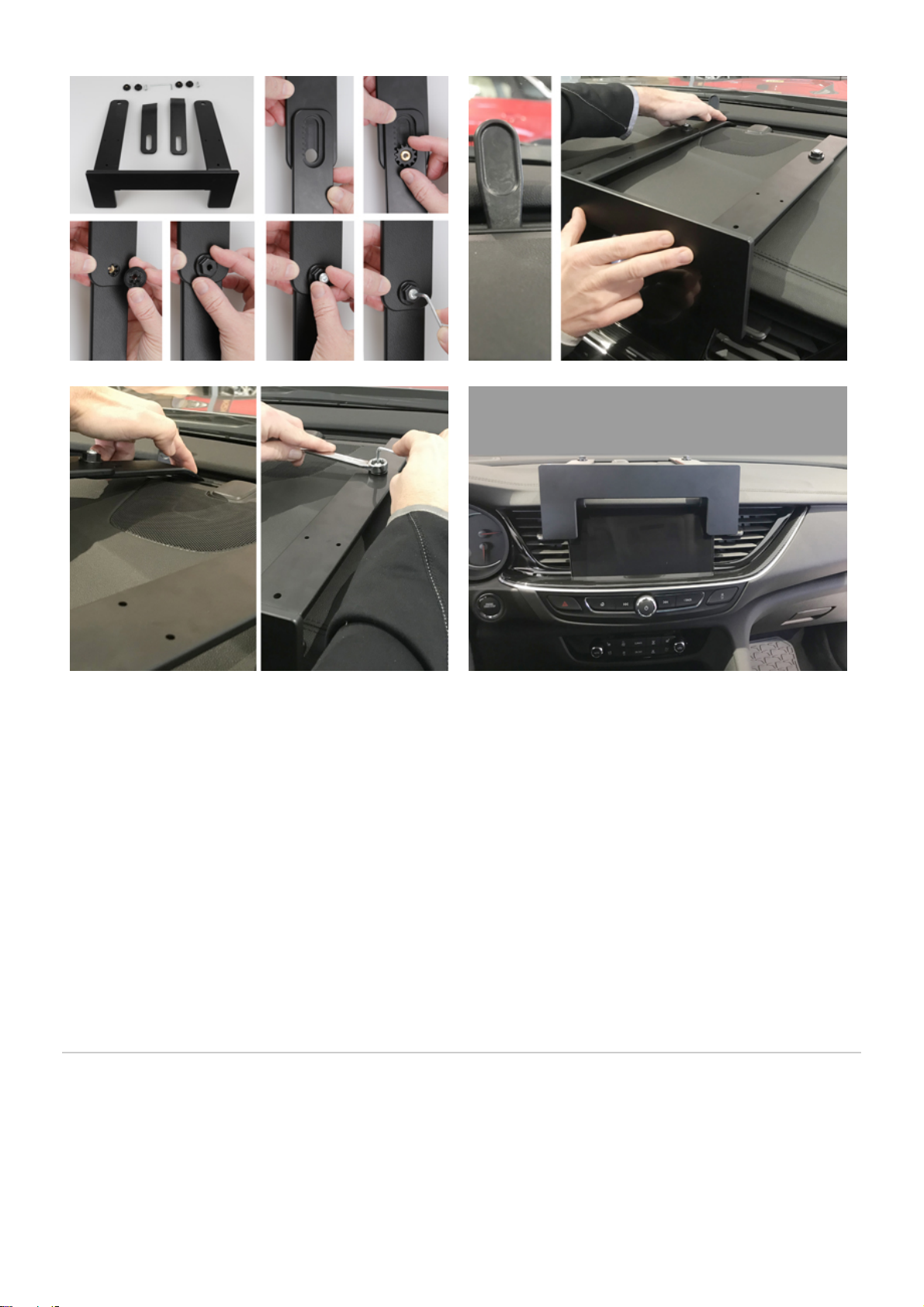

INSTALLATION INSTRUCTIONS

4.3.

Please read the instructions and look at the pictures carefully before installing.

This mounting bracket consists of three parts:

Part 1: Mounting plate (the largest part)

Part 2: Short support arm

Part 3: Long support arm

1. Place Part 2 under the left end of Part 1 and press it into place. Press the cog wheel into place on the

underside. Press the lock nut into place on the top, so the teeth fit in the cog wheel. Put the screw into place and

fasten it without tightening. Place Part 3 under the right end of Part 1 and press it into place. Press the cog wheel

into place on the underside. Press the lock nut into place on the top, so the teeth fit in the cog wheel. Put the

screw into place and fasten it without tightening. Pull out the support arms to maximum length.

2. Press the thin end of the enclosed gap opener into the gap between the air vent and the dashboard to widen

the gap on top of the dashboard. Hook the angled lower parts of Part 1 under the dashboard overhang. Press the

angled edge of Part 2 and Part 3 into the gap next to the gap opener so the support arms are resting on the

dashboard. Press the support arms into Part 1 so they get shorter and the mount is in held in place. Pull out the

gap opener.

3. Lock the mount into place by carefully tightening the lock screws alternately. It is important not to tighten the

screws too hard. When the mount is firmly in place, lock the position with the enclosed Allen key.

4. The product is in place.
