Buffalo LinkStation Live Bedienungsanleitung
www.buffalo-technology.com
Quick Setup Guide
LinkStation Live
v. 1.00
2
Table of Contents
English ......................................................................................3
Deutsch...................................................................................13
Français ..................................................................................23
Italiano ....................................................................................33
Español ...................................................................................43
Português ................................................................................53
Nederlands ..............................................................................63
Svenska...................................................................................73
Norsk.......................................................................................83
Dansk......................................................................................93
Suomi....................................................................................103
Package Contents:
•LinkStation Live
•Ethernet Cable
•Power Cable
•LinkNavigator Installation CD
•Quick Setup Guide (this manual)
•Warranty Card
www.buffalo-technology.com
Quick Setup Guide
LinkStation Live
v. 1.00
English
4
Step 1: Connect your Cables
Plug LinkStation’s power cord and Ethernet cable into the back of
the LinkStation.
Connect the power plug to a surge protector or power outlet (Plug
type and socket will differ depending on country of use). Plug the
other end of the Ethernet cable into a hub, switch, or router on
your local network.
5
Press the power button on
the front panel to turn your
LinkStation on.
Check the LINK/ACT LED on
the front of the LinkStation. If
it’s lit, then your LinkStation is
connected properly. Please turn
to page 4 to continue setup.
If the LINK/ACT LED on the
front of LinkStation is not lit,
your LinkStation is not properly
connected to your network.
Make sure that:
• both LinkStation and the hub, switch, or PC are powered on,
• the Ethernet cable is securely fastened to both devices, and
• the Ethernet cable is not damaged. To verify, try using another
Ethernet cable.
Step 2: Check your Connection
If problems persist, contact our technical support.
6
Insert the LinkNavigator CD
into your computer’s CD-
ROM drive. If Setup doesn’t
launch automatically, you
can launch it manually by
clicking Start, then Run....
When the Run dialog
opens, type d:\setup.exe
(where “d” is the drive letter
of your CD-ROM). Press OK to continue. If you are
installing the software on a Mac, open the cd and click
LinkNavigator to begin installation.
If you’re installing on a Mac,
skip to the next page.
If you’re installing on a PC,
click on Connect this PC
to LinkStation (the green,
lower button).
Click Next to step through
the installation.
Step 3: Installing Software
Click on Begin
Installation.
7

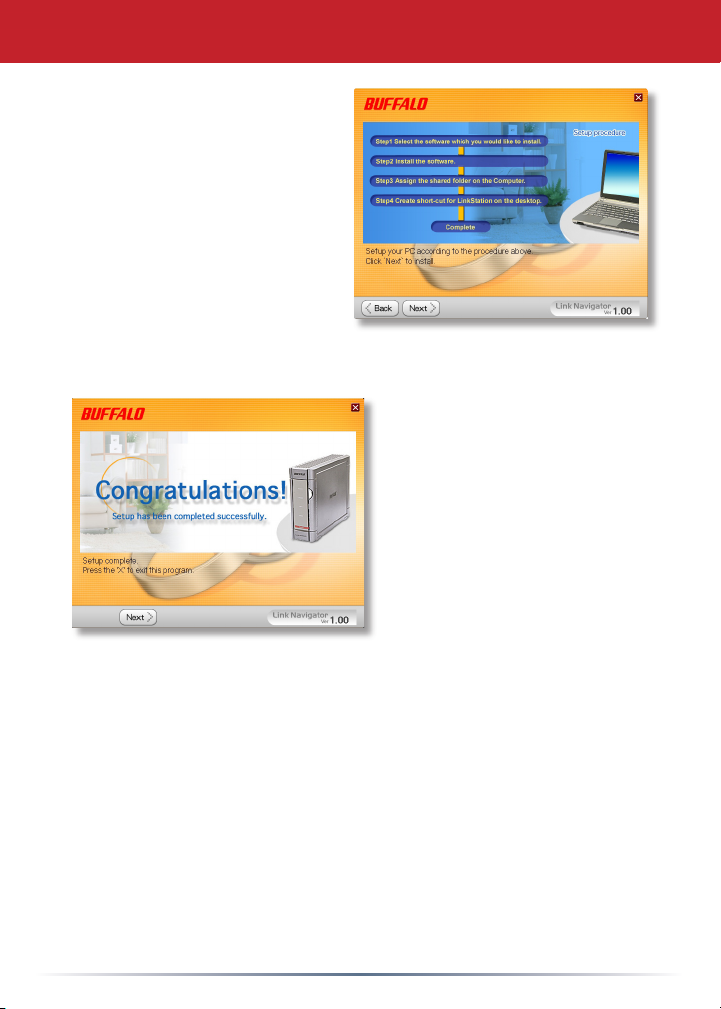

Continue pressing Next to
step through the installation.
When installation is
complete, you may close the
installation window.
Congratulations! Your LinkStation is ready to use. Turn to page
6 for more on using your LinkStation with a PC, or page 7 for
more on using your LinkStation with a Mac.
Please see the LinkStation User Manual on your LinkStation
CD for more help and conguration options.
8
The LinkStation shortcut will take directly to the
folders on your LinkStation.
Share is the main folder that you can put les
and folders in. Info contains a copy of your user
manual.
Using your LinkStation with a Windows PC
The Buffalo NAS Navigator icon opens
the LinkStation’s client utility. This
lets you easily view system information
for your LinkStation(s). If you click
Setup and choose Conguration
Settings, it will take you to the settings
conguration GUI, where you may
change your LinkStation’s settings.
Until you change it, the GUI’s username
is “admin” and the password is
“password”.
The default language for the web interface is English. This can be
changed by selecting the Basic screen, and then choosing your desired
language from the Display Language drop down. You will also need to
select the corresponding Windows Client Language. Click on Apply to
implement your changes.
Consult your user manual for more information on the Buffalo NAS
Navigator and the Settings Conguration GUI.
If you’re using a Windows PC, two new
icons will be on your desktop: Shortcut for
LinkStation and Buffalo NAS Navigator.
9
After installing the LinkNavigator software,
your Mac will have two new icons on the
desktop.
The Share folder is the main folder
that you can put les and folders in. NASNavigator is the
LinkStation’s client utility.
Using your LinkStation with a Mac
Clicking NASNavigator
opens the LinkStation’s
client utility. This lets
you easily view system
information for your
LinkStation(s). If you
click Setup and choose
Browser Management,
it will take you to the
settings conguration GUI,
where you may change
your LinkStation’s settings. Until you change it, the GUI’s
username is “admin” and the password is “password”. Consult
your user manual for more information on the Buffalo NAS
Navigator and the Settings Conguration GUI.
Clicking Share opens
the main folder on the
LinkStation. You may add
additional shares to your
LinkStation; consult your
user manual for more
information.
10
Technical Support
Buffalo Technology offers free technical support. See the back page of
this quick start guide for contact information. Please also visit the web
site at http://www.buffalo-technology.com.
FCC Warning
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
CE Mark Warning
This is a Class B product. In a domestic environment, this product
may cause radio interference, in which case the user may be required
to take adequate measures.
Technical Specications
LAN Standards: IEEE 802.3u, IEEE 802.3ab, IEEE 802.3
Transmission: 1000BASE-T: 8B1Q4, PAM5; 100BASE-TX: 4B5B
MLT-3, MLT-3; 10BASE-T Manchester Coding
Access Media: CSMA/CD
Media Interface: RJ-45
USB Standard: USB 2.0
Hi-Speed (HS)
Full-Speed (FS)
Low-Speed (LS)
USB Connector: USB A Connector (2)
Data Transmission Speed: Max: 480 Mbps (HS Mode)
Max: 12 Mbps (FS Mode)
Electric Current: 120V A/C
Power Consumption: ~21W
Dimensions: 60 x 160 x 216 mm
Weight: ~1.6 Kg
Operating Temperature: 41-95˚F;20-80%non-condensing
