Buffalo LS220D0802-EU Bedienungsanleitung

LinkStation 200

User Manual

Americas: www.buffaloamericas.com

Europe: www.buffalo-technology.com

Asia Pacific: www.buffalo-asia.com

35020312-10

2016.11

Contents

Chapter 1 Getting Started .............................................6

Diagrams...........................................................................................6

Changing Admin Password and Adding a Shared Folder .............7

Installing Applications.....................................................................9

NAS Navigator2.......................................................................................... 9

SmartPhone Navigator............................................................................10

WebAccess ................................................................................................10

Accessing Shared Folders ............................................................. 10

Accessing from a Computer ....................................................................10

Accessing from a Mobile Device .............................................................10

Turning the LinkStation On and Off ............................................ 11

Chapter 2 Configuration ............................................. 12

Opening Settings from a Computer ............................................ 12

Opening Settings from a Mobile Device ..................................... 17

Settings That Can Be Changed from Your Mobile Device .....................19

Chapter 3 Sharing Files ............................................... 20

Adding Shared Folders ................................................................. 20

Configuration from a Computer .............................................................20

Configuration from a Mobile Device ......................................................23

Adding Users ................................................................................. 25

Configuration from a Computer .............................................................25

Configuration from a Mobile Device ......................................................27

Adding Groups .............................................................................. 29

Access Restrictions........................................................................ 30

Local Users/Groups..................................................................................31

Active Directory .......................................................................................33

NT Domain................................................................................................36

User Authentication with an External SMB Server................................38

Chapter 4 Managing Storage...................................... 42

RAID Arrays.................................................................................... 42

Working with RAID Arrays............................................................ 42

Using JBOD...............................................................................................42

Changing RAID Mode ..............................................................................43

RMM (RAID Mode Manager)....................................................................45

RAID Scanning..........................................................................................46

Adding an External Hard Drive .................................................... 47

Connecting an External Drive.................................................................47

Compatibility ...........................................................................................47

Dismounting Drives ...................................................................... 48

Dismounting with the Function Button .................................................48

Dismounting from Settings on a Computer ..........................................48

Dismounting from Settings on a Mobile Device ...................................49

Checking Drives ............................................................................ 50

Formatting Drives ......................................................................... 51

Erase Data on the LinkStation Completely ................................. 53

Disk Quotas ................................................................................... 54

Quotas for Users.......................................................................................55

Quotas for Groups ...................................................................................55

Hard Drive Replacement .............................................................. 56

Rebuilding the RAID Array from a Computer ........................................57

Rebuilding the RAID Array from a Mobile Device .................................59

Chapter 5 Remote Access............................................ 64

WebAccess ..................................................................................... 64

Configuring from a Computer ................................................................64

Configuring from a Mobile Device .........................................................67

FTP.................................................................................................. 75

Chapter 6 Backup ........................................................ 77

Back Up from the LinkStation ...................................................... 77

Preparing a Backup Destination.............................................................77

Configuring a Backup Job .......................................................................79

Backing Up Your Mac with Time Machine ................................... 82

Copying from a USB Device.......................................................... 87

Configuring Direct Copy from a Computer............................................88

Configuring Direct Copy from a Mobile Device.....................................89

Starting Direct Copy ................................................................................90

Chapter 7 Multimedia ................................................. 92

DLNA .............................................................................................. 92

Configuration from a Computer .............................................................92

Configuration from a Mobile Device ......................................................94

Playing Files .............................................................................................95

Connected DLNA-compatible Devices ...................................................95

Streaming to DLNA-compatible Devices ...............................................96

Disabling Playback from Specific Devices .............................................97

iTunes Server ................................................................................. 98

BitTorrent....................................................................................... 99

Opening Download Manager ...............................................................100

Downloading Files .................................................................................102

Connecting a Printer................................................................... 103

Setting Up a Printer from a Computer .................................................103

Setting Up a Printer from a Mobile Device ..........................................104

Chapter 8 Advanced Features .................................. 105

Email Notification ....................................................................... 105

Sleep Mode .................................................................................. 106

Encrypting Data Transmission ................................................... 108

Encrypting Settings Data ......................................................................108

Encrypting FTP Transfer Data ...............................................................108

SSL Encryption .......................................................................................108

Restoring Factory Defaults......................................................... 109

Initializing from Settings ......................................................................109

Initializing with the Function Button ...................................................109

Online Update ............................................................................. 109

Name, Date, Time, and Language .............................................. 110

Jumbo Frames ............................................................................. 112

Changing the IP Address ............................................................ 114

Chapter 9 Utilities...................................................... 116

NAS Navigator2 for Windows..................................................... 116

Mounting as a Network Drive ...............................................................118

Changing the IP Address .......................................................................119

NAS Navigator2 for macOS ........................................................ 120

Mounting as a Network Drive ...............................................................122

Changing the IP Address .......................................................................123

NovaBACKUP............................................................................... 123

Installing from CD..................................................................................123

Installing from Website .........................................................................124

Chapter 10 Appendix ................................................ 125

When the Power LED Blinks........................................................ 125

Default Settings .......................................................................... 127

Specifications .............................................................................. 127

Chapter 11 Regulatory Compliance Information.... 129

For Customers in the United States ........................................... 129

For Customers in Europe ............................................................ 129

Chapter 1 Getting Started

Diagrams

LS210D

Function

OFF

LS220D, LS220DE

511

1 Power LED

The white power LED will light up while the LinkStation is on.

The white power LED blinks while booting or shutting down.

The red power LED blinks when an error occurs.

If there is a status message, the power LED blinks amber.

If there is new firmware available, the power LED glows amber.

2 Function LED

This LED glows white while the LinkStation is being initialized and while dismounting USB devices. It blinks

white during Direct Copy.

For enclosure models, the red function LED glows when turning the LinkStation on for initial hard drive

installation and blinks after pushing the function button.

3 Function Button

Use this button for Direct Copy, dismounting USB devices, and initializing settings.

4 Power Switch

Move the switch up and down to power on and off.

5 USB 2.0 Port

Compatible Buffalo USB hard drives, USB flash drives, digital cameras, and USB printers can be connected. USB

hubs are not supported.

6 LAN Port

Connect to a router, hub, or switch on your Ethernet network with the included Ethernet cable.

7 Link and Activity LED

This LED shows network activity. It blinks green when the LinkStation is accessed over the network.

8 Power Connector

Use the included power cable to connect to a surge protector or outlet.

9 Power Status LED

The LED glows green when the power cable is connected.

10 Fan (LS220D and LS220DE only)

Do not block the fan.

11 Anti-Theft Security Slot

Use this slot to secure your LinkStation with a cable lock (not included).

12 Drive 1 Error LED (LS220D and LS220DE only)

If there is an error on drive 1, this LED will light.

13 Drive 2 Error LED (LS220D and LS220DE only)

If there is an error on drive 2, this LED will light.

Changing Admin Password and Adding a Shared Folder

After initial setup, changing your password and creating other shared folders are recommended.

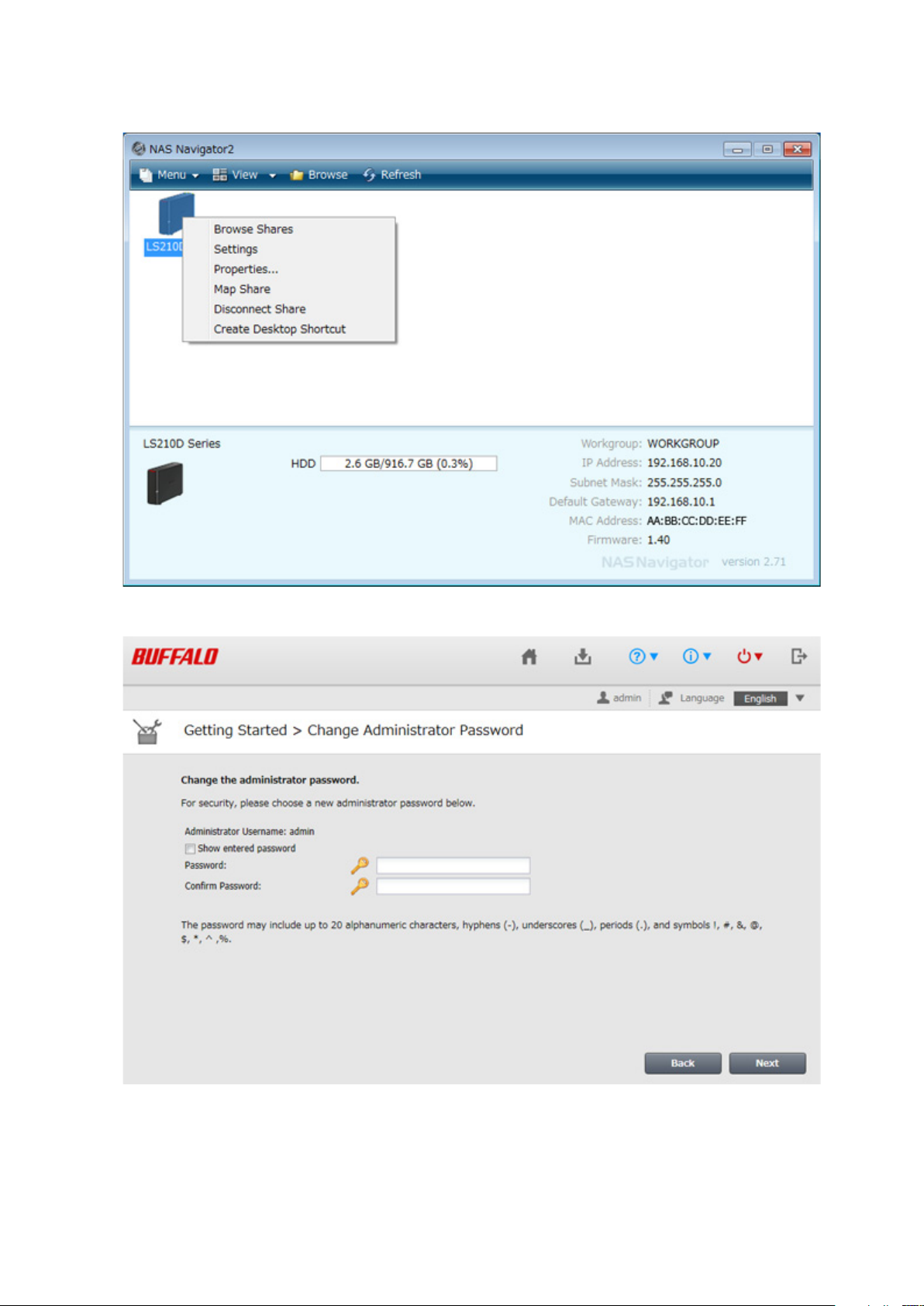

1 Double-click the icon to start NAS Navigator2.

2 Right-click on your LinkStation's icon and select Settings. On the Mac, select the LinkStation's icon while

holding down the control key, then select Settings.

3 Changing the password from the default is recommended.

Note: You can open this same screen by clicking Getting Started from Easy Admin.

4 Enter the new password (twice), then click Next.

Note: The default username and password are "admin" and "password". To keep the defaults, leave both fields

blank and click Next.

5 Configure levels of sharing for all existing shared folders (public or private) to finish the initial setup wizard.

Notes:

• Select "Set as private folder" to restrict access to the folder to specific users.

• Click Create Shared Folder to create a new shared folder from the wizard. By default, SMB and AFP connections

can be used to access this folder.

6 Click OK when the following message is displayed.

Installing Applications

NAS Navigator2

1 Insert the LinkNavigator CD into your computer. You can also download the latest LinkNavigator from the

Buffalo website. LinkNavigator will launch.

2 Click NAS Navigator2 Install.

3 Follow the screen instructions to install NAS Navigator2.

4 When the installation finished, click Finish.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Buffalo Netzwerkspeicherserver Handbücher

Buffalo

Buffalo TeraStation TS5210DN Bedienungsanleitung

Buffalo

Buffalo TeraStation WSS 5000R2 Bedienungsanleitung

Buffalo

Buffalo LinkStation 200B Bedienungsanleitung

Buffalo

Buffalo BS-GS2008P Bedienungsanleitung

Buffalo

Buffalo TeraStation Benutzerhandbuch

Buffalo

Buffalo LS510D Bedienungsanleitung

Buffalo

Buffalo TeraStation WSS WS5020N6 Bedienungsanleitung

Buffalo

Buffalo LINKSTATION HS-DGL Bedienungsanleitung

Buffalo

Buffalo TeraStation HD-HTGL Bedienungsanleitung

Buffalo

Buffalo LinkStation 200 Series Bedienungsanleitung

Buffalo

Buffalo TeraStation TS3220DN Bedienungsanleitung

Buffalo

Buffalo TeraStation 5200 Bedienungsanleitung

Buffalo

Buffalo TeraStation WSS 5000 Bedienungsanleitung

Buffalo

Buffalo TeraStation III TS-IXL Bedienungsanleitung

Buffalo

Buffalo TeraStation III TS-IXL Bedienungsanleitung

Buffalo

Buffalo TeraStation WSS 5000 Bedienungsanleitung

Buffalo

Buffalo TeraStation WSH5610DN2 Bedienungsanleitung

Buffalo

Buffalo LS210D Bedienungsanleitung

Buffalo

Buffalo LS-WVL Bedienungsanleitung

Buffalo

Buffalo iSCSI Rackmount TeraStation Pro Bedienungsanleitung

Buffalo

Buffalo LS421DE Bedienungsanleitung

Buffalo

Buffalo LinkStation HD-H series Bedienungsanleitung

Buffalo

Buffalo TeraStation Bedienungsanleitung

Buffalo

Buffalo TeraStation WSS 5000 Bedienungsanleitung

Beliebte Netzwerkspeicherserver Handbücher anderer Marken

HP NetStorage 6000 Bedienungsanleitung

Seagate

Seagate U10 ST320423A Bedienungsanleitung

Synology

Synology RackStation RS816 Handbuch

D-Link

D-Link ShareCenter Pro DNS-1200-05 Bedienungsanleitung

Avid Technology

Avid Technology VideoRAID ST Sicherheitsleitfaden

Western Digital

Western Digital My Cloud Home Duo Bedienungsanleitung

PrimeArray

PrimeArray 4xxx Bedienungsanleitung

Planex

Planex MZK-NAS01SG Bedienungsanleitung

Intel

Intel SS4000-E - Entry Storage System NAS Server Bedienungsanleitung

Synology

Synology RS2212+ Bedienungsanleitung

Allnet

Allnet ALL69000 Bedienungsanleitung

Adaptec

Adaptec 5325301580 Bedienungsanleitung

Motorola

Motorola EXORdisk II Bedienungsanleitung

Sony

Sony XDAAI1PK Bedienungsanleitung

Cisco

Cisco Linksys NAS200 Original Betriebsanleitung

Sans Digital

Sans Digital MR4UT6G Bedienungsanleitung

AIC

AIC FB128-LX Bedienungsanleitung

Dell

Dell PowerVault NX3500 Gebrauchsanweisung
