Burley BEE Bedienungsanleitung

Contents

Section Page

Introduction 2

I. Hardware Bag Contents & Tool List 3

II. Mounting the Reﬂectors 3

III. Attaching the Wheels 4

IV. Unfolding & Folding Your Burley Bee 5

V. Using the Seat Harness 8

VI. Hitching the Burley Bee to Your Bicycle 11

VII. Trailer Maintenance and Care 12

VIII. Safety Guidelines 13

IX. Safety Checklists 19

X. Parts List & Drawing 22

Warranty 24

Bee

Owner’s Instruction and Safety Manual

Burley Bee Owner’s Instruction and Safety Manual

Congratulations!

You’ve just purchased a Burley® trailer,the leading choice of discriminating bicycle

trailer owners worldwide.Every effort has been made to ensure your purchase is of

top quality and proven design,ready to provide you with many years and thousands

of miles of happy,safe trailering.

IMPORTANT: Because some of the features and guidelines for

using the Burley Bee merit close attention, it is very important

that you familiarize yourself with the trailer by reading this

manual all the way through before use. If you have any ques-

tions, we encourage you to contact your Burley dealer.

Introduction

This manual is written sequentially to assist initial assembly.Your Burley Bee is

shipped 95% factory-assembled.You need only to mount the reﬂectors,install the

tongue,attach the wheels,side panels,roll bar and safety ﬂag,and snap the cover

into place.Once you’ve read the safety guidelines,you’re ready to go.Initial assembly

should take 10-15 minutes.Subsequent setting up and folding can easily be done in

a couple of minutes,no tools required.

Before trailering,be sure you have a thorough understanding of the safety harness

and of trailer hitch operation.Practice folding and unfolding your trailer;it can easily

be done in less than a minute,no tools required.Check to see that the trailer wheels

and hitch are securely attached.We again request that you read this manual from

start to ﬁnish before use,referring to it as necessary in the future.

NOTE: Any reference to left or right is made in the direction of

travel, as if you were sitting in the child seat looking forward.

When Loaning or Selling Your Trailer

If you loan or sell your Burley Bee,supply the new user with this manual.They must

familiarize themselves with all sections—especially sections“VIII.Safety Guidelines”

and“IX.Safety Checklists”prior to use.It is essential that they understand the differ-

ences between riding a bicycle with a trailer and without one.It is also essential that

they understand correct wheel attachment,setup,folding,and use of the harness,

safety ﬂag,cover,and hitch.Always ensure that both adult and child are wearing

helmets.Never loan your trailer if it is need of maintenance or repair.

Burley Bee Owner’s Instruction and Safety Manual

I. Hardware Bag Contents and Tool List

IMPORTANT: Please verify that you have received all of the

contents listed. Do not proceed with assembly if any parts are

missing; contact Burley immediately for replacement parts.

Hardware Bag Contents

(2) large red reﬂectors

(2) hex head reﬂector screws

(2) 1”plastic reﬂector brackets

(1) 5 x 10 plastic bag

Envelope

Burley Checklist

Warranty Card

Burley Bee Owner’s Instruction & Safety Manual

II. Mounting the Reﬂectors

The red reﬂectors install onto the rear of the main frame tube of the trailer on the

right and left sides.The main frame tubes run along either side of the trailer bottom

frame.

1. The bracket (A) mounts as shown on the

section of the main frame tube that extends

behind the trailer (B).Tighten the clamp onto

the tube so that the two holes used to mount

the reﬂector are horizontal.

2. Screw the reﬂector (C) onto the bracket as

shown.

3. The lower screw on the reﬂector bracket

is used to adjust the angle of the reﬂector.

Adjust the angle of the reﬂector to ensure

that the back face is oriented vertically to the

ground,so that the reﬂector points directly

back when the trailer is attached to the bike.

4. Repeat for the other side of the trailer.

Tools Required

Phillips screwdriver

9/16" socket and torque wrench

Flat blade screwdriver

Burley Bee Owner’s Instruction and Safety Manual

III. Attaching the Wheels

First,verify that the tires are inﬂated to 30-35 P.S.I.Next,tip the trailer frame on its

back end.If you are working on a rough or dirty surface,lay down a cloth or other

protective barrier to avoid damage to your trailer.With the quick-release lever in the

"OPEN" position,insert the wheel axle assembly completely into the hollow trailer

axle,making sure that the horizontal shaft goes all the way into the axle.

NOTE: The spoked wheels install with the inset side of the hub

facing outward.

Once the wheels are fully seated in the hollow axle,the quick-release lever should

be positioned so that it is aimed to the rear of the trailer in the“CLOSED”position

(the lever is marked for OPEN or CLOSED positions). The wheel quick-release/axle

assembly comes preadjusted from Burley.

Make sure wheels are held securely, with wheel shaft fully

inserted into the hollow axle. You should not be able to rock

or shift wheels. Improperly installed wheels can fall off, caus-

ing an accident or serious injury.

With wheels mounted, both reﬂectors must face outward.

Check to see that both reﬂectors have been installed cor-

rectly. Incorrectly installed reﬂectors can reduce visibility at

night and cause an accident or serious injury.

Quick-release lever

in unlocked “OPEN”

position

Quick-release lever

in locked “CLOSED”

position

Burley Bee Owner’s Instruction and Safety Manual

IV. Unfolding and Folding Your Burley Bee

Your Burley Bee is designed with a super strong,lightweight aluminum frame,com-

plete with a roll cage and bright colored polyester software. Setting it up or folding

it down is accomplished in a few easy steps as follows:

Unfolding

To unfold,rotate the front tube upward and the rear tube back until they meet on

the two black plastic saddles as shown below. Then rotate the two frame locks to

snap onto the rear tube as shown below. The frame locks should connect adjacent

to,and to the outside of,the two plastic saddles.

Check that the frame locks are properly engaged before

using trailer. Failure to do so can result in serious injury.

Frame locks

snapped into

closed position

onto rear tube.

Frame Lock

Front

Rear

Burley Bee Owner’s Instruction and Safety Manual

Installation and Use of the Cover

Your Big Screen 2-in-1 Cover is held in place by two snaps at the top of the frame,

four rubber o-rings (two in the front and two in the rear) as well as a fore and aft strip

ofVelcro. Always use your cover to keep debris out (and toys inside) of the trailer

when it’s in use. InstallingtheCover

To install the cover,unfold it and snap the top

two snaps ﬁrst. Next,pull the cover toward the

back of the trailer and atach the rubber O-rings

andVelcro. Finish installation by attaching the

two front O-rings andVelcro.

FoldingandStowingtheFrontWindow

Folding and stowing the front window is

quick and easy. Begin by unhooking the

window where it attaches to the O-rings

at the front of the trailer. Next,roll the

window up toward the top of the trailer.

Hold the window in place by inserting it

into the elastic loops at the top.

Tongue Installation and Operation

InstallTongue

To facilitate tongue installation,tip your Burley Bee frame onto its back end.If you

are working on a rough or dirty surface,lay down a cloth or other protective barrier.

Installing your Burley Bee tongue involves four simple steps (illustrated on page 7):

1. Slide the tongue onto the pivot pin at the left front.

2. Remove the hairpin cotter and lock pin from the front tongue receptacle,rotate

the tongue up into place,and snap it into the two plastic tongue receptacles.

3. Secure the tongue by pushing the lock pin fully into the front tongue receptacle.

4. Rotate the lock pin and locate the hole in it which will be between the recep-

tacle and the trailer frame.Anchor the lock pin by inserting the hairpin cotter all

the way into the hole in the lock pin.

Burley Bee Owner’s Instruction and Safety Manual

Never operate trailer without tongue lock pin and hairpin

cotter locked in place. Unlocked tongue can loosen or

detach and cause accident resulting in serious injury.

Installing the Safety Flag

Insert the safety ﬂag pole through the loop of ½”webbing on the outside of the

trailer and into the ﬂag pocket at the bottom left hand corner of the trailer as shown

below. DO NOT USEYOURTRAILER WITHOUTTHE SAFETY FLAG IN PLACE.

1. SlideTongue

onto Pivot Pin

2. RotateTongue into Place.

3. SecureTongue

with Lock Pin

4. Anchor Lock Pin

with Hairpin Cotter

5. Lock Pin and Hairpin

cotter Locked in Place

(viewed from underside).

(view from above, left front corner)

Burley Bee Owner’s Instruction and Safety Manual

Folding Your Burley Bee

Folding your Burley Bee is basically the reverse of unfolding it. Familiarize yourself

with unfolding the trailer as outlined above. To fold your trailer:

1. Remove the safety ﬂag.

2. Remove the tongue by pulling out the hairpin cotter and lock pin and reversing

the process described previously.

3. Remove the wheels and store them in a safe place.

4. Remove the cover and store in a safe place.

5. Unclip the frame locks at the top rear of the frame.

6. Push the rear part of the trailer forward and down while simultaneously pushing

the top of the trailer down.

We recommend reinserting the safety pins in their receptacles

for storage or transport to avoid snagging.

You can partially fold your Burley Bee as needed. Your options are to fold only the

top,remove only the tongue and hitch,remove the quick release wheels,or any

combination of the above. Do not operate your trailer in a partially folded condition.

V. Using the Seat Harness

Only passengers who are able to wear a helmet and sit

upright, unassisted should ride in a trailer. Adequate neck

strength is required to hold head upright while trailering. A

physician should evaluate anyone who is of questionable

developmental age for trailering.

The straps and sliding buckles sewn to the backrest of the child seat are part of

a self-adjusting system that keeps the shoulder straps at the correct height for

children of various sizes.When you tighten the shoulder harness,the sliding buckles

allow the shoulder belts to come across the top of the child’s shoulders,creating

a snug ﬁt.In addition,the sliding buckles keep the straps from falling off of the

shoulders.

Burley Bee Owner’s Instruction and Safety Manual

IMPORTANT: Always fasten and adjust the two buckles behind

the child seat when using the trailer.

Single Passenger:

1. Unclip the center support strap (with O-ring).

2. Unclip all of the shoulder straps from theY-buckles. Leave outboard

shoulder straps dangling.

3. Remove the two center shoulder straps by unthreading them from the

ladder locks.

4. Trade the positions of the shoulder straps and re-insert the straps into the

ladder locks as shown in the illustration. The ﬂat parts of the male portion

of theY-buckle should face toward the center.

5. Seat the child in the center of the seat.

6. Snap in the shoulder straps at theY-buckle. Ensure that theY-buckle is

adjusted so that it is at the child’s sternum.

7. Ensure that the shoulder straps are adjusted so that the child is comfortably

kept from moving too far forward in the seat.

8. Fasten and adjust the lap belt so that it is snug.

Ladder Lock

Burley Bee Owner’s Instruction and Safety Manual

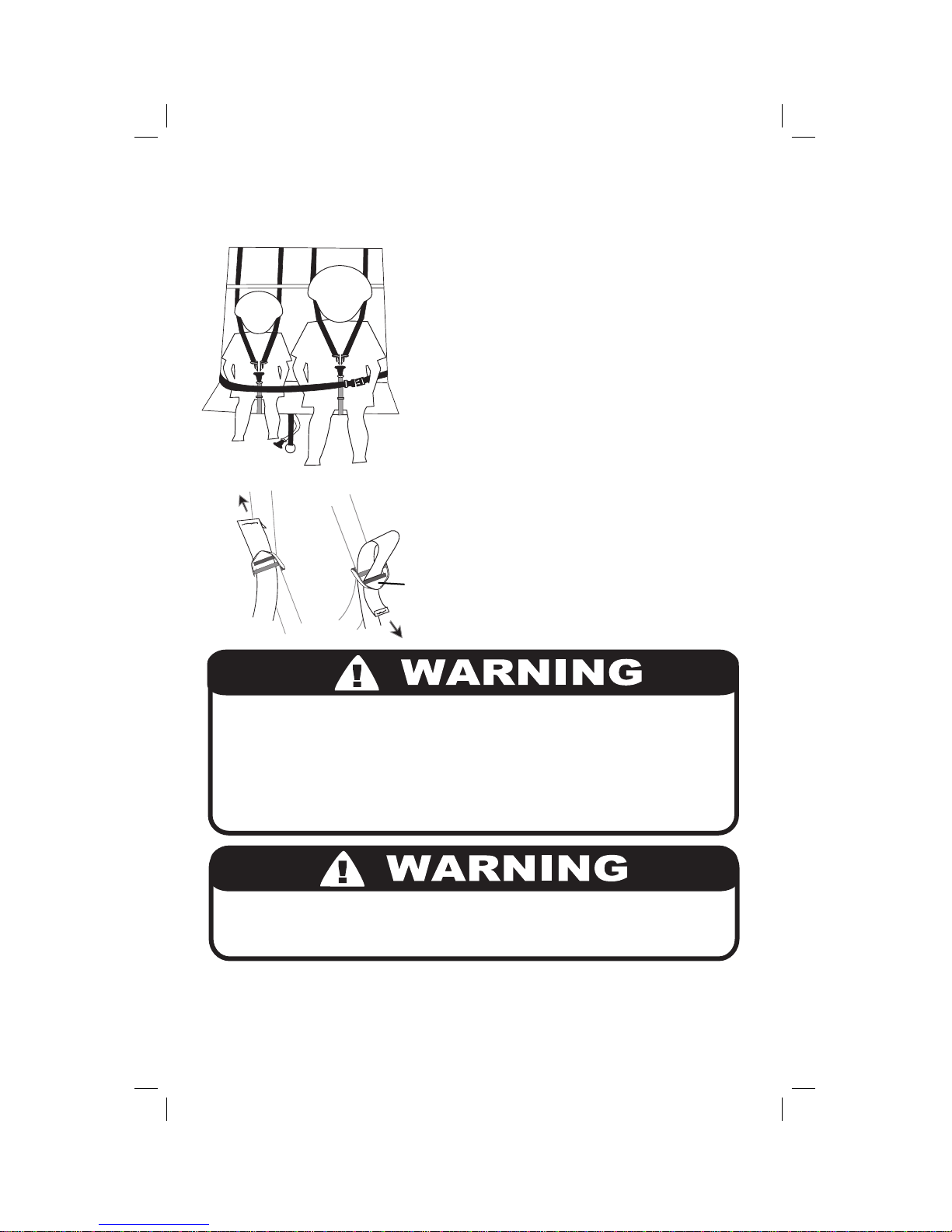

Two Passengers:

For two children,use both shoulder harnesses and two outer crotch straps.

1. Attach the senter support strap with O-ring.

2. Seat the ﬁrst child on one side of the trailer.

3. Snap in the shoulder straps at theY-buckle.

Ensure that theY-buckle is adjusted so that it is

at the child’s sternum.

4. Ensure that the shoulder straps are adjusted so

that the child is comfortably kept from moving

too far forward in the seat.

5. Repeat for the second child.

6. Fasten and adjust the lap belt so that it is snug.

Junction of Y-buckle must be positioned at child’s sternum to

work correctly. Belts or buckles positioned near your child’s

neck can cause discomfort or serious injury. Check child

periodically to ensure that he/she has not slipped from cor-

rect seated position.

Child and cyclist must wear helmets when trailering. Helmets

can prevent or signiﬁcantly reduce head injury in event of

accident.

Ladder Lock

Andere Handbücher für BEE

Inhaltsverzeichnis

Andere Burley Fahrradzubehör Handbücher

Burley

Burley COHO PANNIER RACK Bedienungsanleitung

Burley

Burley PANNIER BAGS Bedienungsanleitung

Burley

Burley DASH RM Bedienungsanleitung

Burley

Burley Tail Wagon Bedienungsanleitung

Burley

Burley Plus Trailercycle Bike Conversion Kit Einrichtungshandbuch

Burley

Burley PICCOLO Bedienungsanleitung

Burley

Burley PICCOLO Bedienungsanleitung

Burley

Burley Encore X Bedienungsanleitung

Burley

Burley Jogger Bedienungsanleitung

Burley

Burley BARK RANGER Bedienungsanleitung

Burley

Burley FLATBED Einrichtungshandbuch

Burley

Burley FLATBED Bedienungsanleitung

Burley

Burley 2-Wheel Stroller Kit Bedienungsanleitung

Burley

Burley NOMAD RACK Bedienungsanleitung

Burley

Burley Nomad Cargo Rack Bedienungsanleitung

Burley

Burley d'lite ST Leitfaden

Burley

Burley ENCORE Bedienungsanleitung

Burley

Burley Ski Kit Bedienungsanleitung

Burley

Burley d'lite ST Bedienungsanleitung

Burley

Burley NOMAD RACK Bedienungsanleitung

Burley

Burley Cub X Bedienungsanleitung

Burley

Burley THRU AXLE Bedienungsanleitung

Burley

Burley Travoy Bedienungsanleitung

Burley

Burley Travoy Bedienungsanleitung

Beliebte Fahrradzubehör Handbücher anderer Marken

Sigma

Sigma BC 16.16 Bedienungsanleitung

Playcore

Playcore Dero Setbacks Bedienungsanleitung

VDO Cyclecomputing

VDO Cyclecomputing x3dw Bedienungsanleitung

Cateye

Cateye RAPID X2 Bedienungsanleitung

buratti meccanica

buratti meccanica Clorofilla Trail Bedienungsanleitung

Shimano

Shimano SG-8R20 Betriebsanleitung

BOB

BOB YAK Bedienungsanleitung

APLIC

APLIC 303303/20190717TW012 Bedienungsanleitung

SRAM

SRAM AXS BlipBox Bedienungsanleitung

Garmin

Garmin EDGE 500 Bedienungsanleitung

Shimano

Shimano FD-RX810 Bedienungsanleitung

Cateye

Cateye V2C - Gebrauchsanweisung

KMART

KMART 43115907 Bedienungsanleitung

SIGMA SPORT

SIGMA SPORT Buster 2000 Bedienungsanleitung

NVO Components

NVO Components STEM Bedienungsanleitung

DAXYS

DAXYS BP188 Bedienungsanleitung

XLC

XLC BV-W17 Bedienungsanleitung

Deda Elementi

Deda Elementi SUPERBOX Bedienungsanleitung
