BWI Eagle Air-Eagle SR 38-2000-DC Bedienungsanleitung

AIR-EAGLE SR

38-2000-DC

2.4 GHz RF Receiver

Document Date: 6/21/2021

Product Rev: 10

38-2000-DC

WARRANTY STATEMENT

BWI Eagle Inc. warrants the Air-Eagle Remote Control System, if properly used and installed, will be free

from defects in material and workmanship for a period of 1 year after date of purchase. Said warranty to

include the repair or replacement of defective equipment. This warranty does not cover damage due to

external causes, including accident, problems with electrical power, usage not in accordance with product

instructions, misuse, neglect, alteration, repair, improper installation, or improper testing. This limited

warranty, and any implied warranties that may exist under state law, apply only to the original purchaser of

the equipment, and last only for as long as such purchaser continues to own the equipment. This warranty

replaces all other warranties, express or implied including, but not limited to, the implied warranties or

merchantability and fitness for a particular purpose. BWI Eagle makes no express warranties beyond

those stated here. BWI disclaims without limitation, implied warranties of merchantability and fitness for a

particular purpose. Some jurisdictions do not allow the exclusion of implied warranties so this limitation

may not apply to you. To obtain warranty service, contact BWI Eagle for a return material authorization.

When returning equipment to BWI Eagle, the customer assumes the risk of damage or loss during

shipping and is responsible for the shipping costs incurred.

SIGNAL RANGE

Max range statements are estimates based on a clear line of sight with few interferences. Actual range will

vary based on transmitting power, orientation of transmitter and receiver, height of transmitting and

receiving antennas, weather conditions, electronic interference, terrain, and physical obstacles, including

but not limited to; walls, building structures, trees (foliage), metal objects, and landscape (hills, mountains).

WIRELESS STOP SYSTEMS WORK IN CONJUCTION WITH

HARD-WIRED SYSTEMS.

Wireless Stop and E-Stop devices must work in conjunction with a hard-wired

system. A wireless system should never be considered a primary life-saving device.

At least one hard-wired switch must be available in the event the wireless signal is

lost. Failure to comply may result in serious injury or death to personnel and

damage to equipment.

38-2000-DC

6.70”

2.25”

5.50”

4.80”

6.30”

2.40”

4.80”

2.50”

3.50”

9.45”

Ø 0.365”

Thru Hole

(4) Places

Ø 0.200”

Thru Hole

(6) Places

INTRODUCTION

The Air-Eagle SR is an RF system designed for short to medium range wireless remote control of

electrical apparatus in a variety of industrial applications. Systems can consist of any number of receivers

and handheld or contact input transmitters working together. This receiver is equipped with 4 independent

relays that can switch 5 amps @ 120VAC or 30VDC. The relays are user programmable for momentary

or toggle/latching operation and can be directly interfaced with the customer's equipment or P.L.C. Eight

user selectable frequencies allow multiple systems to be used in the same area. Capable of receiving

remote signals transmitted from up to 600 feet away, the Air-Eagle SR Receiver utilizes spread-spectrum

technology and provides the utmost in security and reliability.

DIMENSIONS

38-2000-DC

INSTALLATION

1. DISCONNECT power from all equipment before proceeding with installation.

2. Mount the receiver in a convenient location.

3. Install relay control wiring to the terminal strip.

4. Attach rubber duck antenna or coax from external antenna to connector on side of enclosure.

5. Connect supplied power input cable to your external power source.

TERMINAL STRIP WIRING

Terminal 1

Negative (-) 9-36VDC

Terminal 2

Positive (+) 9-36VDC

Terminal 3

CH1 Dry Contact Input (Common)

Not used on this model

Terminal 4

CH1 Dry Contact Input

Terminal 5

CH2 Dry Contact Input (Common)

Terminal 6

CH2 Dry Contact Input

Terminal 7

N/O Relay 1

Terminal 8

C Relay 1

Terminal 9

N/C Relay 1

Terminal 10

N/O Relay 2

Terminal 11

C Relay 2

Terminal 12

N/C Relay 2

Terminal 13

N/O Relay 3

Terminal 14

C Relay 3

Terminal 15

N/C Relay 3

Terminal 16

N/O Relay 4

Terminal 17

C Relay 4

Terminal 18

N/C Relay 4

38-2000-DC

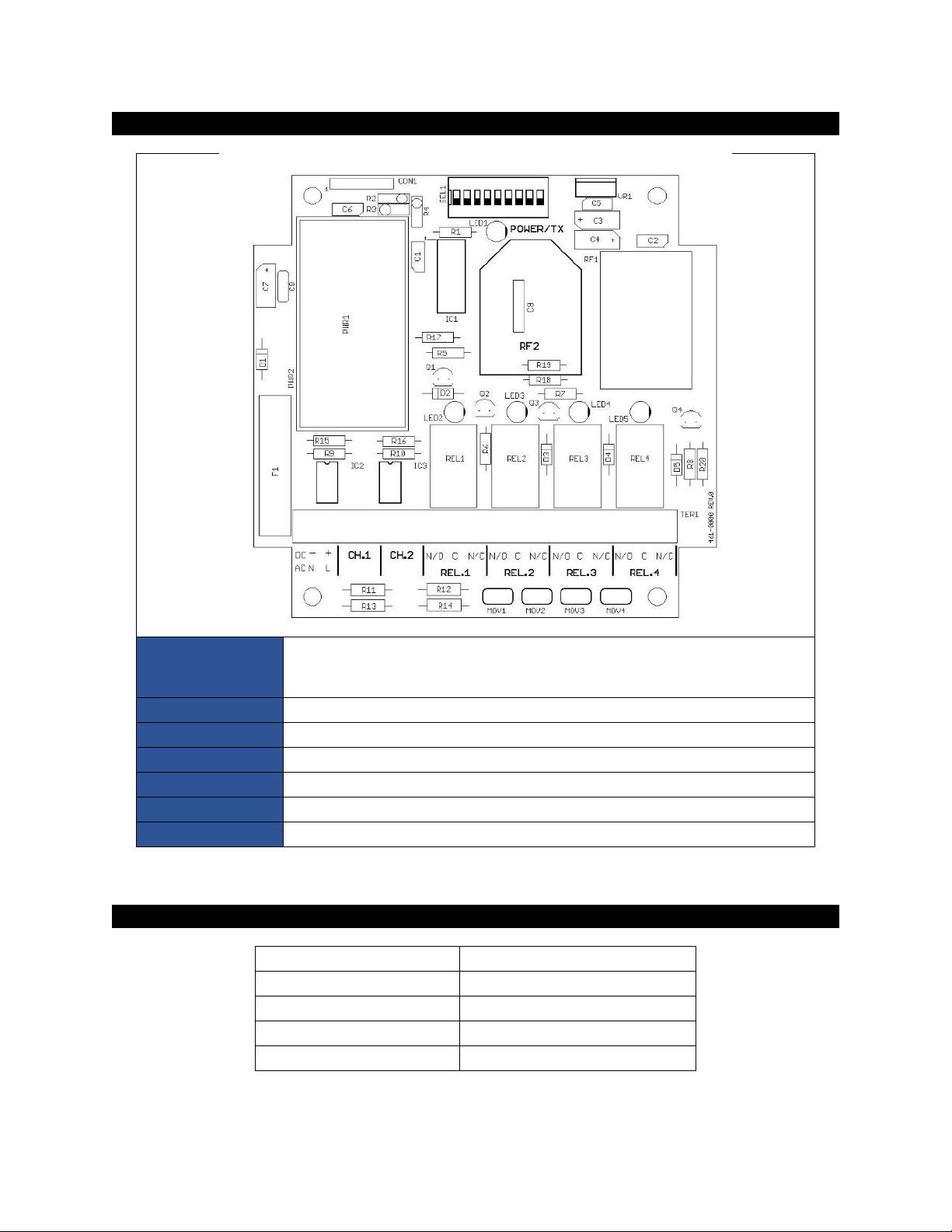

CONTROLS & INDICATORS

POWER/TX

LED1

Dual color LED. Illuminates red while receiver is booting up; changes to

green when boot-up is successful and unit is ready to operate. If this LED

fails to turn green, power unit off for 15-20 seconds, then reapply power.

LED2

Illuminates green while relay 1 is energized

LED3

Illuminates green while relay 2 is energized

LED4

Illuminates green while relay 3 is energized

LED5

Illuminates green while relay 4 is energized

REL1 –REL4

Four SPDT output control relays

RF1

RF Module that transmits/receives data

APPROVALS

United States (FCC)

MCQ-XBEE3

Canada (IC)

1846A-XBEE3

Europe (CE)

ETSI

Australia

RCM

Brazil

ANATEL 06329-18-01209

38-2000-DC

RELAY OPERATION

Button Depressed

OR Input Activated

Relay Action

Relay 1 Energizes, Maintained Momentary

Relay 2 Energizes, Maintained Momentary

Relay 3 Energizes, Maintained Momentary

Relay 4 Energizes, Maintained Momentary

RELAY & FREQUENCY SETUP

The unit is shipped from the factory

with SEL1 switches in the open

positions. All four relays will operate as

maintained momentary and unit is

receiving commands on frequency

one. If you wish to change these

default settings, follow the instructions

below:

1. *IMPORTANT*

Disconnect power from unit

2. Remove top cover.

3. Select desired relay operation

and/or frequency using the

table.

4. Reattach cover.

5. Reconnect power to unit.

6. Programming is complete.

RELAY CONFIGURATION

SEL1

SW#

OPEN

CLOSED

SW1

Relay #1 momentary

(default)

Relay #1 toggle/latch

SW2

Relay #2 momentary

(default)

Relay #2 toggle/latch

SW3

Relay #3 momentary

(default)

Relay #3 toggle/latch

SW4

Relay #4 momentary

(default)

Relay #4 toggle/latch

Maintained Momentary –Relay mimics button or input –

when depressed or closed, relay will be energized; when

released, relay de-energizes.

Toggle Latch –Relay changes and holds its state each time

the corresponding button or input is depressed or closed.

FREQUENCY SETUP

NETWORK

FREQUENCY

SW5

SW6

SW7

1 (default)

OPEN

CLOSED

OPEN

CLOSED

OPEN

CLOSED

OPEN

CLOSED

OPEN

CLOSED

OPEN

CLOSED

Note –SW8 & SW9 not used on this model

38-2000-DC

SPECIFICATIONS

Power Supply

9-36 VDC, 5 W

Relay Contacts

SPDT 5 amp @ 120VAC or 30VDC per channel

Fuse Protected

1 amp

Receiver Frequency

2.4 GHz Spread Spectrum

Receiver Range

Up to 600 feet

Note: Range figures are estimates, based on free-air terrain with limited sources of interference.

Actual range will vary based on transmitting power, orientation of transmitter and receiver, height

of transmitting antenna, height of receiving antenna, weather conditions, interference sources in

the area, and terrain between receiver and transmitter, including, but not limited to, indoor and

outdoor structures such as walls, metal objects, trees, buildings, hills, and mountains.

Receiver Channels

Eight independent network frequencies

Operating

Temperature

-40oF to +185oF

Enclosure

Polycarbonate, IP66 (NEMA 4)

Weight

Approx 2.11 lbs.

ACCESSORIES

STANDARD ANTENNA (INCLUDED)

2.4GHz TNC Portable “Rubber Duck” Antenna

49-1201

MOBILE/BASE ANTENNAS (OPTIONAL)

Used to help achieve max range in non-line-of-sight and line-of-sight applications.

Contact BWI Eagle for recommendations.

2.4GHz Thru-Hole/Bracket Mount Mobile Antenna

49-2201

2.4GHz Magnet Mount Mobile Antenna

49-2202

2.4GHz Omni Directional Base Antenna

49-3201

2.4GHz Yagi Directional Base Antenna

49-3202

HIGH QUALITY COAX CABLE

Used to connect external antennas to control unit.

Flex Coax Cable w/Connectors

(Available in 5’, 15’, 25’, 30’, 40’, 60’, 80’, and 100’ lengths)

49-4000-XX

(XX = length in feet)

BULKHEAD EXTENSION

Used to provide an external antenna connection when mounting control unit

inside another enclosure.

TNC Male to TNC Bulkhead Cable Assembly

(Available in 2’, 4’, and 7’ lengths)

49-5004-X-ISO

(X = length in feet)
