BWI Eagle AIR-EAGLE XLT 441-20100-DC Handbuch

PRODUCT INFORMATION

BULLETIN

105 Bonnie Drive

Butler, PA 16002

724-283-4681

724-283-5939 (fax)

www.bwieagle.com

AIR-EAGLE®XLT

900 MHz RF Receiver

MODEL 441-20100-DC

DESCRIPTION

The AIR-EAGLE XLTis an RF system designed for short to medium range

wireless remote control of electrical apparatus in avariety of industrial

applications. Systems can consist of any number of receivers and

handheld or contact input transmitters working together.This receiver is

equipped with single relay canswitch 5 amps @ 120VAC or 30VDC. The

relay is user programmable for momentary, toggle/latching or latching

operation and can be directly interfaced with the customer's equipment or

P.L.C. Seven user selectable frequencies allow multiple systems to be

used in the same area. Capable of receiving remote signals transmitted

from up to 2500 feet away (with the handheld transmitter) or up to 2 miles

away (with the contact input transmitter), the Air-Eagle XLT utilizes

spread-spectrum technology and provides the utmost security and

reliability even in the noisiest RF environments.

SERIES FEATURE

The “441” Series features repeating capability. Transmitters can be set

up to send “repeat signal packets”, and any transmitter or receiver

within its range will repeat the signal packet to help propagate

communication over widespread areas.

APPROVALS

United States (FCC)

MCQ-XB900HP

Canada (IC)

1846A-XB900HP

INSTALLATION

DISCONNECT DC Power from all equipment before installation.

1. Mount the AIR-EAGLE XLT RECEIVER in a convenient location.

2. Install wiring to terminal strip.

3. Attach supplied rubber duck antenna to TNC connector on the top

side ofthe unit.

4. Connect DC power to the proper terminals in your control circuit.

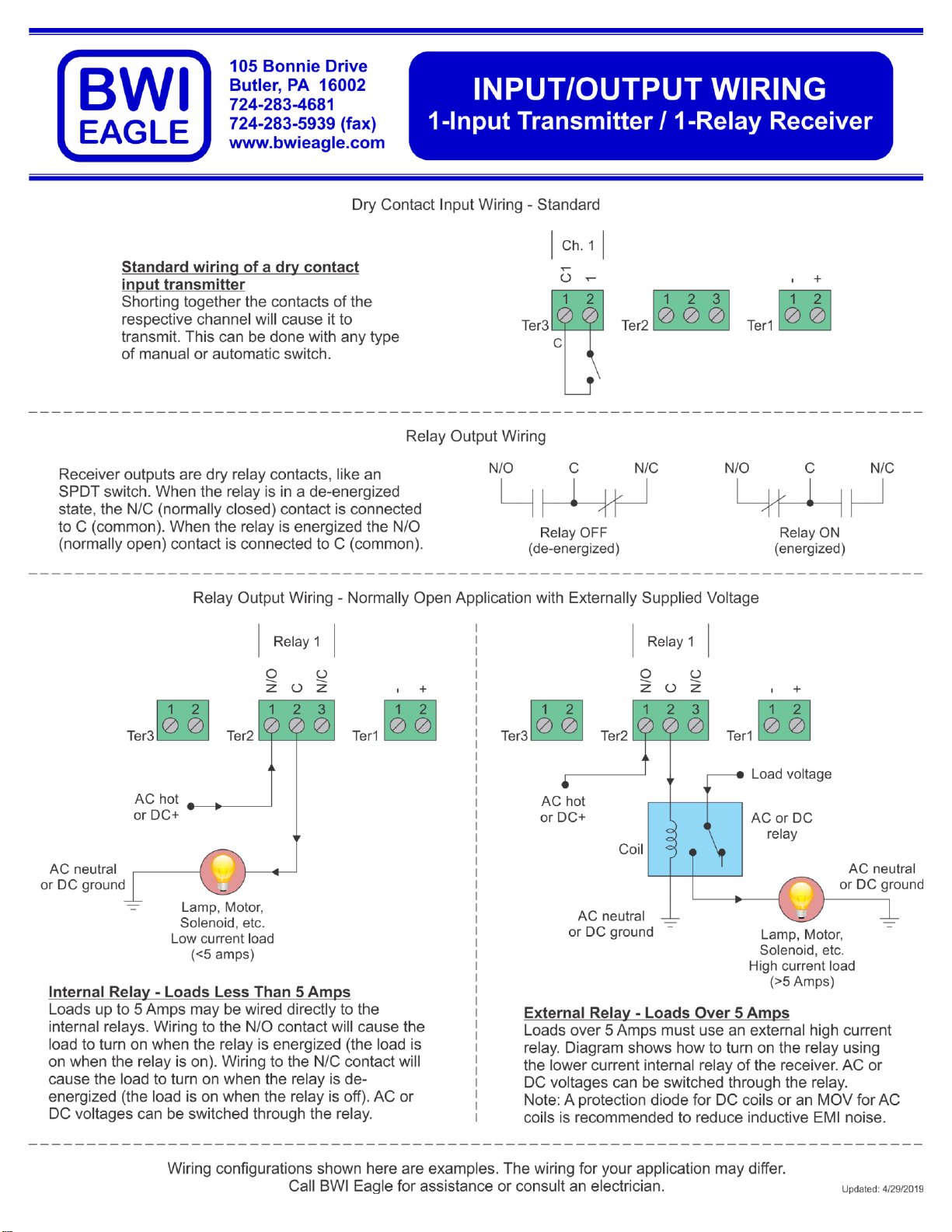

TERMINAL STRIP WIRING

TER 3

INPUT

TER 2

RELAY OUTPUT

TER 1

AC/DC POWER INPUT

Not Used

N/O

(-) 9-36VDC

Not Used

C (common)

(+) 9-36VDC

N/C

Not Used

Dimensions (with mounting plate)

7.07L x 3.57W x 1.62H

CONTROLS AND INDICATORS

Power –LED1

Illuminates green when unit is powered

TX –LED2

Not used on this model

Relay –LED3

Illuminates green whenrelay is energized

RF1

RF module that sends data to the remote

receiver

SEL1

Seven dip switches for selecting options &

network frequency

TER3

Dry contact input

TER2

Relay output

TER1

Power Input

AIR-EAGLE®XLT

900 MHz RF Receiver

MODEL 441-20100-DC

RELAY & FREQUENCY SET-UP

The unit is shipped from the factory with SEL1 switches in the open

positions. The relay will operate as maintained momentary and unit is

receiving commands on frequency one. If you wish to change these

default settings, follow the instructions onthe table below.

1) Remove power from unit

2) Remove top cover.

3) Select desired relay operation and/or networkfrequency using table

below.

4) Reattach cover and apply power.

5) Programming is now complete.

RELAY CONFIGURATION

SEL1

(SW1-2)

Relay Operation

SW1

SW2

Momentary (default)

OPEN

Toggle/Latch

CLOSED

OPEN

Latching

OPEN

CLOSED

OPTIONS

SW3

Vibrating Feedback Off

Vibrating Feedback On

SW4**

Repeater Function Off (default)

Repeater Function On

Maintained Momentary –Relay mimics button or input –when

depressed or closed, relay will be energized; when released, relay de-

energizes

Toggle/Latch –Relay changes (and holds) its state each time the

corresponding button or input is depressed or closed.

Latching –Relay requires two buttons or inputs for operation –

momentary press of 1st button energizes relay; momentary press of 2nd

button de-energizes relay

** EnableSW4 Repeater Function in ONLY one Receiver per System

FREQUENCY SET-UP

SEL1

(SW5-7)

Network

Frequency

SW5

SW6

SW7

1 (default)

OPEN

CLOSED

OPEN

CLOSED

OPEN

CLOSED

OPEN

CLOSED

OPEN

CLOSED

OPEN

CLOSED

SPECIFICATIONS

DC Input

9 –36 VDC, 5 W

Relay Contact

SPDT 5 amp @ 120VAC or 30VDC

Fuse Protected

1 amp

Receiver Frequency

900 MHz Spread Spectrum

Receiver Range –Dependent upon transmitter –see below:

Using Handheld TX

Up to 2500 feet

Using Stationary TX &

External Antenna

Up to 2 Miles

Note: Range figures are estimates, based on free-air terrain with limited sources of

interference. Actual range will vary based on transmitting power, orientation of transmitter

and receiver, height of transmitting antenna, height of receiving antenna, weather

conditions, interference sources in the area, and terrain between receiver and transmitter,

including, but not limited to, indoor and outdoor structures such as walls, metal objects,

trees, buildings, hills, and mountains.

Receiver Channels

Seven independent network frequencies

Operating Temperature

-40oF to +185oF

Enclosure

Polycarbonate NEMA 4, 12, 13 –IP66

Weight

Approx 2 lbs.

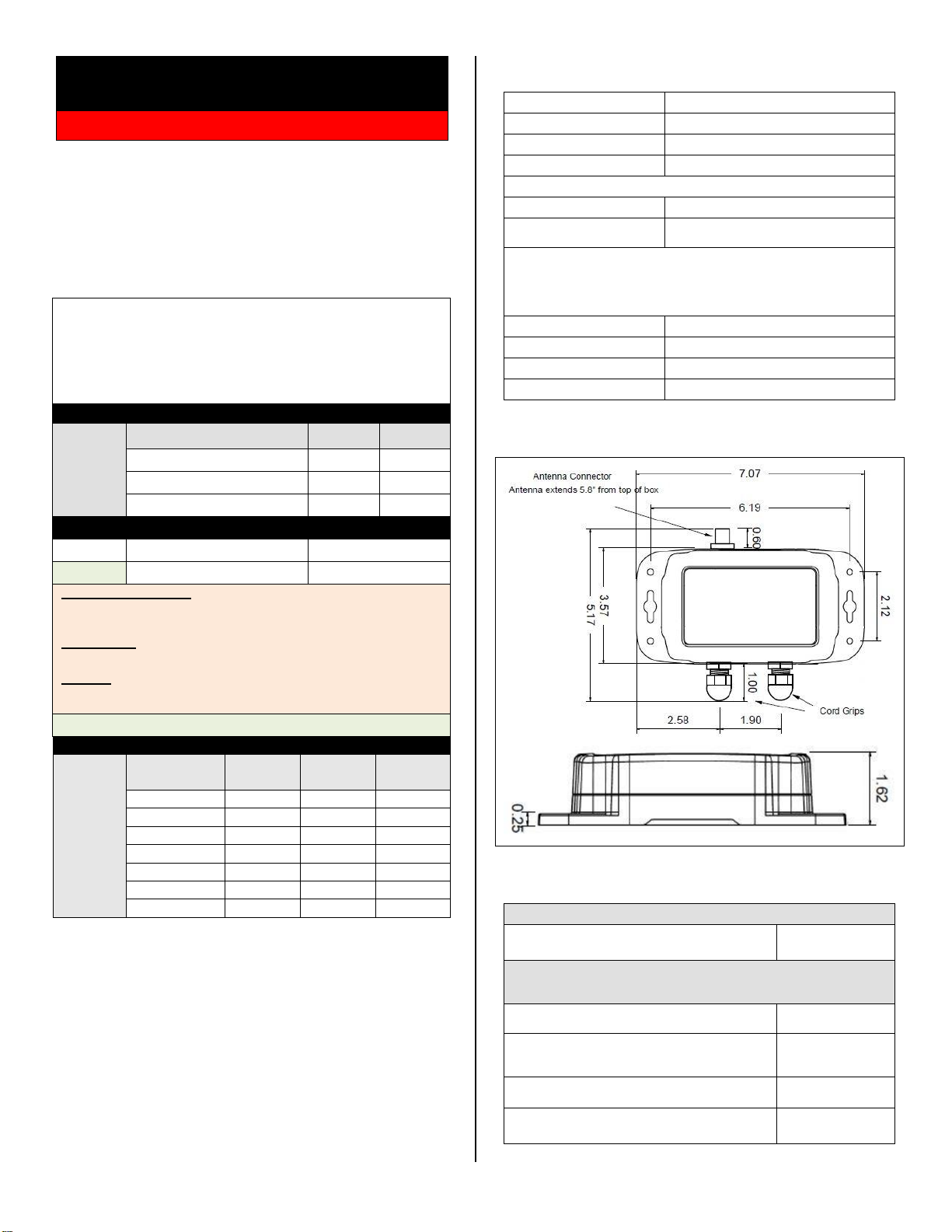

DIMENSIONS

REPLACEMENT PARTS & ACCESSORIES

Standard Antenna (Included):

900MHz Portable Antenna (For distances up

to 2500 feet*)

49-1103

Optional Antennas and Accessories –

Used to increase range in both non line of sight and line of sight

applications. - Contact BWI Eagle for recommendations

900MHz Omni Directional Antenna (For

distances up to 2 miles*)

49-3101

900MHz 13dB Yagi Antenna

Long Range Operation (For distances up to

4 miles*)

49-3102

Flex Coax Cable w/Connectors

49-4000-XX

(XX = # of Feet)

2 Ft. Bulkhead Assembly (Used when

mounting receiver inside another enclosure)

49-5004-2

AIR-EAGLE®XLT

900 MHz RF Receiver

MODEL 441-20100-DC

LIMITED WARRANTY STATEMENT

BWI Eagle Inc. warrants the Air-Eagle Remote Control System, if properly

used and installed, will be free from defects inmaterial and workmanship

for a period of 1 year after date of purchase. Said warranty to include the

repair or replacement of defective equipment. This warranty does not

cover damage due to external causes, including accident, problems with

electrical power, usage not in accordance with product instructions,

misuse, neglect, alteration, repair,improper installation, or improper

testing. This limited warranty, and any implied warranties that may exist

under state law, apply only to the original purchaser of the equipment, and

last only for as long as such purchaser continues to own the equipment.

This warranty replaces all other warranties, express or implied including,

but not limited to, the implied warranties or merchantability and fitness for

a particular purpose. BWI Eaglemakes no express warranties beyond

thosestated here. BWI disclaims without limitation, implied warranties of

merchantability and fitness for a particular purpose. Some jurisdictions do

not allowthe exclusion of implied warranties so this limitation may not

apply to you. To obtain warranty service, contact BWI Eagle for a return

material authorization. When returning equipment to BWI Eagle, the

customer assumes the risk of damage or loss duringshipping and is

responsible for the shipping costs incurred.

DOCUMENT DATE: 8/3/2020 / PRODUCT REV. 5

105 Bonnie Drive

Butler, PA 16002

(724) 283-4681

Fax (724) 283-5939

www.bwieagle.com
