BWI Eagle AIR-EAGLE XLT PLUS Handbuch

PRODUCT INFORMATION

BULLETIN

105 Bonnie Drive

Butler, PA 16002

724-283-4681

724-283-5939 (fax)

www.bwieagle.com

AIR-EAGLE®XLT PLUS

900MHz RF Receiver

MODEL 461-21600-DC

DESCRIPTION

The AIR-EAGLE XLTPLUS is an RF system designed for long range

wireless remote control of electricalapparatus in avariety of industrial

applications. Systems can consist of any numberof transmitters and

receivers working together. This receiver is equipped with 16 independent

relays thatcan switch 5 amps @ 120VAC or 30VDC andcan be directly

interfaced with the customer's equipment or P.L.C. Eight user selectable

frequencies allowmultiple systems to be usedin the same area. The Air-

Eagle XLT Plus can receive remotesignals transmitted from up to 5000

feet away (with a handheld transmitter) or up to 10 miles away (with a

stationary transmitter and external antennas).

SERIES FEATURE

The “461” series features built-in repeating capability. Each receiver

accepts and performs commands from the transmitterthen repeatsthe

commands to any other receiver within its range. When using multiple

receivers this increases range and reliability because if there is a receiver

that the transmitter can’t quite reach but is within range of another receiver

that HAS gotten the signal, it will still get its command from that receiver.

APPROVALS

United States (FCC)

MCQ-XBPSX

Canada (IC)

1846A-XBPSX

INSTALLATION

DISCONNECT DC Power from all equipment before installation.

1. Mount the AIR-EAGLE XLT PLUS RECEIVER in a convenient location.

2. Install relay wiring to terminal strip.

3. Install antenna onto antenna connector located on the right side on

the enclosure.

4. Connect supplied power input cable to your external power source.

(AC Model Pictured)

TERMINAL STRIP WIRING

BOTTOM BOARD

N/O Relay #1

N/O Relay #4

N/O Relay #7

C Relay #1

C Relay #4

C Relay #7

N/C Relay #1

N/C Relay #4

N/C Relay #7

N/O Relay #2

N/O Relay #5

N/O Relay #8

C Relay #2

C Relay #5

C Relay #8

N/C Relay #2

N/C Relay #5

N/C Relay #8

N/O Relay #3

N/O Relay #6

C Relay #3

C Relay #6

N/C Relay #3

N/C Relay #6

TOP BOARD

N/O Relay #9

N/O Relay #12

N/O Relay #15

C Relay #9

C Relay #12

C Relay #15

N/C Relay#9

N/C Relay #12

N/C Relay #15

N/O Relay #10

N/O Relay #13

N/O Relay #16

C Relay #10

C Relay #13

C Relay #16

N/C Relay #10

N/C Relay #13

N/C Relay #16

N/O Relay #11

N/O Relay #14

C Relay #11

C Relay #14

N/C Relay #11

N/C Relay #14

DC INPUT

Terminal #1

Negative (-) 9-36VDC INPUT

Terminal #2

Positive (+) 9-36VDC INPUT

AIR-EAGLE®XLT PLUS

900MHz RF Receiver

MODEL 461-21600-DC

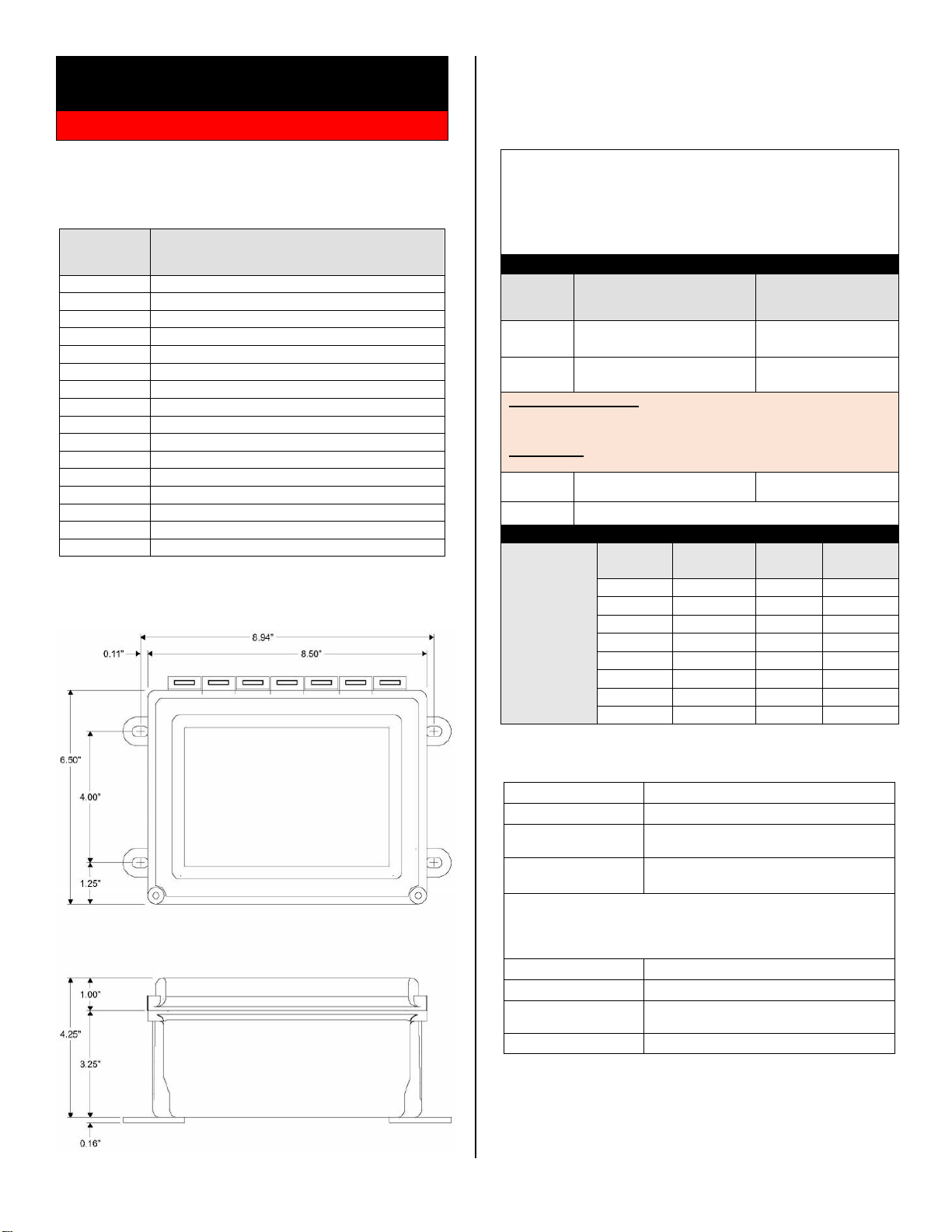

GENERAL OPERATION

Relays #1 thru #16 energize or de-energize based on specific

commands from a handheld or contact input transmitter.

BUTTON OR

INPUT

ACTIVATED

RELAY OPERATION

"1"

Relay #1 energizes,maintained momentary

"2"

Relay #2 energizes, maintained momentary

"3"

Relay #3 energizes, maintained momentary

"4"

Relay #4 energizes, maintained momentary

“5”

Relay #5 energizes, maintained momentary

“6”

Relay #6 energizes, maintained momentary

“7”

Relay #7 energizes, maintained momentary

“8”

Relay #8 energizes, maintained momentary

"9"

Relay #9 energizes,maintained momentary

"10"

Relay #10 energizes, maintained momentary

11"

Relay #11 energizes, maintained momentary

"12"

Relay #12 energizes, maintained momentary

“13”

Relay #13 energizes, maintained momentary

“14”

Relay #14 energizes, maintained momentary

“15”

Relay #15 energizes, maintained momentary

“16”

Relay #16 energizes, maintained momentary

DIMENSIONS

RELAY & FREQUENCY SET-UP

This unit is shipped from the factory with SEL1 switches #1 and #2 in the

open positions.All sixteen relays will operate in a maintainedmomentary

manor, and unit is receiving commands onfrequency one. If you wish to

change these default settings, follow the instructions onthe table below.

1) Remove power from unit

2) Remove top cover.

3) Select desired relay operation and/or network frequency using table

below.

4) Reattach cover and apply power.

5) Programming is now complete.

RELAY CONFIGURATION

SEL1

SWITCH

NUMBER

OPEN

CLOSED

SW1

Relays #1 thru #8 maintained

momentary (default)

Relays #1 thru #8

toggle/latch

SW2

Relays #9 thru #16 maintained

momentary (default)

Relays #9 thru #16

toggle/latch

Maintained Momentary –Relay mimics button or input –when

depressed or closed, relay will be energized; when released, relay de-

energizes

Toggle Latch –Relay changes (and holds) its state each time the

corresponding button or input is depressed or closed.

SW3

Vibrating Feedback OFF

(default)

Vibrating Feedback ON

SW4

Not used on this model

FREQUENCY SET-UP

SEL1

(SW5-7)

Network

Frequency

SW5

SW6

SW7

1 (default)

OPEN

CLOSED

OPEN

CLOSED

OPEN

CLOSED

OPEN

CLOSED

OPEN

CLOSED

OPEN

CLOSED

SPECIFICATIONS

DC Input

9 - 36 VDC, 8 W

Fuse Protected

2 amp

Relay Contacts

SPDT 5 amp @120VAC or 30VDCper

channel

Receiver Range

Up to 1 Mile with Rubber Duck Antenna / Up

to 10 Miles with External Antenna

Note: Maxrange figures are estimates,based on free-air terrain with limited sourcesof

interference. Actual range will vary based on transmitting power, orientation of transmitter and

receiver, height of transmitting antenna, height of receiving antenna, weather conditions,

interference sources in the area, and terrain between receiver and transmitter, including, but not

limited to, indoor and outdoor structures such as walls, metal objects, trees, buildings, hills, and

mountains

Receiver Frequency

900 MHz Spread Spectrum

RF Networks

Eight Independent Network Frequencies

Enclosure

Hinged fiberglass with window / NEMA 3,

3R, 4, 12, 13

Operating Temp

-40oF to +185oF

AIR-EAGLE®XLT PLUS

900MHz RF Receiver

MODEL 461-21600-DC

ACCESSORIES

Standard Antenna (Included):

900MHz TNC “Rubber Duck” Antenna

49-1103

Mobile/Base Antennas –

Used to help achieve max range in both nonline of sight andline of

sight applications. - Contact BWI Eagle for recommendations

900MHz Thru-Hole Mount Mobile Antenna

49-2101

900MHz Magnet Mount Mobile Antenna

49-2102

900MHz Omni Directional Base Antenna

49-3101

900MHz Yagi Directional Base Antenna

49-3102

High Quality Coax Cables –

Used to connect external high gain antennas to control unit

Flex Coax Cable w/Connectors –Available in

5’,15’,25’,30’,40’,60’,80’,100’ Lengths

49-4000-XX

(XX = # of Feet)

Bulkhead Extensions –

Used to provide an external antenna connection when mounting

control unit inside another enclosure

TNC Male to TNCBulkhead CableAssembly

- Available in 2’, 4’, 7’ Lengths

49-5004-X-ISO

(X = # of Feet)

LIMITED WARRANTY STATEMENT

BWI Eagle Inc. warrants the Air-Eagle XLT Remote Control System, if

properly used and installed, will be free from defects in material and

workmanship for a period of 1 year after date of purchase. Said warranty

to include the repair or replacement of defective equipment. This

warranty does not cover damage due to external causes, including

accident, problems with electrical power, usage not in accordance with

product instructions, misuse, neglect, alteration, repair, improper

installation, or improper testing. This limited warranty, and any implied

warranties that may exist understate law, apply onlyto the original

purchaser of the equipment, and last only for as long assuch purchaser

continues to own the equipment. This warranty replaces all other

warranties, express orimpliedincluding, but not limited to, the implied

warranties or merchantability and fitness for a particular purpose. BWI

Eagle makes no express warranties beyondthose stated here. BWI

disclaims without limitation, implied warranties of merchantability and

fitness for a particular purpose. Some jurisdictions do not allowthe

exclusion of implied warranties so this limitation may not apply toyou. To

obtain warranty service, contact BWI Eaglefor a return material

authorization. When returning equipment toBWI Eagle, the customer

assumes the risk of damage or loss duringshipping andis responsiblefor

the shipping costs incurred.

DOCUMENT DATE: 07/22/2021 / PRODUCT REV. 3

105 Bonnie Drive

Butler, PA 16002

(724) 283-4681

Fax (724) 283-5939

www.bwieagle.com
