Campomatic RC20BL Bedienungsanleitung

RC20BL

INSTRUCTION MANUAL

WWW.CAMPOMATIC.COM

Made in China

Wet & Dry

Dual Purpose Vacuum Cleaner

RC20BL

ENG

Characteristic

Dry & Wet Dual Purpose

1400W Strong Suction

Cord Retractable

Safety Protection Device to ensure normal work of the motor

Base with jack to store accessories easily

Blowing function to satisfy deferent people’s requirement

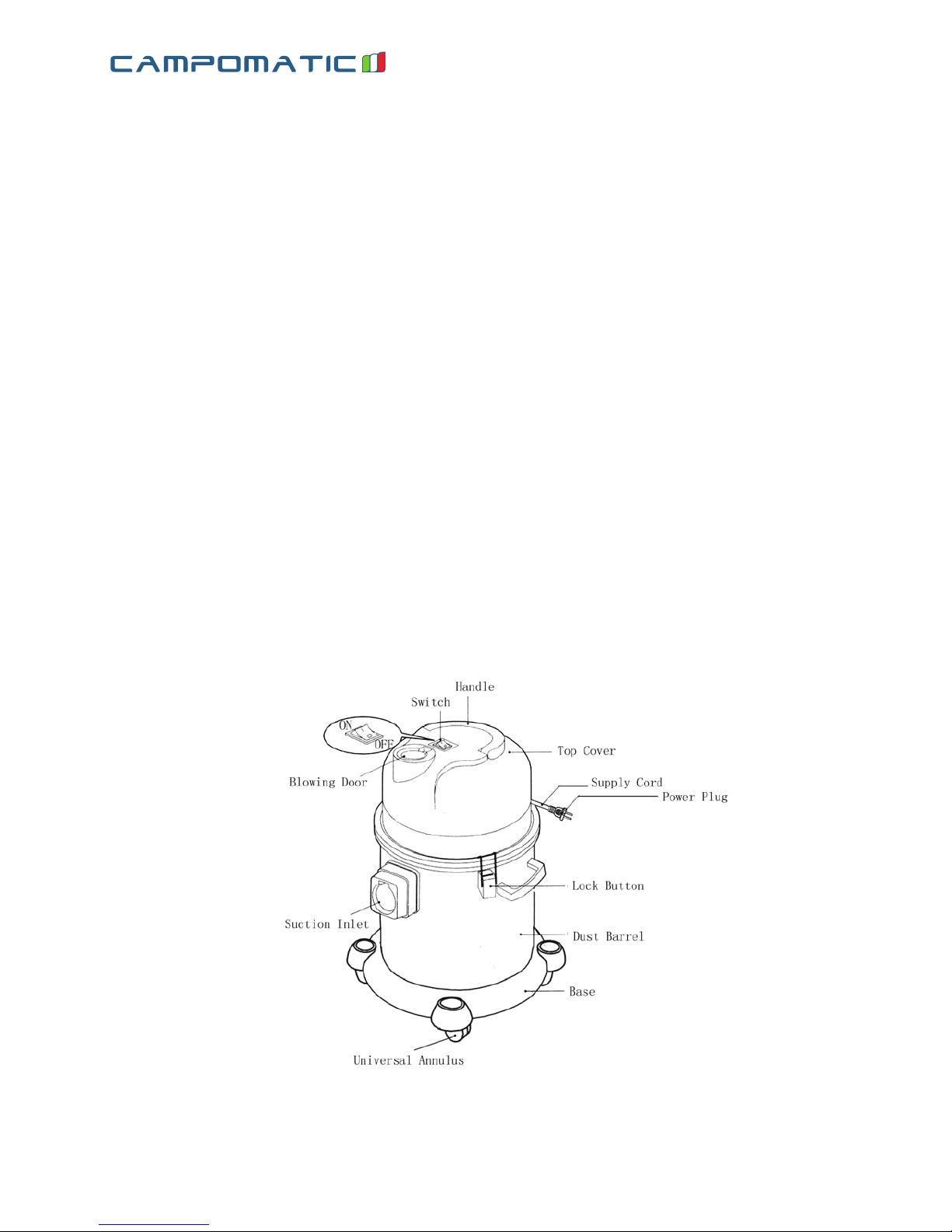

Name of Parts

ENG

RC20BL

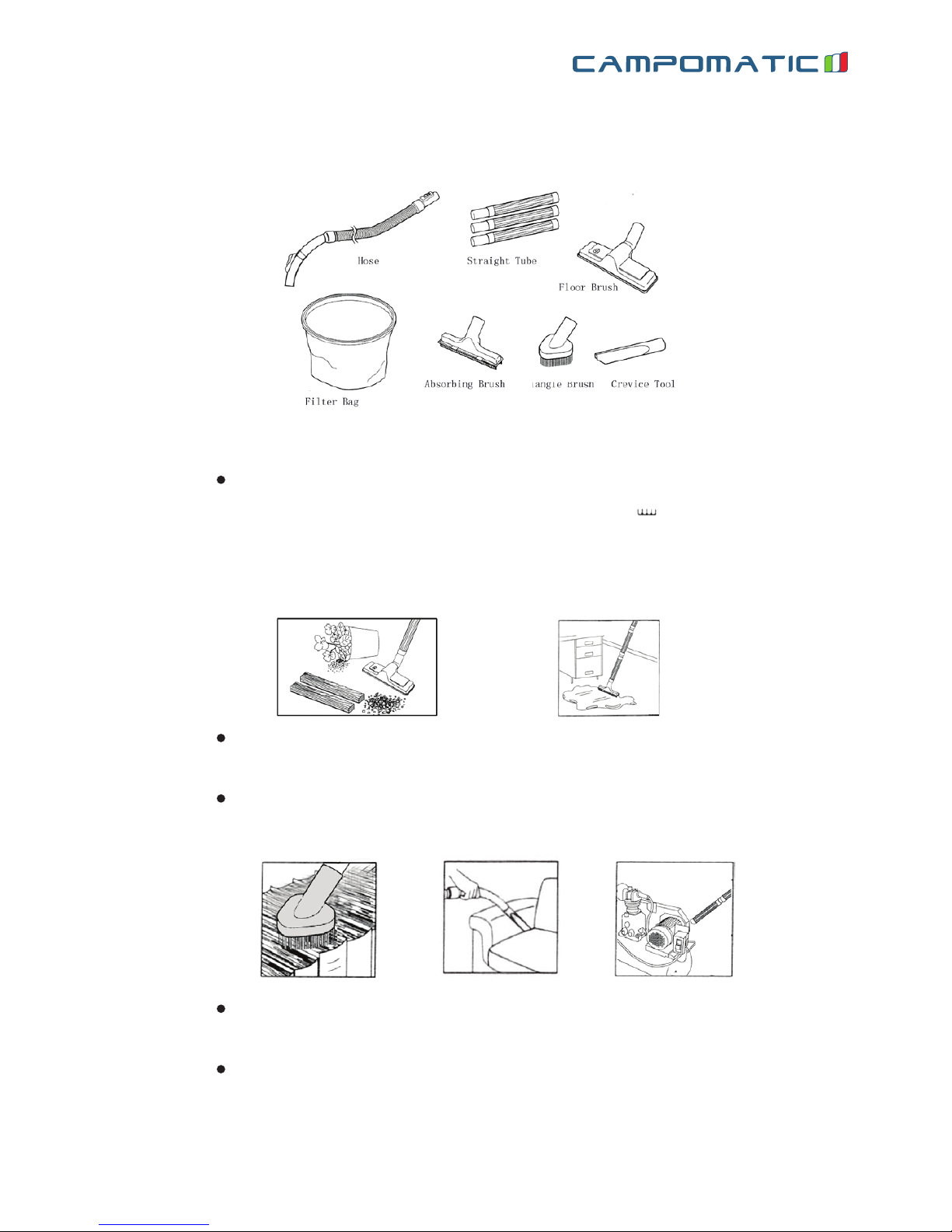

You can choose suitable accessories for different condition.

Floor Brush

Press down the side of bristle button with mark “ ”and then

use the bristle extended for hard ﬂoor. Press down the side of

bristle button with mark “━”and then use the bristle retracted

for hard ﬂoor.

Absorbing Brush

For clean the water on the hard ﬂoor or the carpet.

Triangle Brush

For cleaning bookshelf, windows, desktop etc.

Crevice Tool

For cleaning corner edge and draws etc where is difﬁcult to clean.

Blowing Door

RC20BL

ENG

For blowing the dust in the gap.

Warning

1. Read this instruction booklet carefully.

2. This appliance is for domestic use only. Use as described in this

instruction booklet.

3. Before using the appliance, check if the mains power voltage

corresponds to the voltage shown on the rating plate.

4. It is class Ⅱelectric appliance, so it need not be earthed.

5. Do not use it in the ﬂammable and explosive place.（Fig1）

6. Do not block the ﬂow of air. Blocking the air suction or exit may

damage the motor. (Fig2)

Fig1 Fig2

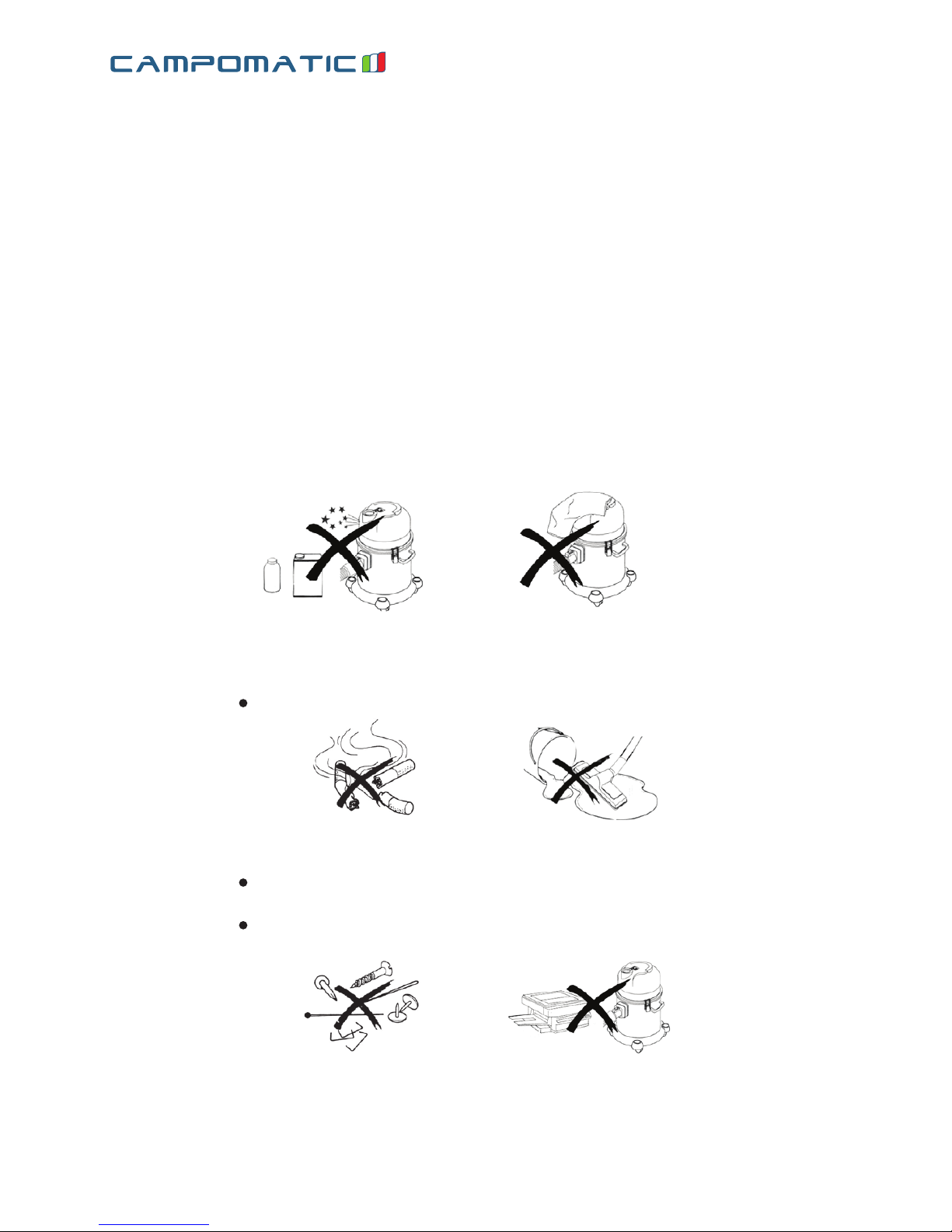

7. Do not use the appliance to vacuum all the latter things:

lighted stub ,hot ashes and other combustible things (Fig3)

Fig3 Fig4

those matter due to oil (Fig4)

sharp matter (Fig5)

Fig5 Fig6

ENG

RC20BL

those tiny powder like power of lime, land plaster etc. They may

block the ﬁlter bag and the ﬂow of air. It may damage the mot or.

(Fig6)

those things that can produce lather like washing powder, cleanser

etc. There may be some bubble blowing from the air exit. Please dry

it ﬁrst and then restart it.

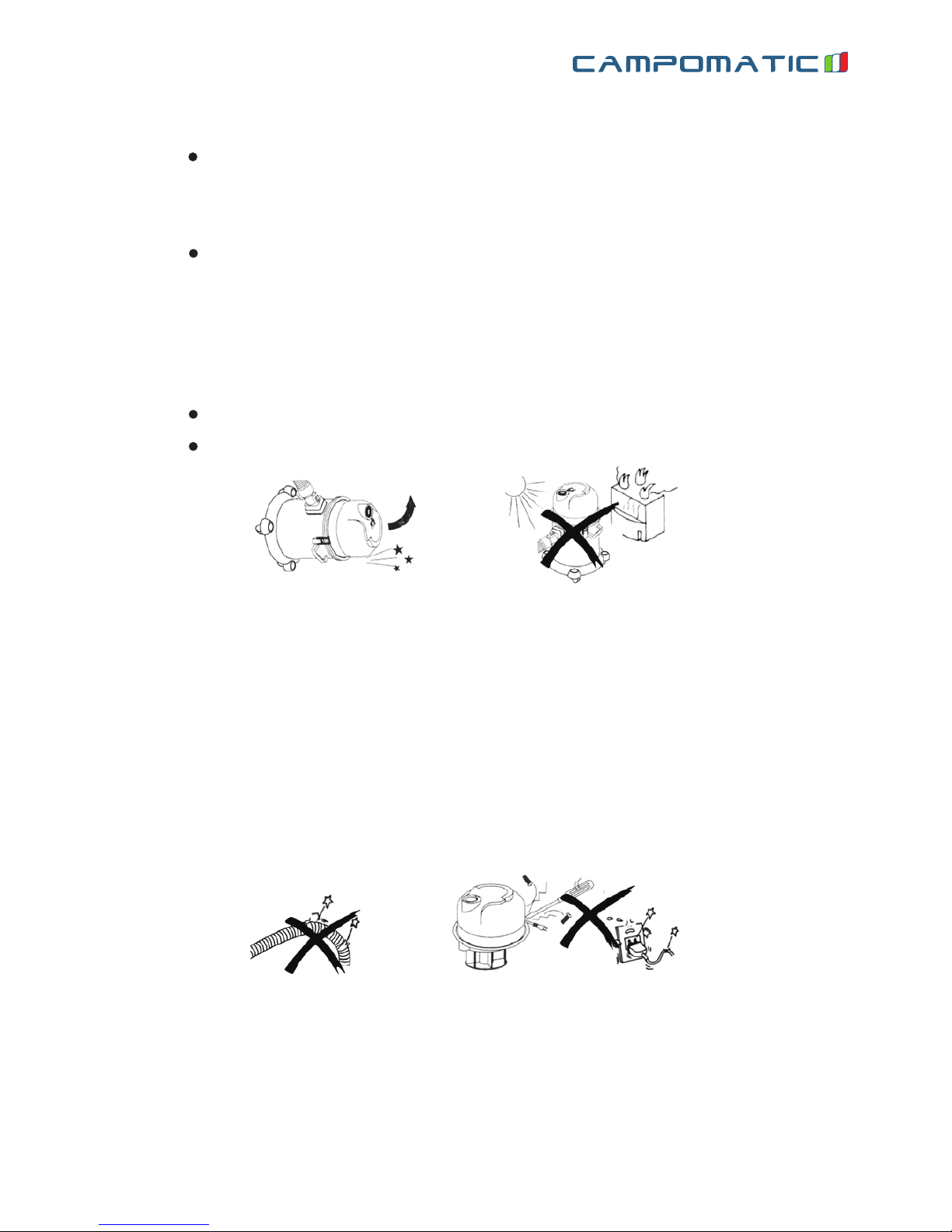

8. Do not turn over the vacuum cleaner. Otherwise the water may enter

the motor to damage it.（Fig7）

Do not use the appliance as a lift pump.

We suggest you do not use it as a producer’s equipment.

Fig7 Fig8

9. Always remove the plug from the power socket when the appliance is

not in use and before carrying out any cleaning or maintenance

operations.

10. Keep the vacuum cleaner away from direct irradiation sunshine and

the place with high temperature. Heat can deform and discolor the

plastic parts of unit. (Fig8)

11. Check the hose periodically. Replace it in time if there is any way

damaged. (Fig9)

Fig9 Fig10

12. If the supply cord is damaged, it must be replaced by the

manufacturer or its service agent or a similarity qualified person in

order to avoid a hazard. (Fig10)

RC20BL

ENG

How to use

1. Ready for use

Connection

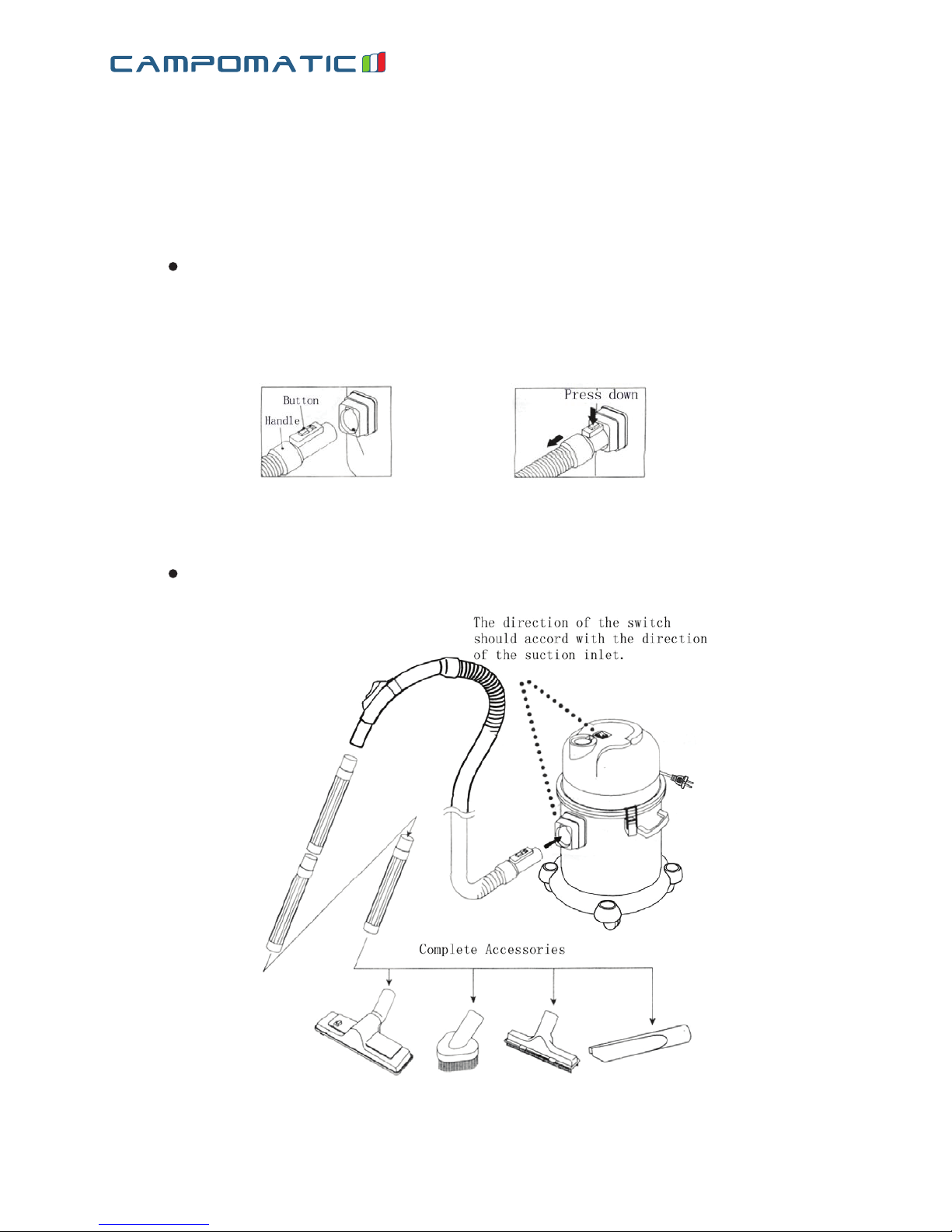

Insert the ﬂexible tube into the air intake duct. To do this, slide intake

duct cover insert the tube and press until it clicks into position. (Fig11)

To remove it, press down the button and pull out the hose. (Fig12)

Fig11 Fig12

To use the blowing function, just need plug the hose into blowing door.

Connect the ﬂexible tube, extensive tube and accessories correctly.

ENG

RC20BL

2. Switch on the appliance

Before use please check the ﬁlter bag is installed. Do not work with no

ﬁlter back.

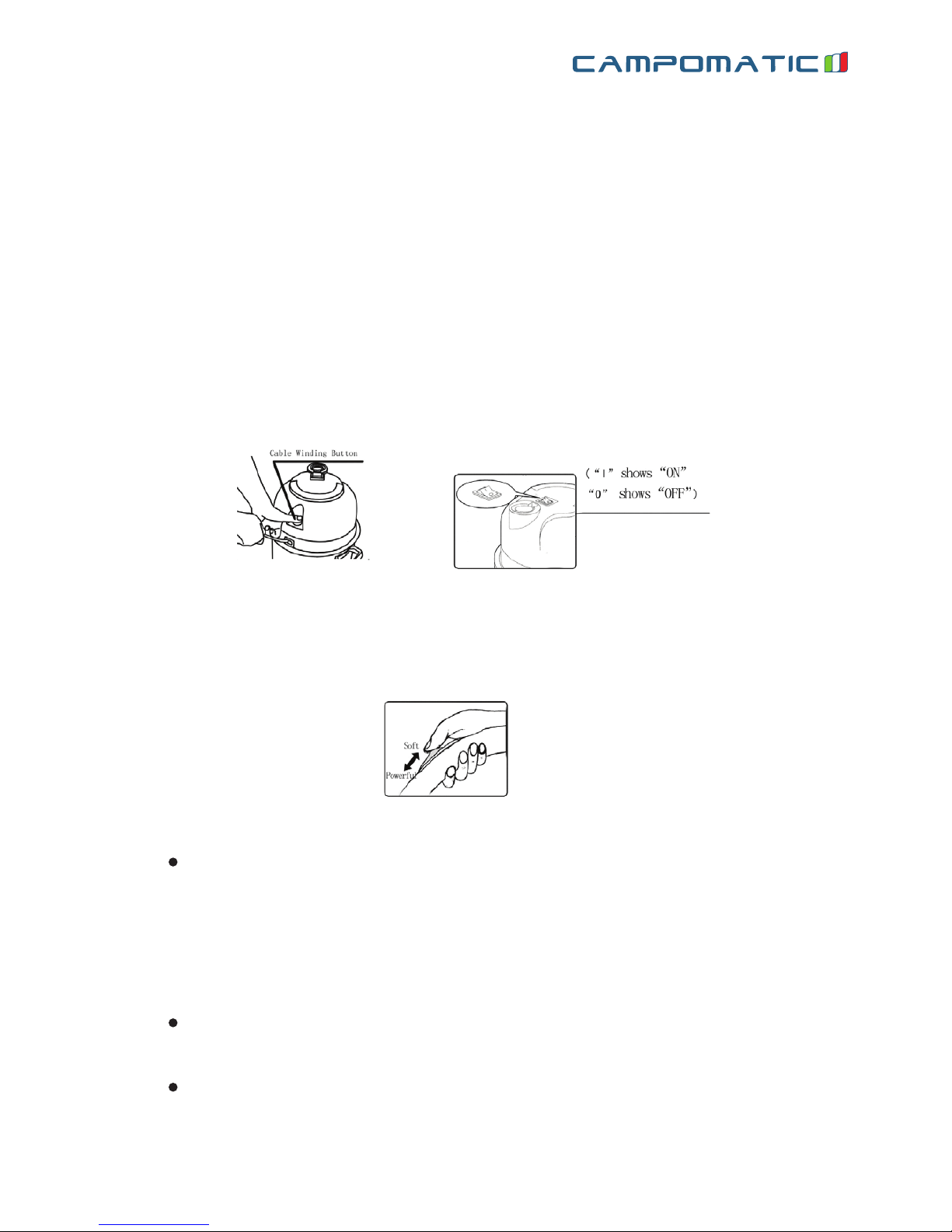

1. While pressing down the cable winding button with one hand, draw out

the cable. When you ﬁnd the yellow sign, please draw it slowly. If you

ﬁnd the red sign please stop drawing. Insert the plug into the power

socket. If you need retract the cable, just press down the cable winding

button. (Fig13)

2. Press the ON/OFF button to switch the appliance on. (Fig14)

Fig13 Fig14

Change the air power control knob on handle can adjust the suction. The

greater air door the smaller suction.

Safety Device

When there is full of water in the dust barrel(about 16L), the ﬂoat

will be risen and the appliance will stop working. In addition you can

hear abnormal sound. The power supply hasn’t been cut off yet at that

time. So cut off the power supply immediately. And spill the water in

the barrel. Restart the machine.

When the vacuum is overturned, the ﬂoat will risen. In that case cut

off the power supply and upturn the vacuum.

If you run the vacuum or leave it alone while the ﬂoat is risen, it may

damage the motor and lead to ﬁre.

RC20BL

ENG

Maintenance

1. Clean the dust barrel

When ﬁnishing cleaning or the suction decreased obviously, cut off the

power supply and empty the barrel in time.

Refer to the following steps:

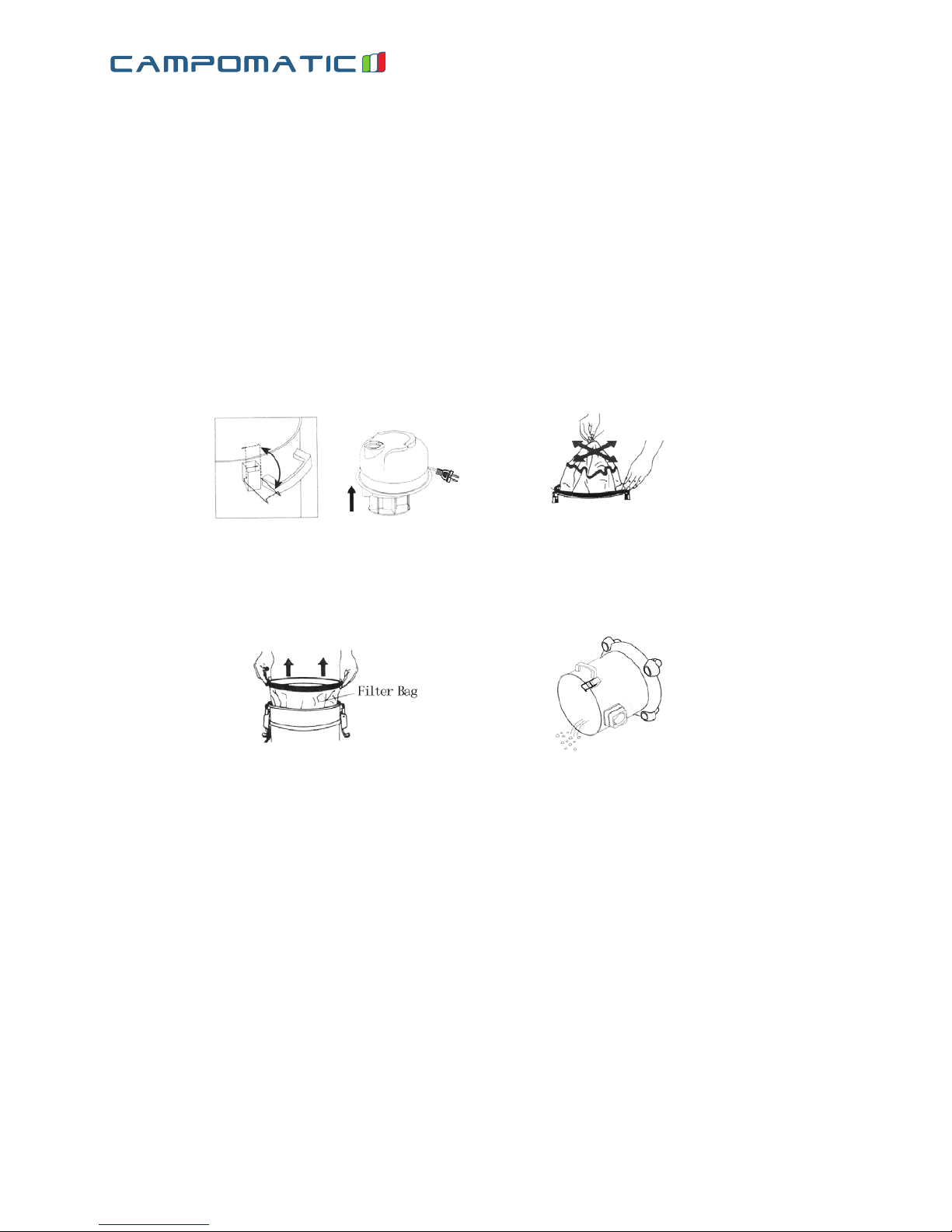

(1) Release the lock button and lift the top cover. (Fig15)

(2) Before remove the ﬁ

shake it about 20 times up and down. (Fig16)

Fig15 Fig16

(3) Remove the ﬁlter bag and clean the dust in the barrel. (Fig17)

(4) Replace the bag and the top cover. (Fig18)

Fig17 Fig18

If you do not empty the barrel in time, the dust in the barrel will emit

smell. So please clean the barrel periodically. Before use again dry it.

2. Clean the ﬁlter

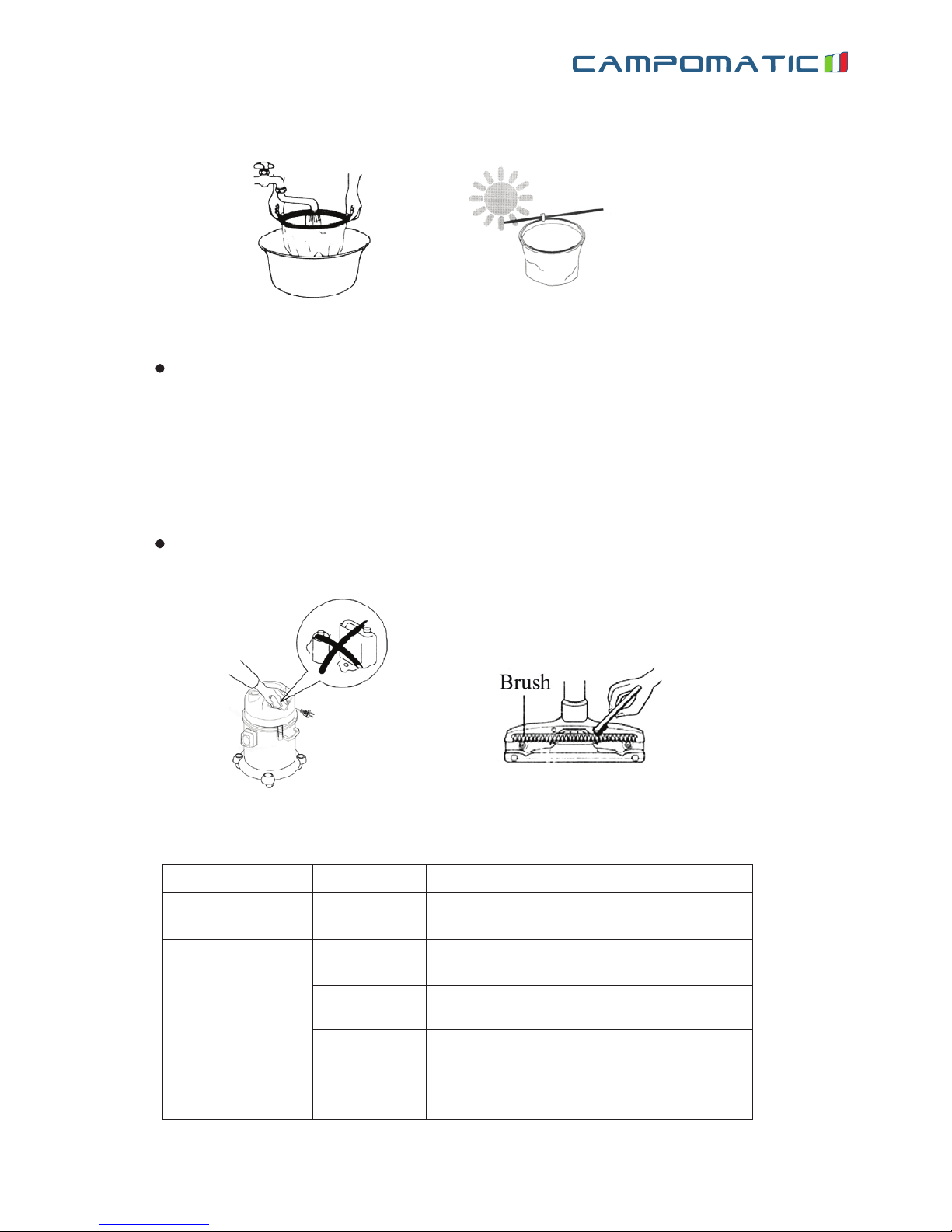

If the ﬁlter bag is blocked badly, clean it with water. If you need you can

use some neutrality cleanser.

(1) Remove the ﬁlter bag.

(2) Clean it (Fig19)

(3) Dry it (Fig20)

After dry it replace it according to primary steps.

Do not use boiled water to clean it or dry it wit ﬁre.

3. Clean the vacuum cleaner and the accessories

RC20BL

Fig19Fig20

Clean the accessories and vacuum with soft cloth dipping water or

neutrality cleanser. (Fig21)

(1) Do not clean the body of vacuum cleaner in petrol or oil-like

liquid. Please wipe it with water or neutral detergent.

(2)When you wipe the appliance please dry the soft cloth by

screwing.

Remove the sundries adhering to the ﬂoor brush with old

toothbrush every month. (Fig22)

Fig21 Fig22

Troubleshooting

Trouble Check Part Resolve

Motor doesn’t

work Power Plug If it doesn’t plug in, plug in.

Suction decrease

Hose If hose is blocked, clean it. If straight tube

doesn’t connect well, connect it well.

Dust Barrel If there is full of dust or water, empty it.

Filter Bag If it is blocked, clean it.

Hose comes away

from the seat

Hose

Connection Plug the hose into the seat.

RC20BL

ENG

Technique parameter

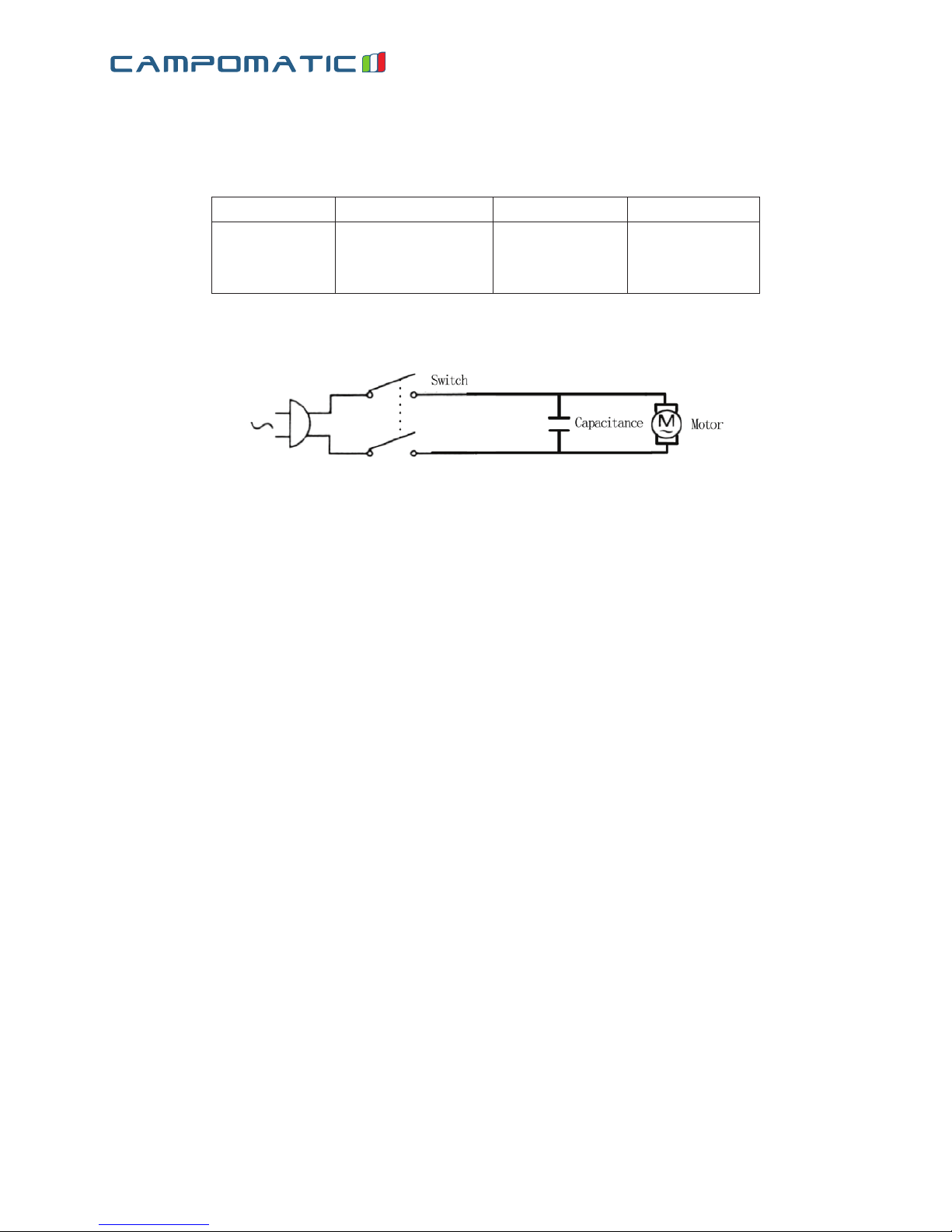

Circuit diagram

Model No. Power Voltage Frequency

XXXX 1400W 220-240V～50/60Hz
