INSTALLATION AND USER’S MANUAL

INTRODUCTION

Thank you for choosing this cooker hood.

This instruction manual is designed to provide you with all required

instructions related to the installation, use and maintenance of the

appliance.

In order to operate the unit correctly and safety, please read this instruction

manual carefully before installation and usage.

The cooker hood use high quality materials, and is made with a

streamlined design. Equipped with large power electric motor and

centrifugal fan, it also provides strong suction power, low noise operation,

non-stick grease filter and easy assembly installation.

SAFETY PRECAUTION

Never let the children operate the machine.

The cooker hood is for home use only, not

suitable for barbecue, roast shop and other

commercial purpose.

The cooker hood and its filter should be

clean regularly in order to keep in good

working condition.

Clean the cooker hood according to the

instruction manual and keep the unit from

danger of burning. There is a fire risk if

cleaning is not carried out in accordance

with the instructions.

Forbid the direct baking from the gas

cooker.

Please keep the kitchen room a good

convection.

If the supply cord is damaged, it must be

replaced by the manufacturer, its service

agent or similarly qualified persons in order

to avoid a hazard.

There shall be adequate ventilation of the

room when the range hood is used at the

same time as appliances burning gas or

•

other fuels;

The air must not be discharged into a flue

that is used for exhausting fumes from

appliances burning gas or other fuels;

Regulations concerning the discharge of air

have to be fulfilled.

This appliance can be used by children

aged from 8 years and above and persons

with reduced physical, sensory or mental

capabilities or lack of experience and

knowledge if they have been given

supervision or instruction concerning use of

the appliance in a safe way and understand

the hazards involved.

Children should be supervised to ens ure that

they do not play with the appliance.

Cleaning and user maintenance shall not be

made by children without supervision.

Do not flame under the range hood.

CAUTION: Accessible parts may become hot

when used with cooking appliance.

The warning shall be in the same part of the

instructions that include details of how to

mount the equipment.

Electrical Shock Hazard

Only plug this unit into a properly earthed outlet. If

in doubt seek advice from a suitably qualified

engineer.

Failure to follow these instructions can result in

death, fire, or electrical shock.

•

MOUNTING INSTALLATION

1. Prepare for installation:

a. Before installation, turn the unit off and unplug it from the outlet.

b. The cooker hood should be placed at a distance of 65~75cm above the

cooking plane for best effect.

Installation (Vent inside)

If you do not have an outlet to the outside, exhaust pipe is not required and

the installation is similar to the one show in section “Installation (Vent

outside)”.

Activated carbon filter can be used to trap odors.

In order to install the activated carb on filter, the grease filter should be

detached first. Press the lock and pull it downward.

Plug the activated carbon filter into the unit and turn it in clockwise direction.

Repeat the same on the other side.

NOTE:

o Make sure the filter is securely locked. Otherwise, it would

loosen and cause dangerous.

o When activated carbon filter attached, the suction power will

be lower.

LAMP HOOD MODEL INSTALLATION

1) Loosen the six 4 x 8 tapping screw

and put down the lower chimney

2) Loosen the eight screw which fixing

on angle bar, and adjust the height of

the need to install, and lock the screw

again.

8 x M5 *12 screws

8 x M5 *12 nut

3) According to the hole location in

hanging panel to fix the explosion

screw on the ceiling, and put up the

cooker hood and lock it with the

explosion screw on the ceiling

8 x M6*60 screws

IMPORTANT: Make sure all

screws are tightly.

IMPORTANT: This stage of the

installation process MUST be

completed by two people.



4) Put up the cooker hood and lock it

with the explosion screw on the ceiling

IMPORTANT: This stage of the

installation process MUST be

completed by two people.

5) Put up the upper chimney and fix by

six screws.

The electrical connection must correspond to the electrical requirement

noted on the rating plate, which is placed inside the cooker hood. The

appliance should now be connected to the electrical supply.

Check that the appliance is operating correctly by selecting each speed and

switching the light bulbs on and off.

Use a stainless steel cleaner and polish on the stainless steel sections of the

appliance.

If you are using the appliance in recirculation mode, then you should now fit

the carbon filter. See the “fitting the carbon filter" section on page 6.

NOTE: If Low / Medium / High speed buttons are press at the same

time, the unit will only operate at the highest speed.



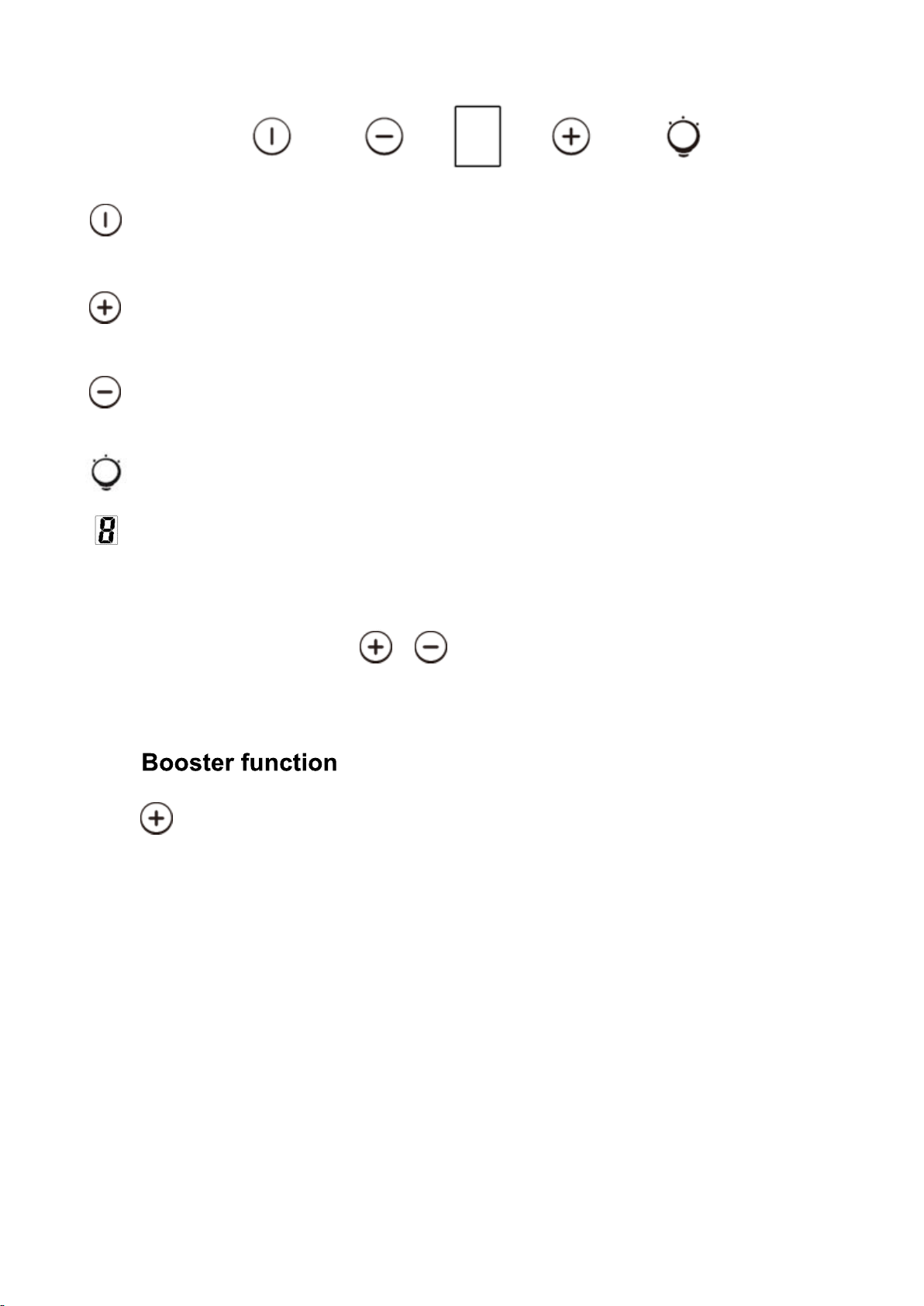

On/Off button

It’s used for turning on/off the fan.

Speed plus button

For increasing the speed of the fan

Speeddecreasebutton

Fordecreasing the speed of the fan.

Lightbutton

Digital display

Fan speed display:"1" for Low speed, "2" for Medium speed,

"3" for High speed, “4” for Booster function.

Quick timer: Press &hold for 1 second,Digital display will

flashing & into 5 minutes countdown, after 5 minutes motor & light

will turn off automatic & Buzzer sound for 1 second.

This hood has a booster function. To activate the booster, Press

to speed 4, enter into highest speed while the hood is in use

and it will increase speed for 5 minutes, before slowing down

again.

MAINTENANCE

Before cleaning switch the unit off and pull out the plug.

I. Regular Cleaning

Use a soft cloth moistened with hand-warm mildly soapy water or household

cleaning detergent. Never use metal pads, chemical, abrasive material or stiff

brush to clean the unit.

II. Monthly Cleaning for Grease Filter

ESSENTIAL: Clean the filter every month can prevent any risk of fire.

The filter collects grease, smoke and dust…... so the filter is directly affecting

the efficiency of the cooker hood. If not cleaned, the grease residue (potential

flammable) will saturate on the filter. Clean it with household cleaning

detergent.

III. Annual Cleaning for Activated Carbon Filter

Apply SOLELY to unit that installed as a recirculation unit (not vented to the

outside). This filter traps odours and must be replaced at least once a year

depending on how frequent the cooker hood used.

IV. Changing a light bulb

Remove the screws on the glass, take off the hood glass. Find the

bulb that requires replacement, you will find it located in the light

fixture which is inside the exposed section of the canopy.

Disconnect the light wiring point and remove the bulb holders and

wiring from the hood. Important: It’s not possible to replace the bulbs

individually, it will be necessary to obtain the bulbs, bulb holders and

wiring as a complete part. (LED light: MAX 1.5W)

Fit the replacement bulbs, bulb holders and wiring in the same

manners as the originals. Then reconnect the light wiring point.
