Canon iP3600 - PIXMA Color Inkjet Printer Bedienungsanleitung
Getting Started
Make sure to read this manual before using the printer. Please keep it in hand for future reference.
iP3600
=Read Me First=
Photo Printer
series
Symbols■
The following symbols are used to mark important instructions. Observe these instructions.
Additional explanations.
Instructions that, if ignored, could result in personal injury or material damage.
Instructions that must be observed for safe operation.
Microsoft is a registered trademark of Microsoft Corporation.
Windows is a trademark or registered trademark of Microsoft Corporation in the U.S. and/or other countries.
Windows Vista is a trademark or registered trademark of Microsoft Corporation in the U.S. and/or other countries.
Macintosh and Mac are trademarks of Apple Inc., registered in the U.S. and other countries.
•
•
•
•
Descriptions for operations that take some time to complete.
Model Number: K10322(iP3600)
1
Contents
Check the Included Items
Turn the Power On
Install the Print Head
Install the Ink Tanks
Install the Software
Loading Paper
1
2
3
4
5
6
After Installing the Printer
2
12 3 4 5 6
1
Check the Included Items
Before turning on the printer, remove all the orange tapes and the protective sheets.•
power cordPrint Head ink tank
Manuals
Setup CD-ROM (containing the drivers, applications and on-screen manuals)
Warranty
•
•
•
A USB cable is necessary to connect the printer with your computer.•
3
12 3 4 5 6
(1)
(2)
(A) (B)
2
23
1
Turn the Power On
Plug in the power cord on the left side at the
back of the printer and connect the other end
to the wall outlet.
Press the ON button (A) to turn on the printer. Confirm that the POWER lamp (B) lights
green.
Do NOT connect the USB cable at this stage.•
The printer may make some operating noises.
This is normal operation.
•
4
(B)
(A)
(C)
(D)
3
12
Install the Print Head
Open the Paper Output Tray (A) and the Top
Cover (B).
Raise the Print Head Lock Lever (D).
Firmly raise the Print Head Lock Lever until it stops. (The Print
Head Lock Lever may feel heavy.)
•
If the Print Head Holder does not move, make sure that the
printer is turned on.
•
The Print Head Holder (C) comes out. (This is where
you install the Print Head.)
Do not handle the Print Head
roughly such as applying them
excessive pressure or dropping
them.
•
The Print Head Holder makes a noise as it moves.
This is normal operation.
•
5
1 2 3456
(D)
453

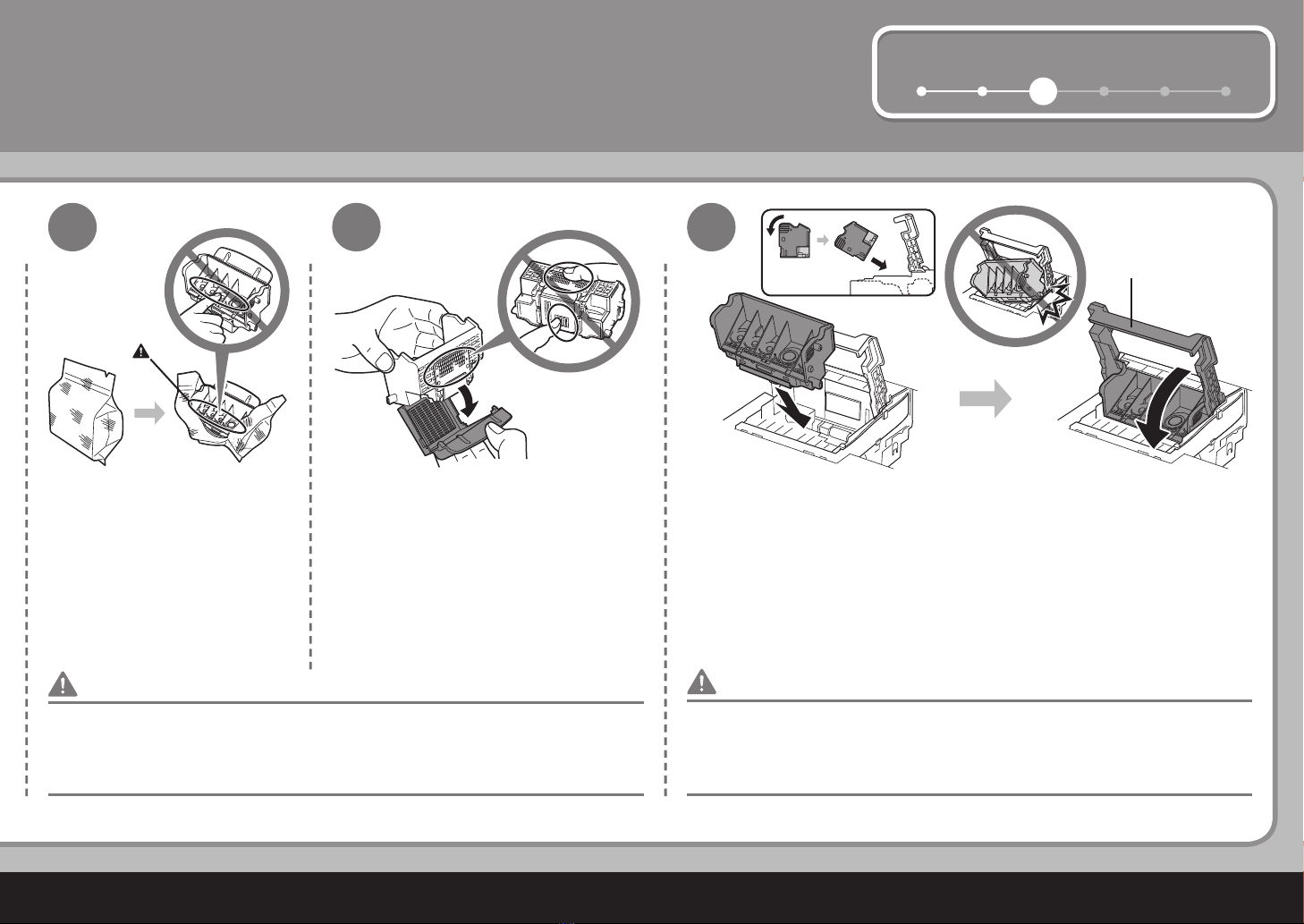

Remove the Print Head from
the silver package.
Remove and discard the orange
protective cap.
Tilt the Print Head and set it in place. Lower the Print Head Lock Lever
(D) completely.
There may be some transparent or light blue ink on the inside of the bag the Print
Head comes in, or the inside of the protective cap - this has no effect on print
quality. Be careful not to get ink on yourself when handling these items. Be careful
not to stain your hands.
•Do not to knock the Print Head against the sides of the Holder.
Pinch the Print Head Lock Lever rmly and lower it gently.
Once you have installed the Print Head, do not remove it unnecessarily.
•
•
•
6
(1)
(2)
(A)
4
12
Install the Ink Tanks
Pull the orange tape (1) in the
direction of the arrow to peel off the
protective film and remove the film (2)
completely.
Do not hold the sides of the ink tank; ink may splash.•
Do not handle the ink tanks roughly such as
applying them excessive pressure or dropping
them.
•
While pressing down with your left thumb, twist off the
orange protective cap (A) located on the bottom of the
ink tank.
If the Print Head Holder moves to the right,
close and reopen the Top Cover.
Be sure to use the supplied ink tanks.
•
•
7
5 61 2 3 4
4
3
Install all the other ink tanks in the same way.

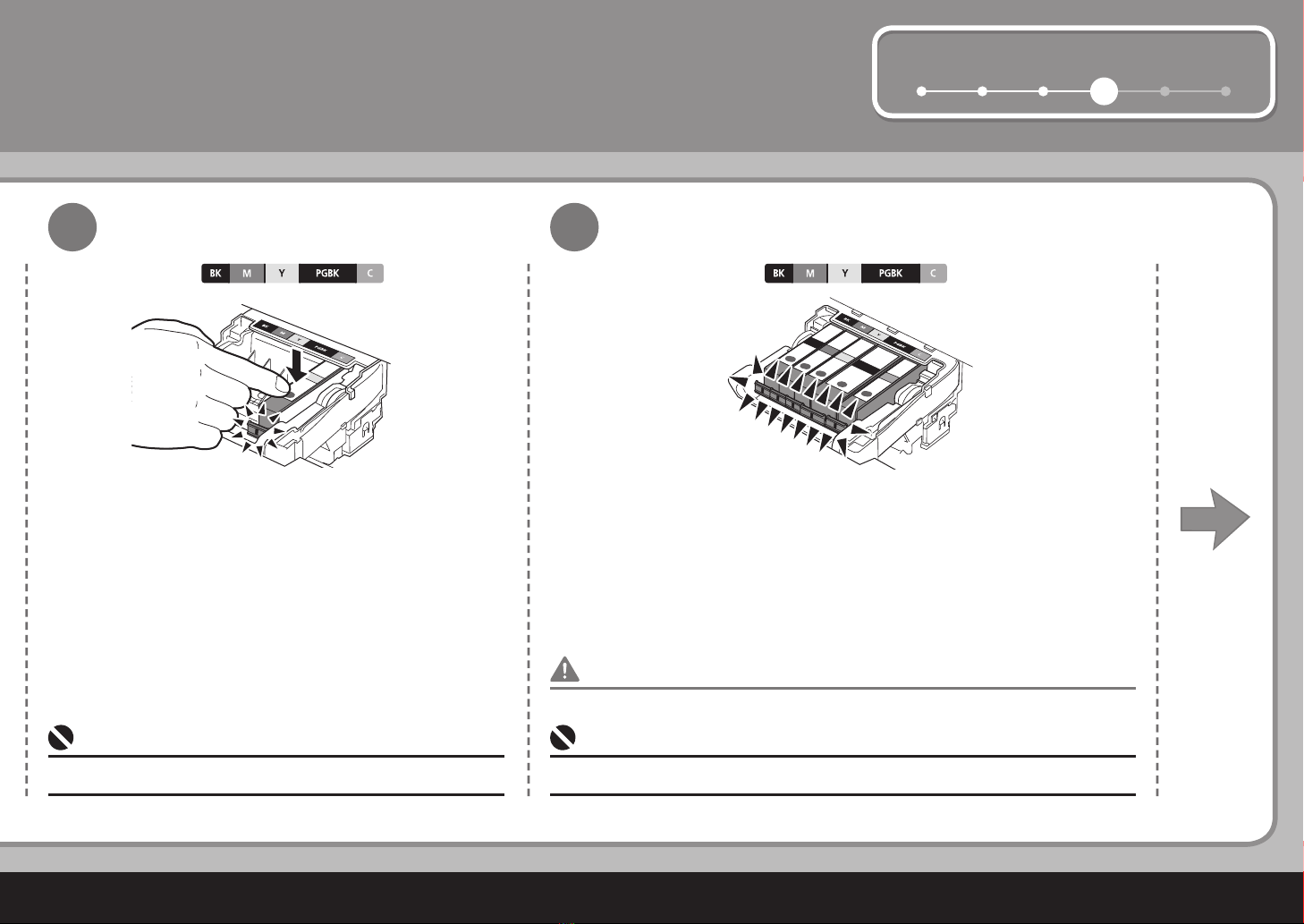

Install all the ink tanks.
Make sure all the Ink lamp lights red.•
Once you have installed the ink tanks, do not remove them unnecessarily.•
Press the PUSH mark on the ink tank until it clicks into
place.
Make sure the Ink lamp lights red.
Install the Ink Tank
Match the labels when installing.•
8
5 61 2 3 4
(B)
(C)
5 6
4
Wait until the POWER lamp lights green (about 4 minutes) and go to the
next step.
The printer may make some operating noises when preparing to print.
This is normal operation.
•
•
Close the Top Cover.
If an Alarm lamp (B) ashes orange, make sure that the Print Head and the ink
tanks are correctly installed.
•

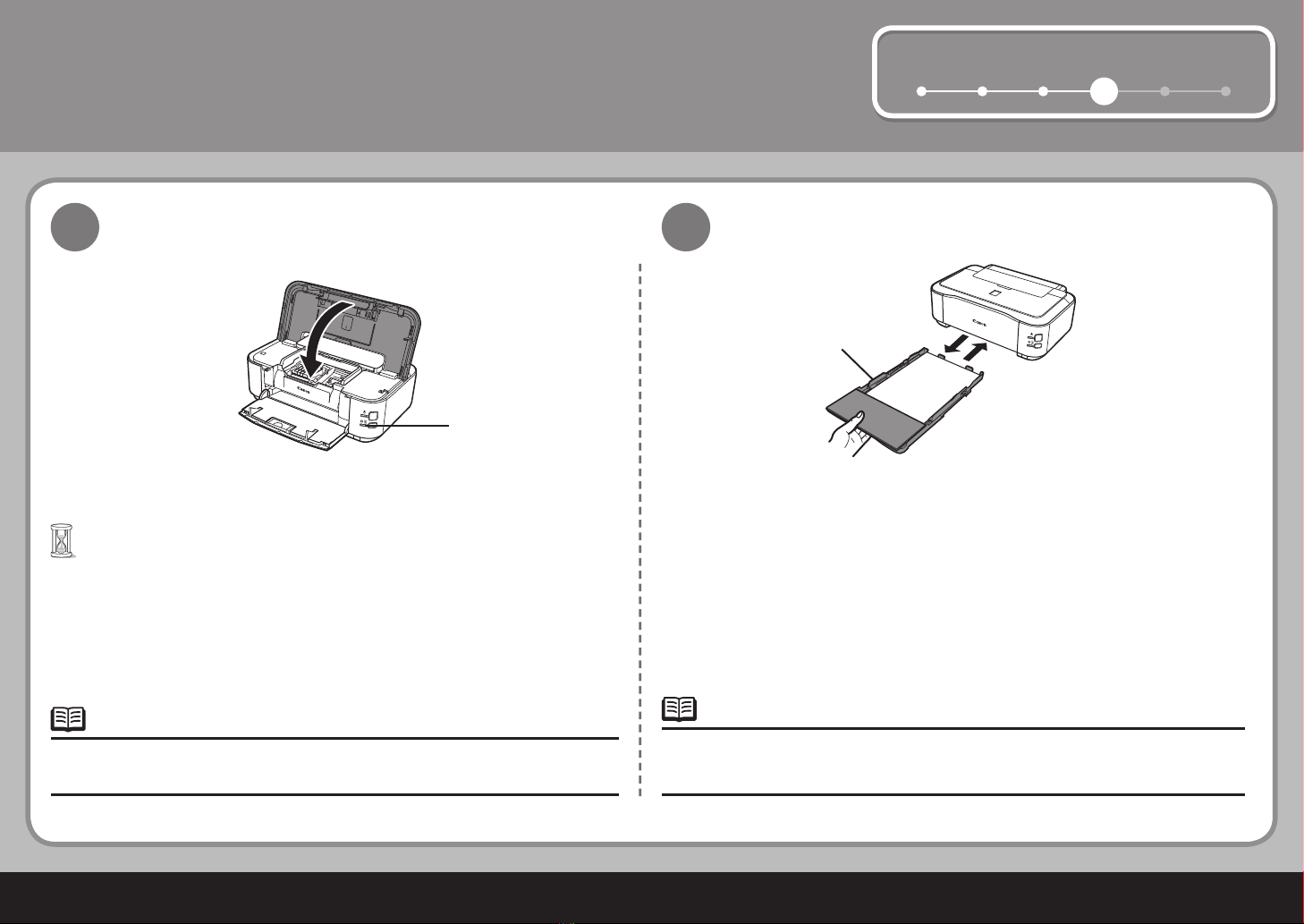

Load three or more sheets of A4 or Letter-sized plain paper into the
Cassette (C).
For details, refer to "6 Loading Paper" on page 22.
Close the Paper Output Tray to make it easier to pull out the Cassette.
•
•
Install the Ink Tanks
