Canon Pixma iP110 series Bedienungsanleitung

Canon iP110 Series Printer

Turning on the printer

Open the rear tray cover.

The paper output slot cover opens automatically.

Press the

button to turn on the printer.

The

POWER

lamp flashes and then remains lit.

Note

• It may take a while for the printer to start printing immediately after you turn on the printer.

•

If the

Alarm

lamp flashes, see If an Error Occurs.

Turning off the printer

1. Press the

button to turn off the printer.

When the

POWER

lamp stops flashing, the printer is turned off.

Important

Note

Carrying the Printer

Exercise sufficient care when carrying the printer.

When you remove the power cord, carry the printer, or stand it up, check that the

POWER

lamp is off.

Important

Note

•

When you unplug the power cord after turning off the printer, be sure to confirm that

the

POWER

lamp is off.

•

If you stand the printer up or carry the printer before the

POWER

lamp goes off, this

may cause the ink to leak or the printer to break.

•

If you repeatedly remove the power cord, carry the printer, or stand it up while the

POWER

lamp is on

or flashing, this may cause the ink to leak or the printer to break. (The same problem is caused even if

you use the optional portable kit.) For details on turning off the printer, see Turning off the printer.

•

When carrying the printer, be careful not to shock the printer, to subject it to strong vibrations, to place

in the heat, or to put a heavy thing on it. This causes the printer to break or the ink to leak.

•

Pack the printer carefully when carrying.

•

X-ray and any other baggage inspection devices have no adverse effect on this printer.

Printer Components

Front View

(1)

print head cover

Open to replace an ink tank or remove jammed paper inside the printer.

(2)

paper guide

Align with the left side of the paper stack.

(3)

paper support

Pull out fully to support paper loaded on the rear tray.

(4)

rear tray cover

Open to load paper in the rear tray.

(5)

rear tray

Load paper here. Two or more sheets of the same size and type of paper can be loaded at the same time

and fed automatically one sheet at a time.

(6)

paper output slot

cover

Printed paper is ejected.

(7)

paper thickness lever

Switches the clearance between the print head and the loaded paper to match the media type. Set to the left

when printing on envelopes. Set to the right when printing on paper other than envelopes.

All lamps are shown lit in the above figure for explanatory purposes .

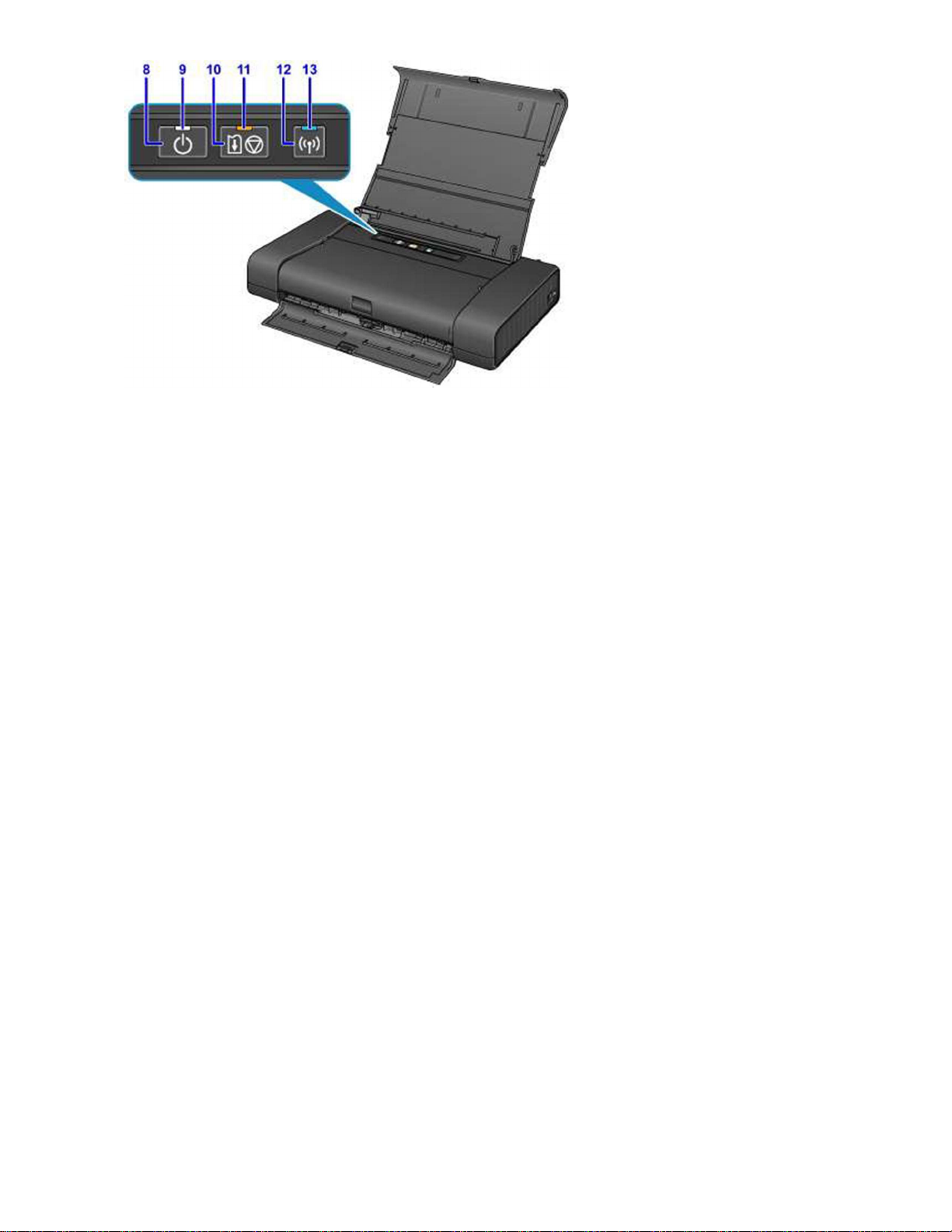

(8) ON button – Turns the power on or off

(9) POWER lamp – Lights after flashing when the power is turned on

(10) RESUME/CANCEL button

Cancels a print job in progress. Holding this button down

lets you select maintenance options or printer settings.

(11) ALARM LAMP - Lights or flashes when an error occurs. When performing printer

maintenance or printer settings, options can be selected according to the number of

flashes.

See Printer Troubleshooting p. 6-7.

(12) Wi-Fi button - Hold down to automatically set up the wireless LAN connection.

(13) Wi-Fi lamp - Lights or flashes to indicate the wireless LAN status.

Side View

(1)

AC adapter connector

Plug in the supplied universal AC adapter plug here.

(2)

USB port

Plug in the USB cable to connect the printer with a computer.

Important

•

Do not touch the metal casing.

•

Do not plug in or unplug the USB cable while printing.

Inside View

(1)

ink lamps

Lights or flashes to indicate the ink tank status.

(2)

print head holder

Install the print head here.

(3)

print head lock lever

Locks the print head into place.

See Replacing an ink tank p. 9

Printer Troubleshooting

You can check the status of the printer by the POWER and Alarm lamps.

 POWER lamp is off: The power is off.

 POWER lamp lights: The printer is ready to print.

 POWER lamp flashes: The printer is getting ready to print, or printing is in progress.

 Alarm lamp flashes: An error has occurred and the printer is not ready to print.

 POWER lamp flashes and Alarm lamp flashes alternately: An error that requires

contacting the service center may have occurred.

When an error occurs in printing, such as a paper jam or empty ink cartridge, the orange light

on the Alarm lamp will flash. The table on the next page will guide you through

troubleshooting some basic printer issues.

Figure 1

If, after taking appropriate action, the printer is still not working, contact your Case Manager

to forward a request for a new printer.

Please note that the printer may make noise when it is turned on. Allow a few minutes for it

to boot up and it should print quietly and without issues. If the noise persists or is

uncharacteristically loud, notify the Case Manager.

If an Error Occurs

When an error occurs in printing such as the printer is out of paper or paper is jammed, a troubleshooting

message is displayed automatically. Take the appropriate action described in the message.

When an error occurs, the

Alarm

lamp flashes and a Support Code (error number) is displayed on the

computer screen. For some errors, the

POWER

lamp and the

Alarm

lamp flashes alternately. Check the

status of the lamps and the message, then take the appropriate action to resolve the error.

Support Code Corresponding to the Number of Flashes of the Alarm Lamp

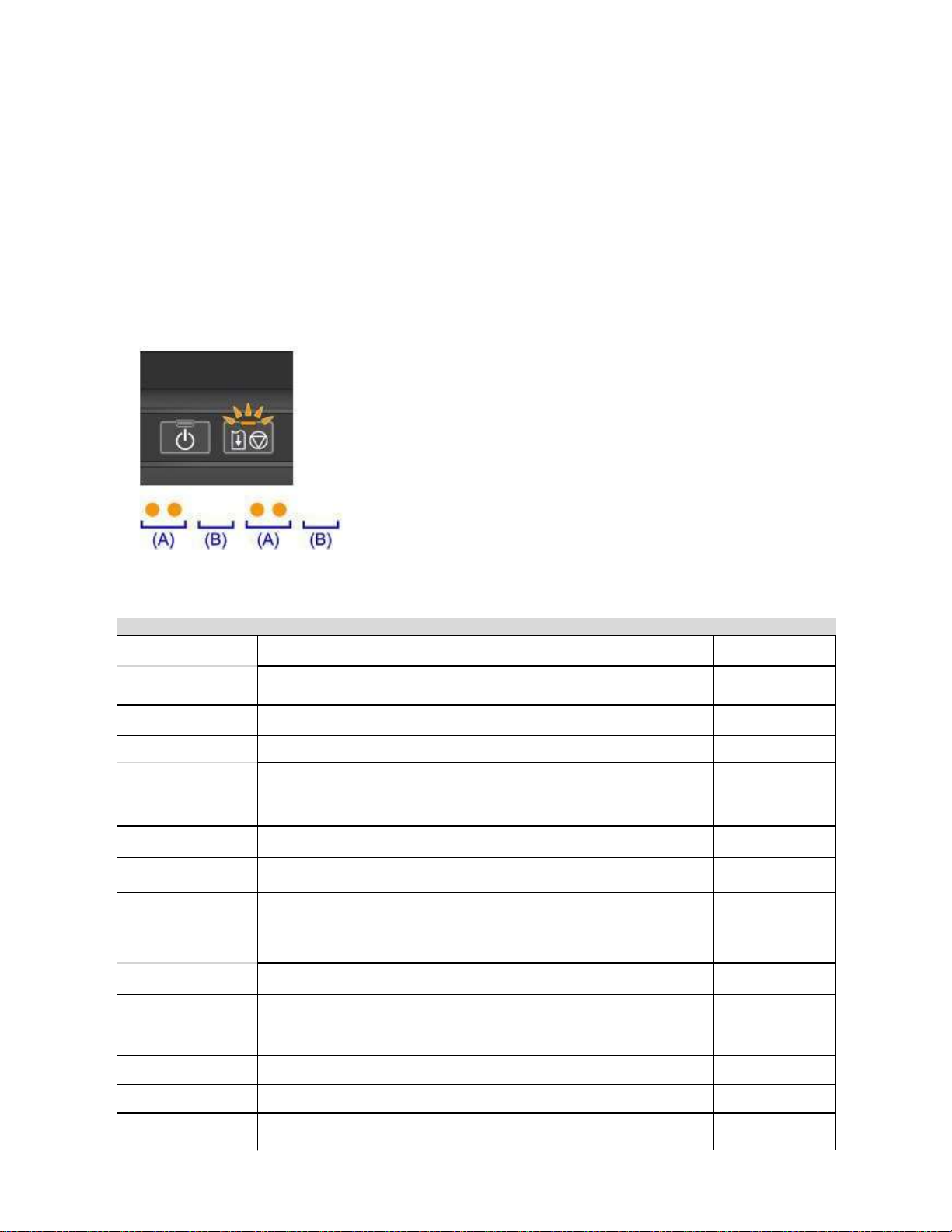

Example of 2 times flashing:

(A)

Flashes (B) Goes off

Number of flashes Cause Support Code

2 flashes These is no paper in the rear tray. 1000

The paper size in the print settings and the size of the loaded paper do not

match. 2100, 2101

3 flashes Paper is jammed in the paper output slot or in the rear tray. 1300

4 flashes If the lamp on the ink tank is flashing, ink may have run out. 1600

The ink tank is not installed. 1660

The print head lock lever is not locked or an ink thank is installed

improperly. 1687

5 flashes The print head may be damaged. 1401, 1403, 1405

7 flashes

More than one ink tank of the same color is installed (the lamp on the ink

tank flashes.). 1681

8 flashes The ink absorber is almost full. 1700, 1701

11 flashes Automatic Print Head Alignment failed. 2500

Cannot perform printing with the current ink setting. 4103

12 flashes Battery has exhausted. 1810

15 flashes The ink tank cannot be recognized. 1410, 1411

17 flashes The ink has run out. (The lamp on the ink tank flashes.) 1688

18 flashes The remaining ink level cannot be correctly detected. 1689

21 flashes The printer cannot detect the paper size. 2103

Support Code Corresponding to the Number of Alternate Flashes of the POWER Lamp

and the Alarm Lamp

Example of 2 times flashing:

(A)

Flashes

(B)

Goes off

Number of flashes

Cause

Support Code

2 flashes

Printer error has occurred.

5100

7 flashes

Printer error has occurred.

Replacing an Ink Tank

When remaining ink cautions or errors occur, the Alarm lamp will flash to inform you of the

error. Count the number of flashes and take appropriate action. When you need to replace an

ink tank, follow the steps below.

1. Make sure that the power is turned on.

2. Open the print head cover.

3. Remove the ink tank with the lamp flashing fast. (Do not touch other parts besides the

ink tanks). Push the tab and lift the ink to remove.

4. Do not remove both ink tanks at the same time. Be sure to replace ink tanks one by one

when replacing both ink tanks.

5. Remove the new ink from its packaging, then remove the protective cap from the

bottom of the ink tank.

6. Insert the front end of the ink tank into the print head at a slant.

7. Press the ink tank until it snaps firmly into place. You should hear a click ensuring that it

has been secured.

8. Make sure that the ink lamp lights up.

9. Close the print head cover

For other hardware or system-related issues, contact your Case Manager as

soon as possible.
