CANON DOCUMENT SCANNER
Maintenance Guide
Please read this manual before operating this unit. After you finish
reading this manual, store it in a safe place for future reference.
*CE-IE-422*
Chapter 7
Daily Cleaning
This chapter describes daily cleaning of the
scanner.
7.1 Daily Cleaning .................................... 80
Cleaning the Main Unit ............................ 80
Cleaning the Document Detection
Sensor ..................................................... 81
Cleaning the Scanning Glasses and
Rollers ...................................................... 81
Cleaning the Shading Plates ................... 85
Cleaning the Guide Plate
(When Using the Imprinter) ..................... 87
Cleaning the Ink Jet Nozzles
(When Using the Imprinter) ..................... 87
Power Outlet ............................................ 87
7.2 Replacing the Rollers .........................88
When to Replace the Rollers ................... 88
Resetting the Counter .............................. 89
Installing and Removing the Rollers ........ 91
80
Chapter 7 Daily Cleaning
Daily Cleaning
To ensure high-quality image scanning, regularly clean your DR-6080/9080C as
described below.
■Before you clean the scanner, turn OFF the scanner and computer and disconnect
the power cord from the power outlet. Otherwise, it might cause an electrical shock.
■Never clean the scanner with any kind of organic solvent, such as alcohol, benzene,
or paint thinner. It might cause a fire and electrical shock, or cause the exterior of the
scanner to disfigure of discolor.
■Never spray mild detergent or water directly on the scanning glasses. The spray could
penetrate below the glass and contaminate the internal light source and lenses.
Cleaning the Main Unit
Wipe the scanner with a firmly wrung cloth moistened slightly with water or mild
detergent. Then wipe off with a clean, dry cloth.
CAUTION
81
7

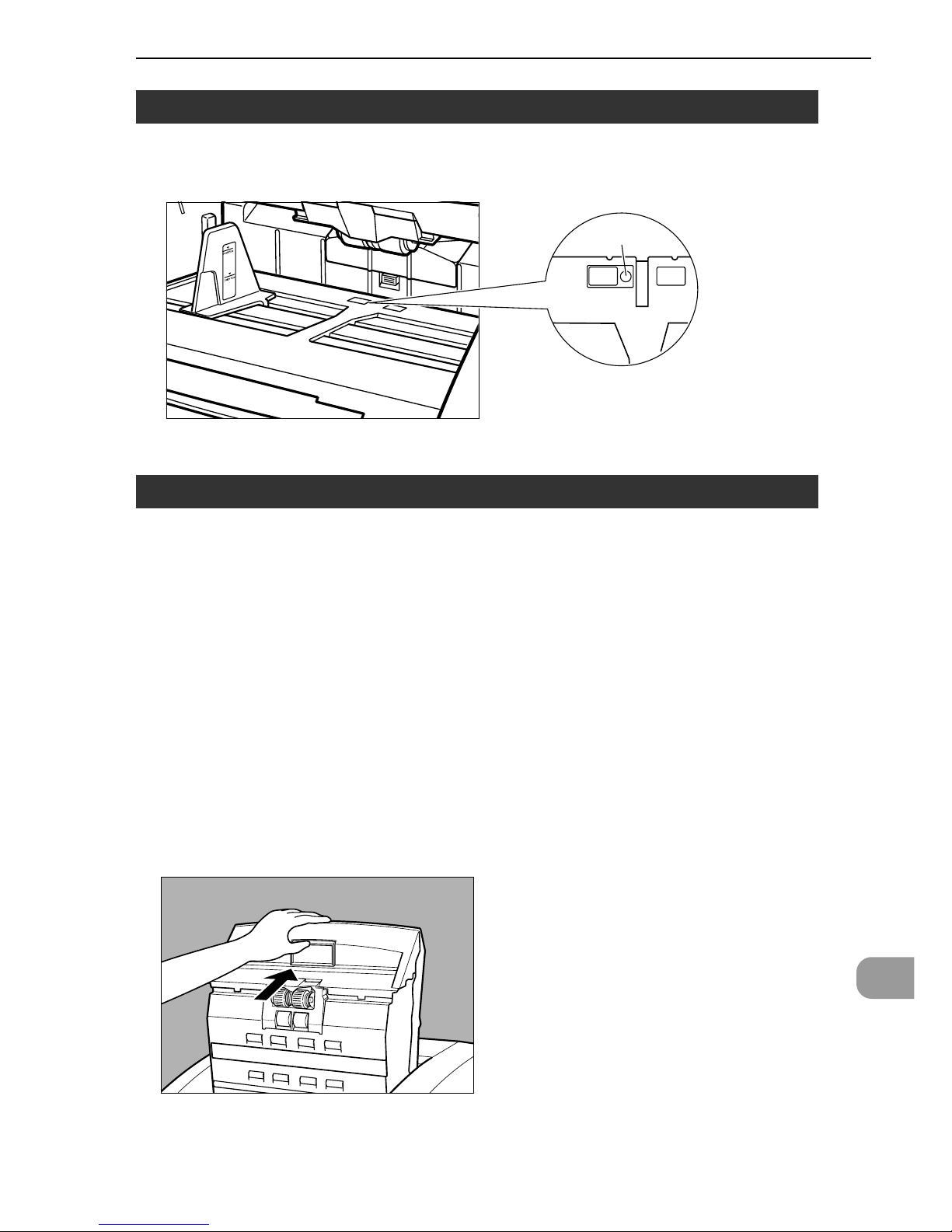

Cleaning the Document Detection Sensor
Dust and debris that collects on the sensor will cause false recognition. Clean the
sensor periodically so that dust and debris do not collect on it.
Sensor
Cleaning the Scanning Glasses and Rollers
A probable cause of stripes appearing on scanned images or dirt appearing on
scanned documents is dirt on the scanning glasses or rollers. Clean the scanning
glasses and rollers regularly.
1
Press the power switch to turn OFF the scanner, and unplug the
power cord from the power outlet.
2
Close the document eject tray extension if it is open.
3
Open the upper scanner.
Press the open/close button, and lift up the upper scanner gently until it
stop and locks in the open position.
7.1 Daily Cleaning
82
Chapter 7 Daily Cleaning
4

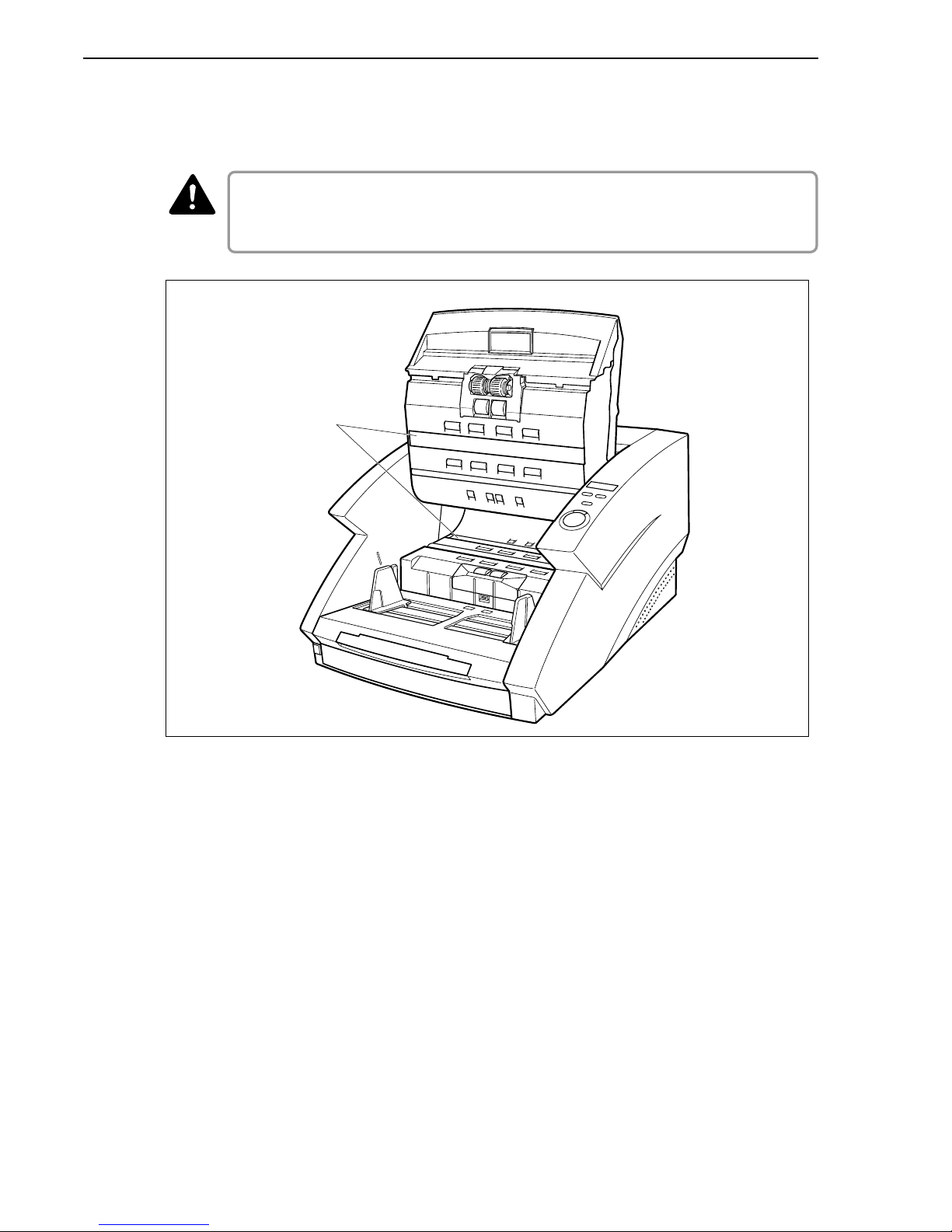

Use a clean, soft cloth to wipe the scanning glasses.
Be sure to clean both scanning glasses, the one below and one above.
Never spray mild detergent or water directly on the scanning glasses. The spray
could penetrate below the glass and contaminate the internal light source and
lenses.
Scanning Glasses
CAUTION
83
7
5

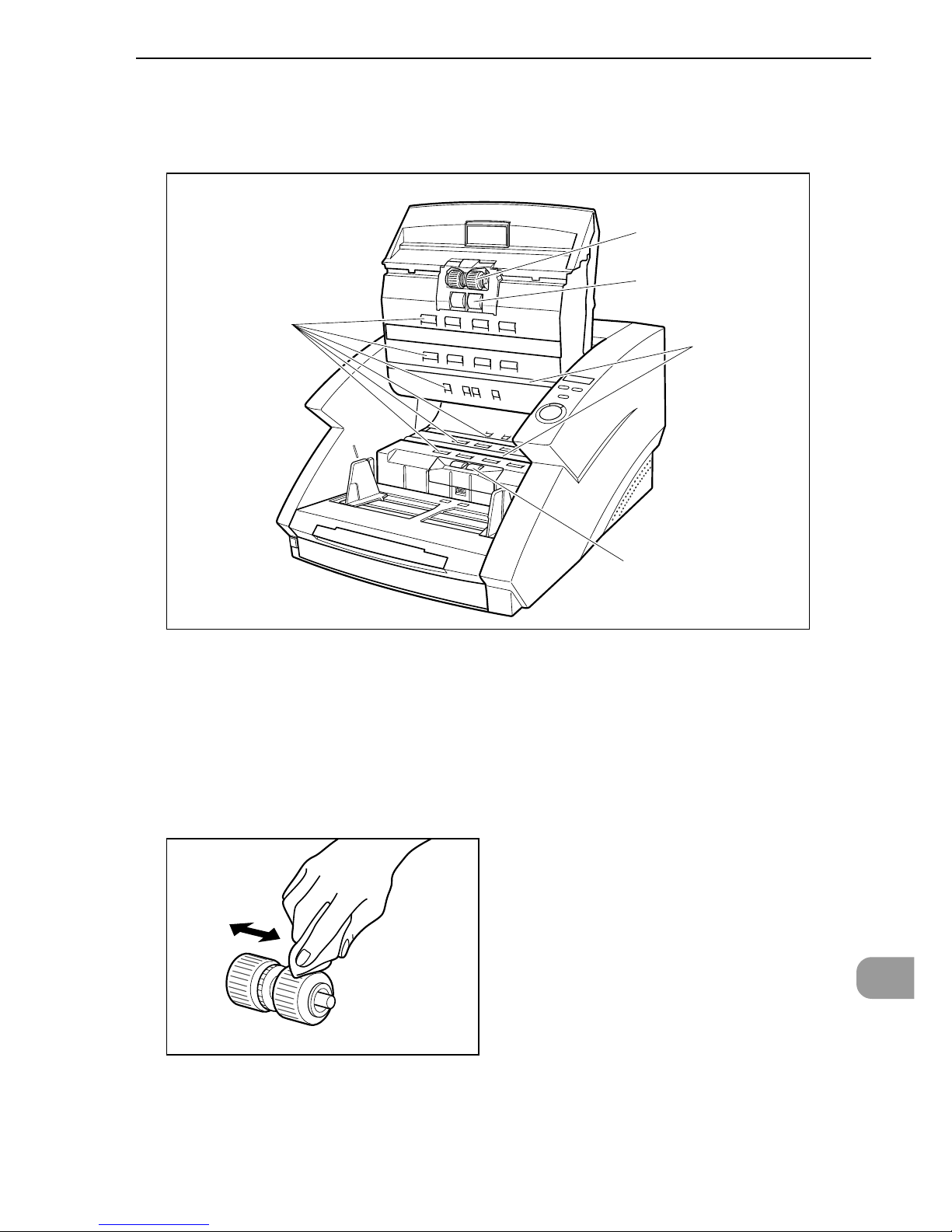

Wipe the rollers with a firmly wrung cloth moistened with water.
Rollers are located at the positions indicated in the figure below.
Feeding Rollers
Pickup Rollers
Retard Rollers
Feed Rollers
Platen Rollers
6
Remove the pickup roller, retard roller, and feed roller. (See
“Installing and Removing the Rollers,” on p.91.)
7
Use cloth from which all the water has been wrung out to wipe off
the rollers.
7.1 Daily Cleaning
84
Chapter 7 Daily Cleaning
8

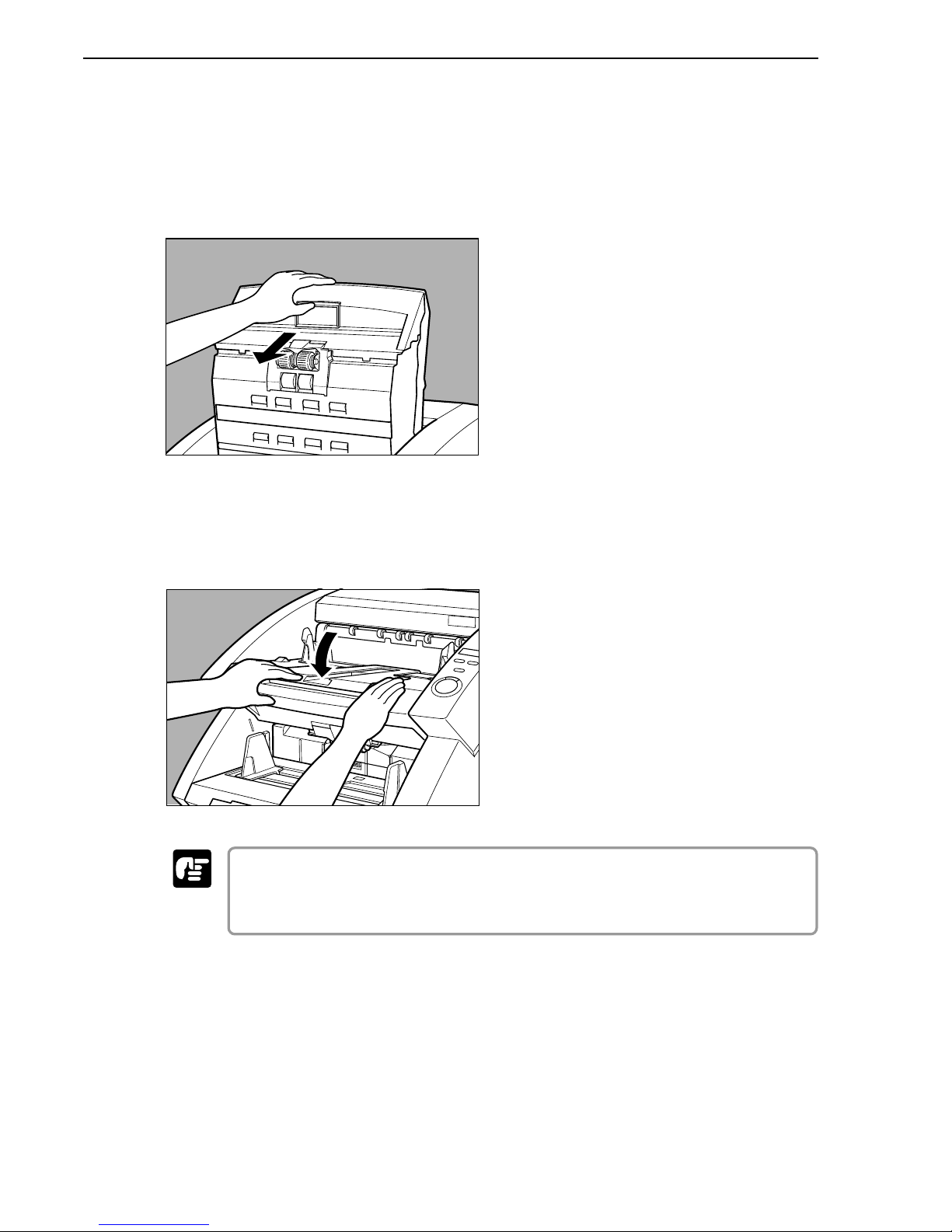

Replace the rollers that you removed. (See “Installing and
Removing the Rollers,” on p.91.)
9
Carefully close the upper scanner.
10
Press the upper scanner down firmly on both sides to close it.
If you press the upper scanner down only on one side, the opposite side
will not be fully closed. Make sure that you hear it click into place.
If paper jams or double-feed (feeding of two or more document pages) occurs
frequently in spite of your having cleaned the rollers, a probable cause is roller
friction. If this happens, replace the rollers. Contact your service representative.
Important
85
7
Cleaning the Shading Plates
If scanned images appear scratchy even after you have cleaned the rollers, the
shading plates inside the scanner may be dirty. If this happens, clean the shading
plates.
The power to the scanner is ON when you are cleaning the shading plates so be very
careful.
1
Open the upper scanner.
Press the open/close button, and lift up the upper scanner gently until it
stops and locks in the open position.
2
Press the [Start] key.
The shading plates come out from above the platen rollers.
Shading Plates
3
Wipe the shading plates with a firmly wrung cloth moistened with
water or mild detergent.
7.1 Daily Cleaning
CAUTION
86
Chapter 7 Daily Cleaning
4
Press the [Stop] key.
The shading plates retract.
5
Carefully close the upper scanner.
6
Press the upper scanner down firmly on both sides to close it.
If you press the upper scanner down only on one side, the opposite side
will not be fully closed. Make sure that you hear it click into place.
If there is no change in the appearance of the image after you have cleaned the
shading plates, contact your service representative.
Important
87
7
Cleaning the Guide Plate (When Using the Imprinter)
Ink that collects on the guide plate inside the optional imprinter may stain the
documents when they are scanned. Clean off the ink with water and a mild
detergent on a soft cloth that has been firmly wrung, and then thoroughly dry it
with a dry cloth.
Ink Absorber
Guide Plate
Cleaning the Ink Jet Nozzles (When Using the Imprinter)
Ink that collects around the ink jet nozzle may stain your documents or cause the
text to appear scratchy. Remove the ink jets and clean them periodically with
cotton swabs.
Contact
Do not touch the contact while you are cleaning the ink jet nozzles. Doing so may
cause incorrect printing.
Power Outlet
If you leave the power plug connected to the power outlet for a long period of
time, dust may accumulate at the power outlet, and cause a fire or electrical
shock. Clean it periodically.
Important
7.1 Daily Cleaning
