CARLO GAVAZZI UDM 35 - PROGRAMMING Betriebsanleitung

CARLO GAVAZZI

Automation Components

UDM 35/40 Digital Panel Meter

Programming Guide

UDM 35/40 PANEL METER USER MANUAL

Index

Description 2

Programming Fundamentals 3

Access to Programming Mode/Password Protection 4

Programming 5-18

Inputs 5-6

Temperature Compensation 6-7

Display Configuration 7

Scaling the Inputs 8

Decimal Point Position 9

Display Span Configuration 9

Linearization 11-12

Alarm Set Point Configuration 12-16

Digital Filtering 16-17

Analog Output/Retransmission of Display Value 17-18

Serial Port Output 18

Fahrenheit/Celsius Conversion 19

External Command Function 20

UDMSoft User Guide 21

UDM 35/40 PANEL METER USER MANUAL

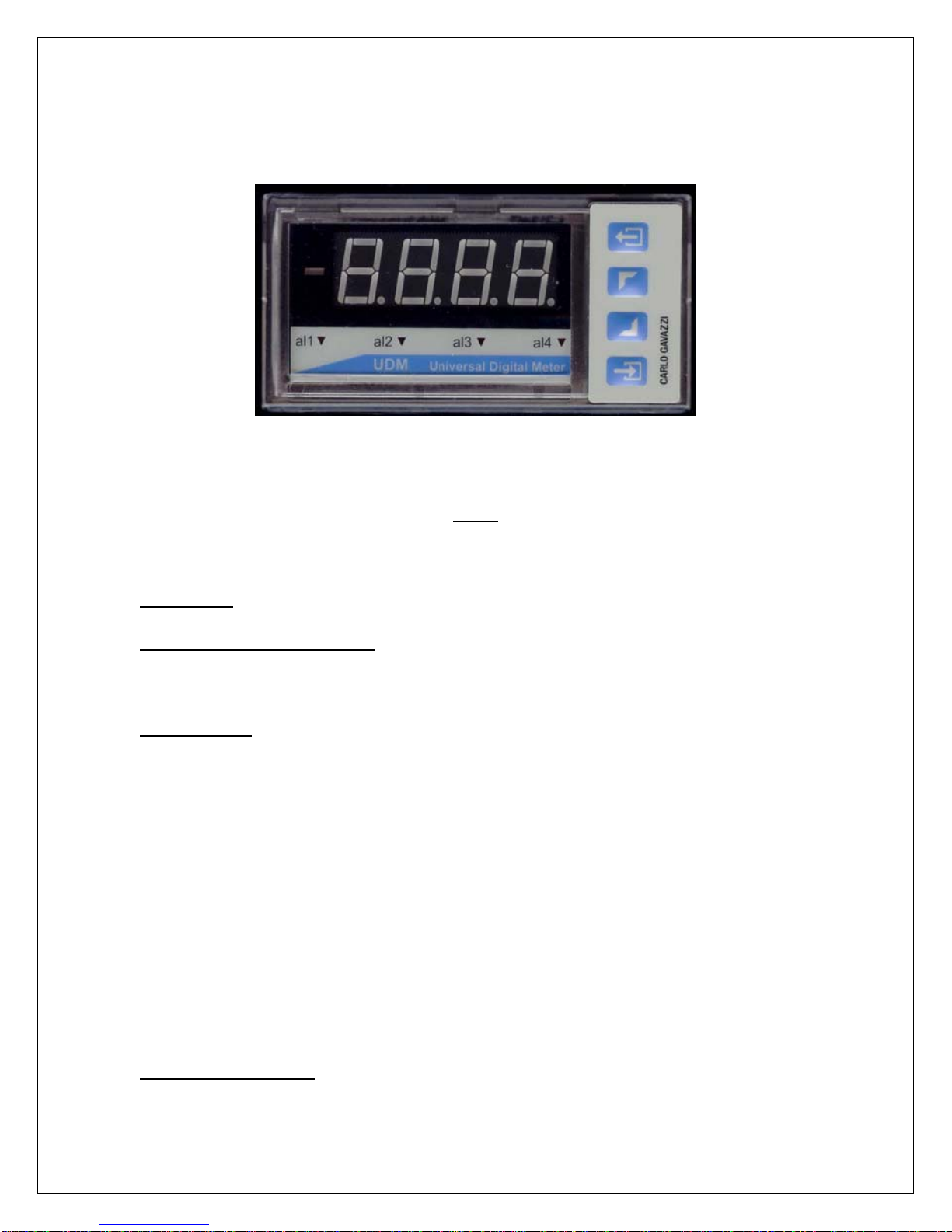

UDM Description

The UDM 35/40 series is a universal Digital Panel Meter that has been

developed to meet the most advanced application requirements. The UDM 35

offers:

• Quick assembly and maintenance using plug & play modules

• Quick & easy parameter programming and parameter cloning to

other UDMs by means of UDMSoft or PC HyperTerminal

• Powerful variable control by means of up to four (4) alarm outputs

• Alarms can be up-down functions with automatic reset, up-down

with manual reset, and down alarm with disable function at power-

up.

The UDM 40 offers the same features as the UDM 35, with the following

additional benefits:

• Display color adaptable to Green, Red and Amber

• Management of non-linear signals using the available 16-point

linearization capability

• “Alarm status at a glance” using a sequence of display colors that

can be programmed by the user

UDM 35/40 PANEL METER USER MANUAL

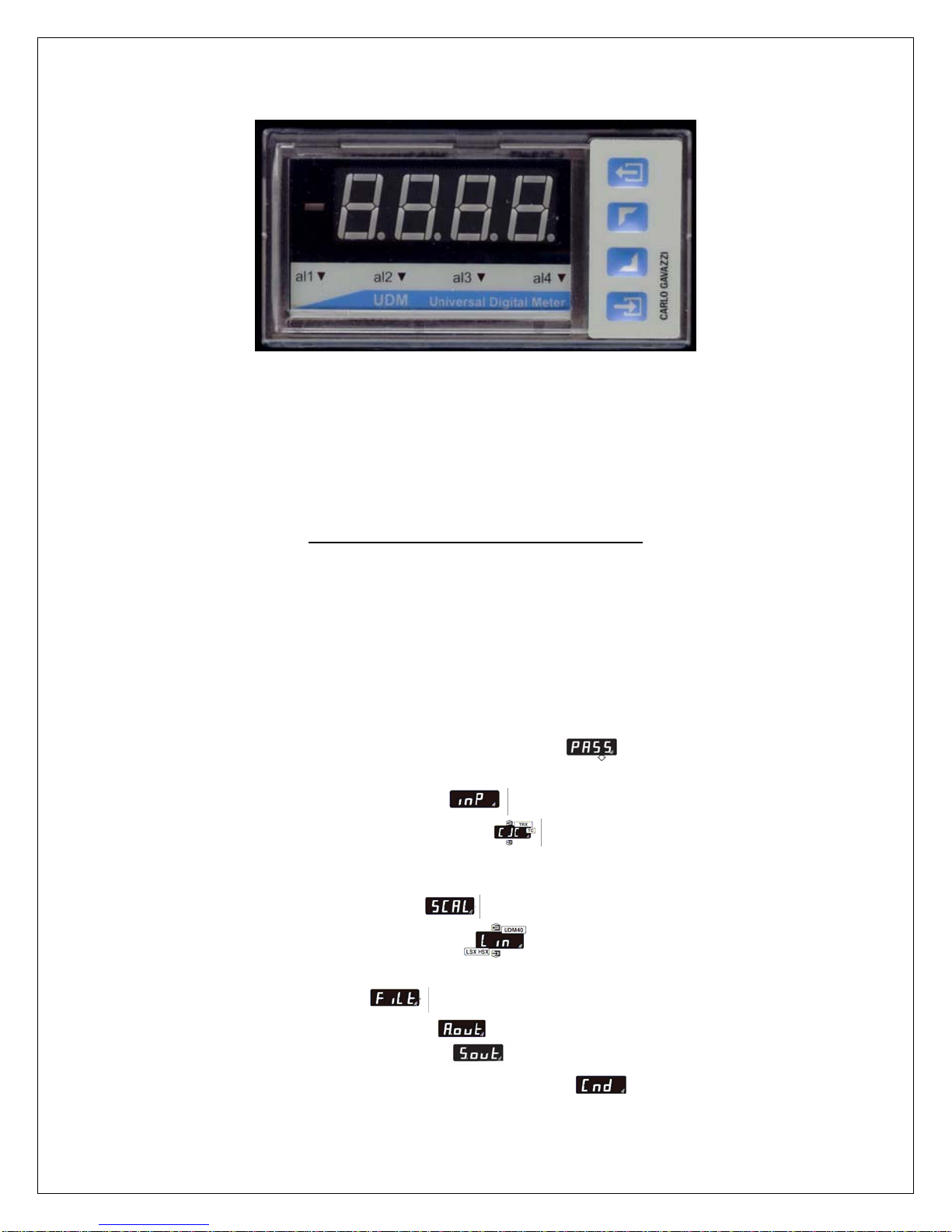

UDM 35/40 Programming Fundamentals

There are no jumpers to consider when programming the UDM 35/40. The

programming mode allows the user to define all of the instrument’s parameters.

Shown below are a description and the UDMxx display symbol for each basic

parameter grouping:

• Password for access to programming

• Input Probe Selection / Signal Range (current, voltage,

temperature, resistance)

• Cold Junction Compensation

• Display Selection (diSP)

• Display Color (CoLr)

• Scaling of Input Value

• Input Signal Linearization

• Alarm Set-Point (SP1 – SP4)

• Digital Filtering

• Analog Output Scaling

• Serial Port Configuration

• External Command from Input Contact

UDM 35/40 PANEL METER USER MANUAL

Access to Programming Mode

Press and hold for 2 seconds. Display will indicate (password).

Within 2 seconds, four zeros “0000” will be displayed as follow:

This is your prompt to enter your password. Each individual digit is selected from

left to right by toggling the key. Changing the value of each digit is

accomplished using the and arrows. When completed, press to

confirm this step. If the password you entered is not correct, you will not be

allowed access to program. Factory default password is set to “0000”.

Note: Choice of a password value is significant. Values from “0000” to “4999”

protect direct access to both set points and all other parameters. A password

value from “5000” to “9000” allow direct access to alarm set points only.

Negotiating the Programming Menu

After password is verified, you are in the Programming Mode. After

approximately 20 seconds, the unit will revert to RUN mode if no further entry is

made. Movement across the flow chart (see product carton instruction sheet for

BD35 and BD40) to a specific parameter heading is accomplished using the

and arrow keys. Pressing the UP key tabs from left-to-right across the flow

chart. Pressing the key tabs from right-to-left. Upon reaching the desired

parameter to configure, press . The display will indicate the current setting for

the first sub-parameter in this group. Each successive will scroll through the

remaining sub-parameters. To change a setting, press the or keys when a

value of a sub-parameter is displayed, followed by to confirm the change and

advance to the next sub-parameter.

UDM 35/40 PANEL METER USER MANUAL

Programming the Input Modules

Press and hold for 2 seconds. Display will indicate PASS (password). Within

2 seconds, four zeros “0000” will be displayed. This is your prompt to enter your

password. If zero “0000” is your password, simply press to confirm. You

have approximately 20 seconds to begin programming before the unit reverts

back to run mode. (To enter a unique password, see Access to Programming

Mode, above.)

Input Selection

Press the key once to advance to Input

When the TRX module is installed, you must first indicate probe choice:

TRX input modules offer three Probe (Prob) choices: thermocouple* (tc),

RTD (rtd), plus resistive (rES). Use or keys to make selection.

Press . Use keys to select Range (r1, r2, r3, r4, r5, r6) according

to table below and on instruction sheet. Press .

UDM 35/40 PANEL METER USER MANUAL

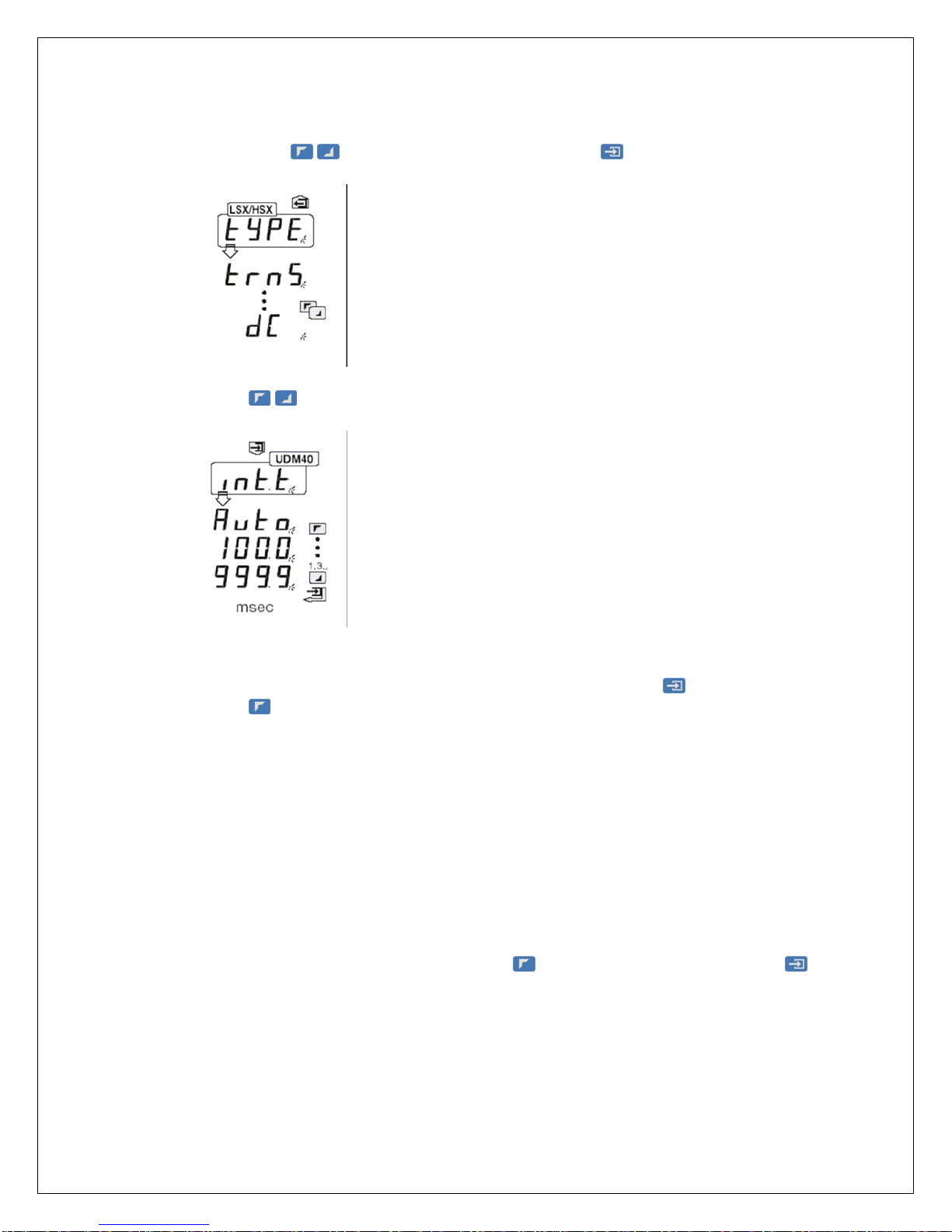

LSX and HSX input modules offer True RMS (trnS) or DC measurement

(dC). Use keys to make selection. Press .

Press keys to select Input signal integration time value (intt).

If all zeros “0000” is selected, “Auto” will be displayed and the value will be

automatically calculated from 100ms – 999.9 ms. Press to confirm.

Press to advance to next program step sequence.

Cold Junction Compensation (CJC) Temperature Compensation

Available only when TRX input module is installed.

TRX module with Thermocouple (tC) requires configuration of Cold

Junction Compensation (CJC). Press key to advance to CJC Then

to enter.

UDM 35/40 PANEL METER USER MANUAL

Press key to select Auto (Auto). Press to confirm. . Press to

advance to next program step sequence.

Manual compensation should only be used in special applications. Consult

factory.

Configuring the Display (diSP) UDM35 only

UDM 35 (BD35) base unit displays may be configured as 3 ½ digit (1999)

or 3 digit + dummy zero (9990). When “diSP” is displayed, press .

Then press keys to make selection. Press to confirm. Press

to advance to next program step sequence.

Selection of Display Color (CoLr) UDM40 only

UDM40 (BD40) base unit offers three display colors. When “CoLr” is

visible on the display, press .

Use keys to select RED (rEd), Orange (orAn) or Green (GrEn).

Press to confirm. Press to advance to next program step sequence.

UDM 35/40 PANEL METER USER MANUAL

Scaling the Inputs

When is displayed, access is available for configuring the

electrical input range, the decimal point position and display span as

follows:

Electrical Input Range (HiE and LoE)

Allows the operator to define an electrical input range different from the

standard range setup at the “inP” programming step. As example, a UDM

with a full-scale 20mA (19.99mA) setting, it is possible to select an

electrical input range from 4.00mA (Lo.E) to 19.99mA (Hi.E) by

proceeding as follows:

When is displayed, press . “LoE” will appear.

Using the key, toggle to select a digit, then press the or key to

choose the desired value. Using the key, repeat as necessary until all

digits have proper values. Press .

“HiE” will now appear.

Using the same procedure as above, toggle through the digits using the

key and choose the desired values with the or key. Press to

confirm and advance to the next parameter, Decimal Point Position.

UDM 35/40 PANEL METER USER MANUAL

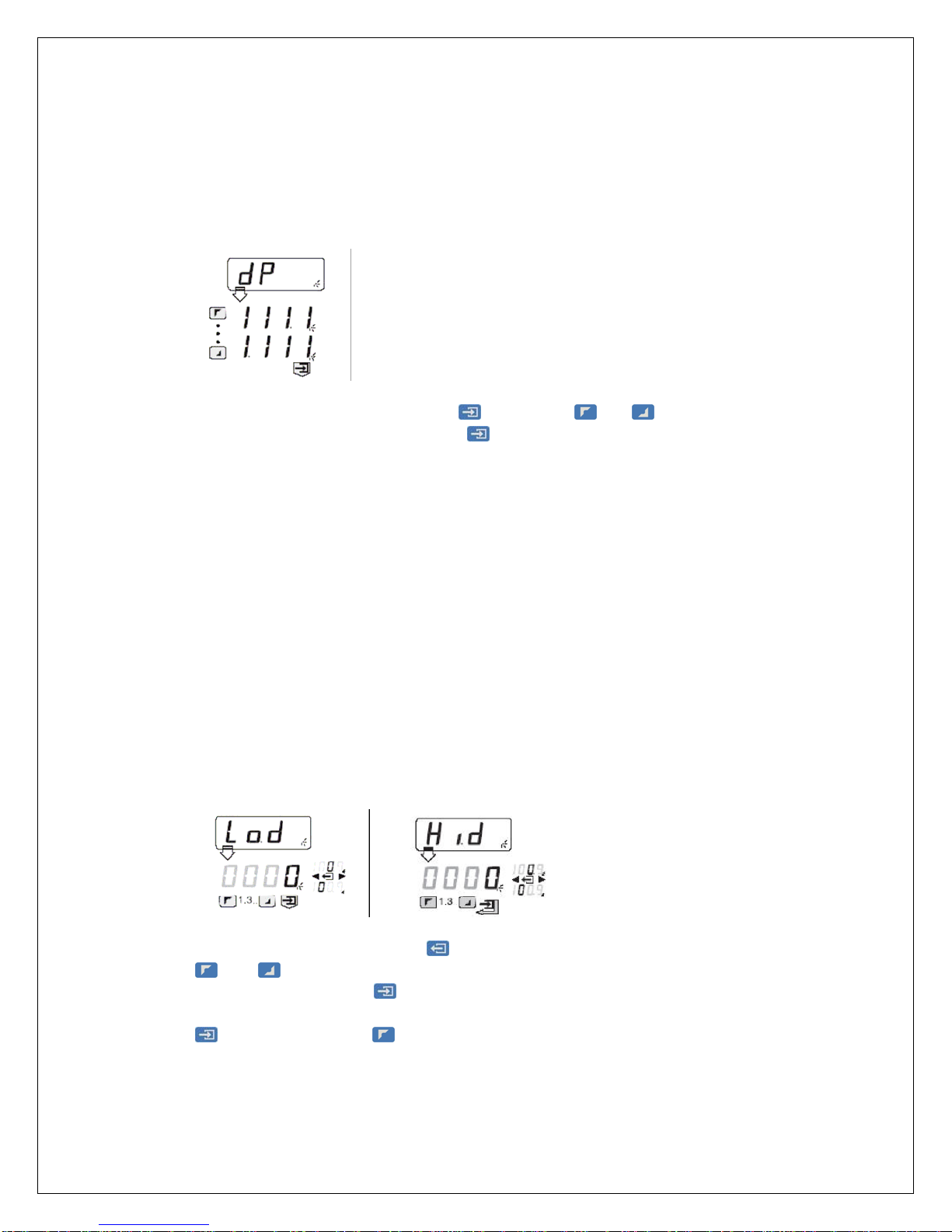

Decimal Point Position (dP)

The decimal point position is relative to the Display Value, which will be

discussed next.

When “dP” is displayed, press . Using the and keys, select the

decimal point position and press to confirm and advance to next step,

“Lod” and “Hid”, the display span parameters.

Display Span (Lod and Hid)

Allows the user to define the actual display span (in engineering units)

corresponding to the previously defined electrical input range (HiE and

LoE). The “Lod” value represents the minimum displayed value; “Hid”

represents the maximum displayed value.

When “Lod” appears, press key to toggle to proper digit. Use the

and keys to select desired value. Repeat procedure until all digits

have been set, press to confirm and advance to the next step, “Hid”.

Repeat the same procedure to select and confirm the “Hid” values. Press

to confirm. Press to advance to the next program step sequence.
