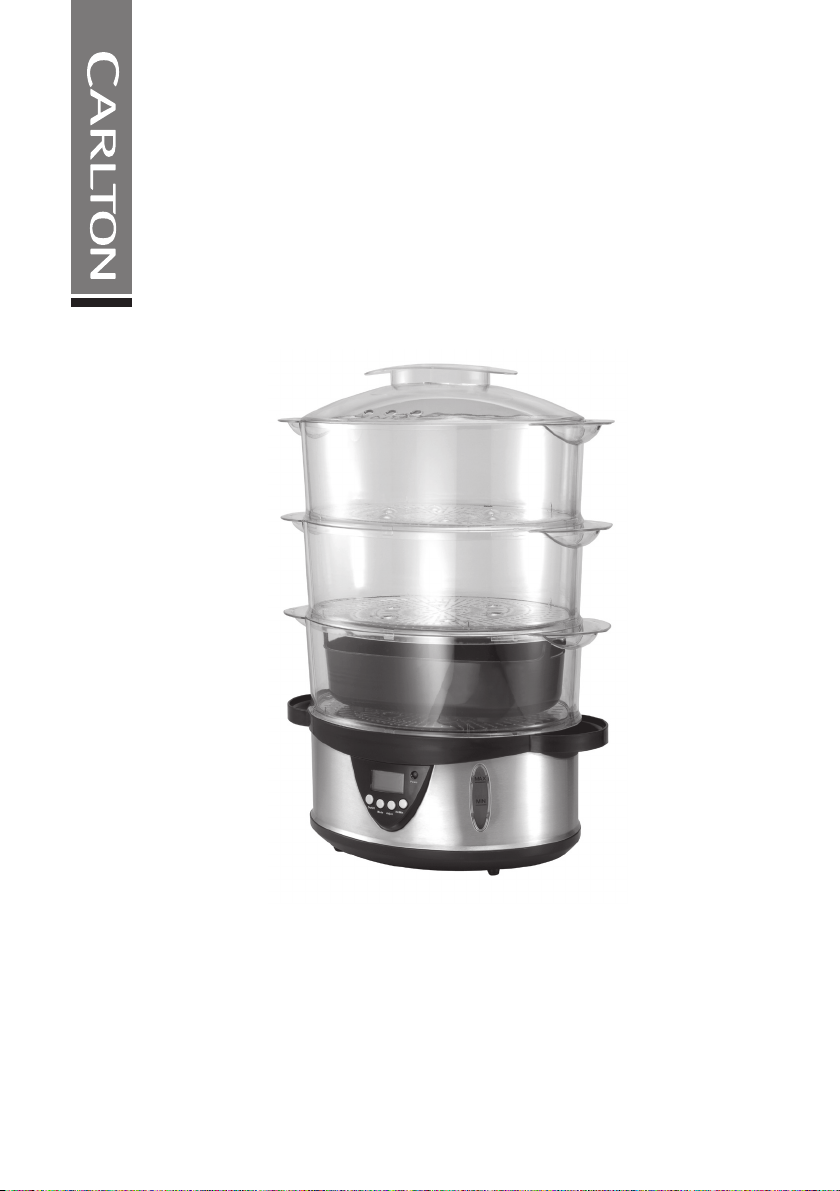

Instruction Manual C96SSS09
STAINLESS STEEL
STEAMER
Safety Warnings Operation Cleaning and
Maintenance
OthersBefore Use
GB-2
Safety
When using electrical appliance, basic safety precautions should always be
followed, including the following:
Read all instructions before using the food steamer.1.
This appliance has been designed and manufactured to meet internation-2.
al safety standards but, like any electrical appliance, care must be taken if
you are to obtain the best results and safety is to be assured.
Do ensure that all electrical connections (including the mains plug, mains3.
cable and inter-connections between the pieces of appliance) are properly
made and in accordance with the manufacturer’s instructions. Switch off
and withdraw the mains plug before making or changing connections.
Do consult your dealer if you are ever in doubt about the installation,4.
operation or safety of your appliance.
Do not remove any xed cover as this may expose dangerous voltages5.
Do not obstruct the ventilation openings of the appliance with items such6.
as newspapers, tablecloths, curtains, etc.
Do not allow electrical appliance to be exposed to dripping or splashing.7.
Do not place objects lled with liquids, such as vases, on the appliance.8.
Do not continue to operate the appliance if you are in any doubt about it9.
working normally, or if it is damaged in any way - switch off, withdraw the
mains plug and consult your dealer.
Never guess or take chances with electrical appliance of any kind - it is10.
better to be safe than sorry!’
Before connecting the appliance to the mains socket, check the voltage11.
on the label corresponds with the voltage in your home, if this is not the
case, please don’t use the appliance and contact your dealer.
Do not touch the hot surfaces. Use handles or knobs. Always use mitts12.
when handling hot materials. Avoid hot steam rising from the top of the
appliance at all times when in use. Do not touch the top of the appliance
while it is generating steam. Remove lid by lifting slowly away from you.
Always use the handle when moving the appliance.
Allow the appliance to cool completely before cleaning or storing.13.
Allow the appliance to cool before putting on or taking off parts.14.
When the appliance is not in use and before cleaning, unplug the food15.
steamer from the mains socket.
To protect against the risk of electrical shock, do not immerse the appli-16.
ance bottom, mains cable or mains plug in water or other liquids.
This appliance is not intended for use by persons (including children) with17.
reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction
concerning the use of the appliance by a person responsible for their
safety.
Safety WarningsOperationCleaning and
Maintenance
Others Before Use
GB-3
Children should be supervised to ensure that they do not play with the18.
appliance.
Close supervision is always necessary when this or any appliance is19.
used near children.
If the mains cable is damaged it must be replaced by the manufacturer,20.
its service agent, or similarly qualied persons in order to avoid a haz-
ard.
Do not use attachments not recommend by the manufacturer, they may21.
cause re, electrical shock or injury.
Use the appliance on a level and stable work surface away from water.22.
Do not use outdoors or for commercial purpose, do not use the appli-23.
ance for other uses than its intended use.
Do not let the mains cable hang over the edge of the table or counter.24.
Do not let the mains cable touch hot surfaces.25.
Never place the appliance on or near a source of heat such as electron-26.
ic burner or other toaster oven.
Do not operate the appliance without water, it may damage the heating27.
element. If this happens, you should immediately unplug the appliance
from the mains socket. After cooling the appliance for 15 minutes, pour
cool water in the appliance.
Always use sufcient water for steaming time.28.
Always place the appliance on a dry, at and stable surface.29.
During operation, please be careful of the steam coming out from the30.
steamer lid and don’t face directly to any part of the body when opening
the lid.
Use extreme caution when moving an appliance containing hot oil or 31.
other hot liquids.
To disconnect, switch the appliance off, then remove the mains plug32.
from mains socket.
Never steam food in the water tank.33.
Be careful of the hot steam, especially from the top lid and power base34.
handle.
This appliance is for household use only.35.
Save these instructions.36.
Safety Warnings Operation Cleaning and
Maintenance
OthersBefore Use
GB-4
Unpacking the Steamer
Remove all packaging from the steamer. Retain the packaging. If you dispose of it
please do so according to any recycling regulations.
If items are missing or damaged, please contact Partmaster (UK only).
Tel: 0870 6001 338 for assistance.
Tube X 1
part number
FS1149-7
Instruction Maunal X 1
part number
FS1149-40
Lid X1
part number
FS1149-1
Supports X3
part number
FS1149-4
Rice Bowl X 1
part number
FS1149-5
Steamer Plate X3
part number
FS1149-3
Juice Colleactor X1
part number
FS1149-6
Instruction Manual C96SSS09
STAINLESS STEEL
STEAMER
Safety WarningsOperationCleaning and
Maintenance
Others Before Use
GB-5
Getting to know your Steamer
Handle
Lid
Supports
Steamer
Plate
Rice
Bowl
Juice
Collector
Water Tank /
Power Base
Tube
Water
Window
Safety Warnings Operation Cleaning and
Maintenance
OthersBefore Use
GB-6
steam bread
steam rice
steam fish
steam vegetables
steam chicken breast

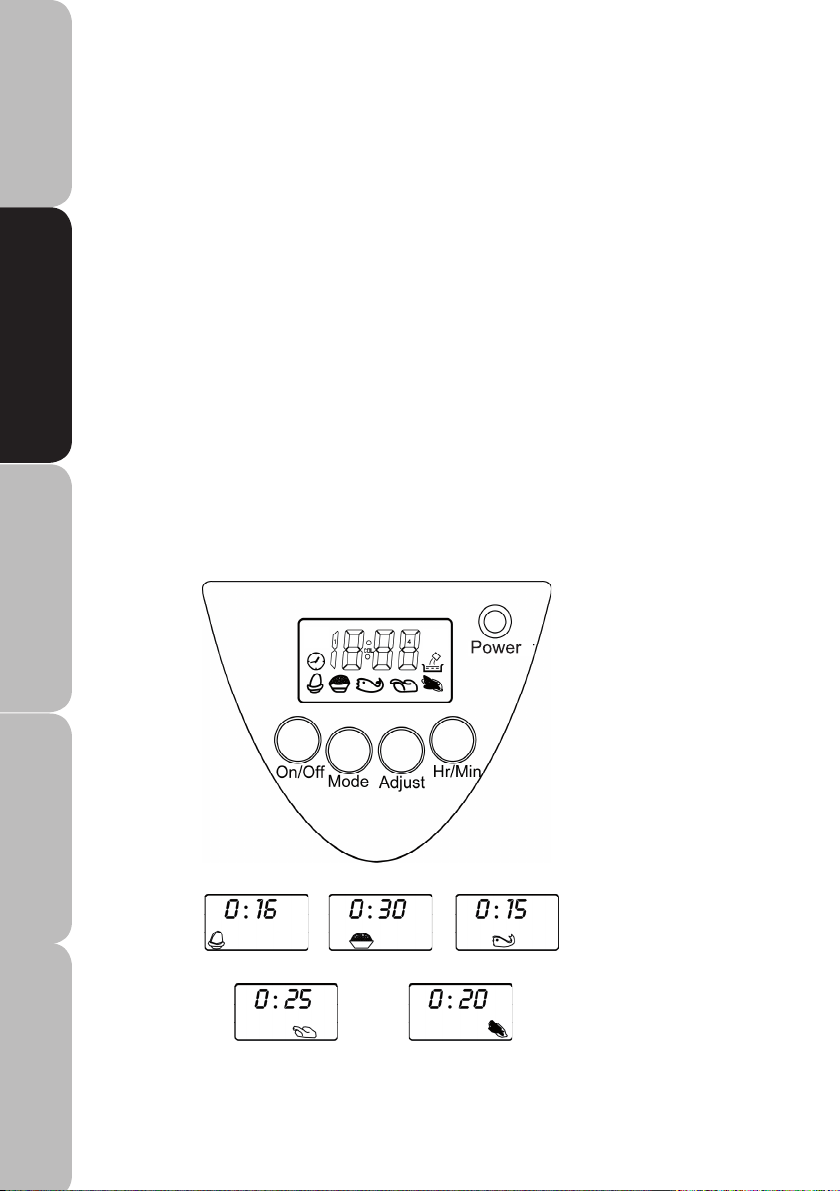

Control Panel
On/Off button1. :
Press this button to start the steamer.
Press and hold this button for 2 seconds to stop the steamer.
Mode button2. :
Press this button to select your desired programme (bread, rice, sh,
chicken breast, or vegetables).
Adjust button3. :
Press this button to increase the steaming time (up to 59 minutes)
Hr/Min button4. :
The steamer can start automatically after a set time (up to 12 hours, 59
minutes). Press this button to switch between “hour” and “minute” and
then press the Adjust button to set the start time.
Power indicator5. :
Displays different colours to show the steamer status:
steady green: standby mode•
ashing green: automatic start time is counting down•
red: steaming in progress•
Display6. :
Shows the steaming mode and time.
Safety WarningsOperationCleaning and
Maintenance
Others Before Use
GB-7

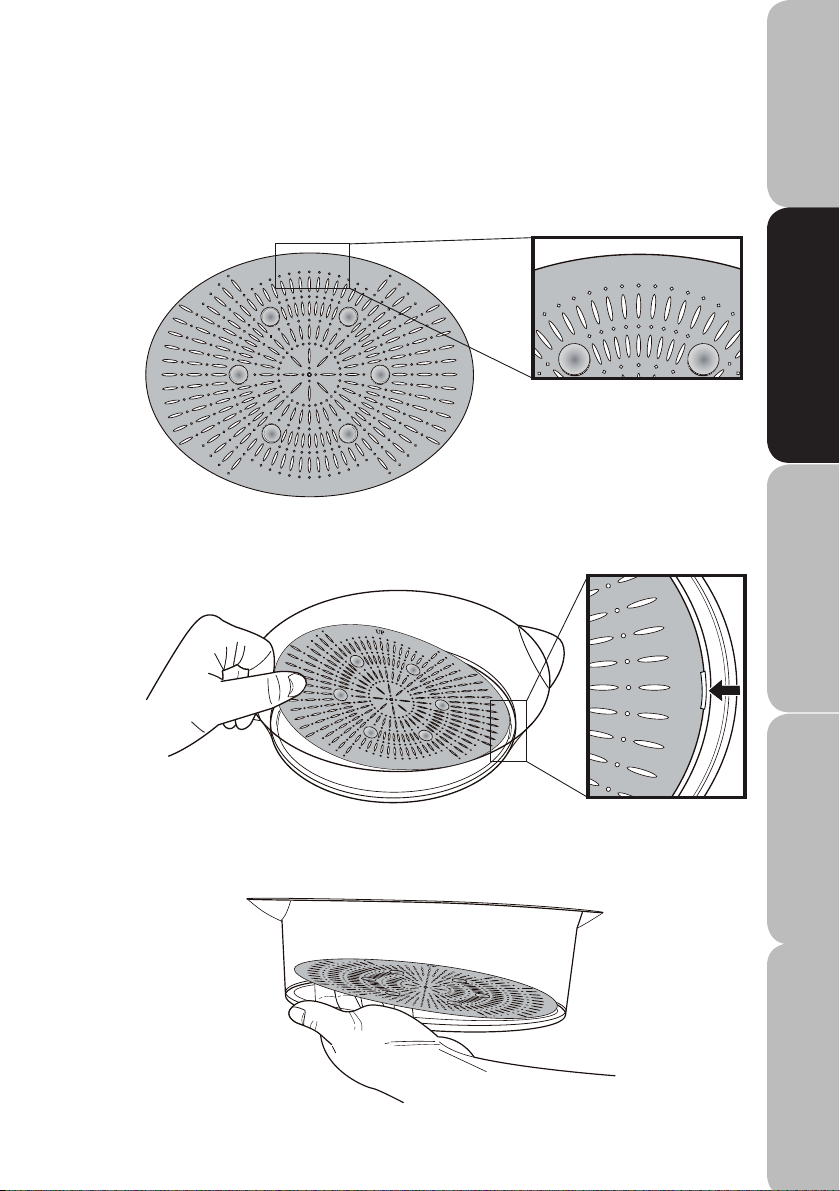

Assembling the Steamer Baskets
You assemble each steamer basket by attaching a steamer plate to a support.
Make sure the plate is facing upward.1.
Insert one end of the plate into the support slot rst.2.
Use one hand to lift the other end of plate to about 2cm.3.
UP
UP
Safety Warnings Operation Cleaning and
Maintenance
OthersBefore Use
GB-8

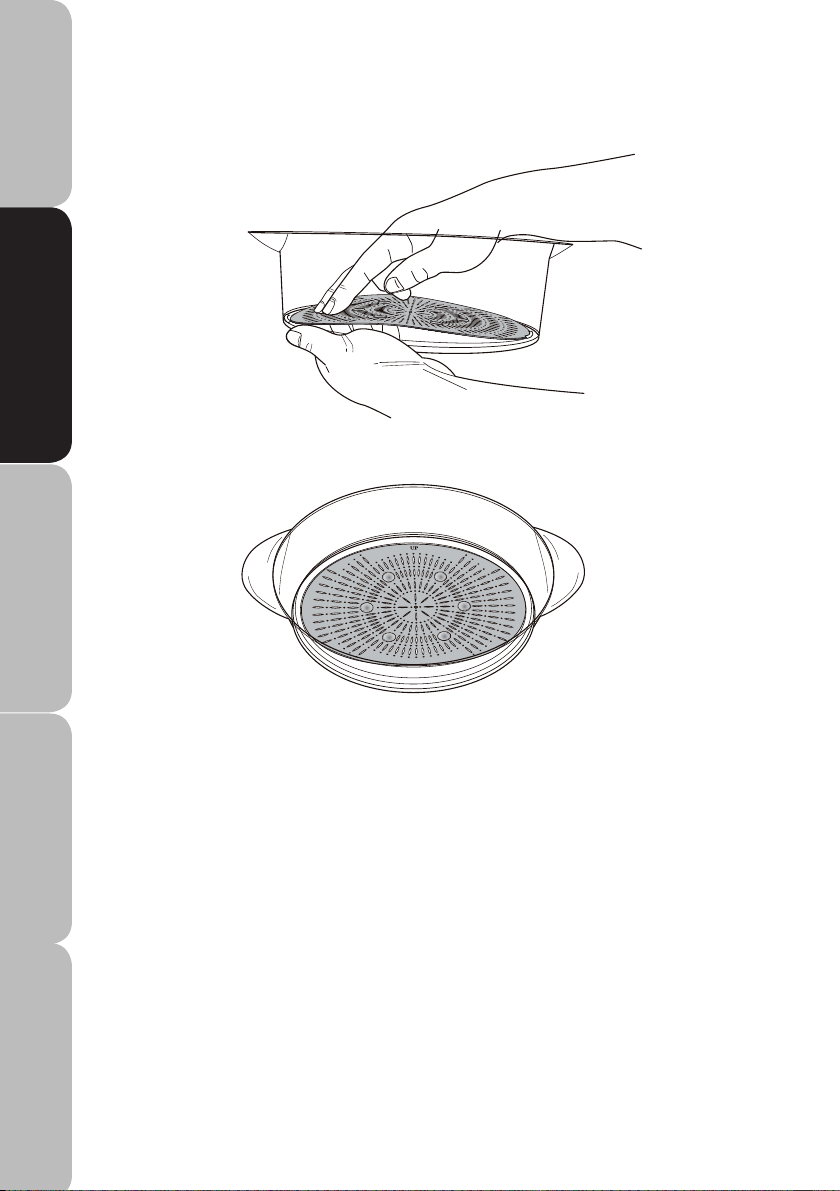

Use your other hand to push the end of the plate down and into the slot,4.
then release.
The steamer basket assembly is complete.5.
Cleaning Before First Use
Wash the steamer plates and supports, lid, juice collector and rice bowl1.
in hot soapy water, rinse and dry completely.
Note: The ow marks on the steamer plates’ surface are not a defect,
and they will not affect the cooking quality, cooking time, and the func-
tionality of the plates.
Operate the steamer as described in2. How to Use Your Steamer on the
next page, lling the water tank to the Max level with cold water. Place
the empty baskets and lid on the power base.
When the water is boiling, press the3. On/Off button for 2 seconds to
switch off. Allow the steamer to cool down completely and then discard
the water.
Safety WarningsOperationCleaning and
Maintenance
Others Before Use
GB-9
How to use your Steamer
Place the power base on a stable surface, away from any objects which1.
could be damaged by the steam escaping.
Place the tube rmly over the heating element in the water tank as per the 2.
below screenshots. Ensure the tube is snugly inserted into the ring mark
in the water tank.
Fill the water tank with cold water:3.
Fill to the Max level for food requiring at least 13 minutes of steaming time.•
Fill to the Min level for food requiring less than 13 minutes of steaming time.•
Place the juice collector on the base and check that it is level.4.
Caution: Don’t add any salt, pepper, herbs, seasoning, wine, stock, or
any liquid other than water to the water tank.
Put the food into the steamer baskets and place the baskets on the power5.
base.
Cover the top basket with the lid.6.
Plug the steamer into the mains socket. The7. Power indicator will turn
green.
Press the8. Mode button to choose a steam program: bread, rice, sh,
chicken, or vegetables. The display shows the minimum steam time for
each food type. To increase the steam time, press the Adjust button.
Press the9. On/Off button to start the steamer. The Power indicator will
turn red.
When steaming nishes, the steamer will beep. Remove the baskets im-10.
mediately, using oven gloves to prevent burns.
Note: To stop the steamer during operation, press the On/Off button for
2 seconds.
Unplug the steamer from the mains socket and allow it to cool down11.
completely.
Empty the water tank and rell it with fresh water before each use.12.
Note: Be careful when removing the drip tray. While other parts of the
steamer may have cooled down, water in the water tank and drip tray may
still be very hot.
s$ONTOPERATETHESTEAMERWITHOUTTHEBASKETSANDLIDINPLACE
s7HILETHESTEAMERISOPERATINGDONTTOUCHTHEBASELIDSTEAMER
BASKETSORRICEBOWLUNLESSWEARINGOVENGLOVES
Safety Warnings Operation Cleaning and
Maintenance
OthersBefore Use
GB-10
Boil-dry protection system
If the water level in the water tank is too low during operation,
the boil-dry protection system will turn off the steamer and
sound a buzzer. The display will show “E EE”. Add water to
the tank and ensure the water level is between the Max and
Min marks before resuming operation.
Using the Steamer Baskets and Rice
Bowl
Your steamer is equipped with three steamer baskets.
Using a single basket
Place the food in the basket.1.
Place the basket on the power base and put the lid on.2.
Using multiple baskets
Place the food in the baskets. We recommend that you put the largest1.
pieces of food in the lowest basket.
Stack the baskets on the power base and put the lid on. The baskets can2.
be placed on the power base in any order.
Using a single basket with rice bowl
Place the rice and water in the rice bowl.•
Place the rice bowl in steamer basket.•
Place the basket on the power base and put the lid on.•
Notes:
You can put different foods in the baskets, but since steam will drip from•
the upper layer, make sure their avours complement each other. When
steaming meat and vegetables, always place the meat in the lowest bas-
ket so that juice can’t drip onto the other food.
If you are cooking food with different cooking times, place the food that•
requires the longest cooking time in the lowest basket and start cooking
it rst. When the timer reaches the setting for the next basket of food, re-
move the lid using oven gloves or a cloth, and add the basket to the stack
on the power base. Replace the lid.
E EE
Inhaltsverzeichnis
Beliebte Elektrischer Dampfgarer Handbücher anderer Marken
Morphy Richards
Morphy Richards FS48751MEE Bedienungsanleitung
Cuisinart
Cuisinart STM1000AR Bedienungsanleitung
Hastings
Hastings DIRECT GAS FIRED ELECTRIC STEAM Kurzanleitung
Galantine
Galantine SILVER Style SC-5003B Bedienungsanleitung
Cleveland
Cleveland SteamChef 22CET3.1 Bedienungsanleitung
Cleveland
Cleveland Enodis 24-CDM Bedienungsanleitung
