CHIEF FSD-4100 Bedienungsanleitung

FSD-4100

LCD Flat Screen

Swing-Down Mount

Perfect for home applications under kitchen cabinets or other

rooms with a soffit. The LCD Flat Screen Swing-Down mount is

a sturdy, versatile solution for LCD flat screen display or touch

screen control system mounting with 15” or smaller monitors.

The all steel mount provides smooth side-to-side pivot, 70º or

220º screen rotationand extends and retracts 2 3/4” to allow for

larger screen capacity. Hidden cable management permits aes-

thetic installation while preventing wires from being pinched.

BEFORE YOU BEGIN

•Caution: To prevent damage to the mount, which could affect the equipment that will be attached to it and

void the factory warranty, thoroughly study all instructions and illustrations before you begin the installa-

tion. Pay particular attention to the “Important Warnings and Precautions” on Page 1.

•The mount isdesigned to be installed on cabinetry or supporting framework. The cabinet to which the FSD-4100 is

anchored must be capable of supporting 75 pounds (34 Kg).

•If you have any questions about this installation, contact Chief Manufacturing at 1-800-582-6480.

CHIEF MANUFACTURING INC.

1-800-582-6480 952-894-6280 FAX 952-894-6918

8401 EAGLE CREEK PARKWAY

SAVAGE, MINNESOTA 55378 USA

8832-000010 Rev C

www.chiefmfg.com

04-07

INSTALLATION INSTRUCTIONS

Installation Instructions FSD-4100

IMPORTANT WARNINGS AND PRECAUTIONS!

WARNING: A WARNING alerts you to the possibility of serious injury or death if you do not follow the instructions.

CAUTION: ACAUTION alerts you to the possibility of damage or destruction of equipment if you do not follow the corre-

sponding instructions.

•WARNING:Improper installation can result in serious personal injury! Make sure that the mounting surface can sup-

port a redundant weight factor five times the total weight of the equipment. If not, reinforce the structure

before installing the FSD-4100.

•WARNING:Be aware also of the potential for personal injury or damage to the unit if it is not adequately mounted.

•WARNING:The installer is responsible for verifying that the surface to which the FSD-4100 is anchored will safely

support the combined load of all attached components or other equipment.

•WARNING:The weight of the display placed on the FSD-4100 must not exceed 15 lbs. (6.8 kg), the maximum load

capacity of the FSD-4100.

•WARNING:Watch for pinch points. Do not put your fingers between movable parts.

•WARNING:Make sure the mount and brackets are correctly oriented.

•CAUTION: Check the unit for shipping damage before you begin the installation.

•CAUTION: Overtightening adjustment bolt will cause excessive wear and may distort adjustment components.

NOTE: Hardware for attaching this unit to the mounting surface is not supplied.

TOOLS REQUIRED FOR INSTALLATION

•Phillips screw driver

•Electric drill motor

•1/4” Drill bit

NOTE: Other tools may be required depending on the

method of installing the mount.

CONTENTS

DIMENSIONAL DRAWING ........................................ 2

INSPECT THE UNIT BEFORE INSTALLING ............ 3

PARTS ....................................................................... 4

FDS-4100 INSTALLATION ........................................ 5

MOUNT THE DISPLAY ............................................. 5

ADJUSTMENTS ......................................................... 6

CABLE MANAGEMENT ............................................. 7

Installation Instructions FSD-4100

DIMENSIONAL DRAWING

Installation Instructions FSD-4100

INSPECT THE UNIT BEFORE INSTALLING

WARNING: Watch for pinch points. Do not put your fingers

between movable parts.

1. Carefully inspect the FSD-4100 for shipping damage. If any

damage is apparent, call your carrier claims agent and do not

continue with the installation until the carrier has reviewed the

damage.

NOTE: Read all instructions before starting installation.

2. Lay out components to ensure you have all the required parts

before proceeding (see “DIMENSIONAL DRAWING” on

page 2 and “PARTS” on page 4).

Installation Instructions FSD-4100

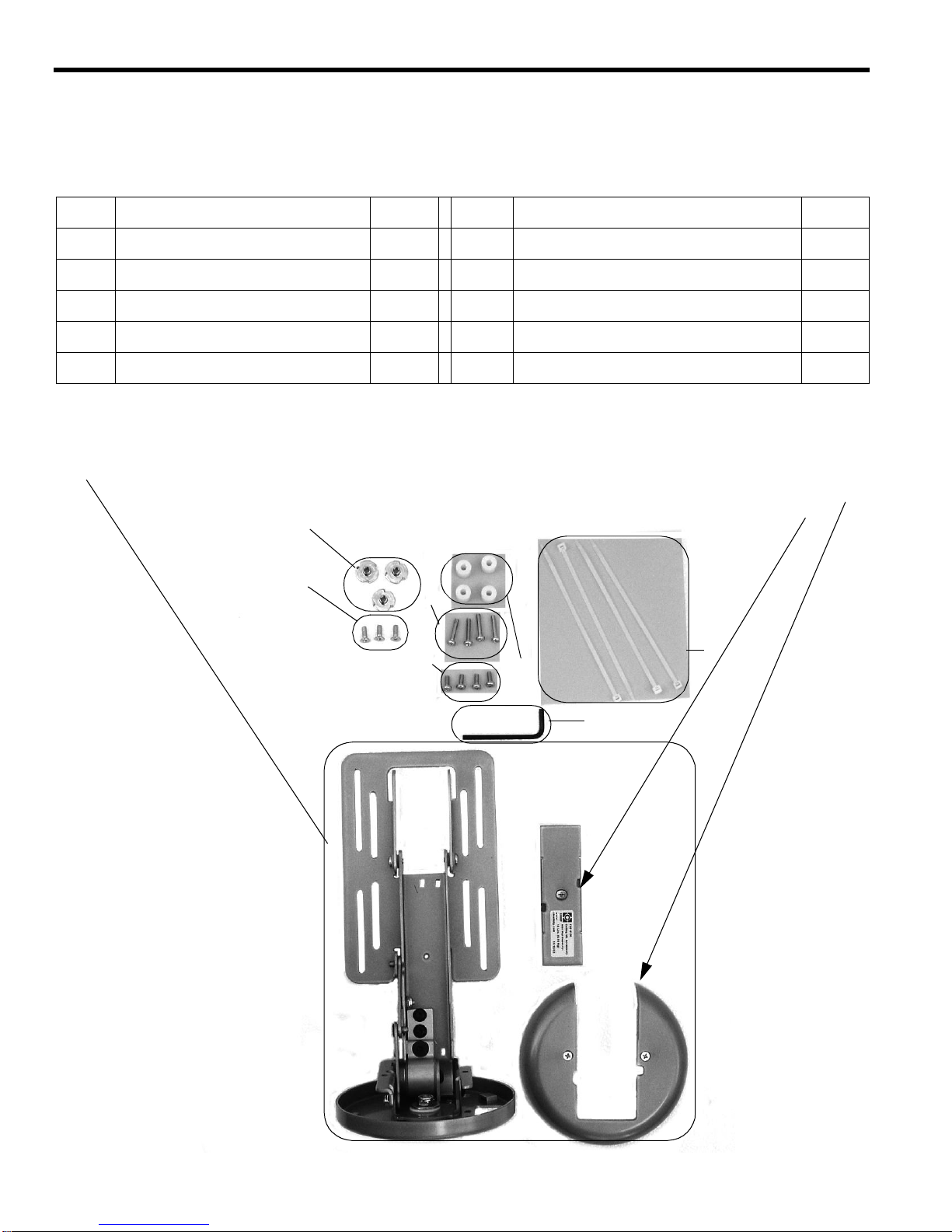

PARTS

Item Description Qty. Item Description Qty.

10 Mount 1 40 Screw, M4 X .7 X 20mm 4

10A Base Cover 1 50 Screw, M4 X .7 X 10mm 4

10B Cable Management Cover 1 60 Spacer, Nylon, .500 OD X .19 X .50 4

20 Nuts, T 3 70 Tie Wraps 4

30 Screws, 10-24 X 5/8” 3 80 Allen Wrench, 5/32” 1

30 40

50 60 70

10 10A

10B

Installation Instructions FSD-4100

FSD-4100 INSTALLATION

WARNING: It is the responsibility of the installer to verify that

the surface to which the FSD-4100 is anchored will

safety support the combined load of all attached

components and equipment.

Install the FSD-4100 as follows:

NOTE: Numbers in ( ) refer to parts in PARTS on page 4.

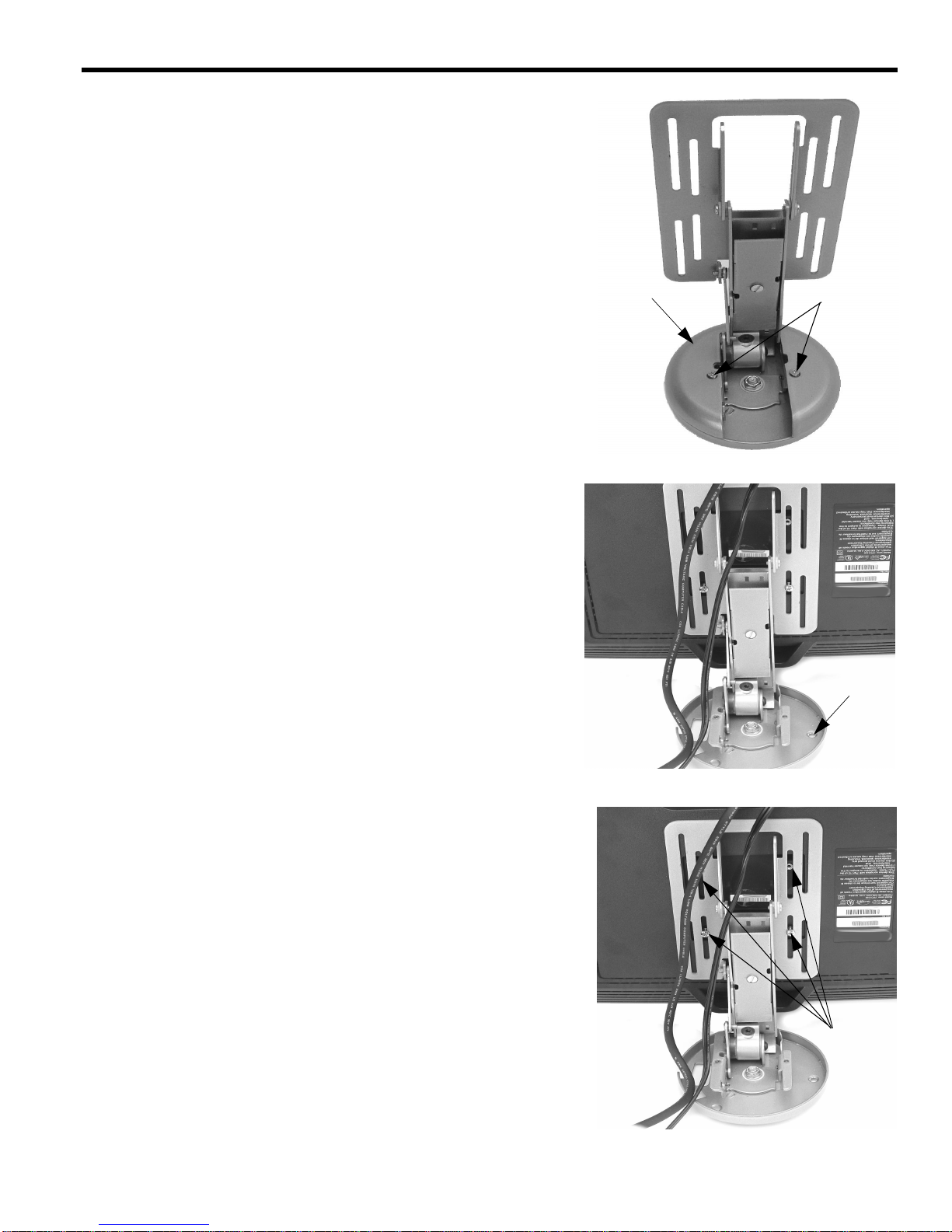

1. Remove two screws securing base cover (10A) and remove

cover (see Figure 1).

2. Determine the exact mounting location prior to installation,

considering the unit’s total arm radius.

3. Using the mounting plate as a template, mark mounting hole

locations (see Figure 2).

4. Drill three 1/4” holes at the locations marked in step 3.

WARNING: Improper installation can result in serious dam-

age to the display or personal injury! Make sure

that the structural members can support a redun-

dant weight factor five times the total weight of the

equipment. If not, reinforce the structure before

installing the FSD-4100.

5. With theFSD-4100correctly oriented andlevel, secureit tothe

surface using fasteners (20 and 30).

6. Check mount to insure it is level and adjust to level if neces-

sary.

MOUNT THE DISPLAY

1. Make sure no power is supplied to the display before attempt-

ing to mount the display.

WARNING: Watch for pinch points. Do not put your fingers or

cables between movable parts.

2. Align the appropriate slots in the bracket with the four mount-

ing holes of your LCD display (see Figure 3).

WARNING: Make sure the mounting screws used to secure

your display panel to the mounting bracket are the

proper length and diameter. If you are unsure

about screw length and/or diameter, consult the

display manufacturer before proceeding.

3. Using the proper length and diameter screws (40 or 50), and

spacers (60) as necessary, secure your display to the mount.

NOTE: If your display is not equippedwith 75 \mm or 100mm

mounting pattern, contact Chief Manufacturing to check for an

adapter plate for your display model.

Base Screws

Cover

Secure

Display

Figure 1. Remove Cover

Figure 3. Secure Display

Figure 2. Mark Mounting Location

Mark

Hole

Locations

Installation Instructions FSD-4100

ADJUSTMENTS

Screen Height Adjustment

1. Using a screw driver, slightly loosen the screws (40

or 50) securing the display panel to the mounting bracket

(see Figure 4).

2. Adjust the display panel to the desired height.

3. Using a screw driver, tighten the screws securing the dis-

play panel to the mounting bracket.

Arm Tension Adjustment

CAUTION: Overtightening adjustment bolt will cause exces-

sive wear and may distort adjustment components.

1. Using a 5/32” Allen wrench (80), slightly tighten or loosen

the tension adjustment bolt at the base of the arm (see

Figure 5).

2. With display mounted, cycle the FSD to check fordesired

tension.

3. Repeat Step 1 and Step 2 until desired tension is

obtained.

Screws

Securing

Monitor

Figure 4. Loosen/Tighten Screws

Securing Monitor

Tension Adjustment Bolt

Figure 5. Adjust Arm Tension

Installation Instructions FSD-4100

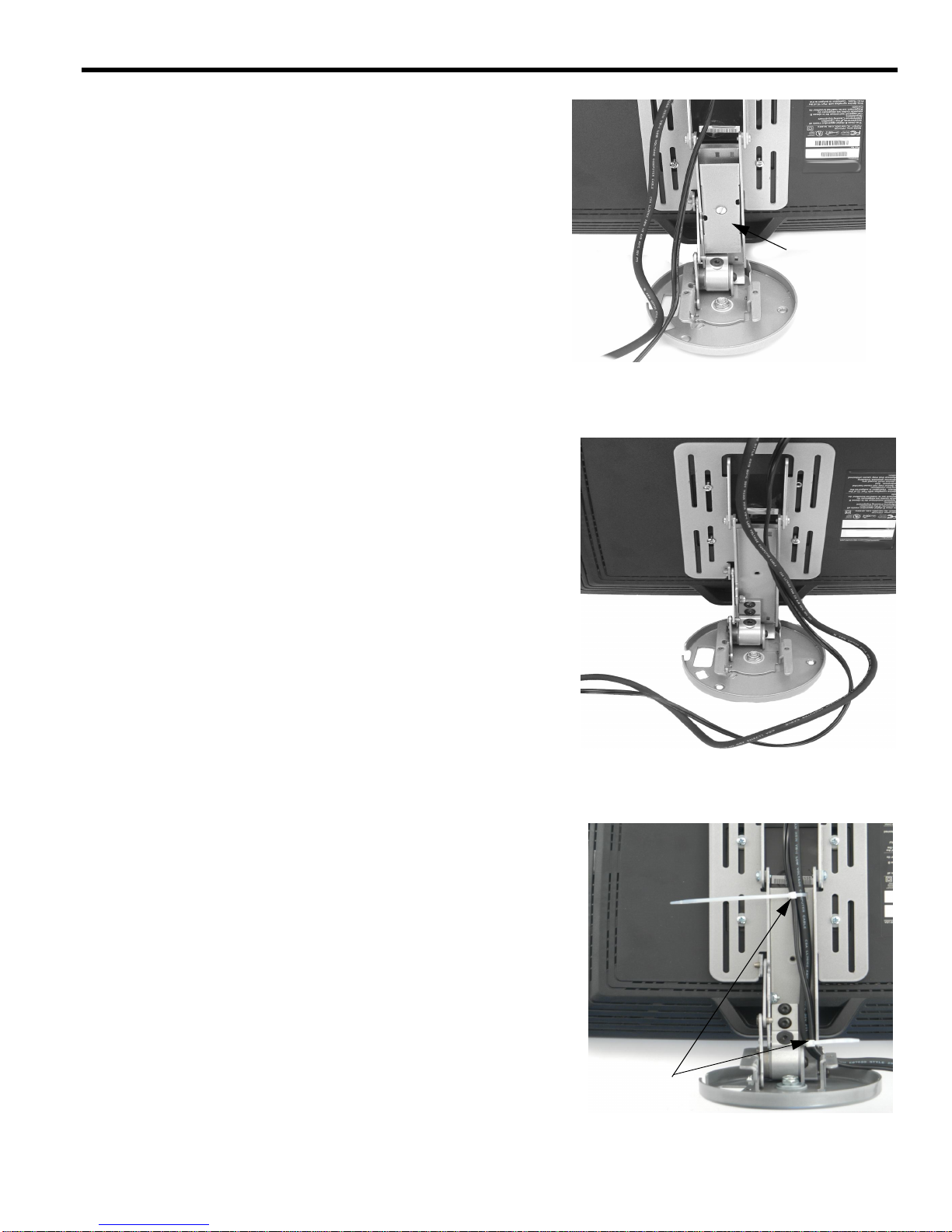

CABLE MANAGEMENT

1. Remove screw and cable management cover (10B) (see

Figure 6).

2. Route the power/audio/video cables down the arm (see

Figure 7).

3. Route the power/audio/video cables through the slot in the bot-

tom of the arm (see Figure 8).

4. Secure the power/audio/video cables using tie wraps.

5. Proceed to “Right and Left 35 Degree Rotation” on page 8 or

“Right and Left 110 Degree Rotation” on page 9, depending

upon your application.

Cable

Management

Cover

Figure 6. Cable Management Cover

Figure 7. Route Cables Down Arm

Tie Wraps

Figure 8. Route & Tie Wrap Cables (Arm)

Installation Instructions FSD-4100

Right and Left 35 Degree Rotation

1. Turn the base 35 degrees in one direction to its stop (see

Figure 9).

2. Neatly and carefully, route the power/audio/video cables

through the slot in the side of the base.

3. Secure the power/audio/video cables using a tie wrap (70).

4. Trim excess from tie wrap.

5. Install cable cover (10B) on arm and secure using screw (see

Figure 10).

6. Install base cover (10A) on base and secure using two screws

(see Figure 10).

Base Cover

Cable Cover

Figure 10. Install Base and Cable Covers

35 Degrees

Tie Wrap

Stop

Slot

Figure 9. Route & Tie Wrap Cables (Base)

Installation Instructions FSD-4100

Right and Left 110 Degree Rotation

1. Using an Allen wrench (provided), remove the 35 degree stop

(see Figure 11).

2. Turn the base 110 degrees in one direction to its stop (see

Figure 12).

3. Neatly and carefully, wrap power/audio/video cables twice

inside base with no slop or slack in cables (see Figure 13).

4. Route power/audio/video cables out access hole in base.

5. Secure cables to base using a tie wrap (70).

6. Trim excess from tie wrap.

7. Install cable cover (10B) on arm and secure using screw (see

Figure 10).

8. Install base cover (10A) on base and secure using two screws

(see Figure 10).

35 Degree Stop

Figure 11. Remove 35 Degree Stop

110 Degrees

Figure 12. Rotate 110 Degrees

Figure 13. Wrap Cables In Base
