Cleanmate S 990 Bedienungsanleitung

Robotic Vacuum Cleaner

Cleanmate S 990

Laser Mapping / APP Control / Electrical water tank

Instruction Manual

Cleanmate

Please keep this instruction manual in your sight,

read it thoroughly and carefully before using this product

Contents

Safety Instructions---------------------------------------------------------------------------------------------------------1

Product Features------------------------------------------------------------------------------------------------------------2

User Friendly Design-------------------------------------------------------------------------------------------------------2

Washable Dust Bin--------------------------------------------------------------------------------------------------------- 2

Smart Navigation------------------------------------------------------------------------------------------------------------2

Product Components-----------------------------------------------------------------------------------------------------3

Main Body and Accessories----------------------------------------------------------------------------------------------3

Main Body Diagram--------------------------------------------------------------------------------------------------------4

Dust Bin / Main Brush------------------------------------------------------------------------------------------------------5

Docking Station / Remote Control--------------------------------------------------------------------------------------6

Product Operation----------------------------------------------------------------------------------------------------------7

Control Panel-----------------------------------------------------------------------------------------------------------------7

Battery Charging-------------------------------------------------------------------------------------------------------------8

Starting Up/ Standby/ Sleeping-------------------------------------------------------------------------------------------9

Scheduling---------------------------------------------------------------------------------------------------------------------9

Cleaning Modes--------------------------------------------------------------------------------------------------------------11

Main Brush and Dust Bin Installation-----------------------------------------------------------------------------------12

Product Maintenance-----------------------------------------------------------------------------------------------------13

Cleaning Side Brushes----------------------------------------------------------------------------------------------------13

Cleaning Dust Bin and Filters--------------------------------------------------------------------------------------------13

Cleaning Sensors and Wheels-------------------------------------------------------------------------------------------14

Cleaning Charging Poles-------------------------------------------------------------------------------------------------14

Cleaning Rolling Brush Kit-------------------------------------------------------------------------------------------------14

How to assemble 2-in-one Water Tank--------------------------------------------------------------------------------15

How to clean the Dust Bin in 2-in-one Water Tank------------------------------------------------------------------16

Troubleshooting--------------------------------------------------------------------------------------------------------------17

Product Specifications---------------------------------------------------------------------------------------------------18

Battery Removal-------------------------------------------------------------------------------------------------------------18

Safety Instructions

Before using this product, please read the safety instructions and follow all regular safety

precautions.

1. Only authorized technicians should disassemble the product. Users are not allowed to

disassemble or repair the product.

2. Only use the original battery and power adapter (Model: GQ15-24006-AG) of the product for

charging. Using an unmatched adapter may cause electric shock, fire or product damage.

3. Do not touch the power cord, plug or adapter with wet hands.

4. Do not use this product in wet or moist environment (any environment with liquid), e.g.

bathroom or laundry.

5. Do not have curtains, any kind ofwrapping material, clothes or loose objects caught in the

wheels.

6. Before use, clear the floor (remove all fragile objects and cords, clothing, paper, loose cables,

as well as make sure to lift curtains and drapes off the floor to avoid any possible accidents.)

7. Make sure this product isnot close to cigarette butts,lighters, matches or any flammables.

8. Never use the product to clean combustible or highly volatile liquids, such as gasoline.

9. Only use the product indoors, do not use it outdoors.

10. If the product needscleaning, clean it after the power isswitched off.

11. Do not over-bend or put pressure on the flexible cord with heavy or sharp objects.

12. Do not sit on or attach an item on the top of this product. Beware of children or petswhile

the product isin operation.

13. Do not place this product where it’s possible for the robot to drop off (table, chairs, etc.)

14. Turn off the power switch during transportation or for long term storage.

15. Before charging, check whether adapter and outlet are properly connected.

16. To avoid tripping, all the people in the house should be noticed when this product ison.

17. Check that the dustbin isempty prior to use.

18. Use this product in temperature from 0ºC to 40ºC.

19. Do not use this product in high-temperature environment or under intense sunlight for a

long time.

20.This appliance contains batteries that should only be replaceable by skilled persons. The battery

must be removed from the product before it is scrapped. The battery should be disposed of

properly for safety and environmental sake.

22.For the purposes of recharging the battery, only use the detachable supply unit provided with

this appliance.

23 This appliance contains batteries that are only replaceable by skilled persons.

24. Do not press or lift the LIDAR housing by hand this may case damage to the LIDAR module.

Warning:

The appliance is not intended for children under 8years old. First time users should

monitor the robot during work to ensure safe operations. People with reduced physical,

sensory or mental capabilities, or lack of experience and knowledge,proper supervision or

instruction should be given to help them understand the hazards involved, and how to use the

appliance in a safe way.

First time users should keep sight of the appliance during vacuuming to ensure safe operation.

Do not use the product inany area higher than the height of the user, so as to prevent the

machine from falling to cause injury.

Children should not play with the appliance. Cleaning and user maintenance should not be made

by children without supervision.

For the purposes ofrecharging the battery,onlyuse the detachable supply unit provided with

this appliance.

Please avoid below operation.

Please clear the floor in order to

to avoid getting the robot stuck. Do not push or pull on the laser sensor.

Do not use the robot to clean up any liquids.

Product Components

Main Body and Accessories

Item Description Quantity

1 Main Body 1

2 Charging dock 1

3 Power Adapter 1

4 2 in 1 Electronic Water Tank 1

5 Magnetic strip 2

6 Side Brush 4

7 Mopping Cloth 2

8 HEPA 1

9 Cleaning Brush 2

10 Manual

1 2 3 4

5 6 78

9 10 11

10 2

11 Remote control 1

12Main brush 11

Product Components

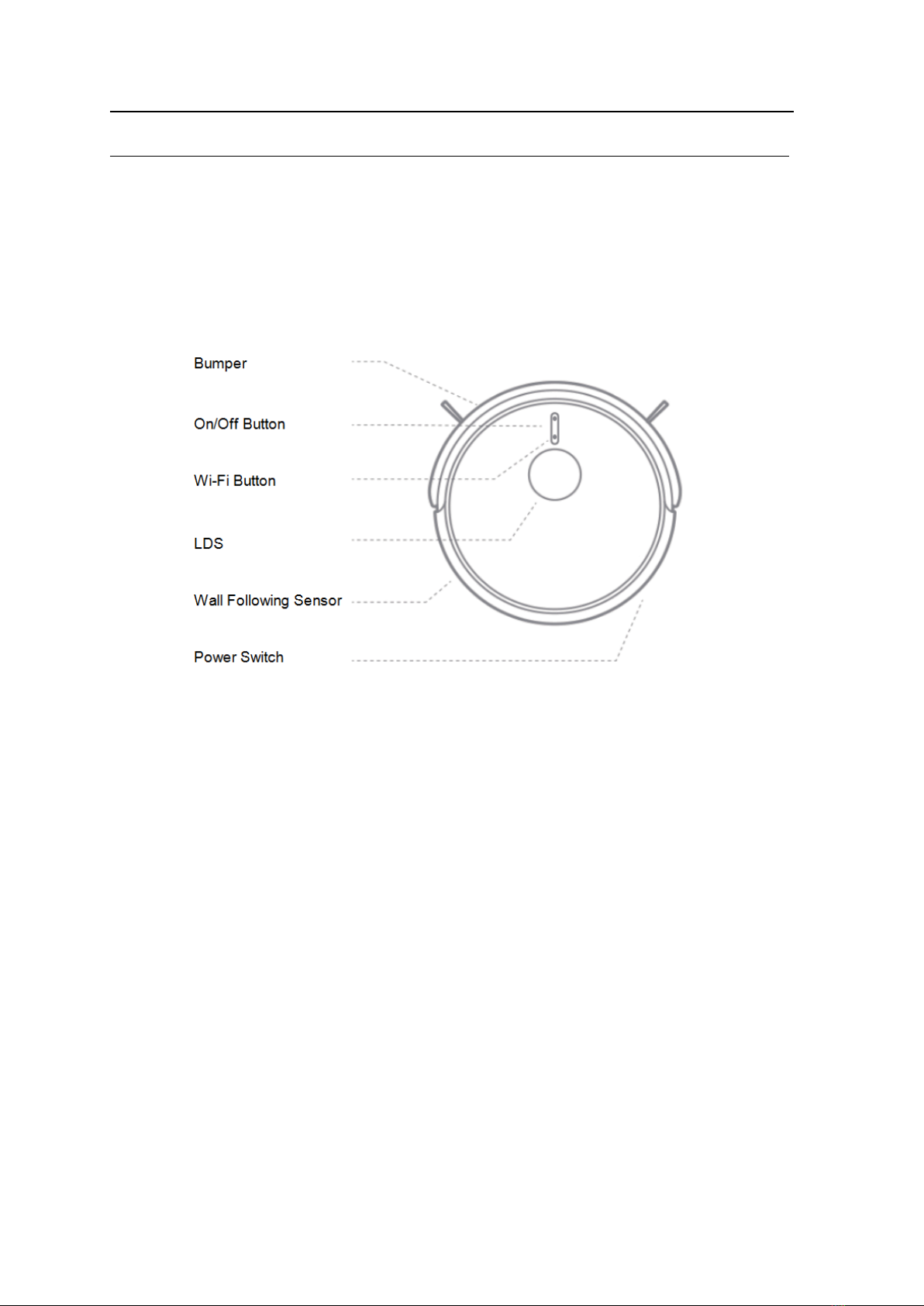

Main Body Diagram

Product Components

Product Operation

1. APP Connection

Step 1: Download the APP

Step 2: Connect the robot to the WiFi network per the instruction in the APP

Step 3: Control the robot, set up schedule or select cleaning mode via the APP

2. Robot Standby

Press the ON/OFF button till the circle LED light on the button is on, or Press the “Pause”

button on the APP to let robot enter standby mode.

3. Start Cleaning

Press the ON/OFF button on the robot, or press the START button on the APP and the robot will

start cleaning.
