Cobra 3198 Bedienungsanleitung

Cobra 3198 User Instructions

Dear customer,

Congratulations on purchasing this product which has been designed and manufactured to the highest

automotive standards utilising the latest technology for total reliability.

The manual is divided into 9 parts:

Your dealer will be pleased to clarify any queries you may have with the system or its operation.

The Cobra 3198 alarm system MUST be fitted with a previously installed Category 2 M.I.R.R.C listed

immobiliser to obtain Category 1 status for the vehicles security systems.

If there is no Category 2 Thatcham listed immobiliser fitted along with associated VSIB installation

certificate,Category 1 status cannot be claimed on fitment of alarm

The Cobra 3198 imobiliser system is a Category 2-1 MIRRC Thatcham listed security system. If the

installation of this product is modified or altered from the standard specifications, or non compliant

accessories are fitted, insurance approval will be invalidated.

Page 2 ________ INTRODUCTION

3 ________ ADDITIONAL PROTECTIONS

4 ________ BRIEF INSTRUCTIONS

6 ________ BASIC FUNCTIONS

7 ________ ADVANCED FUNCTIONS

9 ________ ALARM MEMORY

10 ________ EMERGENCY

11 ________ PERSONAL PIN CODE

12 ________ MAINTENANCE AND TROUBLE SHOOTING

Existin

Immobiliser Make/Model: Thatcham MIRRC Evaluation No:

1 - INTRODUCTION

The anti-intrusion alarm system is operated by a high-security radio control that utilises the latest generation of dynamic code. This new

technology offers an extremely high level of protection against any attempt to reproduce the code.

The radio control allows the system to be activated at a distance of 5-10 meters from the vehicle.

Other radio sources may cause interference which can reduce the effective range of the radio controls.

If the system can not be set/unset using the radio control try again close to the vehicle. If they still do not operate check if the radio control is

properly syncronized.

If automatic window closing is connected it is raccomended you to stay close to the vehicle while the windows are moving to ensure safety and

security.

The system have a protected self-learning feature which allows you to add or replace radio controls. The procedure is described in the fitting

instructions.

1.1 - Personal PIN code

Each of the 3000 series has a PIN-CODE that can be used for the emergency overide of the system. The PIN-CODE programmed in the factory

is 1111. We suggest that you replace this number with another commonly used by you (for ex. cellular phone, credit card, etc...).

as it would be easier to remember.

GLOBE 3100 1 - INTRODUCTION

MODEL HOTWIRE PROTECTION VOLUMETRIC PROTECTION CABLE CUT PROTECTION

PERIMETRIC PROTECTION

A3198

2 - ADDITIONAL PROTECTIONS

You can increase the protection level of the system with the following additional sensors:

5452 Level monitor module

When the system is armed, this sensor will detect the vehicle being jacked up to tow it away or steal the wheels.

5462 Hyperfrequency module

When the system is armed, a microwave emission from the hyperfrequency module hidden in the passenger compartment willl ensure the

volumetric protection of the vehicle.

For use on convertible vehicles, the volumetric protection will be stable even with the soft top, windows or sunroof left open.

2980 Window lift module

When the radio key “A” button is pressed to arm the system, the car electric windows will raise automatically. It can be fitted to any car with

electrical windows.

2 - ADDITIONAL PROTECTIONS GLOBE 3100

3 – BRIEF INSTRUCTIONS

3.1 - Arming

• Press button ‘A’ of the radio control

to lock the doors (if the vehicle has

central locking).

• The turn indicators will blink twice.

• The buzzer will issue two beeps (if

activated).

• The protections activate after a 40 s timer

has elapsed.

• The LED will come on constantly for 40 s

then it will flash.

3.2 - Protection

When armed the system will generate an acoustic and visual 30 s

alarm when the bonnet, boot or one of the doors is opened. System

with the volumetric sensor will generate the alarm in case of intrusion.

The system remains armed at the end of the cycle.

3.3 - Interrupting an alarm in progress

If the system generates an alarm , the siren can be deactivated by

pressing button “A” on the radio control once. The turn indicators

will also stop blinking but the alarm system remains armed. Thus, if

the system is activated (siren sounding), press the button twice to

unlock the vehicle. The first press will stop the siren, the second will

disarm the system and unlock the doors.

3.4 - Disarming

• Press button ‘A’ on the radio control to disarm the system and

unlock the doors.

• The turn indicators will blink once.

• The buzzer will beep once (if activated).

• The protection deactivate immediately.

• The LED will go OFF.

3.5 - Alarm memory

If an alarm has occurred the buzzer and the turn indicators

will give four signals instead of one (See page 9).

NOITCNUFLORTNOCOIDAR nottuB AnottuB B

mrA •

mrasiD •

tpurretnineriS •

mralacinaP •

dnarosnescirtemulovcinosartlU fi(noisulcxerosneslanoitidda )dellatsni •

BRIEF INSTRUCTIONS

GLOBE 3100 3 - BRIEF INSTRUCTIONS

3.6 - Deactivating the volumetric ultrasonic

sensor

The volumetric sensor can be

deactivated if you want to leave the

windows open or if someone remains

in the passenger compartment.

1) Arm the system pressing button

'A' of the radio control.

2) Press button 'B' on the radio control

within 40 s.

If hyperfrequency or level monitor

sensors are fitted, it is possible to

deactivate them by pressing ‘B’ button

twice within 40 s.

To confirm that the signal has been

received, there will be an acoustic

signal of the buzzer. The sensors have

been inhibited; all other

functions remain activated.

Sensors will be automatically armed on the

next arming of the system.

3 - BASIC INSTRUCTIONS GLOBE 3100

3.7 - Panic alarm

Each time button “B” on the radio key is pressed, except

for during the 40 s after the alarm has been armed, an

alarm cycle will be generated, the siren will sound and the

turn indicators will flash.

Press any button to interrupt the panic alarm.

3.8 - Garage function

The ‘garage’ function allows you to temporarily exclude

passive arming and anti-hi-jack functions. This can be useful

when you have to take the car for service interval without

having to leave the alarm system remote control.

IMPORTANT: never leave remote control key and PIN code

together with car keys in order to prevent copy of remote

key.

Before you leave the car, proceed as follows:

Switch ON the ignition, open a door and keep ‘A’ button

pressed for a minimum of 3 s. During this period the LED will

remain ON.

Confirmation of the function activation is given by a single blink of the

turn indicators.

This function is automatically deactivated when the system

is armed and disarmed by the remote control or the ignition

key is switched ON and OFF for 10 times.

4.2 - Controlled windows lift (comfort)

Activated Deactivated

Keep button ‘A’ pressed, when arming the alarm, the windows close in

a “controlled mode”. The windows will stop closing if the button is

released.

4.3 - Doors/bonnet/boot opened signal

Activated Deactivated

If the doors, bonnet or boot are opened when you arm the system the

turn indicators will blink 5 times instead of 2. The buzzer will do the

same, if activated. If they are closed within 40 s there subsequent

opening will be signalled again; after the 40 s set up delay there is no

further trigger until they are closed and opened again.

4.4 - Arm/disarm blinker

Activated Deactivated

The arming of the system is indicated by 2 blinks of the turn

indicators and disarm by 1 blink. If this function is deactivated,

the turn indicators will only blink during an alarm trigger.

4.5 - Automatic arming

Activated Deactivated

The unit will automatically arm 2 minutes after the last door has

been closed after the engine is switched off, which ever is the

sooner.

4.6 - Immobiliser automatic arming

Activated Deactivated

The engine immobilisation will automatically activate 4 minutes after

the ignition is switched off. The LED will flash. The engine will be

immobilised. Press button ‘A’ on the radio control with the ignition

switched ON to deactivate the system.

4.7 - Immobilizer alarm

Activated Deactivated

An alarm function can be added to the immobilizer automatic arming.

25 s after the ignition is switched ON the alarm will trigger.

4.8 - Buzzer

Activated Deactivated

If activated the buzzer will sound in synchronism with the

turn indicators to signal the arm and disarm of the system.

GLOBE 3100 4 - BASIC FUNCTIONS

4 - BASIC FUNCTIONS

4.1 - Introduction

As the standard working features of this system can be modified by the installer he should have indicated the differences with

the standard factory set-up (black squares) on this manual.

5.5 - Autolock - Automatic door locking mode

Time Speed

Automatic door locking according to speed or time delay.

5.6 - Automatic anti-hi-jack

Activated Deactivated

The anti hi-jack is always active. To drive the vehicle, the first two digits

of the PIN code must be entered into the override button within 10 s of

the ignition being switched ON. Confirmation of acceptance is signelled

by a long blink of the LED; the vehicle can now be used

normally until the next ignition OFF/ON cycle.

If this procedure is not followed the radio controls will not

operate the alarm anymore and the vehicle can be driven for

4 minutes then the siren sounds for 30 s, if the ignition is

switched off the alarm stops sounding and the engine is

immediately immobilised. It is necessary to enter the PIN code

using the emergency button to disarm the system.

5 - ADVANCED FUNCTIONS

5.1 - Immobilizer auto re-arm

Activated Deactivated

The immobiliser will automatically rearm if the ignition is not switched

on within 4 minutes after the system has been disarmed.

5.2 - Alarm auto re-arm

Activated Deactivated

The immobiliser and the alarm system will automatically rearm if the

doors are not opened within 4 minutes after the system has been

disarmed. The 4 minutes timer will reset if the doors are opened and

closed.

5.3 - Alarm auto re-arm with door locking

Activated Deactivated

This function adds automatic doors locking to the alarm auto re-arm

function.

5.4 - Autolock - Automatic door locking

Activated Deactivated

The doors are locked at a set vehicle speed not later than 20

s after the ignition is switched ON (see chapter 5.5).

In either case the doors are automatically unlocked when the

ignition is switched OFF.

5 - ADVANCED FUNCTIONS GLOBE 3100

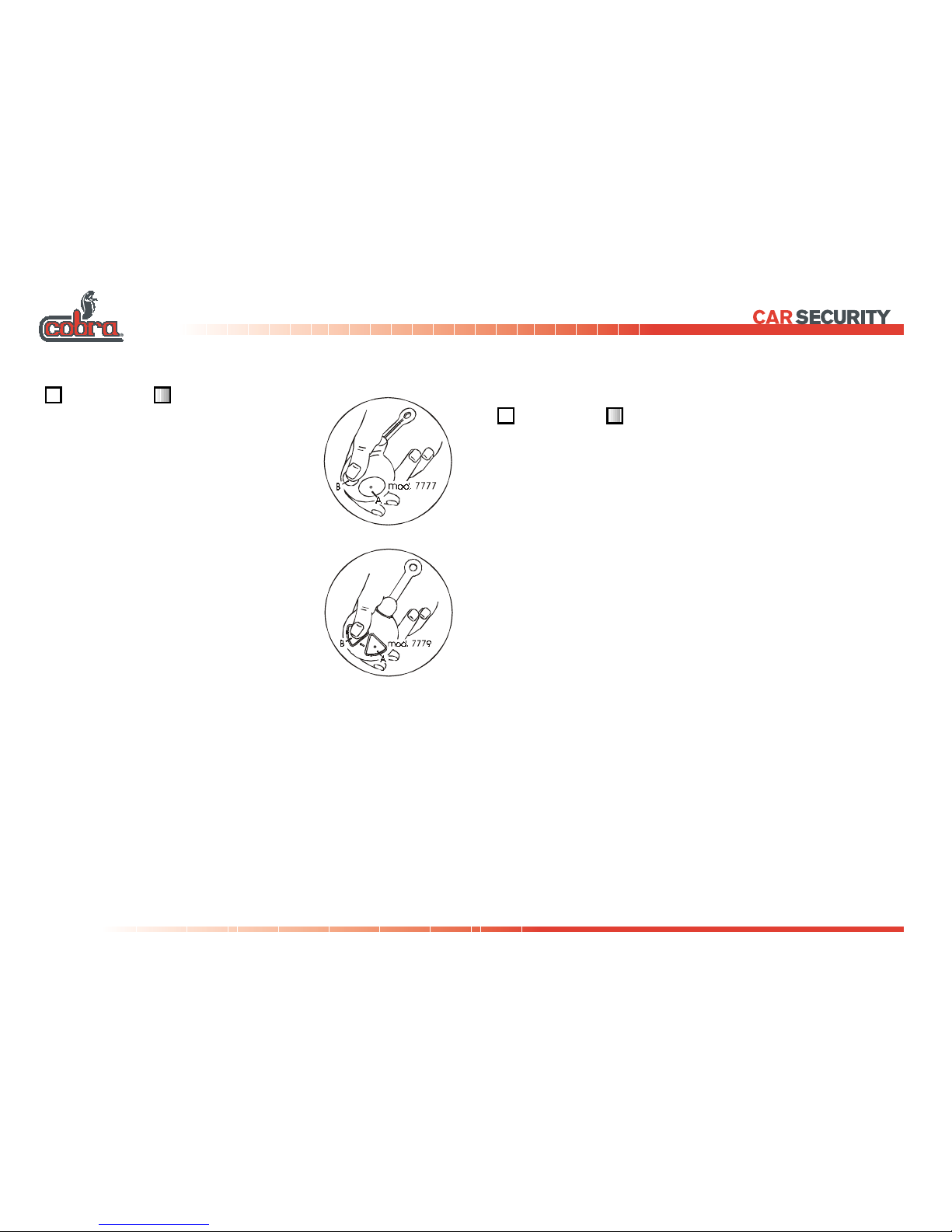

5.7 - Voluntary anti-hi-jack

Activated Deactivated

The driver can activate the anti hi-jack

function by pressing button ‘B’ of the

radio control with the ignition ON. The

LED will blink quickly to signal that anti

hi-jack is activated. If a door is opened,

the radio controls will not operate the

alarm anymore and the vehicle can be

driven for 4 minutes then the siren

sounds for 30 s, if the ignition is

switched off the alarm stops sounding

and the engine is immediately

immobilised. It is necessary to enter the

PIN code using the emergency button to

disarm the system.

If you need to open a door while the anti

hi-jack is active (the LED will flash

quickly) you can deactivate the function

by pressing one of the two radio control

buttons the LED will blink one long flash

and go out.

GLOBE 3100 5 - ADVANCED FUNCTIONS

5.8 - Anti hi-jack immobilisation controlled by vehicle speed

sensor. (VSS input)

Activated Deactivated

The vehicle will be immobilised immediately when it stops

moving, when the anti hi-jack is activated.

NOTE: This working mode is available only for non EC

products model.

6 - ALARM MEMORY

If an alarm trigger has occurred the buzzer and the turn

indicators will give four signals. The alarm status history is

displayed by LED when the system is disarmed, this is played

until the system will be rearmed or the ignition will be switched

ON.

LANGISDEL NOITPIRCSEDMRALA

knilb1 deneponeebevahtoob,srood

sknilb2 rosnescirtemulovcinosartlu dereggirt

sknilb3 deneponeebsahtennob

sknilb4)eriwtoh/yeknoitingi(tratsotpmetta

sknilb5 mrala/tupnirosnestnemevom

sknilb6desuton

6 - ALARM MEMORY GLOBE 3100

7 – EMERGENCY OVERRIDE

To deactivate the system without a remote control:

Push the button of the emergency panel the number of times corresponding to the first digit of your PIN code

. The led will blink

everytime you press the button, a longer blink will confirm that the right PIN code digit has been input. Proceed in the same way

with the 3 further digits.

The system will disarm as soon as the last digit is input.

EMERGENCY

GLOBE 3100 7 - EMERGENCY

Inhaltsverzeichnis

Andere Cobra Autoalarmanlage Handbücher

Cobra

Cobra 4600 CAN Bedienungsanleitung

Cobra

Cobra AK4169 Bedienungsanleitung

Cobra

Cobra Connex ICD31 Bedienungsanleitung

Cobra

Cobra GLOBE 4800 CAN Bedienungsanleitung

Cobra

Cobra 8510 Bedienungsanleitung

Cobra

Cobra 4625 Bedienungsanleitung

Cobra

Cobra GLOBE 3100 Bedienungsanleitung

Cobra

Cobra 8165 Bedienungsanleitung

Cobra

Cobra 3800 GLOBE Bedienungsanleitung

Cobra

Cobra Connex Guardian 222X Bedienungsanleitung

Cobra

Cobra 777 Bedienungsanleitung

Cobra

Cobra G100 Bedienungsanleitung

Cobra

Cobra Bridge 4100 Bedienungsanleitung

Cobra

Cobra G100 Bedienungsanleitung

Cobra

Cobra 4400 Bedienungsanleitung

Cobra

Cobra Bridge 4100 Bedienungsanleitung

Cobra

Cobra 1046 Bedienungsanleitung

Cobra

Cobra GLOBE 4800 CAN Bedienungsanleitung

Cobra

Cobra G100 Bedienungsanleitung

Cobra

Cobra Vehicle Alarm Series 3100 Bedienungsanleitung

Cobra

Cobra SPYBALL 6829 Bedienungsanleitung

Cobra

Cobra 7928 Bedienungsanleitung

Cobra

Cobra BRIDGE Bedienungsanleitung

Cobra

Cobra 8185 Bedienungsanleitung

Beliebte Autoalarmanlage Handbücher anderer Marken

Clifford

Clifford 3606X Bedienungsanleitung

Ultra Start

Ultra Start 2500M SERIES Bedienungsanleitung

Ultra Start

Ultra Start 650 Series Bedienungsanleitung

Audiovox

Audiovox Prestige Platinum+ APS-511C Bedienungsanleitung

Sparkrite

Sparkrite SRA8 Bedienungsanleitung

Viper

Viper 4708V Bedienungsanleitung

Federal Signal Corporation

Federal Signal Corporation Pathfinder Siren Series Handbuch

Falcon

Falcon Predator XL3 Benutzerhandbuch

Audiovox

Audiovox Auto Security XR91 Betriebsanleitung

Clifford

Clifford Sabre II Bedienungsanleitung

CrimeStopper

CrimeStopper CS-8717 Kurzanleitung

Ultra Start

Ultra Start 450 SERIES Bedienungsanleitung

Scytek electronic

Scytek electronic Vectra X3 Bedienungsanleitung

Excalibur

Excalibur AL-1860-EDPB Bedienungsanleitung

Clifford

Clifford CYBER 2 Bedienungsanleitung

Gemini

Gemini 7057 Bedienungsanleitung

FlashLogic

FlashLogic FLRSBA PRESTIGE Bedienungsanleitung

Magicar

Magicar FAI-440 Bedienungsanleitung
