Commell LS-573 Bedienungsanleitung

LS-573

5.25” Embedded Miniboard

User’s Manual

Edition 1.02

2009/08/25

LS-573 User’s Manual

-1-

reserved. The information in this document is subject to change without prior notice

to make improvements to the products.

This document contains proprietary information and protected by copyright. No part

of this document may be reproduced, copied, or translated in any form or any means

without prior written permission of the manufacturer.

All trademarks and/or registered trademarks contains in this document are property

of their respective owners.

Disclaimer

The company shall not be liable for any incidental or consequential damages

resulting from the performance or use of this product.

The company does not issue a warranty of any kind, express or implied, including

without limitation implied warranties of merchantability or fitness for a particular

purpose.

The company has the right to revise the manual or include changes in the

specifications of the product described within it at any time without notice and

without obligation to notify any person of such revision or changes.

Trademark

All trademarks are the property of their respective holders.

Any questions please visit our website at TUhttp://www.commell.com.tw

LS-573 User’s Manual

-2-

Packing List:

Please check the package content before you starting using the board.

Hardware:

LS-573 Embedded Miniboard x 1

Cable Kit:

CPU Cooler x 1

Quad COM ports DB9 male Cable x 1

Printer Port Cable x 1

USB Cable x 2

SATA Cable x 2

ATX Power Output Cable x 1

DVI module with DVI Cable x 1

(Only LS-573TXD)

HD Audio Port Cable x 1

COM port Cable x 1

CRT cable x 1 (Only LS-573T2X)

LS-573 User’s Manual

-3-

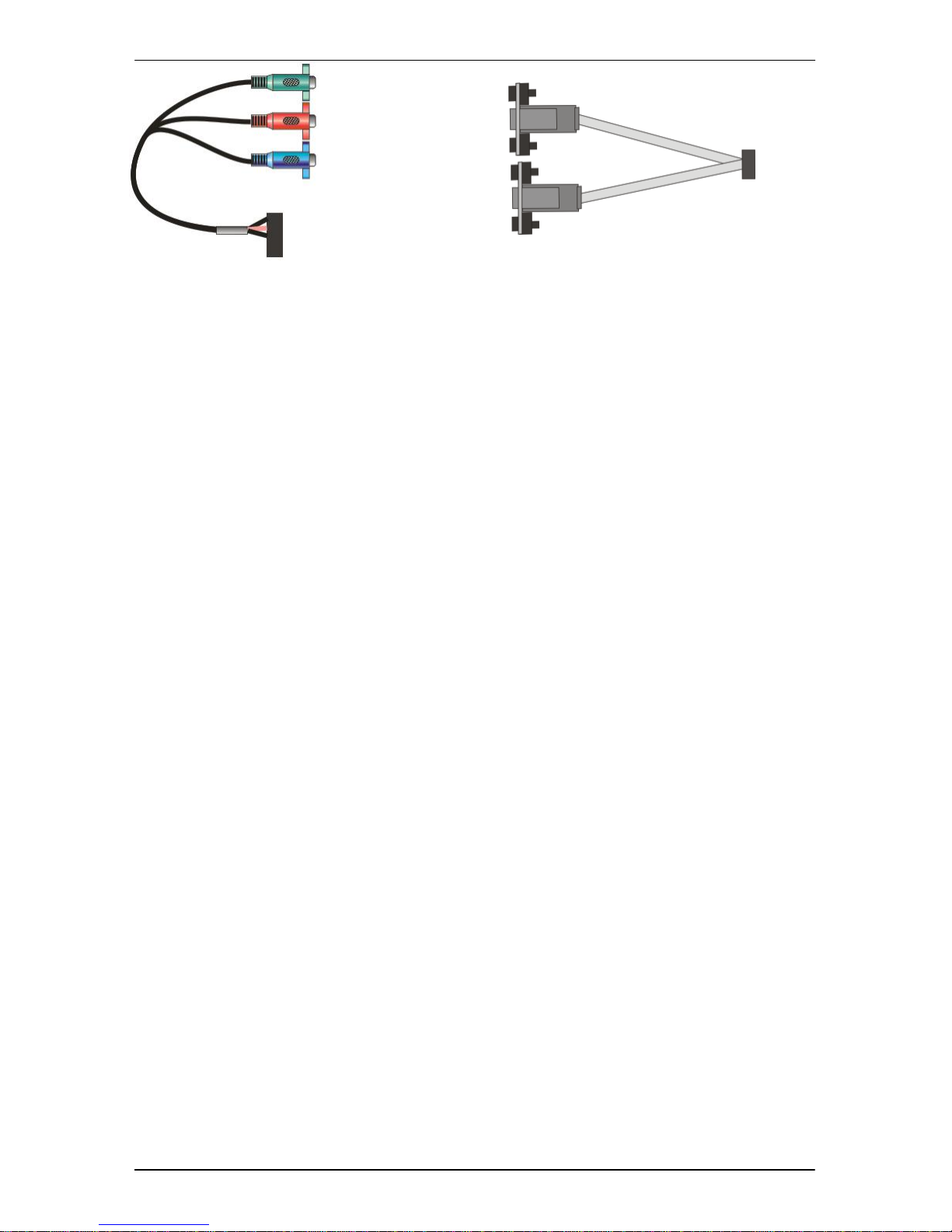

Printed Matters:

Driver CD x 1 (Including User’s Manual)

HDTV cable x 1 (Optional) SDTV cable x 1 (Optional)

LS-573 User’s Manual

-4-

Index

Chapter 1 <Introduction> ........................................................................................................7

1.1 <Product Overview>.............................................................7

1.2 <Product Specification> .......................................................8

1.3 <Mechanical Drawing>......................................................10

1.4 <Block Diagram> ...............................................................11

Chapter 2 <Hardware Setup>................................................................................................12

2.1 <Connector Location>........................................................12

2.2 <Jumper Location & Reference>........................................14

2.3 <Connector Reference>......................................................16

2.3.1 <Internal Connectors>.............................................16

2.3.2 <External Connectors>............................................16

2.4 <CPU and Memory Setup> ................................................17

2.4.1 <CPU Setup>...........................................................17

2.4.2 <Memory Setup>.....................................................18

2.5 <CMOS Setup> ..................................................................19

2.6<Serial ATA Interface>........................................................20

2.7 <Ethernet Interface>...........................................................21

2.8 <Onboard Display Interface>.............................................22

2.8.1 <Digital Display> ....................................................23

2.8.2 <HDTV Interface>...................................................27

2.9 <Integrated Audio Interface>..............................................28

2.10 <GPIO Interface> .............................................................30

2.11 <Power Supply> ...............................................................31

2.11.1.1<DC_IN Input>....................................................31

2.11.1.2 <ATX Output>....................................................32

2.11.2 <ATX Power Mode>..............................................33

2.12 <Switch and Indicator>.....................................................34

Chapter 3 <System Setup>....................................................................................................35

LS-573 User’s Manual

-5-

3.1 <Audio Configuration> ......................................................35

3.2 <Video Memory Setup> .....................................................36

3.3 <Display Properties Setting>..............................................37

Chapter 4 <BIOS Setup>........................................................................................................39

Appendix A <I/O Port Pin Assignment> ...............................................................................41

A.1 <Serial ATA Port>..............................................................41

A.2 <IrDA Port>.......................................................................41

A.3 <SMBUS Port>..................................................................42

A.4 <Serial Port 2>...................................................................42

A.5 <Parallel Port>...................................................................44

A.6 <LAN Port>.......................................................................44

A.7 <USB Interface>................................................................44

A.8 <COM3/4/5/6 Port>...........................................................45

A.9 <DVI Port>........................................................................46

Appendix B <Flash BIOS>.....................................................................................................47

B.1 <Flash Tool> ......................................................................47

B.2 <Flash BIOS Procedure>...................................................47

Appendix C <System Resources>........................................................................................48

Appendix D <Programming GPIO’s>....................................................................................53

Appendix E <Programming Watchdog Timer>....................................................................54

Contact Information ...............................................................................................................55

LS-573 User’s Manual

-6-

(This page is left for blank)

LS-573 User’s Manual

-7-

Chapter 1 <Introduction>

1.1 <Product Overview>

LS-573 the new generation of the 5.25” Miniboard, supports Intel Penryn Processor

for 667/800/1066 MHz front side bus and features Intel GM45 and ICH9M chipset,

integrated GMA X4500 graphics, DDR3 memory, REALTEK ALC888 High Definition

Audio, Serial ATA and six Intel Gigabit LAN.

Intel Penryn Processor

The board supports Intel Penryn processor with 667/800/1066 MHz front side bus,

L2 Cache: All specification depend on the CPU. (1M/2M/3M/4M/6M). To provide

more powerful performance than before.

New features for Intel GM45 chipset

The board integrates Intel GM45 and ICH9M chipset, to provide new generation of

the mobile solution, supports Intel GMA X4500 graphics, DDR3 800/1066MHz

memory, built-in high speed mass storage interface of serial ATA, High Definition

Audio with 2 channels surrounding sound.

All in One multimedia solution

Based on Intel GM45 and ICH9M chipset, the board provides high performance

onboard graphics, 24-bit dual channel LVDS interface, HDTV and 2 channels High

Definition Audio, to meet the very requirement of the multimedia application.

Flexible Extension Interface

The board provides one mini PCI Express, one mini-PCI socket and one PCI slot.

LS-573 User’s Manual

-8-

1.2 <Product Specification>

General Specification

Form Factor 5.25 Inches Embedded Miniboard

CPU Support Intel Penryn Processor

Package type: Micro-FCPGA478 (Socket-P)

L2 Cache: All specification depend on the CPU. (1M/2M/3M/4M/6M)

Front side bus: 667/800/1066 MHz

Memory 2 x 800/1066MHz DDRIII 204-pin SO-DIMM up to 8GB

Chipset Intel® GM45 and ICH9M (82801IBM)

BIOS Phoenix-Award v6.00PG 8Mb SPI flash BIOS

Green Function Power saving mode includes doze, standby and suspend modes.

ACPI version 1.0 and APM version 1.2 compliant

Watchdog Timer System reset programmable watchdog timer with 1 ~ 255 sec./min.

of timeout value

Real Time Clock Chipset integrated RTC with onboard lithium battery

Serial ATA Intel® ICH9M built-in 4 x Serial ATAII interface up to 300MB/s

Multi-I/O Port

Chipset Intel® ICH9M with Winbond® W83627DHG controller

Serial Port Five RS232 and one jumper selectable RS232/422/485/IR

USB Port 8 x Hi-Speed USB 2.0 ports with 480Mbps of transfer rate

IrDA Port One IrDA compliant Infrared interface supports SIR

K/B & Mouse PS/2 keyboard and mouse port

GPIO One 12-pin Digital I/O connector with 8-bit programmable

VGA Display Interface

Chipset Intel® GM45 & ICH9M

Memory Up to 384MB shared with system memory

Display Type CRT, LCD monitor with analog display, DVI or LVDS

Connector External DB15 female connector

Onboard 40-Pin LVDS connector

Onboard 10-Pin DB15 connector(LS-573T2X Only)

Onboard 26-Pin DVI connector (LS-573TXD Only)

Ethernet Interface

Chipset Intel 82573L Gigabit Ethernet controller

Type Triple speed 10/100/1000Base-T

auto-switching Fast Ethernet

Full duplex, IEEE802.3U compliant

Connector External six RJ45 connector with LED

LS-573 User’s Manual

-9-

Audio Interface

Chipset Intel® ICH9M with Realtek ALC888 HD Audio

Intel High Definition Audio compliance

Interface 2 channels sound output

Connector Internal 10-pin header for line-in/-out, MIC-in, 4-pin header for CD-IN

Power and Environment

Power

Requirement Standard 20-Pin ATX power supply or 9V~24V DC Input

Dimension 203 (L) x 146 (W) mm

Temperature Operating within 0 ~ 60P

PC (32 ~ 140P

PF)

Storage within -20 ~ 85P

PC (-4 ~ 185P

PF)

Ordering Code

LS-573TX Onboard CRT, LVDS, HDTV, 6 x Intel Gigabit LAN, 8 x USB2.0, PCI, Mini-PCI,

GPIO, IrDA, PCI Express mini card, Parallel, RS232/422/485, 4 x SATA, HD

Audio and SMBus, PCI

LS-573T2X Onboard 2 X CRT, LVDS, HDTV, 6 x Intel Gigabit LAN, 8 x USB2.0, PCI,

Mini-PCI, GPIO, IrDA, PCI Express mini card, Parallel Port, RS232/422/485, 4 x

SATA, HD Audio and SMBus, PCI

LS-573TXD Onboard CRT, HDTV, 6 x Intel Gigabit LAN, 8 x USB2.0, PCI, Mini-PCI, GPIO,

IrDA, PCI Express mini card, Parallel, RS232/422/485, 4 x SATA, HD Audio and

SMBus, DVI, PCI

The specifications may be different as the actual board.

For further product information please visit the website at TUhttp://www.commell.com.twUT
