IP CAMERA USER MANUAL
CBP360-IP12M
IP Fisheye Camera
USER MANUAL
IP CAMERA QUICK START GUIDE
PLEASE FOLLOW THE ABOVE CAUTIONS
FAILURE TO DO SO MAY INVALIDATE THE
WARRANTY OR CAUSE SERIOUS INJURY.
CAUTION
1. This installation should be made by a qualied service person and should
abide to all local codes.
2. Avoid installation on a surface subjected to frequent vibration or shocks.
3. Do not operate the camera beyond its temperature range
or power source ratings.
4. Should any damage or suspected damage occur, shutdown the
power source, unplug and contact your service provider.
5. Do not install the camera under unstable lighting conditions.
Severe lighting change or icker can cause the camera to work improperly.
6. Never use the camera close to a gas or oil leak.
7. Do not disassemble the camera.
8. Never keep the camera face to strong light directly.
9. Ensure all removable covers are replaced to protect the inner components.
10. Do not install near devices which emit a strong electro-magnetic eld.
11. Use a dry or damp cloth only for cleaning.
12. Internal CBP dome only
- Do not drop the camera or subject the unit to physical shocks.
IP CAMERA QUICK START GUIDE
Wall Plugs
X4
Mounting Template
X1
Fitting Screws
X4
X1
Software CD
X1
Quick Start Guide
Terminal Blocks
X2
X1
RJ45 Coupler Allen Key
X1
INSTALLATION
Installation Procedure
1. Take out the camera, keep the dome cover
down, rotate and remove the cover, shown in
Figure 1-1.
2. Use the Allen key in the accessory package
to unscrew the four star screws, remove the
installation bracket. See Figure 1-2.
PACKING CONTENTS
Figure 1-1
Figure 1-2
IP CAMERA QUICK START GUIDE
INSTALLATION
Fix the installation bracket
1. Get the mounting template from the accessory
package, remove the paper from the label, and
stick the label to the place where the camera is
to be installed.
Figure 1-3 Fix the installation bracket
2. Use a drill with a diameter of 5.5mm to drill four
round holes with a depth of 40mm.
Use a hammer or any other rigid object to nail
the four white plastic buttons into the round holes.
Ensure that the wall surface is level and the plastic
buttons align with the wall surface.
3. Drill a thread hole with a diameter of 30mm in the
centre of the positioning labelling to route the
multi-head cable.
4. Aim the four through-holes of the installation
bracket at the white plastic buttons, and use four
black self-tapping screws with a length of 30mm to
x the installation bracket.
Install the camera
1. Connect the standard Ethernet cable and power
supply, ensure that the NIC indicator and power
supply indicator on.
2. Aim the four holes of the camera at the four screw
bolts, use the Allen key to fasten the four star screws.
3. Aim the two buckles of the cover at the gap and
push in, then rotate the cover to fasten in, shown
in Figure 1-4.
Figure 1-3
Figure 1-4
IP CAMERA QUICK START GUIDE
DIMENSIONS
IP CAMERA QUICK START GUIDE
CONNECTION
PSU
Power connector
Network Cable (RJ45)
SWITCH
MODEM
PC/Laptop
• Check the power supply is the correct level and connect your
power supply into the power port on the camera
• Connect the RJ45 connector to your network switch. If you are using
PoE Switch (Power over Ethernet) Please Remove the power supply
to the camera, as this is not required.
• View the image on your monitoring device to check the power and
video connection is working properly.
IP CAMERA QUICK START GUIDE
FINDING THE CAMERA’S IP ADDRESS
1. Finding the camera IP using BNC Test Cable
When the BNC test cable is connected to the camera, the IP address is
shown on the test monitor. The camera must be connected to power to
use the BNC test cable.
NOTE: The default IP address of 192.168.0.120 is shown if the camera
cannot obtain an IP address from the router. Check the Ethernet/power
connections and router conguration.
2. Finding the camera’s IP address Using NVMS
1. Install NVMS from the CD.
Now Double-click the NVMS
icon on the Desktop.
The log in screen appears.
2. Under User Name and Password,
enter the default NVMS user name
(admin) and password (admin).
Click Login
3. NVMS opens and scans the local
network for connected cameras.
Detected camera IP addresses on
the LAN appear in the Device List
on the left side of the screen with a
icon.
Use the steps below to nd the camera’s IP address and connect to
the camera over the local area network (LAN) using NVMS, UPnP on
Windows®7 or Bonjour in Mac OS®
admin
admin
Logi
n
Found
camera IP addre
ss
IP CAMERA QUICK START GUIDE
4. Click on a camera IP address in
Device List to login.
5. Under User Name, enter the user
name for the camera
(default: admin)
Under Password, enter the password
for the camera (default: admin)
Click Continue.
6. The camera appears under the
camera IP address.
Click and drag the camera to the
display grid to open it.
Camera UserEnter
admin)(default:
Camera Passwor
d
admin
)
Enter
(default:
Click and drag a camera to
the display grid to open it.
FINDING THE CAMERA’S IP ADDRESS (continued)
IP CAMERA QUICK START GUIDE
FINDING THE CAMERA’S IP ADDRESS
USING UPNP IN WINDOWS® 7.
NOTE: To use this method, your router must support UPnP and the
camera and computer must be on the same network. UPnP is enabled
in the camera by default, and can be enabled/disabled using NVMS
(Check the NVMS manual for details).
1. Click Start>Computer>Network. The camera’s IP address appears under Network
infrastructure.
-Double click to open
the camera
)
Enter Camera User Name (default: admin
Enter Camera Password (default: admin
Click Login
)
2. Double-click the camera to open it in your default browser.
3. Under User Name and Password, enter the camera’s User Name
(default: admin) and Password (default: admin) and click Login
IP CAMERA QUICK START GUIDE
FINDING THE CAMERA’S IP ADDRESS
USING BONJOUR® IN MAC OS®.
NOTE: To use this method, the camera computer must be on the same
network. Bonjour® is enabled by default, and can be enabled/disabled
using NVMS (check the NVMS manual for details).

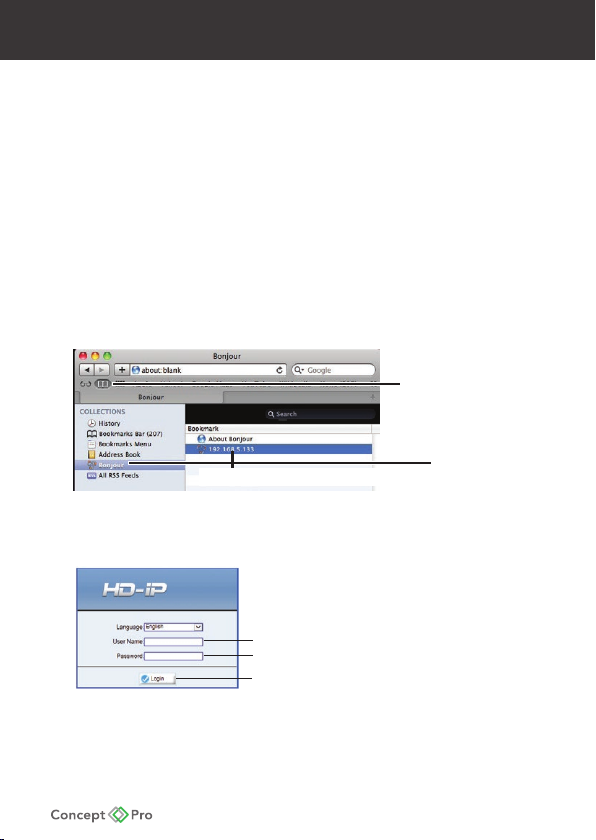

1. Open Safari® browser and click the Bookmarks button
2. Click Bonjour. The camera’s IP address appears in the Bonjour Devices list.
3. Double-click the camera to open it in Safari.
Bonjou
r
Double-click the camera’s IP address
Bookmarks
button
4. Under User Name and Password, enter the camera’s User Name
(default: admin) and Password (default: admin) and click Login.
Enter Camera User Name (default: admin
)Enter Camera Password (default: admin
)
Click Login
