Concept Pro CBP6314DNIR Bedienungsanleitung

CBP6314DNIR

CBP6324DNIR

CVP9314DNIR

CVP9324DNIR

Infrared Dome Camera

USER MANUAL

Remark: Changes or modifications not expressly approved by the manufacturer can

cause the camera to be damaged and become inoperable. This may invalidate the

user warranty.

CAUTION

1. This installation should be made by a qualified service person and should abide to all local

codes.

2. Avoid installation on a surface subjected to frequent vibration or shocks.

3. Do not operate the camera beyond its temperature range or power source ratings.

4. Should any damage or suspected damage occur, shutdown the power source, unplug and

contact your service provider.

5. Do not install the camera under unstable lighting conditions. Severe lighting change or

flicker can cause the camera to work improperly.

6. Never use the camera close to a gas or oil leak.

7. Do not disassemble the camera.

8. Never keep the camera face to strong light directly, this can damage the CCD.

9. Ensure all removable covers are replaced to protect the inner components.

10. Do not install near devices which emit a strong electro-magnetic field.

11. Use a dry or damp cloth only for cleaning.

12. Internal dome only - Do not drop the camera or subject the unit to physical shocks.

PLEASE FOLLOW THE ABOVE CAUTIONS – FAILURE TO DO SO MAY

INVALIDATE THE WARRANTY OR CAUSE SERIOUS INJURY.

PACKING CONTENTS

CBP Range

Important: Ensure all cautionary procedures are

observed during installation.

It is recommended the camera is tested during the most

demanding environmental conditions such as low light

or bright sunlight to ensure continuity of effective CCTV

monitoring.

Using the supplied fitting screws, securely attach the

camera to the drilled surface

Adjust the tri-axis gimbal zoom/focus to give the

required image of the area to be monitored.

Replace the dome cover by pushing firmly in place

onto the base

Carefully clean the dome surface with a soft lint

free cloth

Remove the camera unit carefully from the box

reserving the accessory contents in a safe place

Use the supplied mounting template to mark the

space for drilling

Remove the dome cover using a suitable coin or

screwdriver

FIXING TO A WALL

CBP Range

Ceiling

Wall Plugs

Mounting Template

Fitting Screws

INTERNAL DOME INSTALLATION

1. This installation should be made by a qualified service person and should abide to all local

codes.

2. Avoid installation on a surface subjected to frequent vibration or shocks.

3. Do not operate the camera beyond its temperature range or power source ratings.

4. Should any damage or suspected damage occur, shutdown the power source, unplug and

contact your service provider.

5. Do not install the camera under unstable lighting conditions. Severe lighting change or

flicker can cause the camera to work improperly.

6. Never use the camera close to a gas or oil leak.

7. Do not disassemble the camera.

8. Never keep the camera face to strong light directly, this can damage the CCD.

9. Ensure all removable covers are replaced to protect the inner components.

10. Do not install near devices which emit a strong electro-magnetic field.

11. Use a dry or damp cloth only for cleaning.

12. Internal dome only - Do not drop the camera or subject the unit to physical shocks.

PLEASE FOLLOW THE ABOVE CAUTIONS – FAILURE TO DO SO MAY

INVALIDATE THE WARRANTY OR CAUSE SERIOUS INJURY.

Important: Ensure all cautionary procedures are

observed during installation.

It is recommended the camera is tested during the most

demanding environmental conditions such as low light

or bright sunlight to ensure continuity of effective CCTV

monitoring.

Attach the weatherproof sealing pad to the base of

the dome with the sticky side against the camera

Using the supplied fitting screws, securely attach the

camera to the drilled surface

Please note: To ensure correct weatherproof you

must use the enclosed fitting screws and

weatherproof washers

Adjust the tri-axis gimbal zoom/focus to give the

required image of the area to be monitored.

Replace the dome cover and tighten the dome cover

screws using the supplied dome cover screw driver

Carefully clean the dome surface with a soft lint

free cloth

Remove the camera unit carefully from the box

reserving the accessory contents in a safe place

Use the supplied mounting template to mark the

space for drilling

Remove the dome cover using the supplied dome

cover screwdriver

FIXING TO A WALL

CVP Range

PACKING CONTENTS

Wall Plugs

Conduet hole cover

opener

Mounting Template

Fitting Screws

Dome cover

screwdriver

Weatherproof

sealing washers

Weatherproof

sealing pad

Ceiling

CVP Range

VANDAL RESISTANT DOME INSTALLATION

Using the supplied fitting screws, securely attach the

camera to the drilled surface

Adjust the tri-axis gimbal zoom/focus to give the

required image of the area to be monitored.

Replace the dome cover by pushing firmly in place

onto the base

Carefully clean the dome surface with a soft lint

free cloth

Remove the camera unit carefully from the box

reserving the accessory contents in a safe place

Use the supplied mounting template to mark the

space for drilling

Remove the dome cover using a suitable coin or

screwdriver

Attach the weatherproof sealing pad to the base of

the dome with the sticky side against the camera

Using the supplied fitting screws, securely attach the

camera to the drilled surface

Please note: To ensure correct weatherproof you

must use the enclosed fitting screws and

weatherproof washers

Adjust the tri-axis gimbal zoom/focus to give the

required image of the area to be monitored.

Replace the dome cover and tighten the dome cover

screws using the supplied dome cover screw driver

Carefully clean the dome surface with a soft lint

free cloth

Remove the camera unit carefully from the box

reserving the accessory contents in a safe place

Use the supplied mounting template to mark the

space for drilling

Remove the dome cover using the supplied dome

cover screwdriver

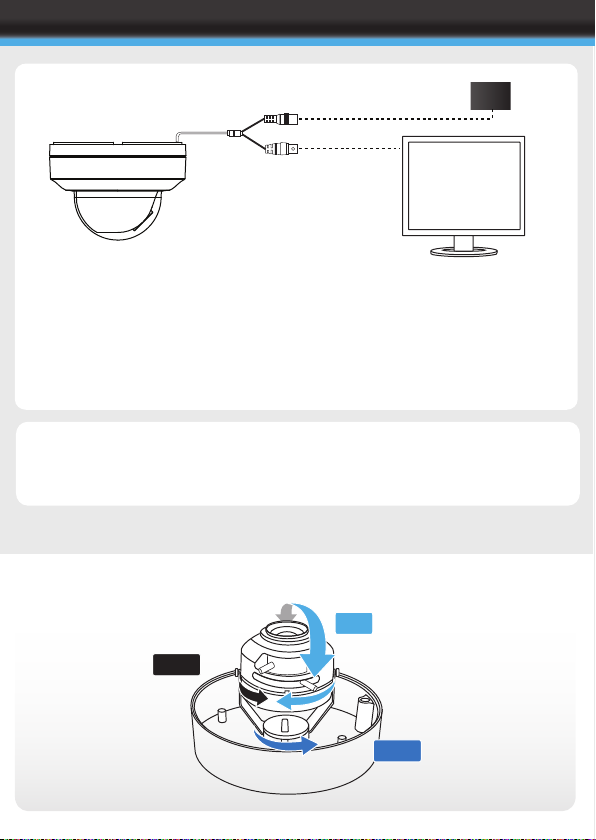

CONNECTION

Connect the video out port to your video cable

running to the monitor / recorder

Check the power supply is of the correct level

and connect your power supply into the power

port on the Camera.

View the picture on a monitoring device to

check the power and video connection is

working properly.

PSU

Troubleshooting

Ensure all power and cable connections are correct with the Camera and DVR.

If all power and cable connections are correct and the camera picture can not be

produced then contact your supplier for technical support.

Tri-Axis Gimbal

Example shows vandal resistant dome casing

360º

90º

360º

DIMENSIONS

51.0135.48

94.64

148.39

46.00

82.50

105.00

86.00

94.64

53.18

15.00

147.97

106.10

CVP VANDAL RESISTANT RANGECBP INTERNAL DOME RANGE

OSD Controller

LANGUAGE

ENGLISH / SPANISH / PORTUGUESE /

FRENCH / GERMAN / CHINESE /

JAPANESE / RUSSIAN

LENS

MANUAL

AUTO TYPE DC

MODE AUTO, OPEN, CLOSE

SPEED 0~255

SERVICE CABLE

(OPTION)

RCA SERVICE VIDEO

OUTPUT

RIGHT

MENU / ENTER

DOWN

LEFT

OSD

NR MODE

Y LEVEL

C LEVEL

Y/C, C, Y, OFF

0~15

SHUTTER / AGC

AUTO

MANUAL

HIGH LUMINANCE

MODE SHUT+AUTO IRIS, AUTO IRIS

BRIGHTNESS 0~255

LOW LUMINANCE

MODE AGC, OFF

BRIGHTNESS 0.25~1.00

MODE SHUT+AGC

SHUTTER 1/50~1/10000

AGC 6.00~44.80

WHITE BALANCE

PICT ADJUST

MIRROR

BRIGHTNESS

CONTRACT

SHARPNESS

HUE

GRAIN

OFF/ON

0~255

ATW

PUSH LOCK

MANUAL LEVEL 0~255

ANTI CR

USER 1 B-GAIN 0~255

R-GAIN 0~255

USER 2 B-GAIN 0~255

R-GAIN 0~255

PUSH

SPEED 0~255

DELAY CNT 0~255

ATW FRAME X0.50~X2.00

ENVIRONMENT INDOOR/OUTDOOR

BACKLIGHT

OFF/BLC/HLC

ATR

OFF

ON LUMINANCE LOW, MID, HIGH

CONTRAST LOW, MIDLOW, MID,

MIDHIGH, HIGH

PRIVACY

OFF

ON AREA SEL 1~4

TOP 0~288

BOTTOM 0~288

LEFT 0~468

RIGHT 0~468

COLOUR 1~8

TRANSP 0.00~1.00

MOSIAC OFF/ON

SPECIFICATION

MOTION DETECTION

OFF

ON DETECT SENSE 0~127

BLOCK DISPLAY OFF/ON/ENABLE/

SELECT AREA

MONITOR AREA OFF/ON

AREA SELECT 1~4

TOP 0~288

BOTTOM 0~288

LEFT 0~288

RIGHT 0~288

CAMERA ID

OFF

ON OPENS VIRTUAL KEYBOARD

IMPORTANT - PLEASE NOTE:

When all configurations have been made select SAVE

ALL at the bottom of the OSD before exiting

SAVE ALL
