Door Latch Assembly Installation Instructions

INSTALLATION INSTRUCTIONS

REMOVAL AND INSTALLATION OF DOOR LATCH ASSEMBLY QUEST

NOTE: Removing the existing door catch/switch with the replacement catch will remove the auto-

matic sold out reset function of the machine. This feature can still be used or totally defeated

depending on users preference.

OPTION 1: By removing the existing switch and not jumping the board the sold out will work, but not

reset unless the pump door switch is manually reset after each refill. If the switch is not manually reset

the light will not go out even after installing new product.

OPTION 2: To disable the sold out feature jumpers are added to the control board in the sold out plug

location. The sold out will now be disabled and never come on.

Installation of these options are described below.

Parts List

Tools Required

• Hex Screw Driver

• Electrical Tape

Description Part Number Qty

Bracket 720201471 1

Sold Out Jumper Board 11749 4

Jumper Switch 720302204 1

Spacer 720705306 1

Screw Plastic #8 x ¾” 07015001 2

Screw 6-32 x 3/8” 0700203 2

Washer .145x.5x .03 07301043 2

Screw 6-32 x 1/4 0700201 2

Latch 720532112 1

Catch 720202415 1

FIGURE 1

Revision Date: June 30, 2004 www.cornelius.com Revision: C

Door Latch Assembly Installation Instructions

INSTALLATION

IMPORTANT: Disconnect power from machine before starting this procedure!

1. Remove the top cover of the machine.

A. Remove two screws from rear of top. B. To remove cover open door and pull cover

forward.

FIGURE 2 FIGURE 3

2. Remove the side panel of the machine.

A. Remove latch cover plate.

NOTE: When reassembling latch guard use

the #8 PLASTIC screws supplied.

B. Remove 2 screws holding splash guard.

FIGURE 4 FIGURE 5

C. Remove one screw from lower rear on right

side panel.

D. Slide panel forward to remove.

NOTE: Do not loose plastic spacers located

on panel clips.

FIGURE 6 FIGURE 7

Door Latch Assembly Installation Instructions

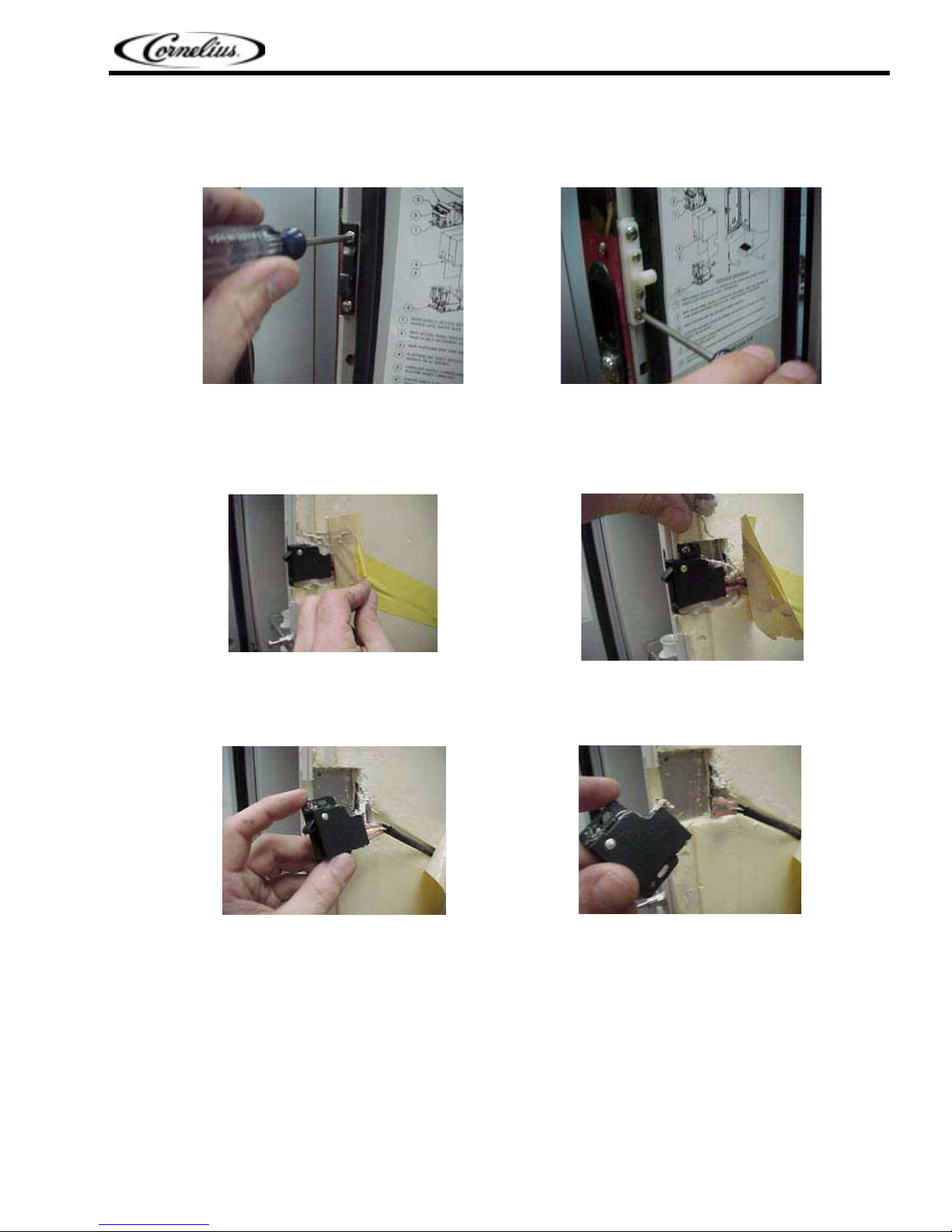

3. Remove and replace door catch.

A. Remove (2) 8-32 screws holding existing

door catch.

B. Replace catch with new catch assembly.

Fasten to door with 8-32 x 5/8”screws.

FIGURE 8 FIGURE 9

4. Remove and replace cabinet catch.

A. Pull back tape back exposing catch/switch. B. Remove and save insulation putty to be rein-

stalled later.

FIGURE 10 FIGURE 11

C. Remove (2) 6-32 screws holding existing

latch/switch.

D. Remove latch/switch from wire harness.

FIGURE 12 FIGURE 13

Door Latch Assembly Installation Instructions

E. Insert slotted holes into new latch. F. Attach bracket and latch to cabinet frame

using (2) 6-32 x 3/8”screws and washers.

FIGURE 14 FIGURE 15

G. Close door and adjust cabinet bracket using

the 6-32 screws. Door should slightly com-

press the door seal.

H. Check lower and upper door to assure seal.

If not adjust bracket until it properly seals.

FIGURE 16 FIGURE 17

5. Connect cabinet interrupt switch jumper wire.

A. Plug one end of black spade end jumper in

each end of existing cable.

B. Wrap a piece of electrical tape on both ends

to prevent wires from coming loose.

FIGURE 18 FIGURE 19

Door Latch Assembly Installation Instructions

C. Route wires in existing cavity and reinstall insulation putty and replace tape.

FIGURE 20 FIGURE 21

D. Replace side panels by sliding panels for-

ward to engage panel tabs. Make sure plas-

tic spacers are located on panel clips before

assembling. Replace all screws that were

previously dissembled.

E. Replace latch cover plate.

NOTE: When reassembling latch guard use

the #8 PLASTIC screws supplied if holes are

stripped.

FIGURE 22

FIGURE 23

THIS COMPLETES THE LATCH ASSEMBLY PROCEDURE. If the machine is to use OPTION 1 “DOOR

RESET OPTION”allowing sold out to function complete the procedure by replacing all machine covers

and guards.

IF OPTION 2 IS SELECTED CONTINUE WITH PROCEDURE

6. Installing sold out defeat jumpers.

A. Remove screw, holding electrical box to

frame.

B. Pull control box from machine.

FIGURE 24 FIGURE 25

Door Latch Assembly Installation Instructions

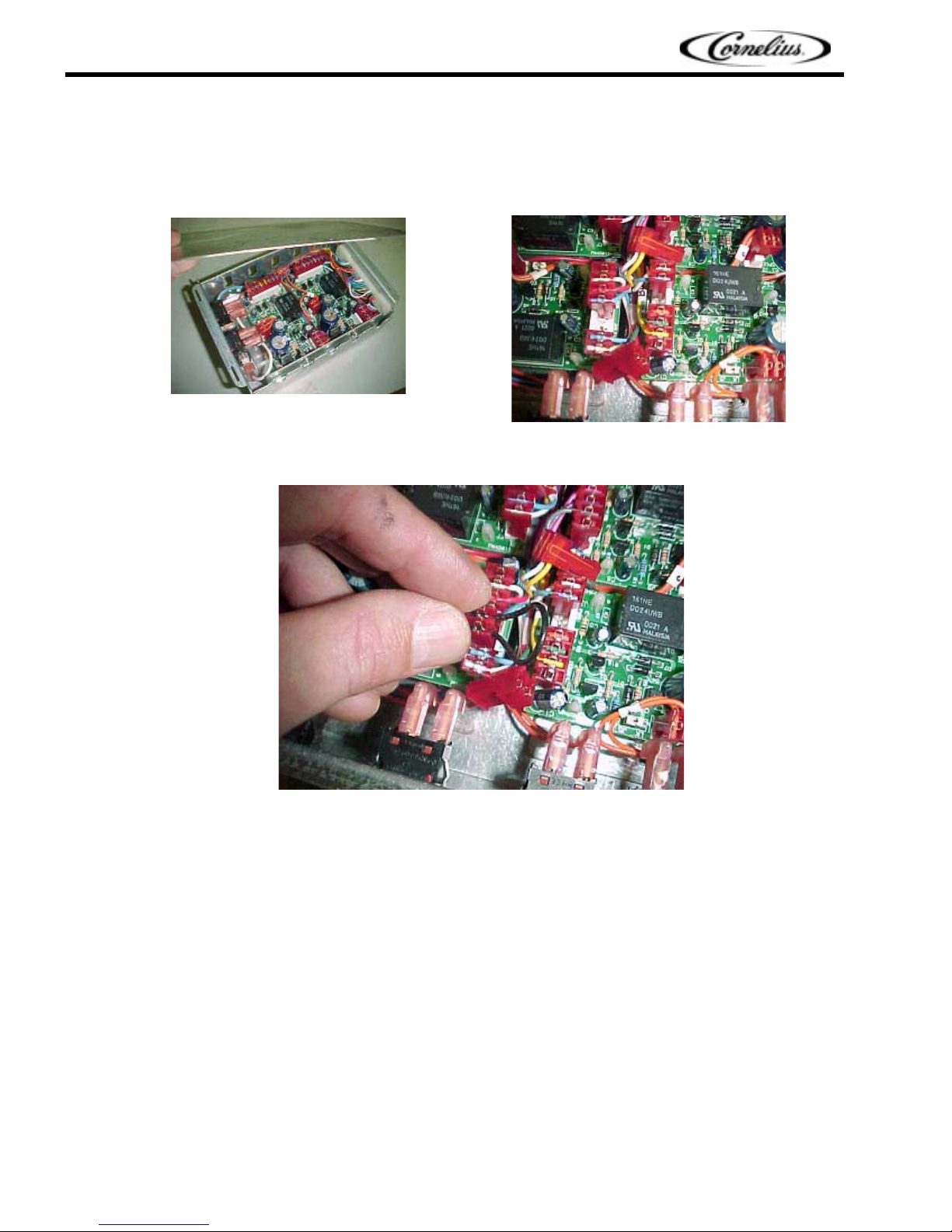

C. Remove cover from box. D. Locate the 2 pin plug that says “SOLD OUT”

on the control board. There will be one for

each pump. Disconnect these connectors.

There will be (4) total in a four flavor

machine.

FIGURE 26 FIGURE 27

E. Replace the connectors with the “SOLD OUT”jumpers.

FIGURE 28

THIS COMPLETES THE LATCH ASSEMBLY PROCEDURE for OPTION 2 “SOLD OUT DISABLED

OPTION”disabling the sold out function. Complete the procedure by replacing all machine covers and

guards.

If machine does not function after reassembly make sure control box is properly seated in mating con-

nector.
