Craftsman 113.177110 Bedienungsanleitung

--Save This Manual

for Future Reference

SEARS

owner's

manual

MODEL NO.

113.177110

Model number may be

found on the right side

of vac top. You should

record model number

in a safe place for

future use.

FOR YOUR

SAFETY

-,q

I:RR FIN®

2 GALLON

WET/DRY VAC

•operating

•repair parts

READ ALL

INSTRUCTIONS

CAREFULLY

Sears, Roebuck and Co., Hoffman Estates, IL. 60179 U.S.A.

Part No. SP6007 (19-0243-6) Printed in Mexico

FULL ONE YEAR WARRANTY

ON CRAFTSMAN WET/DRY VAC

If within one year from the date of purchase, this Craftsman Vac fails due

to a defect in material or workmanship, Sears will repair it, free of charge.

If this Craftsman Vac is used for commercial or rental purposes, this war-

ranty coverage applies for only 90 days from date of purchase.

Warranty service is available by simply contacting the nearest Sears Ser-

vice Center/Department throughout the United States.

This warranty applies only while this product is used in the United States.

This warranty gives you specific legal rights, and you may also have other

rights which vary from state to state.

Sears, Roebuck and Co., D817 WA, Hoffman Estates, IL 60179

IMPORTANT SAFETY INSTRUCTIONS

Safety is a combination of common

sense, staying alert and knowing how

your vac works. Read this manual to

understand the vac.

Safety Signal Words

DANGER: means if the safety information

is not followed someone will be seriously

injured or killed.

WARNING: means if the safety informa-

tion is not followed someone could be

seriously injured or killed.

CAUTION: means if the safety informa-

tion is not followed someone might be

injured.

When using your vac, follow basic safety

precautions including the following.

WARNING.To reduce

the risk of fire, electric shock, or

injury:

Read and understand this owner's manual

and all labels on the vac before operating.

Use only as described in this manual. To

avoid personal injury or damage to vac,

use only Sears Craftsman recommended

accessories.

Sparks inside the motor can ignite flam-

mable vapors or dust. To reduce the risk

of fire or explosion:

• Do not vacuum, or use this vac near, flam-

mable or combustible liquids, gases, or

explosive dusts such as gasoline or other

fuels, lighter fluid, cleaners, oil-based paints,

natural gas, hydrogen, coal dust, magne-

sium dust, grain dust, or gun powder.

Do not vacuum anything that is burning or

smoking, such as cigarettes, matches, or

hot ashes.

Do not vacuum fireplace soot or ash, this

is a very fine dust which will not be cap-

tured by the filter and may cause damage.

To reduce the risk of health hazards from

vapors or dusts, do not vacuum toxic

materials.

Do not use or store near hazardous materials.

Do not allow to be used as a toy. Close

attention is necessary when used by or

near children.

For dry pickup, do not use this vac with a

torn filter or without the filter installed.

Do not leave vac when plugged in. Unplug

from outlet when not in use and before

servicing. Turn off vac before unplugging.

To avoid injury from accidental starting,

unplug power cord before changing or

cleaning filter.

Connect to a properly grounded outlet

only. See Grounding instructions.

Do not unplug by pulling on cord. To

unplug,grasptheplug,notthecord.

Donotusewithdamagedcord,plugor

otherparts.Ifyourvacisnotworkingasit

should,hasmissingparts,hasbeen

dropped,damaged,leftout-doors,or

droppedintowater,returnittoaSears

ServiceCenter.

Donotpullorcarrybycord,usecordas

handle,closeadooroncord,orpullcord

aroundsharpedgesorcorners.

Keepcordawayfromheatedsurfaces.

Donothandleplugorthevacwithwet

hands.

Donotputanyobjectintoventilation

openings.Donotvacuumwithanyventi-

lationopeningsblocked;keepfreeofdust,

lint,hairoranythingthatmayreduceair

flow.

Keephair,looseclothing,fingers,andall

partsofbodyawayfromopeningsand

movingparts.

Toreducetheriskoffalls,useextra care

when cleaning on stairs.

Observe the following warnings that

appear on the motor housing of your vac.

WARNING: To reduce the risk of I

electric shock - do not expose to

rain - store indoors.

SAVE THESE INSTRUCTIONS

The operation of any utility vac can result

in foreign objects being blown into the

eyes, which can result in severe eye dam-

age. Always wear safety goggles comply-

ing with ANSI Z87.1 (shown on package)

before commencing operation. Safety

Goggles are available at Sears retail

stores.

To reduce the risk of hearing damage,

wear ear protectors when using the vac

for extended hours or when, using it in a

noisy area.

For dust operations, wear dust mask.

WEAR YOUR

Use only extension cords that are rated

for outdoor use. Extension cords in poor

condition or that are too small in wire size

can pose fire and shock hazards. When

using an extension cord, be sure it is in

good condition. Using any extension cord

will cause some loss of power. To keep

the loss to a minimum, use the following

table to choose the minimum wire size

extension cord.

Extension

Cord Length A.W.G.

0-50 Ft. 14

50-100 Ft. 12

Grounding Instructions

This appliance must be grounded. If it

should malfunction or breakdown,

grounding provides a path of least resis-

tance for electric current to reduce the risk

of electric shock. This appliance is

equipped with a cord having an equip-

ment-grounding conductor and grounding

plug. The plug must be inserted into an

appropriate outlet that is properly installed

and grounded in accordance with all local

codes and ordinances.

WARNING: Improper

connection of the equipment-

grounding conductor can result in a

risk of electric shock. Check with a

qualified electrician or service per-

son if you are in doubt as to whether

the outlet if properly grounded. Do

not modify the plug provided with

the appliance - if it will not fit the

outlet, have a proper outlet installed

by a qualified electrician.

This appliance is for use on a nominal

120 volt circuit, and has a grounded plug

that looks like the plug shown. A tempo-

rary adaptor that looks like the adaptor

shown may be used to connect this plug

to a 2-pole receptacle as shown if a

properly grounded outlet is not available.

The temporary adaptor should be used

only until a properly grounded outlet can

be installed by a qualified electrician.

The green colored rigid ear, lug or the

like extending from the adaptor must be

connected to a permanent ground such

as a properly grounded outlet box cover.

Whenever the adaptor is used, it must

be held in place by a metal screw.

NOTE: In Canada, the use of a tempo-

rary adaptor is not permitted by the

Canadian Electrical Code.

Properly

Grounded

Outlet\/n ui

®I

tn ult

3-Prong Plug

Grounding

Prong

Green t====_ Make sure

Grounding Lug I(_ II this is

3-Prong _] I_._/ll ametal

Plug [_ _o_-- screw

F_€_I [L_{_t [I connected

_J_'_(,O n)JS_l "-"-" IIt° aknown

1_ "_, _ ground

//'_ Ad_pter \

2-Prong

Outlet

Introduction

This vac is intended for household use

only. It may be used for light vacuuming of

wet or dry media and may also be used as

a blower. The light weight design allows

usage for most small household vacuum-

ing chores. Familiarize yourself with the

following product features and read the

entire owner's manual for specific usage

of your new wet/dry vac.

IMPORTANT NOTE

Please Read Carefully

Static Shocks Are Common - In dry

areas or when the relative humidity of the

air is low. To reduce the frequency of

static shocks in your home the best rem-

edy is to add moisture to the air with a

console humidifier.

Table of Contents

Item Page

Warranty .......................................... 2

Important Safety Instructions ........... 2

Safety Signal Words ..................... 2

Grounding Instructions .................... 4

Introduction ..................................... 5

Table of Contents ........................... 5

Unpacking and Checking Carton

Contents ..................................... 5

Getting to Know Your Vac .............. 6

Cord Storage ................................ 6

Hose Storage ................................ 6

Operation ........................................ 7

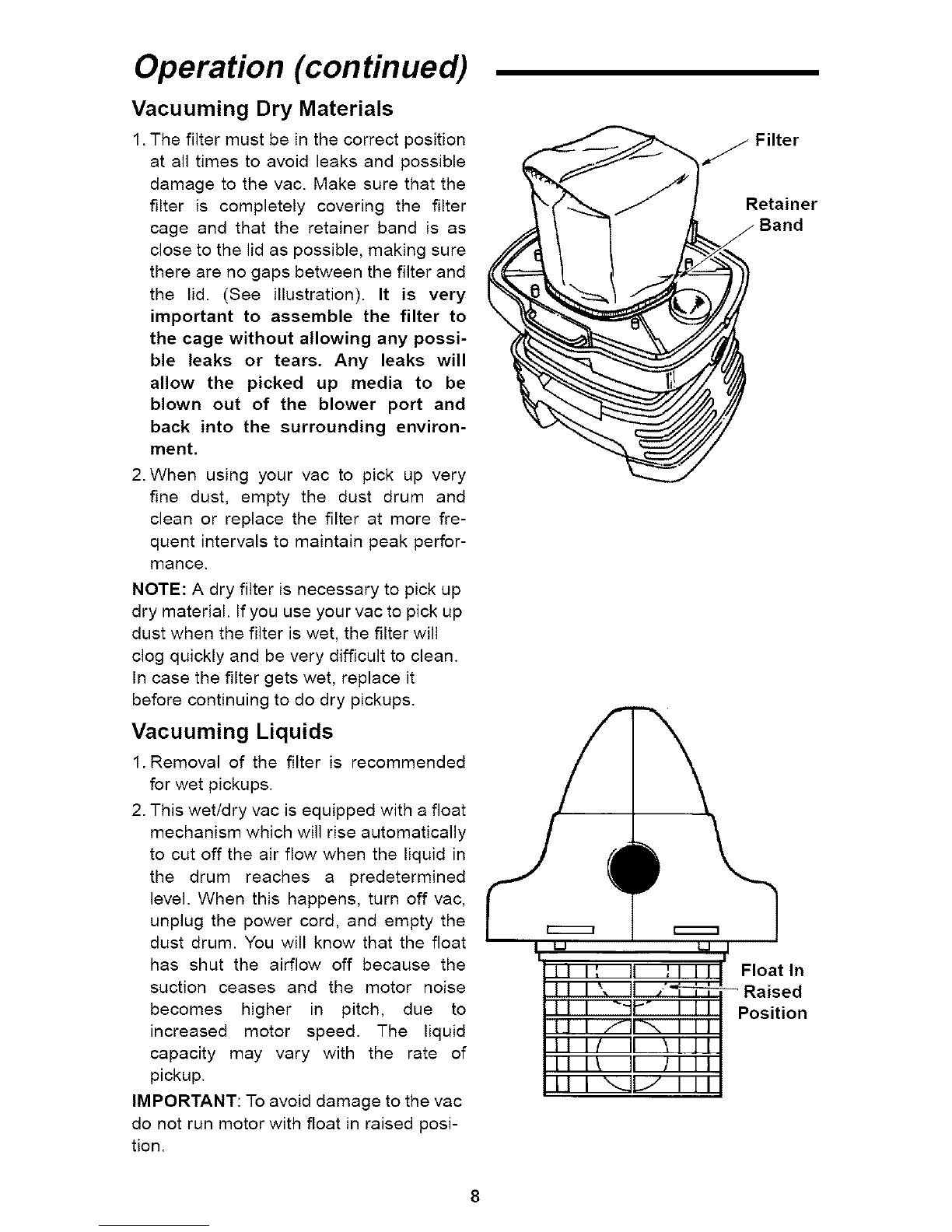

Vacuuming Dry Materials .............. 8

Item Page

Vacuuming Liquids ....................... 8

Emptying the Dust Drum .............. 9

Blowing Feature ............................ 9

Maintenance ................................. 10

Filter ............................................ 10

Removal ..................................... 10

Installation .................................. 10

Cleaning ..................................... 10

Storage ....................................... 10

Accessories .................................. 11

Troubleshooting ............................ 11

Repair Parts .................................. 11

Unpacking and Checking Carton Contents m

Remove entire contents of carton. Check

each item against the Carton Contents

List. Notify your Sears Store immediately

if any parts are damaged or missing.

Carton Contents List

Key Description Qty

A Vac ............................................ 1

B Hose ......................................... 1

C Car Nozzle ................................ 1

D Owners Manual ......................... 1

Replacement filters and retainer band

(already assembled)

Sears retail replacement filters are sold by

stock no. 9-16949

Getting to Know Your Vac

Carry Handle with On/Off

Switch Conveniently Positioned 4' x 1-1/4" Flexible Hose

With Dual Swivel Ends

Blowing Port

Six Foot Long

Cord

Cord Wrap

Storage

Two Gallon

Dust Drum

Filter and

Retainer Band

Vacuum

Port

Cord Storage

1.Your wet/dry vac has a convenient area

to store your power cord while not in

use.

2. Coil the power cord around the wet/dry

vac, between the power head assembly

and the dust drum.

CAUTION: A partially unwrapped

cord may fall in coils near your feet,

You could trip. To avoid this, always

fully unwrap the cord before plug-

ging it in.

Hose Storage

A convenient location for hose storage is

to connect one end of the hose into the

vacuum port and one end intothe blowing

port.

Operation

WARNING

To reduce the risk of fire or explosion, do not operate this vac in areas with

flammable gases, vapors or explosive dust in the air. Flammable gases or

vapors include but are not limited to; lighter fluid, solvent type cleaners, oil-

base paints, gasoline, alcohol or aerosol sprays. Explosive dusts include but

are not limited to; coal, magnesium, grain or gun powder. Do not vacuum

explosive dust, flammable or combustible liquids or hot ashes. Do not use

this vac as a sprayer for any flammable or combustible liquid. To reduce the

risk of health hazards from vapors or dusts, do not vacuum toxic materials.

CAUTION: To reduce the risk of

hearing damage wear ear protectors

when using the vac for extended

hours or when using it in a noisy

area.

The operation of any utility vac can

result in foreign objects being

blown into the eyes, which can

result in severe eye damage. Always

wear safety goggles complying with

ANSI Z87.1 (shown on package)

before commencing operation.

Safety Goggles are available at

Sears retail stores.

Your Craftsman two gallon wet/dry vac is

assembled at the factory and ready for

use when you remove it from the carton.

The unit is ready for dry vacuuming or

blowing. After you plug the power cord

into the wall receptacle, turn the unit "ON"

by pushing the switch from position "0" to

position "1". The symbols used on the

switch are international symbols. The "0"

is the "OFF" position and the "1" is the

"ON" position.

Operation (continued)

Vacuuming Dry Materials

1. The filter must be in the correct position

at all times to avoid leaks and possible

damage to the vac. Make sure that the

filter is completely covering the filter

cage and that the retainer band is as

close to the lid as possible, making sure

there are no gaps between the filter and

the lid. (See illustration). It is very

important to assemble the filter to

the cage without allowing any possi-

ble leaks or tears. Any leaks will

allow the picked up media to be

blown out of the blower port and

back into the surrounding environ-

ment.

2. When using your vac to pick up very

fine dust, empty the dust drum and

clean or replace the filter at more fre-

quent intervals to maintain peak perfor-

mance.

NOTE: A dry filter is necessary to pick up

dry material. If you use your vac to pick up

dust when the filter is wet, the filter will

clog quickly and be very difficult to clean.

In case the filter gets wet, replace it

before continuing to do dry pickups.

Vacuuming Liquids

1. Removal of the filter is recommended

for wet pickups.

2. This wet/dry vac is equipped with a float

mechanism which will rise automatically

to cut off the air flow when the liquid in

the drum reaches a predetermined

level. When this happens, turn off vac,

unplug the power cord, and empty the

dust drum. You will know that the float

has shut the airflow off because the

suction ceases and the motor noise

becomes higher in pitch, due to

increased motor speed. The liquid

capacity may vary with the rate of

pickup.

IMPORTANT: To avoid damage to the vac

do not run motor with float in raised posi-

tion.

Filter

Retainer

Float In

Raised

Position

Emptying the Dust Drum .\

WARNING: To avoid injury from I

accidental starting, unplug power Icord before emptying the drum.

1. Remove the power head assembly of

the wet/dry vac by pulling outward on

the latches located on each side of the

vac. Lift off the power head assembly.

2. Dump the contents of the dust drum

into a proper waste disposal container.

Blowing Feature

Your vac features "Full Blowing". It has the

capability to blow sawdust and other

debris. It is excellent to use to blow dust

and debris out of garages or off patios

and driveways. Follow the steps below to

use your vac as a blower.

WARNING: Always wear safety gog-

gles complying with ANSI Z87.1

when using as a blower.

WARNING: Wear a dust mask if blow-

ing creates dust which might be

inhaled.

CAUTION: To reduce the risk of hear-

ing damage wear ear protectors

when using the vac/blower for

extended hours or when using it in a

noisy area.

WARNING: To avoid injury to

bystanders, keep them clear of blow-

ing debris.

1. Locate blowing port of your vac.

2. Insert one end of the 4 foot x 1-1/4 inch

hose into the blowing port.

3. Turn vac "ON" and you are ready to use

your vac as ablower.

NOTE: If you need additional length at the

end of the hose, extension wands are

available at Sears retail stores as stock

no. 9-17861.

Maintenance

Filter

Your filter should be cleaned often to

maintain peak vac performance.

NOTE: The filter is made of high quality

material designed to stop very small parti-

cles of dust. Handle the filter carefully

when removing to clean or installing a

new filter. Do not tear the filter during

removal or installation if your intent is to

reuse the filter.

Easy to Replace Filter

1. Extend the retainer band around the

plastic posts on the lid.

2. Remove filter bag off the filter cage.

3. Place the replacement filter on the filter

cage until open end touches bottom of lid.

4. Release the retainer band from the

plastic post on the lid, holding the filter

bag secure to the lid.

5. Make sure the retainer band is posi-

tioned on the filter bag covering the

black printed line.

'-_ -_ Handle to

_J /Rem(oveMotor

/ _ Retainer Band

._ _'_ \ ._"_ _<" i Lid

M=or,.,over

(upside-down)

t_ /Base of Mac

Plastic Post ----...__

IMPORTANT: To avoid damage to the

blower wheel and motor, always reinstall

the filter before using the vac for dry mate-

rial pick-up.

Take the dirty filter to a disposal container

and gently brush away small dirt particles

that may be adhering to the filter material.

IMPORTANT: After cleaning, check the fil-

ter for tears or small holes. Do not use a

filter with holes or tears in it. Even a small

hole can cause a lot of dust to come out of

your vac. Replace it immediately.

Installation

New filters may be purchased at area

Sears retail stores, Sears retail replace-

ment filters are sold by stock no. 9-16949.

NOTE: Before installing the filter on the

vac, clean the area of the lid so that the

retainer band will seal the bag against the

lid and stop small particles from bypass-

ing the filter bag.

If the filter is clean and not damaged,

replace it on the filter cage. If it cannot be

reused, place a new filter over the filter

cage.

Replace the retainer band around the fil-

ter. Make sure the retainer band is posi-

tioned on the filter, and the filter

completely covers the filter cage. Also,

make sure the edges of the filter are com-

pletely secured under the retainer band.

NOTE: For best results of cleaning due to

accumulated dust, clean the filter in an

open area. Cleaning should be done out-

doors and not in the living quarters.

Cleaning

To keep your wet/dry vac looking its best,

clean the outside with a cloth dampened

with warm water and mild soap.

To clean the dust drum:

1. Dump debris out.

2. Wash dust drum thoroughly.

3. Wipe out with dry cloth.

Storage

Before storing your vac, the dust drum

should be emptied and cleaned. The cord

should be wrapped around the unit and

the hose should be stored as described in

the cord/hose storage section in this man-

ual. Accessories should be kept in the

same area as the vac so they can be

readily available. The vac should be

stored indoors.

Inhaltsverzeichnis

Andere Craftsman Staubsauger Handbücher

Craftsman

Craftsman 338.179370 Bedienungsanleitung

Craftsman

Craftsman 315.177500 Bedienungsanleitung

Craftsman

Craftsman CMXEVBCV945L Bedienungsanleitung

Craftsman

Craftsman 113.177320 Bedienungsanleitung

Craftsman

Craftsman CMXEVCVVJH1612 Bedienungsanleitung

Craftsman

Craftsman SEARS 113.179255 Bedienungsanleitung

Craftsman

Craftsman 113.176120 Bedienungsanleitung

Craftsman

Craftsman evolv 113.175550 Bedienungsanleitung

Craftsman

Craftsman 17765 - 5.0 Peak HP Wet/Dry Vac Bedienungsanleitung

Craftsman

Craftsman CMCV002 Bedienungsanleitung

Craftsman

Craftsman 113.177690 Bedienungsanleitung

Craftsman

Craftsman CMCVS001D1 Bedienungsanleitung

Craftsman

Craftsman 113.176110 Bedienungsanleitung

Craftsman

Craftsman 125.12009 Bedienungsanleitung

Craftsman

Craftsman 113.170160 Bedienungsanleitung

Craftsman

Craftsman 113.179715 Bedienungsanleitung

Craftsman

Craftsman 113.177060 Bedienungsanleitung

Craftsman

Craftsman CMXEVBE175840 Bedienungsanleitung

Craftsman

Craftsman 113.177600 Bedienungsanleitung

Craftsman

Craftsman 125.04267621-3 evolv Bedienungsanleitung

Craftsman

Craftsman 113.179715 Bedienungsanleitung

Craftsman

Craftsman CMCV002B Bedienungsanleitung

Craftsman

Craftsman 17965 - 6 Gal. Wet/Dry Vac Bedienungsanleitung

Craftsman

Craftsman 113.170200 Bedienungsanleitung

Beliebte Staubsauger Handbücher anderer Marken

Bissell

Bissell LittleGreen Proheat 1425 Series Bedienungsanleitung

Panasonic

Panasonic MC-YL637S147-AE Bedienungsanleitung

NEFF

NEFF N17XH10 0 Series Bedienungsanleitung

LG A9 Series Bedienungsanleitung

Oreck

Oreck Cordless Captura BK51700 Series Bedienungsanleitung

Kogan

Kogan KAVACROBVWA Bedienungsanleitung

Kränzle

Kränzle VENTOS 50 ID Benutzerhandbuch

EVVO

EVVO Ai35 Bedienungsanleitung

DeWalt

DeWalt DWH200D Bedienungsanleitung

Pontec

Pontec Pondomatic Vacuum Cleaner Bedienungsanleitung

Cleanmaxx

Cleanmaxx PC-P007E Bedienungsanleitung

Exido

Exido 240-114 Bedienungsanleitung

RIDGID

RIDGID WD1685AU0 Bedienungsanleitung

Ezviz

Ezviz RE4P Bedienungsanleitung

STG global

STG global TANVAC HDV3000 Bedienungsanleitung

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Bedienungsanleitung

Factory

Factory M3340 Bedienungsanleitung

Shop-Vac

Shop-Vac VN92 SERIES Bedienungsanleitung
