Crestron CNXRMCS Bedienungsanleitung

Crestron CNXRMCS

Current Sensor for Room Solution Boxes

Operations Guide

This document was prepared and written by the Technical Documentation department at:

Crestron Electronics, Inc.

15 Volvo Drive

Rockleigh, NJ 07647

1-888-CRESTRON

All brand names, product names and trademarks are the property of their respective owners.

Crestron CNXRMCS Current Sensor for Room Solution Boxes

Contents

Current Sensor for Room Solution Boxes: CNXRMCS 1

Introduction....................................................................................................................1

Specifications.....................................................................................................1

Physical Description ..........................................................................................2

Setup ..............................................................................................................................3

Connector Wiring...............................................................................................3

Connection .........................................................................................................3

Programming......................................................................................................4

Problem Solving.............................................................................................................5

Troubleshooting .................................................................................................5

Future Updates...................................................................................................6

Return and Warranty Policies ........................................................................................7

Merchandise Returns / Repair Service...............................................................7

CRESTRON Limited Warranty.........................................................................7

Operations Guide – DOC. 8175A Contents •i

Crestron CNXRMCS Current Sensor for Room Solution Boxes

Current Sensor for Room

Solution Boxes: CNXRMCS

Introduction

The Current Sensor for Room Solution Boxes, CNXRMCS, senses the

current from a television (9” color or larger) or other high current

electronic devices. Since most infrared (IR) remotes send the same IR

signal to turn a device ON or OFF (no discrete on and off power

commands), the CNXRMCS lets the control system know whether a

device is ON or OFF by indicating a high (ON, which indicates high

current draw) or low (OFF, which indicates low or no current draw)

digital signal to a Room Solution Box, such as the CNXRMC,

CNXRMCLV, or to an I/O port on any control processor.

NOTE: The CNXRMCS is not designed for use with low power devices

such as a VCR, DVD, DSS, etc.

Functional Summary

• Senses current draw from 9 inch or larger televisions

• 2-pin connector interface to Room Solution Boxes

• 6-foot cord included

Specifications

The following table provides a summary of specifications.

Specifications of the CNXRMCS

SPECIFICATION DETAILS

Maximum AC Load 1 KW (10A @ 120VAC)

Minimum Trigger

Current

Typically, 1A resistive load (non-adjustable).

Threshold is lower for normal loads such as a

television.

Specifications continued on the next page.

Operations Guide – DOC. 8175A Current Sensor for Room Solution Boxes: CNXRMCS •1

Current Sensor for Room Solution Boxes Crestron CNXRMCS

Specifications of the CNXRMCS - continued

SPECIFICATION DETAILS

Dimensions &

Weight

Height: 3.10 in (7.87 cm)

Width: 2.10 in (5.33 cm)

Depth: 2.34 in (5.94 cm)

Cord Length: Approximately 6 ft (1.83 m)

Weight: 1.60 oz (0.20 kg)

Physical Description

Refer to the physical views in the following illustration. The CNXRMCS

contains an AC plug on one side and an AC outlet on the other. The cord

to the 2-pin connector is approximately six feet long and is polarized with

the solid black wire for ground and the striped wire as the signal wire.

The connector attaches to the SENS port of a Room Solution Box.

CNXRMCS Physical Views

2 •Current Sensor for Room Solution Boxes: CNXRMCS Operations Guide – DOC. 8175A

Crestron CNXRMCS Current Sensor for Room Solution Boxes

Setup

Connector Wiring

Insert the 2-pin connector in the current sensor connection (labeled

“SENS”) on a Room Solution Box. The solid black wire of the digital

connector cord must be attached to pin 2 (G or ground pin) of the

connector and the striped wire must be attached to pin 1 (signal).

Plug the CNXRMCS in an AC outlet and the high current device in the

CNXRMCS. Refer to the following illustrations.

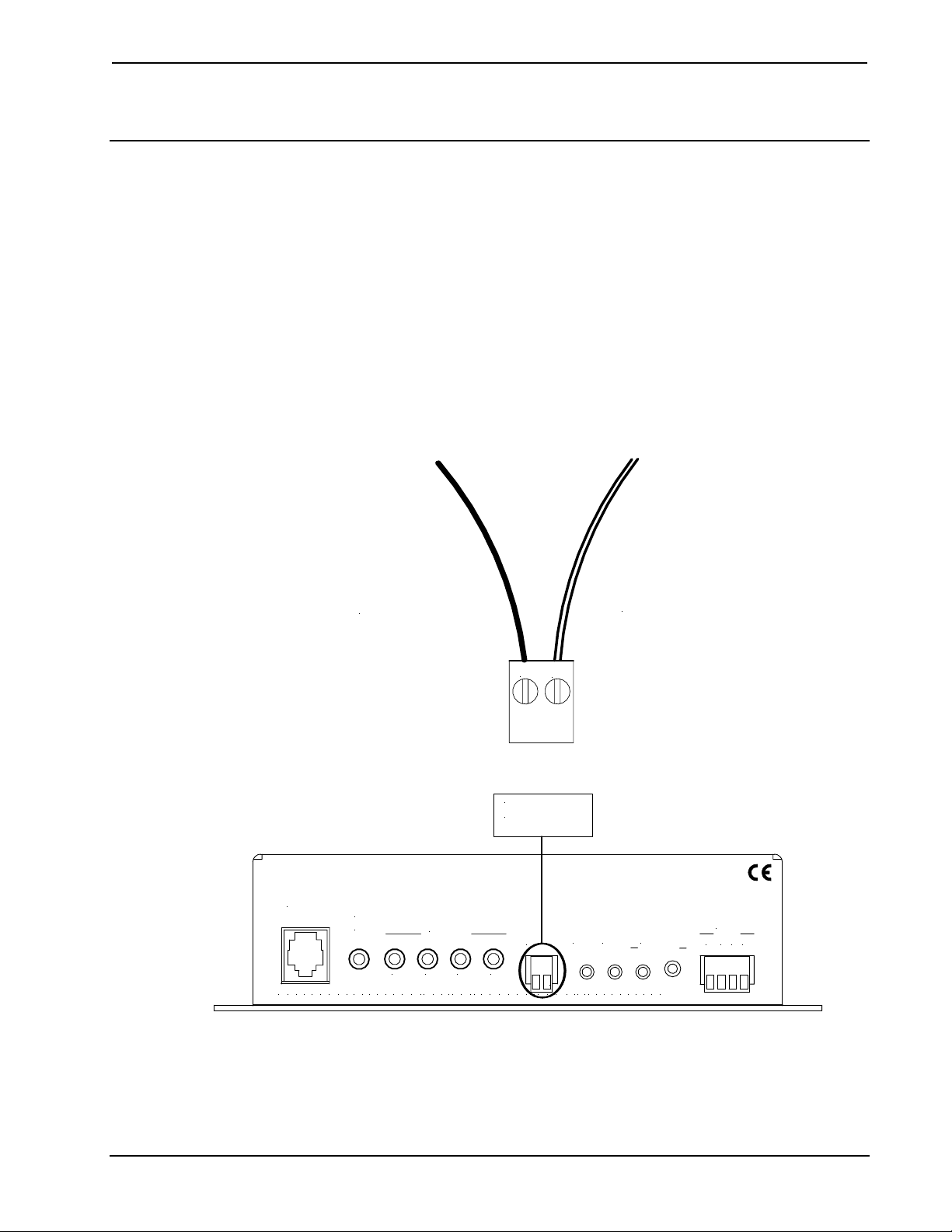

CNXRMCS Connector Wiring

Solid Black wire

connected

to pin 2 (ground)

Striped wire

connected

to pin 1 (signal)

SENS

RS-232

TC SER ELENOR

ORT SCIN KCOR.CNI IE

IR OUT

AB C D

,H 74670.J. ASU

NETPWR SETUP

GY24 Z

NET

CNXRMCS

Connection

Operations Guide – DOC. 8175A Current Sensor for Room Solution Boxes: CNXRMCS •3

Current Sensor for Room Solution Boxes Crestron CNXRMCS

CNXRMCS Hookup Diagram

9"or Larger Television

or High Current Device

Room Solution Box

CNXRMC, CNXRMCLV

or I/O port of a Control

Processor

CNXRMCS

Power Plug

2-pin

Connector

(SENS)

To 120VAC Plug

Programming

For a control system to recognize the ON/OFF state of a high current

device from the CNXRMCS, a program must be created in SIMPL

Windows. The <Current Sense> output goes high when the monitor (i.e.,

television) in the room is on, and low when the monitor is off. The

CNXRMCS provides a contact closure and is attached to the two-pin port

(labeled SENS) on the CNXRMC or CNXRMCLV. Refer to the latest

version of the CNXRMCLV (Doc. 8161) Operations Guide in the

Downloads | Product Manuals section of the Creston website

(www.crestron.com) for more information.

4 •Current Sensor for Room Solution Boxes: CNXRMCS Operations Guide – DOC. 8175A

Crestron CNXRMCS Current Sensor for Room Solution Boxes

Problem Solving

Troubleshooting

The table below provides corrective action for possible problems with the

CNXRMCS. If further assistance is required, please contact a Crestron

customer service representative.

CNXRMCS Troubleshooting

TROUBLE POSSIBLE

CAUSES

CORRECTIVE ACTION

Television or other

high current device not

drawing enough

current to trigger

CNXRMCS.

If the device does not draw

enough current, Crestron

recommends that you use the

ST-CS or CNCS Current

Sensors. Refer to the latest

revisions of the ST-CS (DOC.

5677) or CNCS (DOC. 8079)

Operation Guides, in the

Downloads | Product

Manuals section of the

Crestron website

(www.crestron.com)

for more information.

Television not

operating properly.

Verify that the television turns

OFF/ON manually.

Room Solution

Box not sensing

television

OFF/ON status.

CNXRMCS digital

output wires or

connector not firmly

connected.

Verify that each digital output

wire and the 2-pin connector

are firmly connected.

CNXRMCS is not

receiving power.

Confirm that the power outlet

has AC voltage and that the

CNXRMCS is firmly plugged

in the outlet.

No power to

television or

other high

current device.

CNXRMCS is not

transferring power to

its outlet.

Confirm that the CNXRMCS

outlet has AC when plugged

in the power outlet and the

high current device plug is

firmly plugged in the

CNXRMCS outlet.

Operations Guide – DOC. 8175A Current Sensor for Room Solution Boxes: CNXRMCS •5

Current Sensor for Room Solution Boxes Crestron CNXRMCS

Further Inquiries

If after reviewing this Operations Guide for the CNXRMCS, you cannot

locate specific information or have questions, please take advantage of

Crestron's award winning customer service team by calling:

• In the US and Canada, call Crestron’s corporate headquarters at

1-888-CRESTRON [1-888-273-7876].

• In Europe, call Crestron International at +32-15-50-99-50.

• In Asia, call Crestron Asia at +852-2341-2016.

• In Latin America, call Crestron Latin America at

+5255-5093-2160.

• In Australia and New Zealand, call Crestron Control Solutions

at +61-2-9737-8203.

Future Updates

As Crestron improves functions, adds new features, and extends the

capabilities of the CNXRMCS, additional information may be made

available as manual updates. These updates are solely electronic and

serve as intermediary supplements prior to the release of a complete

technical documentation revision.

Check the Crestron website (www.crestron.com) periodically for manual

update availability and its relevance. Updates are available from the

Download | Product Manuals section and are identified as an

“Addendum” in the Download column.
