Crestron CT-1000 Bedienungsanleitung

Crestron Touchpanels

Pre-Construction Options

Wallmount Touchpanel Mounting Options/Accessories

quickstart guide

www.crestron.com

800.237.2041

change without notice

201.767.3400

For details, check the latest revision of the appropriate mounting kit

Installation Guide for your touchpanel. Refer to the tables on Page 2.

QUICKSTART DOC. 6140C (2001953) 03.06

Crestron Touchpanels

Post-Construction Options

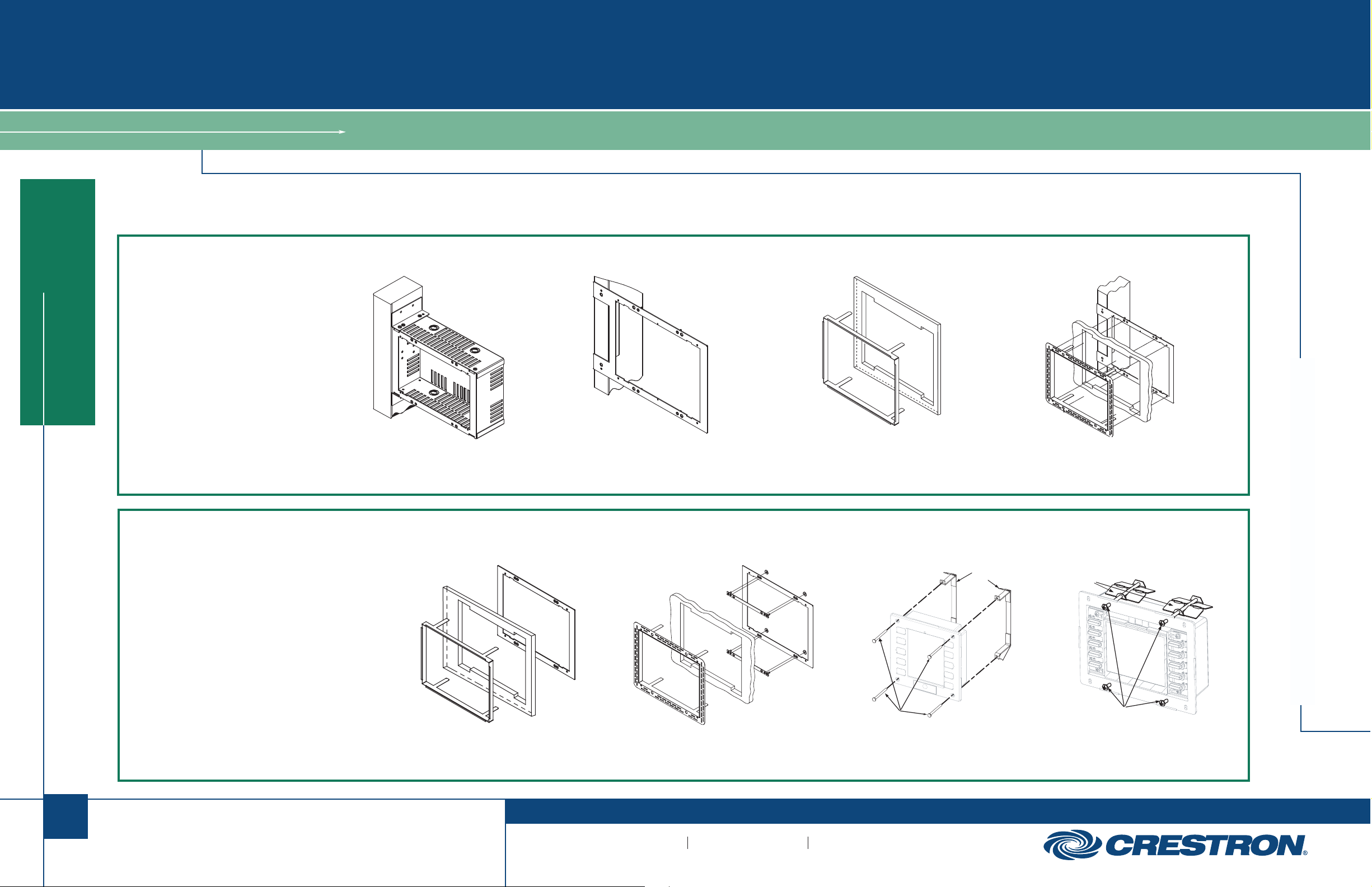

This guide covers mounting options and accessories for Series 1000, TPS-2000L, TPS-3100L Series,

TPS-4000L Series, Isys

TPS-4L/TPMC-4L Series, TPS-12L/15L,17L, and TPMC-15/17-CH/QM-L

touchpanels.

Pre-Construction Accessory

Trim Mount Kit (TMK)

Used with BB or PMK installations for smaller

irregularities around the opening. This option

provides a smooth, finished appearance and is

preferred when wallpaper is hung.

Pre-Construction Accessory

Mud Mount Kit (MMK)

Used with BB or PMK installations to fill in

larger irregularities around the opening. This

option requires plastering.

Wall Mount Kit with Trim Ring

(WMKT)

Wall Mount Kit with Mud Ring

(WMKM)

NOTE: The illustrations in this guide are representative of a mounting option or accessory type. The main

difference in option/accessory types for each touchpanel series is size and, where applicable, the number of

screws required.

Pre-construction options (BB, PMK) are

installed prior to hanging drywall, and

require access to an adjacent structural

support (stud). The TMK and MMK acces-

sories are used to correct irregularities in

the holes cut in the drywall.

Post-construction options (WMKT,

WMKM, WMKB) are for mounting to

finished walls or other surfaces where

access to a structural support member

(stud) is not possible or does not apply

(e.g., lectern mount).

Mounting

Clips

Mounting

Screws

Wall Mount Kit - Bracket

(WMKB - TPS-4L/TPMC-4L)

Mounting

Screws

Mounting

Brackets

Wall Mount Kit - Bracket

(WMKB - LC/CT-1000)

Back Box Kit

(BB)

Use in installations where a back

box is either required or

preferred.

Pre-Construction Mount Kit

(PMK)

Use in installations where a back

box is not required or not

preferred.

Used to correct larger irregularities

around the opening.This option

requires plastering.

These kits are used to secure the touchpanel directly to the mounting

surface without requiring an internal mounting plate . The mounting

hardware used depends on the touchpanel. After installation, the

mounting screws are hidden by the touchpanel bezel (not shown).

Used to fill in smaller irregularities around

the opening. This option provides a smooth,

finished appearance and is preferred when

wallpaper is hung.

PRE-CONSTRUCTION OPTION POST-CONSTRUCTION OPTION MODEL NUMBER DOCUMENT NUMBER

TPS-12L/15L /17L & TPMC-15/17-QM/CH-L

Back Box Kit BB-12L 6357

BB-15L 6362

BB-17L 6367

Pre-Construction Mount Kit PMK-12L 6358

PMK-15L 6363

PMK-17L 6368

Mud Mount Kit (accessory) MMK-12L 6359

MMK-15L 6364

MMK-17L 6369

Trim Mount Kit (accessory) TMK-12L 6360

TMK-15L 6365

TMK-17L 6370

Wall Mount Kit - Mud WMKM-12L 6359

WMKM-15L 6364

WMKM-17L 6369

Wall Mount Kit - Trim WMKT-12L 6063

WMKT-15L 6365

WMKT-17L 6370

Rack Mount Kit** RMK-12L 6361

RMK-15L 6366

RMK-17L 6402

* Cover can be placed over installed touchpanel

** The Rack Mount Kits consist of hardware designed to permit touchpanels to be installed in standard 19”EIA equipment

racks. Refer to the listed documents for details on these mounting options.

Crestron Touchpanels

Wallmount Touchpanel Mounting Options/Accessories

quickstart guide

www.crestron.com

800.237.2041

change without notice

201.767.3400

For details, check the latest revision of the appropriate

mounting kit Installation Guide for your touchpanel.

QUICKSTART DOC. 6140C (2001953) 03.06

Crestron Touchpanels

Touchpanels/Options/Accessories

PRE-CONSTRUCTION OPTION POST-CONSTRUCTION OPTION MODEL NUMBER DOCUMENT NUMBER

Series 1000

Back Box Kit BB-1000L 6060

Pre-Construction Mount Kit PMK-1000L 6061

Mud Mount Kit (accessory) MMK-1000L 6062

Trim Mount Kit (accessory) TMK-1000L 6063

Wall Mount Kit - Mud WMKM-1000L 6062

Wall Mount Kit - Trim WMKT-1000L 6063

Wall Mount Kit - Bracket WMKB-1000L 6283

Water Resistant Cover* CT/LC-WPK 5932

TPS-2000L

Back Box Kit BB-2000L 5973

Pre-Construction Mount Kit PMK-2000L 6018

Mud Mount Kit (accessory) MMK-2000L 6025

Trim Mount Kit (accessory) TMK-2000L 6026

Wall Mount Kit - Mud WMKM-2000L 6025

Wall Mount Kit - Trim WMKT-2000L 6026

Water Resistant Cover* TPS-WPK 5993

TPS-3100L Series

Back Box Kit BB-3100L 6298

Pre-Construction Mount Kit PMK-3100L 6297

Mud Mount Kit (accessory) MMK-3100L 6296

Trim Mount Kit (accessory) TMK-3100L 6295

Wall Mount Kit – Mud WMKM-3100L 6296

Wall Mount Kit – Trim WMKT-3100L 6295

Rack Mount Kit** RMK-3100L 6299

TPS-4000L Series

Back Box Kit BB-4000L 6305

Pre-Construction Mount Kit PMK-4000L 6304

Mud Mount Kit (accessory) MMK-4000L 6303

Trim Mount Kit (accessory) TMK-4000L 6302

Wall Mount Kit - Mud WMKM-4000L 6303

Wall Mount Kit - Trim WMKT-4000L 6302

Rack Mount Kit** RMK-4000L 6306

TPS-4L/TPMC-4L Series

Back Box Kit BB-4L 6387

Pre-Construction Mount Kit PMK-4L 6388

Mud Mount Kit (accessory) MMK-4L 6389

Trim Mount Kit (accessory) TMK-4L 6390

Wall Mount Kit - Mud WMKM-4L 6389

Wall Mount Kit - Trim WMKT-4L 6390

Wall Mount Kit - Bracket WMKB-4L N/A

NOTE: Make certain the template used to mark the opening in the mounting

surface is level (if on a wall), or square to the front edge (if on a lectern). Cut the

opening carefully, the mounting options provide for only minor position adjustment.
