Crestron MMK-1000L & WMKM-1000L Mud Mount Kits
Mud Mount Kits: MMK-1000L &
WMKM-1000L
Description
Mud Mount Kits are the preferred mounting option for the Series 1000 wall mounted
touchpanels when cutouts made for the touchpanel are too large. These kits fill in the
gaps with additional plastering and provide the support to hide large irregularities in
the touchpanel cutout.
There are two Mud Mount Kits. The MMK-1000L is a pre-construction accessory.
Pre-construction refers to framed walls prior to hanging drywall. This accessory is
designed for use with the Pre-Construction Mount Kit (PMK-1000L) or Back Box
Kit (BB-1000L).
The WMKM-1000L is a post-construction kit. Post-construction refers to framed
walls with drywall hung. This accessory is designed with a mounting plate so that it
can be placed anywhere on a wall without the support from a stud.
NOTE: If necessary, consult the latest revision of the Series 1000 Operations Guide
(Doc. 5813) for a complete list of mounting options.
Supplied Hardware
The MMK-1000L consists of three parts. These parts produce an assembly that
attaches to the PMK-1000L or BB-1000L. The WMKM-1000L consists of the same
three parts that make up the MMK-1000L as well as one mounting plate. The
mounting plate is the part that provides the necessary support for post-construction
applications.
Supplied Hardware of the MMK-1000L and WMKM-1000L
DESCRIPTION PART NUMBER QUANTITY
Metal Plate, Mounting
(WMKM-1000L only)
MTPL02832-1 1
Metal Plate, Mud Ring MTPL02835-1 1
Metal Plate, Fastener MTPL02833-1 2
Hardware, Push-On Fastener MMHO-11 4
Installation Guide – DOC. 6062 Mud Mount Kits: MMK-1000L & WMKM-1000L •1
Mud Mount Kits Crestron MMK-1000L & WMKM-1000L
Installation
This section provides an installation procedure for each Mud Mount Kit. The
procedure for the MMK-1000L starts below and the “WMKM-1000L Procedure”
starts on page 4.
MMK-1000L Procedure
The procedure in this section provides the necessary steps for the assembly of the
MMK-1000L to either the PMK-1000L or BB-1000L. It is assumed that the
PMK-1000L or BB-1000L has been secured to the stud according to the procedures
in the latest revisions of their respective Installation Guides (Doc. 6061 and Doc.
6060, respectively). Also, it is assumed that drywall is in place and a square cutout
for the touchpanel is made in the drywall measuring 4½ inches wide (114 mm) x 4½
inches high (114 mm).
Complete the steps in the order provided. The only tools or materials required and
not supplied are a drywall saw or equivalent, four standard drywall screws, #2
Phillips screwdriver, a level, and tools/material to apply drywall joint compound.
NOTE: The illustrations in this procedure show the installation of the MMK-1000L
with the PMK-1000L. Even though the illustrations only show the PMK-1000L, they
are identical for the BB-1000L as well.
1. Pass a fastener plate through the opening and align its two center holes
with the top two pins on the PMK-1000L. Verify that the pins on the
fastener plate are not between the fastener plate and the PMK-1000L.
Refer to the illustration after this step for visual guidance.

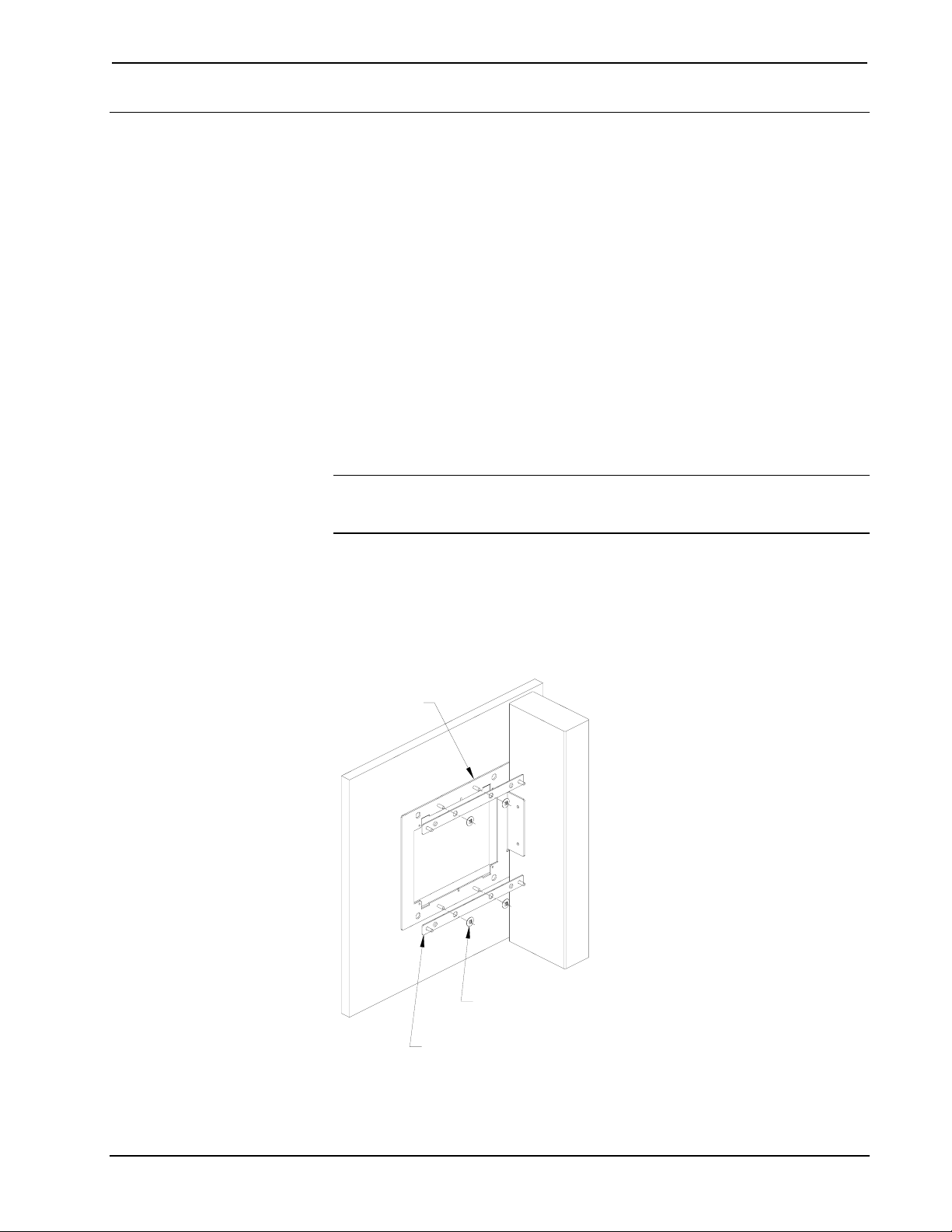

Secure Fastener Plates to PMK-1000L (or BB-1000L)
QTY.4
PUSH-ON FASTENER
QTY.2
FASTENER PLATE
PMK-1000L
2 •Mud Mount Kits: MMK-1000L & WMKM-1000L Installation Guide – DOC. 6062
Crestron MMK-1000L & WMKM-1000L Mud Mount Kits
2. Slide a push-on fastener over each of the top pins on the
PMK-1000L (or BB-1000L). Do not push the fasteners all the way
down onto the pins. Slide them on enough to keep the fastener plate
and mounting plate as one fastener/mounting plate assembly. This
allows for minor mounting adjustments.
3. Use the second fastener plate and repeat steps 1 and 2 using the lower
two PMK-1000L pins.
NOTE: When installing into the PMK-1000L, verify that the 18 AWG bus wire
securing the cables for the touchpanel remain attached.
4. Verify that the square cutout in the drywall measures 4½ inches wide
(114 mm) x 4½ inches high (114 mm) and is level.
5. Insert the symmetrical mud ring plate into the opening, as shown in the
illustration after this step.
Insert and Secure Mud Ring Plate into PMK-1000L (or BB-1000L)
QTY.1
MUD RING
DRYWALL CUTOUT:
412in WIDE x 412in HIGH
(114 mm WIDE x 114 mm HIGH)
6. When the mud ring plate is in position, bend the top two flanges of the
plate upward and the bottom two flanges downward.
• If mounting into the PMK-1000L, bend the flanges
approximately 90 degrees.
• If mounting into the BB-1000L, bend the flanges back as far
as they can go.
7. Use four standard drywall screws (of adequate length) to secure the
mud ring plate to the rest of the assembly. The screws pass through the
Installation Guide – DOC. 6062 Mud Mount Kits: MMK-1000L & WMKM-1000L •3
Mud Mount Kits Crestron MMK-1000L & WMKM-1000L
clearance holes in the PMK-1000L (or BB-1000L) and are secured in
the extruded holes of the fastener plates.
8. Verify that the mud ring plate is level.
NOTE: Do not over tighten screws. Doing so may over-dimple or rip the mud ring
plate.
9. Use a #2 Phillips screwdriver and tighten the drywall screws by hand
so that they slightly dimple into the holes in the mud ring plate.
10. Apply drywall joint compound as needed to finish the cutout.
11. When dry, the Series 1000 touchpanel can be installed using the four
tapped holes in the PMK-1000L. Refer to the latest revision of the
Series 1000 Operations Guide (Doc. 5813) for details.
WMKM-1000L Procedure
The procedure in this section provides the necessary steps for the assembly and
installation of the WMKM-1000L into a wall. Complete the steps in the order
provided. The only tools or materials required and not supplied are a drywall saw or
equivalent, a level, four standard drywall screws, #2 Phillips screwdriver, and
tools/material to apply drywall joint compound.
1. Insert the two pins on one fastener plate into the top two outer holes on
the mounting plate, as shown in the illustration after this step.
Create the Fastener/Mounting Plate Assembly
MOUNTING PLATE
PUSH-ON FASTENER
FASTENER PLATE
QTY.2
QTY.4
QTY.1
4 •Mud Mount Kits: MMK-1000L & WMKM-1000L Installation Guide – DOC. 6062
Crestron MMK-1000L & WMKM-1000L Mud Mount Kits
2. Slide a push-on fastener over each pin on the top fastener plate. Do not
push the fasteners all the way down onto the pins. Slide them on
enough to keep the fastener plate and mounting plate as one
fastener/mounting plate assembly. This allows for minor mounting
adjustments.
3. Use the second fastener plate and repeat steps 1 and 2 on the lower part
of the mounting plate.
4. Locate an area on the wall that is free of miscellaneous wiring and
studs.
5. Make a small hole near the middle of the designated site; verify that the
location is suitable.
NOTE: Make the cutout as level as possible. The mounting plate allows for only
minor leveling adjustments.
6. Use the drywall saw or equivalent to produce a level, square cutout in
the drywall that measures 4½ inches wide (114 mm) x 4½ inches high
(114 mm).
7. Insert the symmetrical mud ring plate into the opening, as shown in the
illustration after this step.
Insert the Mud Ring Plate into the Opening
MUD RING DRYWALL CUTOUT:
412in WIDE x 412in HIGH
(114 mm WIDE x 114 mm HIGH)
8. Carefully pass the fastener/mounting plate assembly through the
opening and rest the assembly against the interior surface of the
Installation Guide – DOC. 6062 Mud Mount Kits: MMK-1000L & WMKM-1000L •5
Mud Mount Kits Crestron MMK-1000L & WMKM-1000L
drywall. Verify that the fastener plates are between the mounting plate
and the drywall.
9. When the fastener/mounting plate assembly is in position, bend the top
two flanges of the mud ring upward (approximately 90 degrees) and the
bottom two flanges downward (approximately 90 degrees). Refer to the
illustration after this step.
NOTE: Fastener/mounting plate assembly will have slight play; this is normal. It
allows for minor adjustments to the touchpanel during installation.
Bend Flanges
APPROX. 90°
TABS UP
BEND THESE
APPROX. 90°
TABS DOWN
BEND THESE
10. Use four standard drywall screws (of adequate length) to secure the
plate to the fastener/mounting plate assembly. The screws pass through
the tapped holes in the mounting plate and are secured to the extruded
holes of the fastener plates.
11. Verify that the plate is level before tightening.
NOTE: Do not over tighten screws. Doing so may over-dimple or rip the plate.
12. Use a #2 Phillips screwdriver and tighten the drywall screws by hand
so that they slightly dimple into the holes in the mud ring plate.
6 •Mud Mount Kits: MMK-1000L & WMKM-1000L Installation Guide – DOC. 6062
Crestron MMK-1000L & WMKM-1000L Mud Mount Kits
13. Run the necessary cable for the touchpanel and secure it behind the
drywall.
14. Apply drywall joint compound as needed to finish the cutout. Avoid
covering the 4 tapped mounting holes.
15. When dry, the 1000 Series touchpanel can be installed using the four
tapped holes in the mounting plate. Refer to the latest revision of the
Series 1000 Operations Guide (Doc. 5813) for details.
Installation Guide – DOC. 6062 Mud Mount Kits: MMK-1000L & WMKM-1000L •7
Mud Mount Kits Crestron MMK-1000L & WMKM-1000L
Further Inquiries
If after reviewing this Installation Guide, you cannot locate specific information or
have questions, please take advantage of Crestron's award winning customer service
team by calling:
• In the US and Canada, call Crestron’s corporate headquarters at
1-888-CRESTRON [1-888-273-7876].
• In Europe, call Crestron International at +32-15-50-99-50.
• In Asia, call Crestron Asia at +852-2341-2016.
• In Latin America, call Crestron Latin America at +5255-5093-2160.
• In Australia and New Zealand, call Crestron Pacific at
+613-9480-2999.
As of the date of manufacture, the MMK-1000L and WMKM-1000L have been
tested and found to comply with specifications for CE marking.
Future Updates
As Crestron improves functions, adds new features, and extends the capabilities of
the MMK-1000L or WMKM-1000L, additional information may be made available
as manual updates. These updates are solely electronic and serve as intermediary
supplements prior to the release of a complete technical documentation revision.
Check the Crestron website (www.crestron.com) periodically for manual update
availability and its subjective value. Updates are available from the Download |
Product Manuals section and are identified as an “Addendum” in the Download
column.
8 •Mud Mount Kits: MMK-1000L & WMKM-1000L Installation Guide – DOC. 6062
Dieses Handbuch passt für folgende Modelle
1
Inhaltsverzeichnis
Andere Crestron Rack & Stand Handbücher
Crestron
Crestron MMK-V15 Bedienungsanleitung
Crestron
Crestron SSW-MUMK Bedienungsanleitung
Crestron
Crestron RMK-9L Bedienungsanleitung
Crestron
Crestron RMK-12L Bedienungsanleitung
Crestron
Crestron MP-WP-2XLRO-1G Bedienungsanleitung
Crestron
Crestron RMK-17L Bedienungsanleitung
Crestron
Crestron MMK-12L Bedienungsanleitung
Crestron
Crestron TSW-UMB-60 Bedienungsanleitung
Crestron
Crestron SMK-6X Bedienungsanleitung
Crestron
Crestron MMK-17L Bedienungsanleitung
Crestron
Crestron SPKA-FMKT-IC6 Bedienungsanleitung
Crestron
Crestron BB-1000 Bedienungsanleitung
Crestron
Crestron RMK-TPS3000L Bedienungsanleitung
Crestron
Crestron TMK-12L Bedienungsanleitung
Crestron
Crestron CT-1000 Bedienungsanleitung
Crestron
Crestron Mud Ring Mount Kit for Cameo 2 MMK-CBF-T Bedienungsanleitung
Crestron
Crestron RMK-6000 Bedienungsanleitung
Crestron
Crestron PMK-4L Bedienungsanleitung
Crestron
Crestron TSW-550-TTK Bedienungsanleitung
Crestron
Crestron ST-RMK Bedienungsanleitung
Beliebte Rack & Stand Handbücher anderer Marken
Salamander
Salamander Acadia AC/W/L400/WH Bedienungsanleitung
Fohhn
Fohhn VAT-09 Benutzerhandbuch
ricoo
ricoo FS0522 Bedienungsanleitung
AMSOIL
AMSOIL BMK-22 Kurzanleitung
Kargo Master
Kargo Master 48220 Bedienungsanleitung
Milestone AV Technologies
Milestone AV Technologies SIMPLICITY SLF2 Bedienungsanleitung
