Crestron WMKU-4SM Bedienungsanleitung

Crestron WMKU-4SM

Universal Wall Mount Kit

for TPMC-4SM Series

Installation Guide

This document was prepared and written by the Technical Documentation department at:

Crestron Electronics, Inc.

15 Volvo Drive

Rockleigh, NJ 07647

1-888-CRESTRON

Regulatory Compliance

As of the date of manufacture, the WMKU-4SM has been tested and found to comply with specifications for CE

marking and standards per EMC and Radiocommunications Compliance Labelling.

All brand names, product names and trademarks are the property of their respective owners.

Crestron WMKU-4SM Wall Mount Kit for TPMC-4SM Series

Contents

Universal Wall Mount Kit for TPMC-4SM Series: WMKU-4SM 1

Introduction ...............................................................................................................................1

Setup ..........................................................................................................................................2

Supplied Hardware ......................................................................................................2

Installation................................................................................................................... 3

Resources...................................................................................................................................8

Further Inquiries .......................................................................................................... 8

Future Updates ............................................................................................................ 8

Return and Warranty Policies ....................................................................................................9

Merchandise Returns / Repair Service ........................................................................ 9

CRESTRON Limited Warranty...................................................................................9

Installation Guide – DOC. 6978A Contents •i

Crestron WMKU-4SM Wall Mount Kit for TPMC-4SM Series

Universal Wall Mount Kit for

TPMC-4SM Series: WMKU-4SM

Introduction

The WMKU-4SM is a universal wall mount kit for Crestron®

TPMC-4SM Series touchpanels. It is designed for use with 1-gang and

2-gang U.S. electrical boxes and double gang European electrical boxes.

WMKU-4SM Dimensions

0.83 in

(21 mm)

1.70 in

(44 mm)

3.25 in

(83 mm)

3.44 in

(88 mm)

5.40 in

(137 mm)

4.74 in

(121 mm)

3.25 in

(83 mm)

1.82 in

(46 mm)

Installation Guide – DOC. 6978A Wall Mount Kit for TPMC-4SM Series: WMKU-4SM •1

Wall Mount Kit for TPMC-4SM Series Crestron WMKU-4SM

Setup

Supplied Hardware

The hardware supplied with the WMKU-4SM is listed in the following

table.

Supplied Hardware for the WMKU-4SM

DESCRIPTION PART NUMBER QUANTITY

Plastic Enclosure, Black12028284 1

Plastic Enclosure, White22028283 1

Screw, #04-40 x 3/4”, Flat,

Phil, Black1

2029111 2

Screw, #04-40 x 3/4”, Flat,

Phil, Zinc2

2029110 2

Screw, #04-40 x 3/4”, Flat,

Phil, Torx, Black1

2029108 2

Screw, #04-40 x 3/4”, Flat,

Phil, Torx, Zinc2

2029112 2

Screw, #06-32 x 1 1/2”,

Pan, Phil, Zinc

2007254 4

Screw, #M3.5 x 25 mm,

Pan, Phil, Zinc

2028659 2

1. This part comes with WMKU-4SM-B-S (Black).

2. This part comes with WMKU-4SM-W-S (White).

2 •Wall Mount Kit for TPMC-4SM Series: WMKU-4SM Installation Guide – DOC. 6978A

Crestron WMKU-4SM Wall Mount Kit for TPMC-4SM Series

Installation

Complete the following steps to install the WMKU-4SM. Refer to the

illustrations that follow this procedure.

1. Insert a small slot head screwdriver into the hole shown in the

following illustration and gently separate the back of the

touchpanel.

Insert Point for Separation of Back Panel

Insert screwdriver to separate back of touchpanel

2. Use the included screws to attach the WMKU-4SM to the

electrical box. Use two screws for 1-gang electrical boxes; use four

screws for 2-gang electrical boxes.

a. For 1-gang U.S. electrical boxes, use two of the included

#06-32 x 1 1/2” screws. For 2-gang U.S. electrical boxes, use

all four of the included #06-32 x 1 1/2” screws.

b. For double gang European electrical boxes, use the two

included #M3.5 x 25 mm screws.

3. Carefully position the front of the touchpanel over the

WMKU-4SM and gently snap it into place.

4. Use two of the #04-40 x 3/4” screws that came with your

touchpanel to attach the plastic enclosure (the bottom section with

the speaker grill) and secure the touchpanel.

a. For standard applications, use the Phillips screws.

b. For secure applications, use the security type Torx screws along

with the Torx screwdriver bit included with your touchpanel.

NOTE: Parts 2029111 and 2029108 come with black models.

Parts 2029110 and 2029112 come with white modes.

Installation Guide – DOC. 6978A Wall Mount Kit for TPMC-4SM Series: WMKU-4SM •3

Wall Mount Kit for TPMC-4SM Series Crestron WMKU-4SM

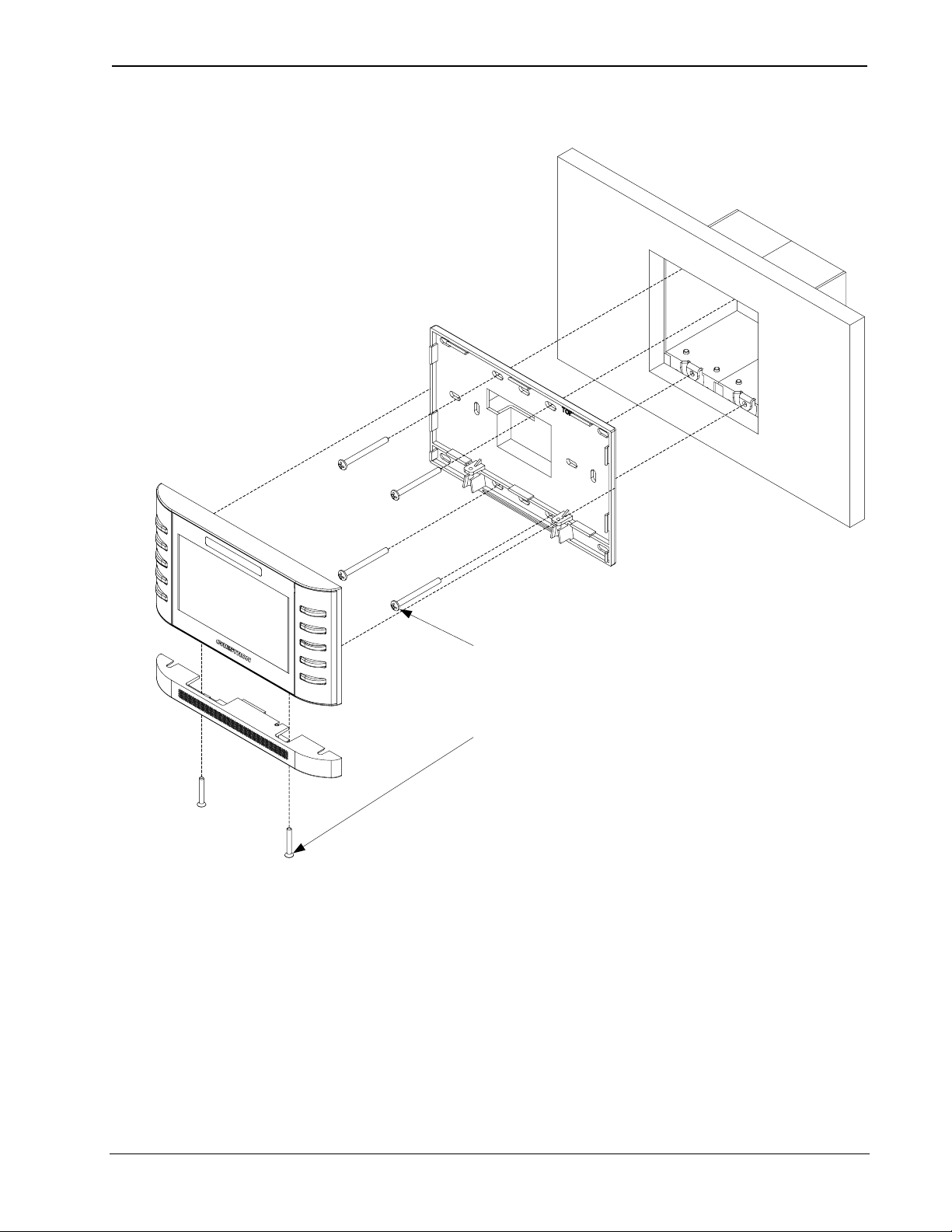

Mounting in a Vertically Installed 1-Gang Electrical Box

Screws (2) #06-32 x 1 1/2”

(2007254)

Screws (2) #04-40 x 3/4”

For standard applications: Phillips

(2029111 or 2029110)

For secure applications: security type Torx

(2029108 or 2029112)

4 •Wall Mount Kit for TPMC-4SM Series: WMKU-4SM Installation Guide – DOC. 6978A

Crestron WMKU-4SM Wall Mount Kit for TPMC-4SM Series

Mounting in a Horizontally Installed 1-Gang Electrical Box

Screws (2) #06-32 x 1 1/2”

(2007254)

Screws (2) #04-40 x 3/4”

For standard applications: Phillips

(2029111 or 2029110)

For secure applications: security type Torx

(2029108 or 2029112)

Installation Guide – DOC. 6978A Wall Mount Kit for TPMC-4SM Series: WMKU-4SM •5

Wall Mount Kit for TPMC-4SM Series Crestron WMKU-4SM

Mounting in a 2-Gang Electrical Box

Screws (4) #06-32 x 1 1/2”

(2007254)

Screws (2) #04-40 x 3/4”

For standard applications: Phillips

(2029111 or 2029110)

For secure applications: security type Torx

(2029108 or 2029112)

6 •Wall Mount Kit for TPMC-4SM Series: WMKU-4SM Installation Guide – DOC. 6978A
