Crestron TSW-550-BBI Wall Mount Back Box for TSW-550

Installation Guide – DOC. 7519A Contents •i

Contents

Wall Mount Back Box for TSW-550: TSW-550-BBI 1

Description................................................................................................................................. 1

Installation ................................................................................................................................. 3

Resources...................................................................................................................................6

Further Inquiries .......................................................................................................... 6

Future Updates ............................................................................................................ 6

Return and Warranty Policies .................................................................................................... 7

Merchandise Returns / Repair Service ........................................................................ 7

Crestron Limited Warranty.......................................................................................... 7

Crestron TSW-550-BBI Wall Mount Back Box for TSW-550

Installation Guide – DOC. 7519A Wall Mount Back Box for TSW-550: TSW-550-BBI •1

Wall Mount Back Box

for TSW-550: TSW-550-BBI

Description

The TSW-550-BBI provides a recess wall-mounted metal back box for

the Crestron®TSW-550 5” Touch Screen. It is designed for installation in

concrete and masonry applications. Conduit knockouts are provided on

the top and bottom.

NOTE: Depending on the installation, forced ventilation may be

required.

Wall Mount Back Box for TSW-550 Crestron TSW-550-BBI

2•Wall Mount Back Box for TSW-550: TSW-550-BBI Installation Guide – DOC. 7519A

The dimensions of the TSW-550-BBI are shown in the following

illustrations.

TSW-550-BBI Overall Dimensions (Top, Front and Side Views)

77 mm

(3.00 in)

105 mm

(4.13 in)

68 mm

(2.65 in)

NOTE: Knockout holes are intended for Class 2 wiring only and are

20 mm (13/16”) diameter.

Crestron TSW-550-BBI Wall Mount Back Box for TSW-550

Installation Guide – DOC. 7519A Wall Mount Back Box for TSW-550: TSW-550-BBI •3

Installation

The hardware supplied with the TSW-550-BBI is listed in the following

table.

Supplied Hardware for the TSW-550-BBI

DESCRIPTION PART

NUMBER

QUANTITY

Assembly, Back Box, International 4518364 1

Screw, #06-32 x 1/2”, Flat, Phil

2007241

To install the TSW-550-BBI, use the following procedure:

1. If it has not already been done, separate the two halves of the

mounting bracket that comes with the TSW-550 by removing the

two 1 1/2” screws that hold them together. Refer to the following

illustrations.

Separate Halves of Mounting Bracket Mounting Bracket (After Separation)

Remove (2) 1 1/2” Screws

2. The rear part of the mounting bracket can be saved for possible use

in the future. Only the front part is required for installation of the

TSW-550-BBI.

Wall Mount Back Box for TSW-550 Crestron TSW-550-BBI

4•Wall Mount Back Box for TSW-550: TSW-550-BBI Installation Guide – DOC. 7519A

3. Use the two #06-32 x 1/2” screws (2007241) that come with the

TSW-550-BBI to install the front part of the mounting bracket

assembly onto the back box. Refer to the following illustration.

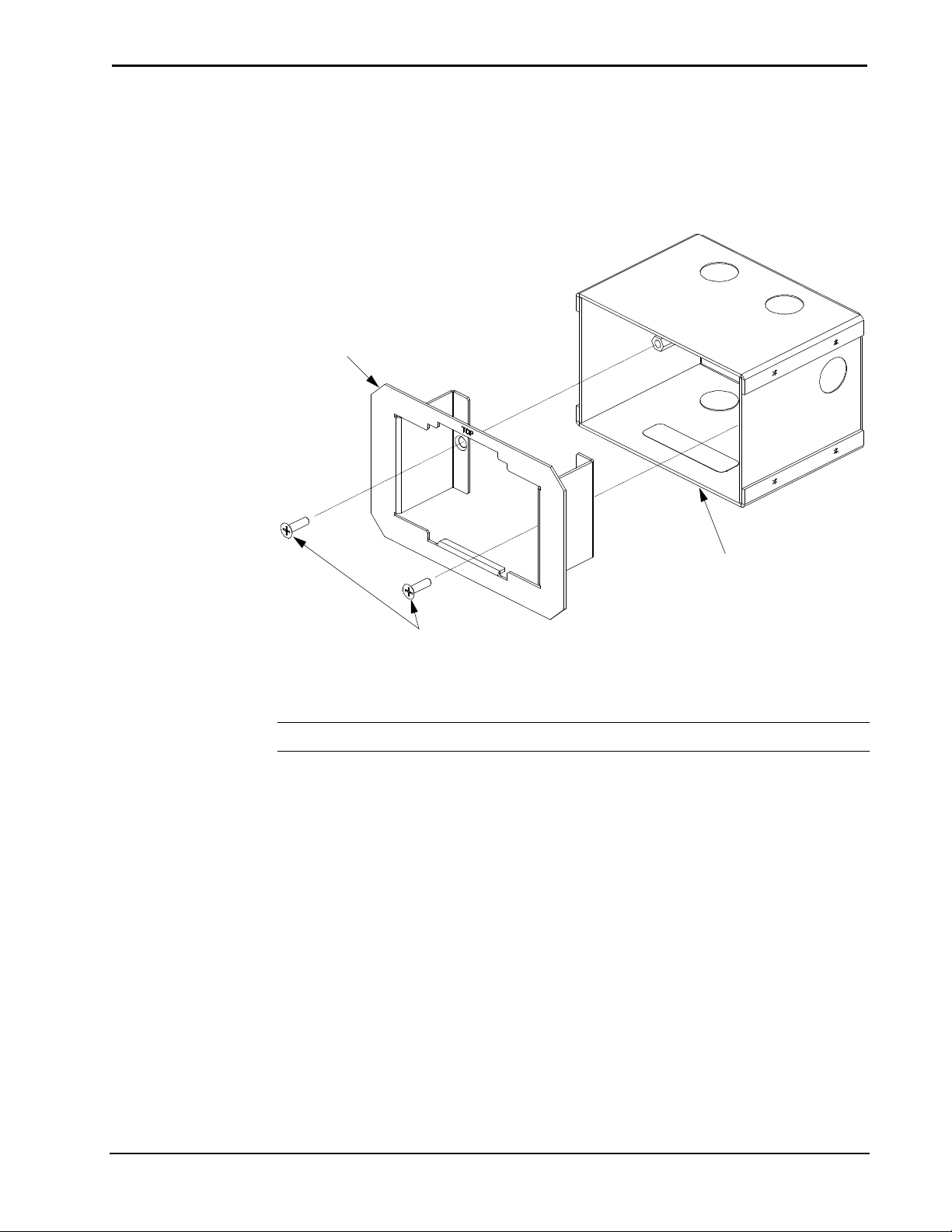

Install Mounting Bracket into TSW-550-BBI

Screws (2)

#06-32 x 1/2”

(2007241)

TSW-550-BBI

Metal Bracket

Included with

TSW-550

NOTE: Remove the appropriate knockouts before installation.

Crestron TSW-550-BBI Wall Mount Back Box for TSW-550

Installation Guide – DOC. 7519A Wall Mount Back Box for TSW-550: TSW-550-BBI •5

4. Make sure the “TOP” text on the inside of the back box is facing

upward. Mount the TSW-550-BBI as shown in the following

illustration. Depending on the installation, forced ventilation may

be required.

Mounting the TSW-550-BBI (Exploded View)

Solid Mounting

Surface Such As

Concrete or Masonry

Plaster

TSW-550-BBI

Metal Bracket

Included with

TSW-550

Screws (2)

#06-32 x 1/2”

(2007241)

Wiring

Cutout in

Mounting

Surface

Wall Mount Back Box for TSW-550 Crestron TSW-550-BBI

6•Wall Mount Back Box for TSW-550: TSW-550-BBI Installation Guide – DOC. 7519A

Resources

Further Inquiries

To locate specific information or resolve questions after reviewing this

guide, contact Crestron's True Blue Support at 1-888-CRESTRON

[1-888-273-7876] or refer to the listing of Crestron worldwide offices on

the Crestron Web site (www.crestron.com/offices) for assistance within a

particular geographic region.

To post a question about Crestron products, log onto the Online Help

section of the Crestron Web site (www.crestron.com/onlinehelp).

First-time users must establish a user account to fully benefit from all

available features.

Future Updates

As Crestron improves functions, adds new features and extends the

capabilities of the TSW-550-BBI, additional information may be made

available as manual updates. These updates are solely electronic and

serve as intermediary supplements prior to the release of a complete

technical documentation revision.

Check the Crestron Web site periodically for manual update availability

and its relevance. Updates are identified as an “Addendum” in the

Download column.
