CTA PAD-PARAFPE Bedienungsanleitung

Base Component

for Convertible Printer Shelf Floor Stand

PAD-PARAFPE

INSTRUCTION - MANUAL

CONTENTS:

INSTALLATION:

888-733-4448

1. Assembling base

1A. Combine both halves of the base (B) as shown above. Take (1) unit of

the body (A) and align the mounting holes. Rotate in (4) screws (E) with

provided allen key until securely tightened.

2. Attaching Base Pads

2A. Flip over the now combined base section. Find the base pads (H) and

peel off the sticker to expose the adhesive. Place the foam pads (adhesive

face down on base) at the corners and give it a firm press for a few

seconds until it’s securely attached.

3. Assembling Body Segments

3A. Find the other body unit (A) and the printer shelf component. First

unlock the compartments using the keys (I).Then align holes between

two body units at a time. Take (4) screws (E) and using the provided

allen key tool (G), rotate in the screws as shown until securely tightened.

M5 x 6

x12

M5 x 12

M6 anchor

M5 Allen Key

Foam Adapter & Sheet Bundle

(4)

888-733-4448

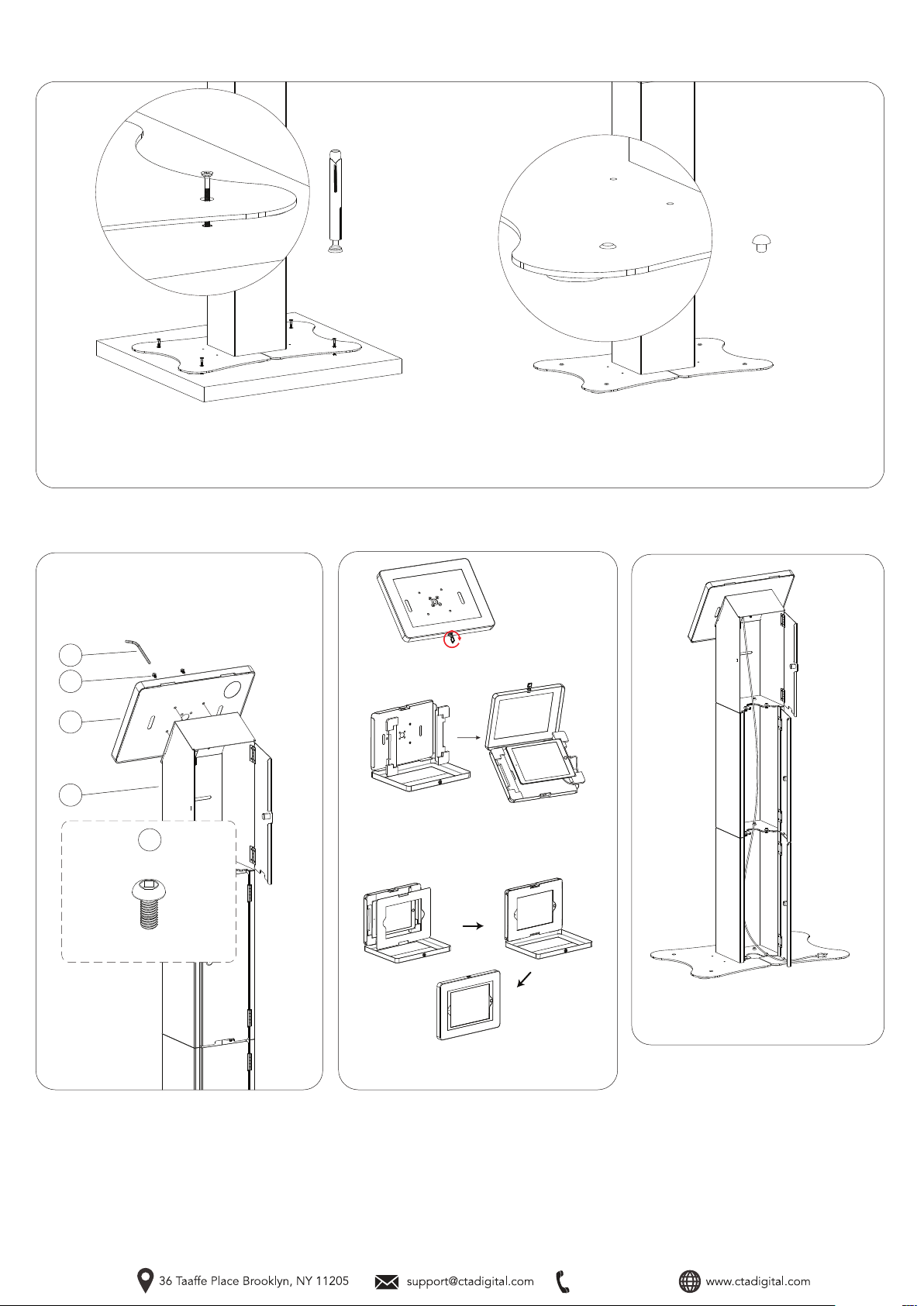

4. (Optional) Anchoring Base to Floor

4A. Drill (4) holes into the surface using a power drill or like (not

provided). Take the metal anchor (F) and place the casing into the

holes. Then take the screw end and rotate in with screwdriver (not

included) until securely tightened.

4B. If not anchoring into floor, use the (2) hole fillers (D) to plug in for a

more seamless look.

Setting Up Device

& Enclosure

Lock or unlock your tablet enclosure with security key

as shown

Find the appropriate size foam padding (included) for

the tablet you wish to use. Make sure device is

compatible for the enclosure. Lay in device and

connect any cables/cords as needed.

If needed, lay-in correct included masking insert.

Close and lock enclosure afterwards and you’re set

**Tablet shown for

illustration and

NOT INCLUDED.

**Tablet shown for

illustration and

NOT INCLUDED.

F (4) D (4)

5. Assembling Enclosure to

Printer Shelf Component

5A. Align the VESA holes of the enclosure (J) to

that of the printer shelf component (C). Rotate in

screws (E) from above using provided allen key

tool (G) as shown until securely tightened.

(4) M5 x 12

Cable Routing

Cable Management

Unlock all (3) body unit storage compartments

using the correct key for each section. Fish the

cables through as shown and out the opening

at the very bottom as needed.
