CTA PAD-ASKB10 Bedienungsanleitung

Dual Security Kiosk Stand with Locking Case and Cable

PAD-ASKB10

INSTRUCTION - MANUAL

CONTENTS:

INSTALLATION:

888-733-4448

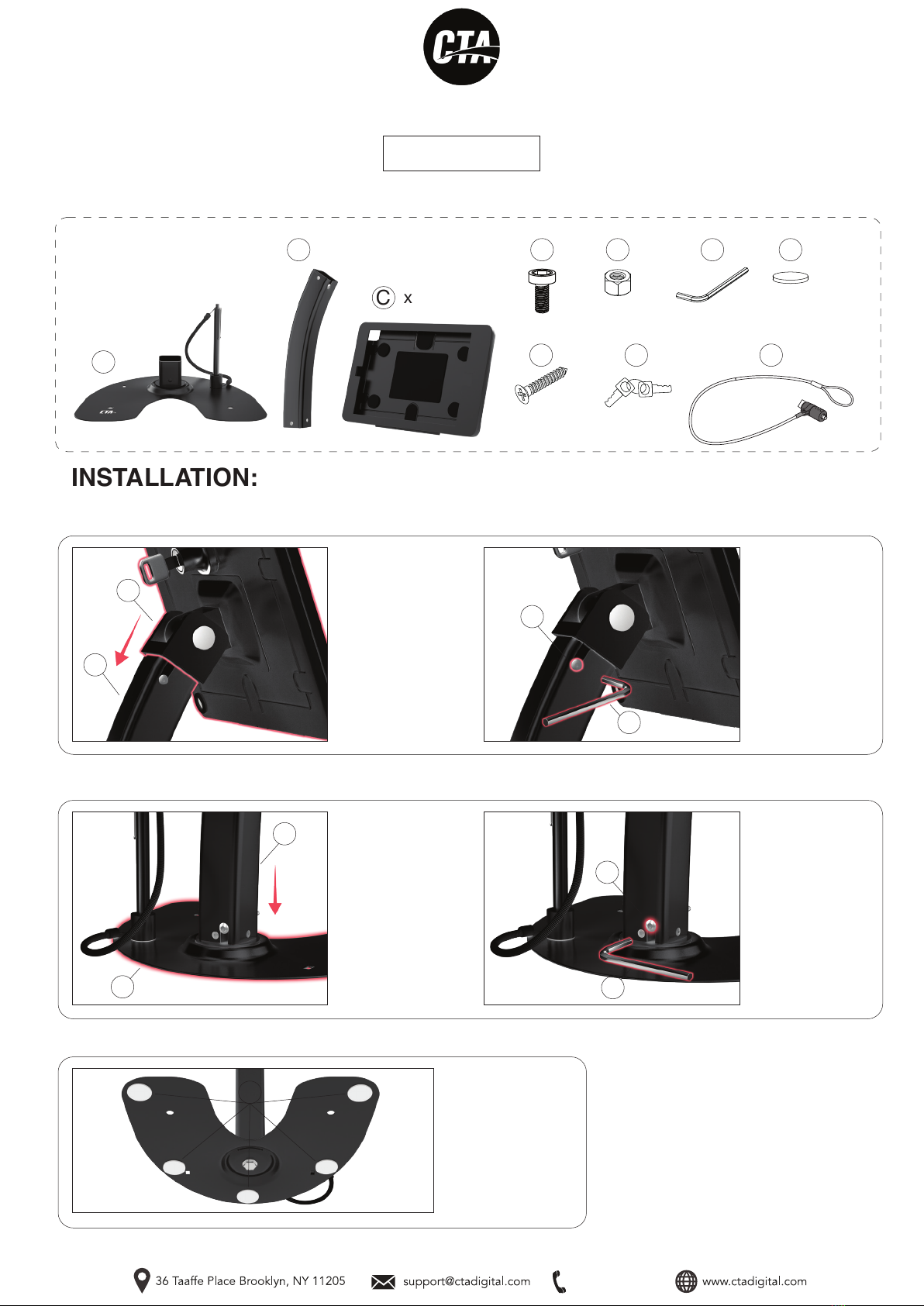

1. Attaching Holder to Body

Cx1

1A. Insert holder joint (C)

into body joint (B) and

align allen key hole.

1B. Screw the allen

screw (D) into hole and

securely tighten with

provied allen tool (F).

2. Attaching Body to Base

2A. Insert base joint (A)

into body joint (B) and

alling allen key hole.

2B. Insert the allen

screw (D) into hole and

securely tighten with

provided allen tool (F).

3. (Optional) Attaching Base Pads to Base

3A. Stick adhesive pads

(G) to bottom of stand

base (A) for scratch

protection and temporary

mounting.

888-733-4448

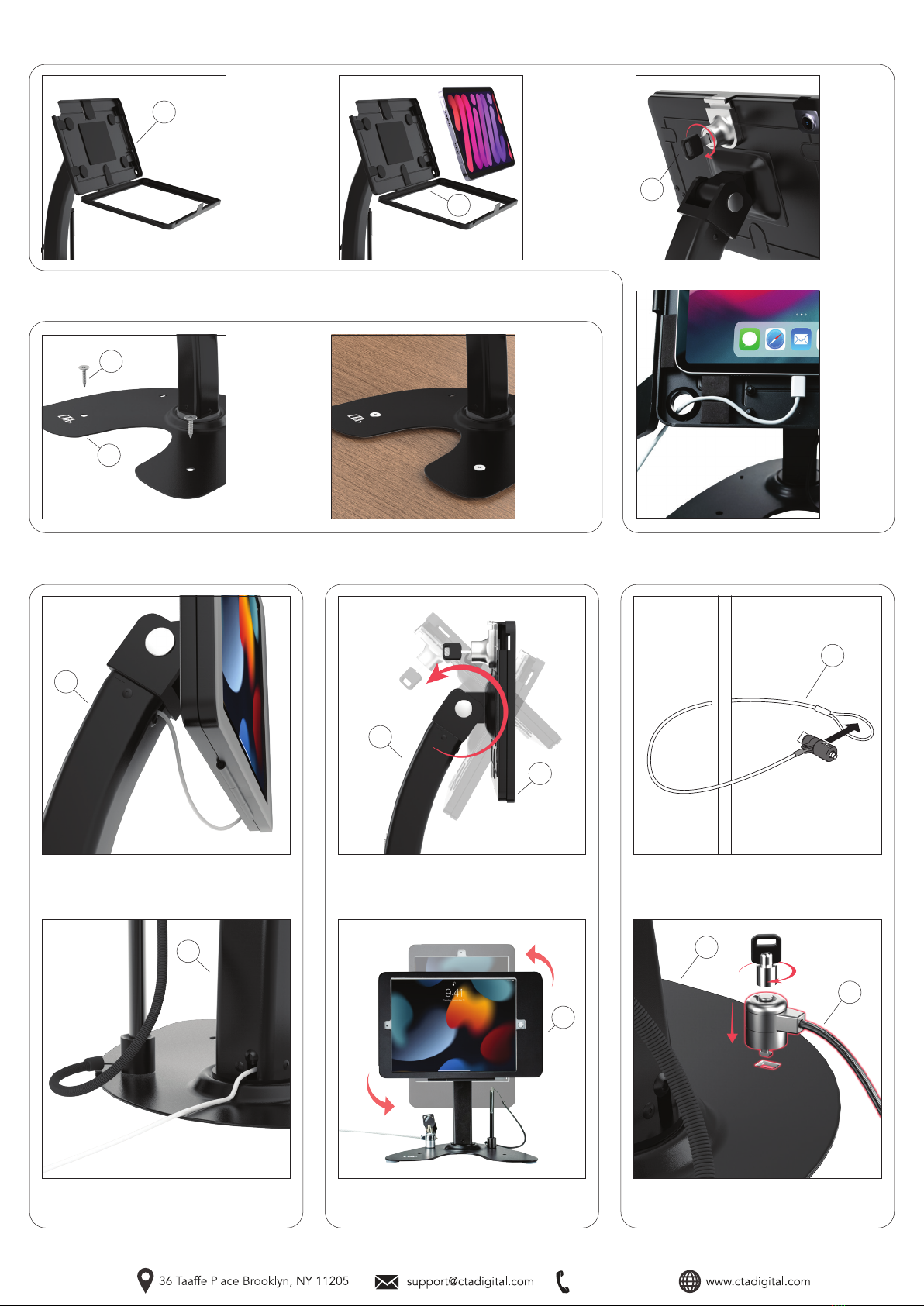

4. Inserting Tablet into Enclosure

5. (Optional) Bolting to Countertop

6. Cable Management 7. Adjustability 8. Security - Cable Lock

4A. Open the

case (C) with

the stand on

a flat surface.

4B. Place

your tablet

device inside

the tray (C).

5A. Aling the

two screws

(H) with the

holes in the

base (A).

5B. Screw in

screws until

securely

attached to

counter.

4C. Close

the case

door and

turn the key

(I) clockwise

to lock.

4D.

Internal

cable

routing.

6A. Fish the cable wire through the top end of the

kiosk body (B).

6B. Fish the cable wire out the other end as shown

above.

7A. Adjust the joint rotation to the prefered angle.

7B. Adjust the orientation to the prefered view.

8A. Anchor the cable loop of your security cable

lock (J) around an immovable object.

8B. Secure and lock the other end to the kiosk (A)

into the cable lock slot hole as shown.

**Tablet and

cable only shown

for illustration

purposes, not

included.

**Tablet only shown

for illustration purposes,

not included.

**Tablet and cable only

shown for illustration

purposes, not included.

**Tablet only shown

for illustration purposes,

not included.
