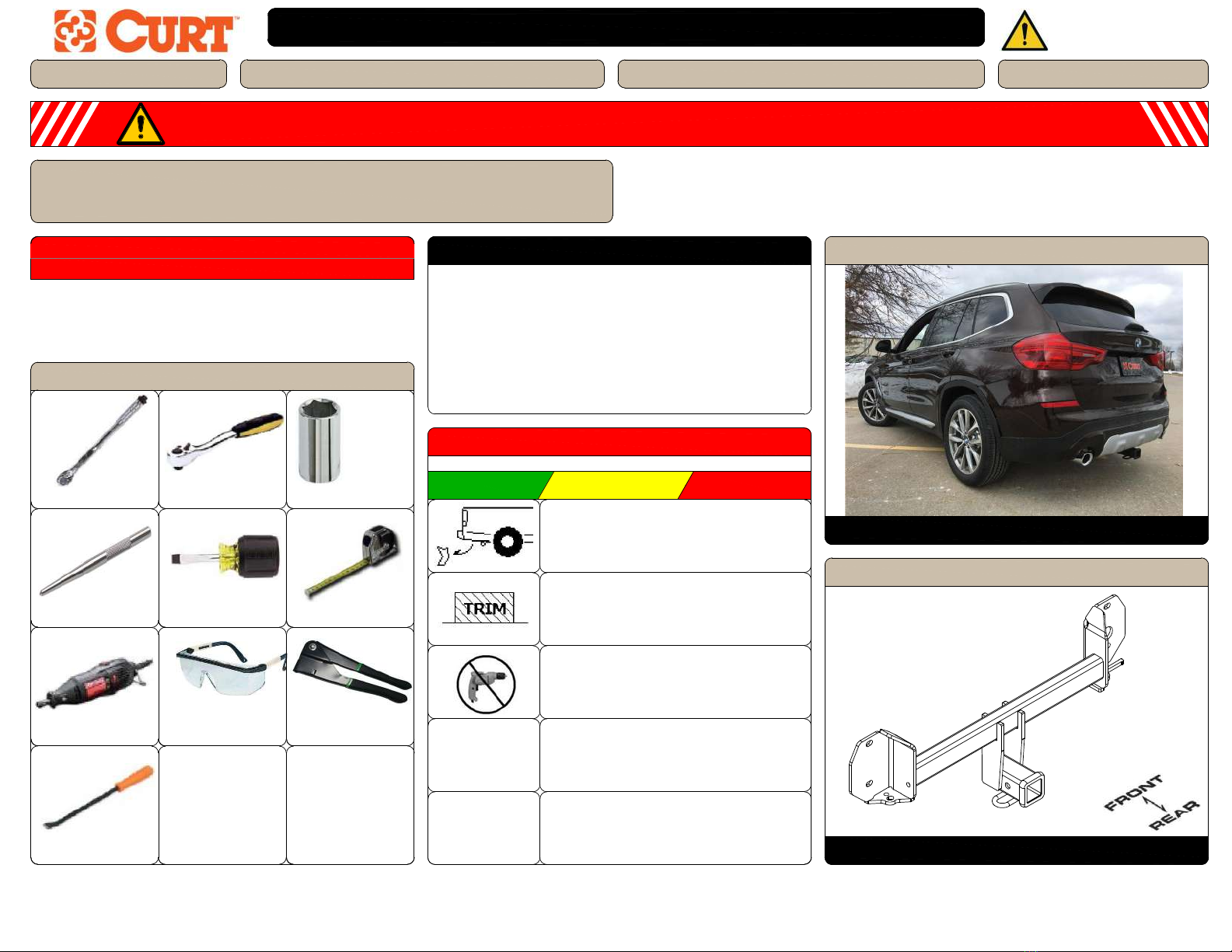

Curt Group 13387 Bedienungsanleitung

MAKE: STYLE:

MIN.90

WARNING: NEVER EXCEED YOUR VEHICLE MANUFACTURER'S RECOMMENDED TOWING CAPACITY

WEIGHT CARRYING:

INSTALLATION TIPS:

INSTALLATION REQUIRES:

VEHICLE PHOTO:

HITCH ILLUSTRATION:

REPRESENTATIVE PHOTO

MAKE SURE YOUR HITCH MATCHES

LEVEL OF DIFFICULTY: CHALLENGING

MODERATE CHALLENGING

1. BEFORE YOU BEGIN INSTALLATION, READ ALL

INSTRUCTIONS THOROUGHLY.

2. TO EASE INSTALLATION, 2 PEOPLE MAY BE

REQUIRED.

3. USING PROPER TOOLS WILL GREATLY IMPROVE

THE QUALITY OF THE INSTALL AND REDUCE THE

TIME REQUIRED.

Safety glasses should be

worn at all times while

installing this product.

YEARS: 2018-PRESENT BMW MODEL: X3 SUV

5,000

750

TRAILER WEIGHT:

TONGUE WEIGHT:

13387 INSTALLATION INSTRUCTIONS

LBS.

MIN.

MIN.180NOVICE INSTALL TIME:

PRO INSTALL TIME:

EASY

REMOVE BUMPER

AND EXHAUST HANGERS

TRIM UNDERBODY PANEL

NO DRILLING REQUIRED

PART REMOVAL

TORQUE

WRENCH RATCHET SOCKETS

8mm

10mm

18mm

SMALL PUNCH SCREW

DRIVER

TAPE

MEASURE

ROTARY TOOL

SAFETY

GLASSES PLASTIC RIVET

GUN

PRY BAR

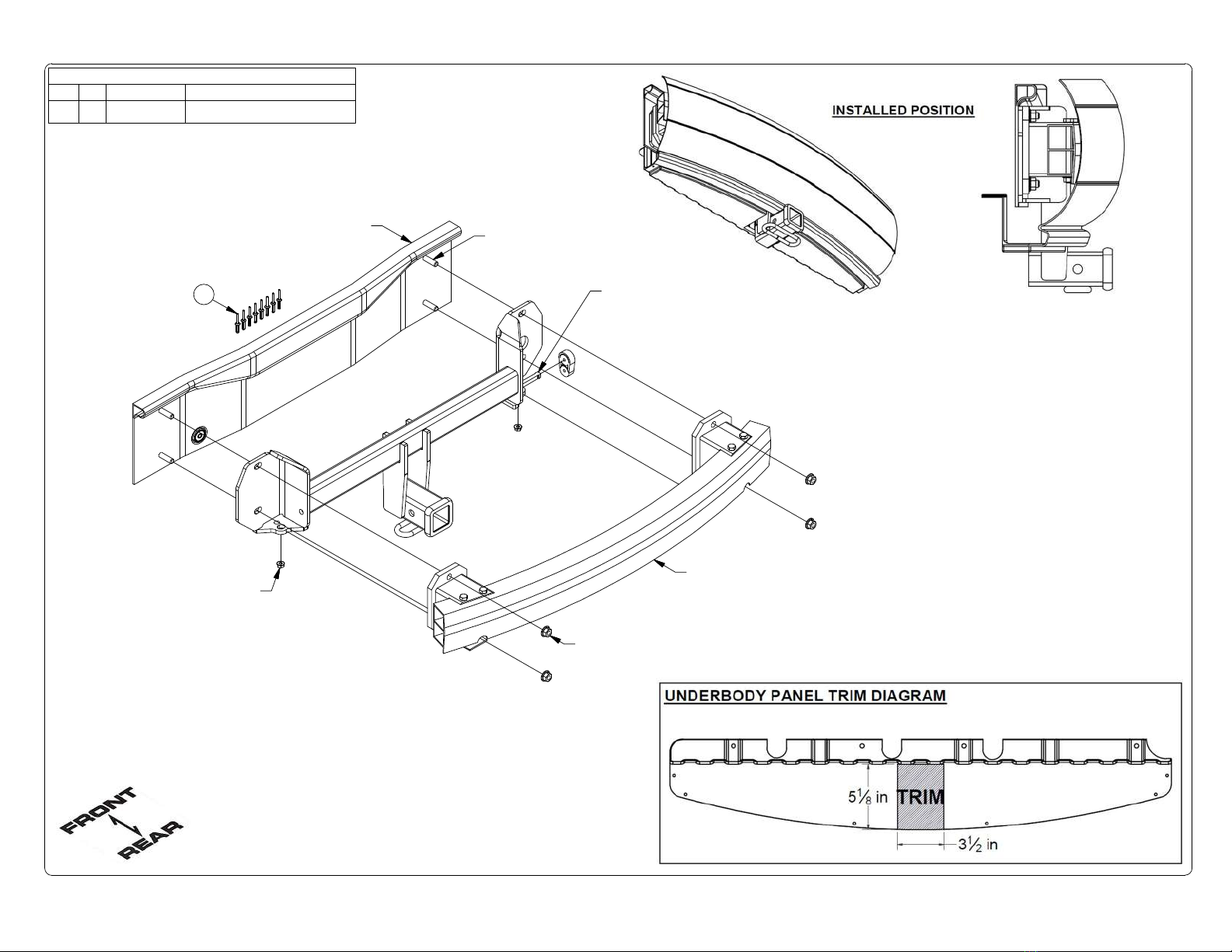

Parts List

DESCRIPTIONPART NUMBERQTYITEM

NYLON RIVET (AUVECO #20754)M6 RIVET81

INSTALLATION WALKTHROUGH:

USE TO REPLACE

VEHICLE HANGER

(BOTH SIDES)

BUMPER BEAM

EXISTING HARDWARE

(BOTH SIDES)

EXISTING VEHICLE STUDS

(BOTH SIDES)

VEHICLE FRAME

EXISTING VEHICLE STUDS

(BOTH SIDES)

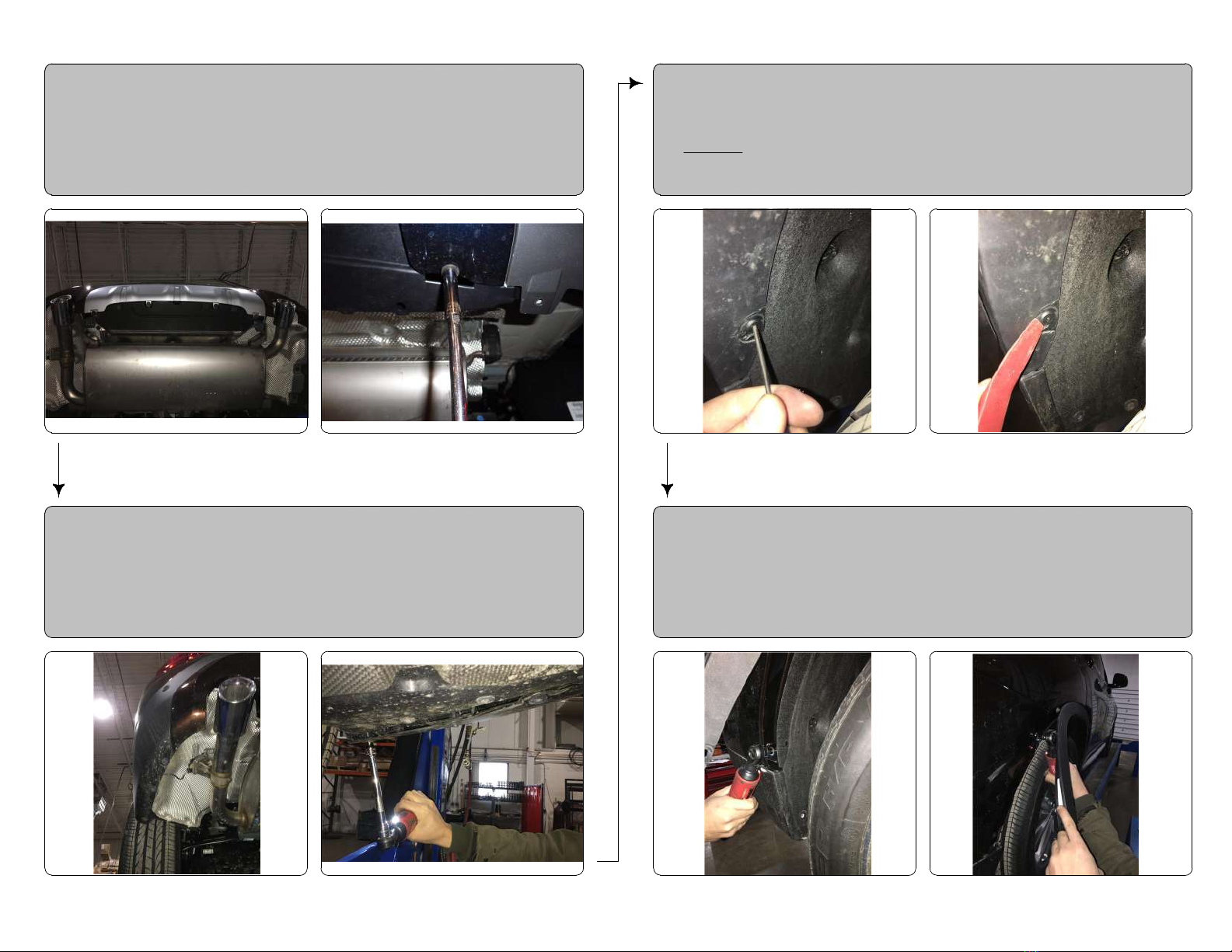

INSTALLATION WALKTHROUGH:

1. Remove underbody panel by removing (10) fasteners using

8mm socket.

2. Located on bottom of rear fascia remove (3) fasteners on

each side using 8mm socket. Inside wheel well trim remove

(1) fastener on each side using 8mm socket

3. Remove (3) rivets from wheel well trim above each tire. To

remove rivets push small center rod through rivet with a

small punch. Pry rivets from trim.

NOTE: Replacement rivets included.

4. Remove (2) fasteners from each side of bumper cover using

8 mm socket which are now accessible due to wheel well

trim removal.

INSTALLATION WALKTHROUGH:

5. Remove (1) plastic clip on each side using a pry tool.

Gently unclip plastic covers located on inside of each tail

light.

6. Located in trunk of vehicle remove interior panel to access

tail light and remove exposed fastener using 10mm socket.

7. Remove (2) nuts from each tail light using 10mm socket.

8. Unplug electrical harness and gently remove each tail light.

Remove (1) fastener from rear fascia under each tail light

on each side using 8mm socket.

INSTALLATION WALKTHROUGH:

9. Gently unclip (1) reflector on each side of rear fascia to

access and remove (1) fastener on each side using 8mm

socket.

10. Carefully remove rear fascia by releasing press in tabs

along top portion of rear fascia. If present, unclip electrical

harness.

11. Remove bumper beam by removing (2) nuts on each side

using 18mm socket. Also remove (1) nut on each side from

exhaust hanger that is attached to bumper beam using

13mm socket. Remove passenger side hanger and return

to owner. If present, unclip electrical harness.

12. Raise hitch and bumper beam into position onto vehicle

studs and secure using exisitng vehicle hardware. Use

vehicle hardware to reattach driver side hanger bracket.

Use hanger on hitch to reattach passenger side exhaust.

INSTALLATION WALKTHROUGH:

13. Torque all M12 hardware to 86 ft-lbs. Torque all M8

hardware to 23 ft-lbs.

14. Reinstall rear fascia and tail lights by reassembling

components removed in STEPS 2-10 in reverse order.

NOTE: A plastic rivet gun is required to fasten supplied

rivets when reinstalling wheel well trim.

15. Trim underbody panel. See UNDERBODY TRIM

DIAGRAM use as reference. Reinstall underbody panel as

removed in STEP 1.

NOTE: All dimensions are approximate, confimr fit prior to

trimming.

INSTALL COMPLETE

3.50" 5.125"

CURT provides the best trailer hitches and towing.
