Curt Group 11392 Bedienungsanleitung
MAKE: STYLE:
20

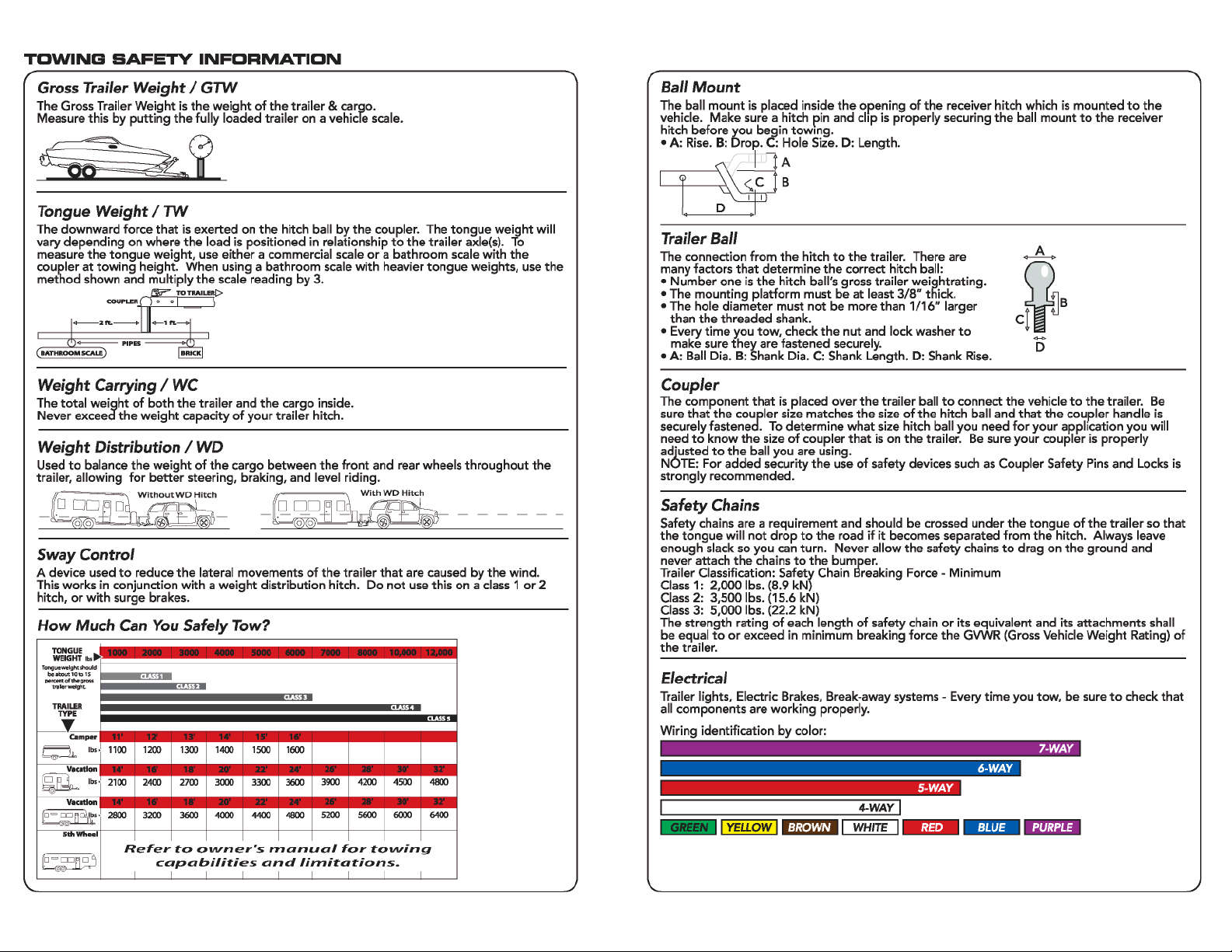

WARNING: NEVER EXCEED YOUR VEHICLE MANUFACTURER'S RECOMMENDED TOWING CAPACITY
WEIGHT CARRYING:
INSTALLATION TIPS:
INSTALLATION REQUIRES:
VEHICLE PHOTO:
HITCH ILLUSTRATION:
REPRESENTATIVE PHOTO
MAKE SURE YOUR HITCH MATCHES
LEVEL OF DIFFICULTY:
MODERATE
EASY MODERATE CHALLENGING
1. BEFORE YOU BEGIN INSTALLATION, READ ALL
INSTRUCTIONS THOROUGHLY.
2. TO EASE INSTALLATION, 2 PEOPLE MAY BE
REQUIRED.
3. USING PROPER TOOLS WILL GREATLY IMPROVE
THE QUALITY OF THE INSTALL AND REDUCE THE
TIME REQUIRED.
4. NEED HELP OR HAVE SOME QUESTIONS?
CALL TECHNICAL SUPPORT AT 800.798.0813
Safety glasses should be
worn at all times while
installing this product
.
YEARS: 2014-CURRENT KIA MODEL: FORTE KOUP
2,000
200
TRAILER WEIGHT:
TONGUE WEIGHT:
11392 INSTALLATION INSTRUCTIONS
LBS.
LBS.
WARNING:
WE RECOMMEND THE USE OF 18050 STABILIZING STRAPS FOR ALL NON-TRAILER
(WHEEL-LESS) LOADS. PLEASE SEE THE CURT CATALOG OR VISIT US ONLINE AT
WWW.CURTMFG.COM FOR FURTHER INFORMATION.
40 MIN.
MIN.
PRO INSTALL TIME:
NOVICE INSTALL TIME:
IF YOU ARE HESITANT TO UNDERTAKE
THIS TASK ON YOUR OWN, CONTACT AN AUTHORIZED
CURT INSTALLER FOR ADDITIONAL ASSISTANCE.
SCAN FOR
MORE INFO
PERIODICALLY CHECK THIS RECEIVER HITCH TO ENSURE ALL FASTENERS ARE TIGHT AND ALL STRUCTURAL COMPONENTS ARE SOUND
CURT Manufacturing LLC. warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective,
CURT Manufacturing LLC. may repair or replace the product at their option, when the product is returned, prepaid, with proof of purchase. Alteration to, misuse of, or improper installation of this product
voids the warranty. CURT Manufacturing LLC.'s liability is limited to repair or replacement of products found to be defective, and specifically excludes liability for incidental or consequential loss or damage.
For more information log onto www.curtmfg.com, & for helpful towing tips log onto www.hitchinfo.com 3/5/2014
RATCHET TORQUE
WRENCH SOCKET
17mm
WIRE PIPE
BRUSH
- NO DRILLING REQUIRED
- LOWER EXHAUST
TO EASE INSTALL
PRY BAR SAFETY
GLASSES

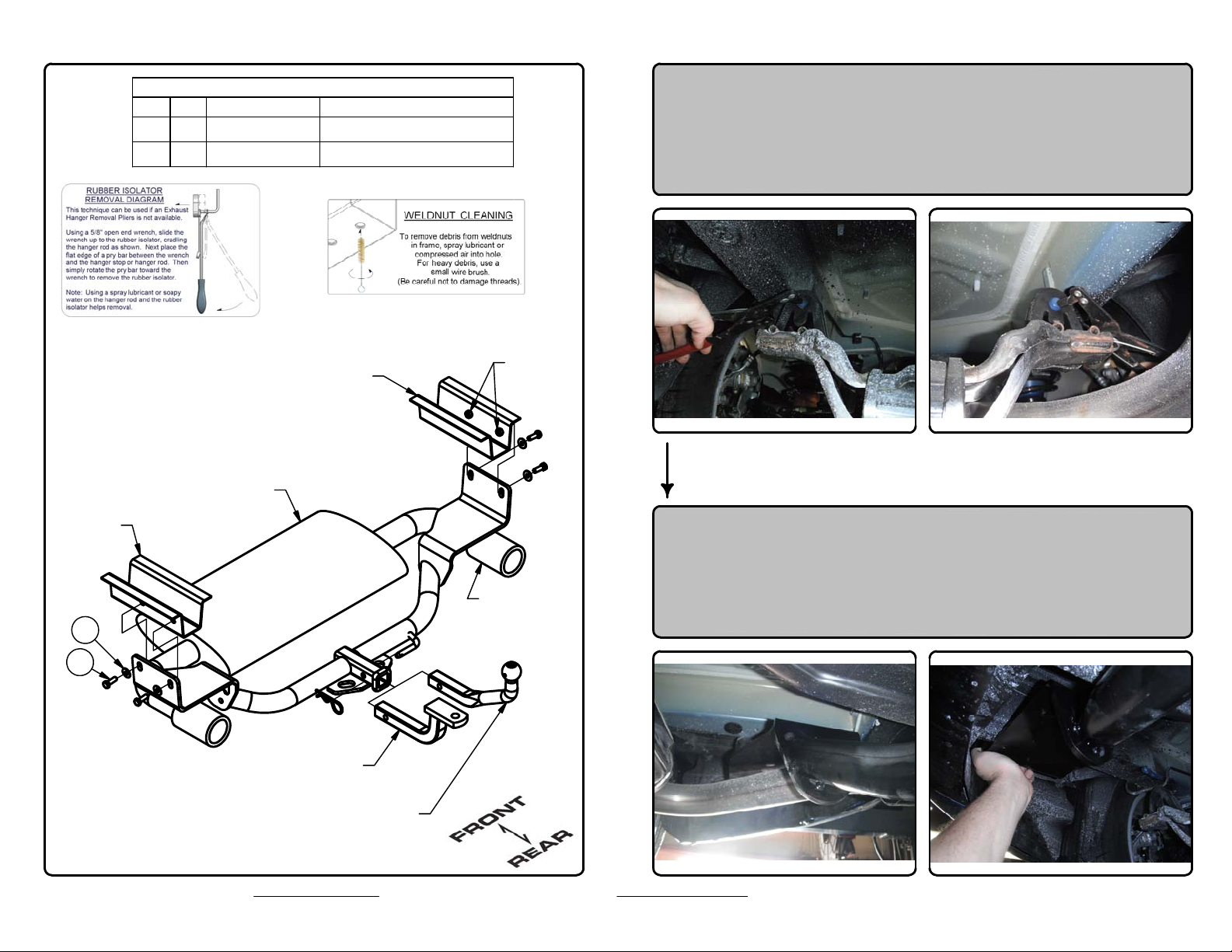

INSTALLATION WALKTHROUGH:
For more information log onto www.curtmfg.com, & for helpful towing tips log onto www.hitchinfo.com
Parts List DESCRIPTIONPART NUMBERQTYITEM
CONICAL TOOTHED WASHER3/8"
41
HEX BOLTM10 - 1.25 x 2542
2
1
1. To ease installation, lower exhaust by removing (2) rubber
isolators from exhaust.
PASSENGER SIDE
FRAME RAIL
DRIVER SIDE
FRAME RAIL
EXHAUST TIP(S)
EURO MOUNT OPTION AVAILABLE
#45561 (1 7/8" BALL)
#45562 (2" BALL)
MUFFLER
DESIGNED FOR USE WITH
BALL MOUNT # 45520
2. Raise hitch into position over exhaust.
EXISTING
WELDNUTS
(BOTH SIDES)
INSTALLATION WALKTHROUGH:
For more information log onto www.curtmfg.com, & for helpful towing tips log onto www.hitchinfo.com
3. Loosely secure hitch with M10-1.25 x 25mm hex bolts and
3/8" conical toothed washers through existing weldnuts in
outside of frame rails.
4. Torque 10mm hardware to 48 ft-lbs.
5. Raise exhaust back into position if lowered.
Installation complete
GROSS LOAD CAPACITY WHEN USED AS A WEIGHT CARRYING HITCH: LBS. TRAILER WEIGHT & LBS. TONGUE WEIGHT.
***DO NOT EXCEED VEHICLE MANUFACTURER'S RECOMMENDED TOWING CAPACITY.***
WARNING: ALL NON-TRAILER LOADS APPLIED TO THIS PRODUCT MUST BE SUPPORTED BY 18050 STABILIZING STRAPS.
** FAILURE TO PROPERLY SUPPORT NON-TRAILER LOADS WILL VOID PRODUCT WARRANTY**
HAVING INSTALLATION QUESTIONS? CALL TECHNICAL SUPPORT AT 1-800-798-0813
HITCH WEIGHT: LBS.
INSTALL TIME
PROFESSIONAL: MINUTES
NOVICE (DIY): MINUTES
INSTALL NOTES:
PERIODICALLY CHECK THIS RECEIVER HITCH TO ENSURE THAT ALL FASTENERS
ARE TIGHT AND THAT ALL STRUCTURAL COMPONENTS ARE SOUND.
CURT Manufacturing LLC., warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser.
If the product is found to be defective, CURT Manufacturing LLC., may repair or replace the product, at their option, when the product is returned, prepaid,
with proof of purchase. Alteration to, misuse of, or improper installation of this product voids the warranty. CURT Manufacturing LLC.'s liability is limited to
repair or replacement of products found to be defective, and specifically excludes liability for incidental or consequential loss or damage.
2,000 200
31
20
KIA FORTE KOUP
3/5/2014
11392
40
PAGE 1 of 2
Scan
for more
information
Parts List DESCRIPTIONPART NUMBERQTYITEM CONICAL TOOTHED WASHER3/8"41 HEX BOLTM10 - 1.25 x 2542
- NO DRILLING REQUIRED
- MAY LOWER EXHAUST
TO EASE INSTALL
PASSENGER SIDE
FRAME RAIL EXISTING WELDNUTS
(BOTH SIDES)
DRIVER SIDE
FRAME RAIL
2
1
DESIGNED FOR USE WITH
BALL MOUNT # 45520
MUFFLER
EXHAUST TIP(S)
EURO MOUNT OPTION AVAILABLE
#45561 (1 7/8" BALL)
#45562 (2" BALL)
INSTALLED HITCH POSITION
HAVING INSTALLATION QUESTIONS? CALL TECHNICAL SUPPORT AT 1-800-798-0813
INSTALLATION STEPS
PERIODICALLY CHECK THIS RECEIVER HITCH TO ENSURE THAT ALL FASTENERS
ARE TIGHT AND THAT ALL STRUCTURAL COMPONENTS ARE SOUND.
Curt Manufacturing Inc., warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective,
Curt Manufacturing Inc., may repair or replace the product, at their option, when the product is returned, prepaid, with proof of purchase. Alteration to, misuse of, or improper installation of
this product voids the warranty. Curt Manufacturing Inc.'s liability is limited to repair or replacement of products found to be defective, and specifically excludes liability for incidental or
consequential loss or damage.
KIA FORTE KOUP
11392 PAGE 2 of 2
FASCIA
FRAME RAIL
HITCH
1. To ease installation, lower exhaust by removing (2) rubber isolators from exhaust.
(See Rubber Isolator Removal Diagram)
2. Raise hitch into position over exhaust.
3. Loosely secure hitch with M10-1.25 x 25mm hex bolts and 3/8" conical toothed washers through
existing weldnuts in outside of frame rails. (See Weldnut Cleaning Diagram)
4. Torque 10mm hardware to 48 ft-lbs.
5. Raise exhaust back into position.
TOOLS REQUIRED
RATCHET
TORQUE WRENCH
17mm SOCKET
WIRE PIPE BRUSH
PRY BAR
SAFETY GLASSES
