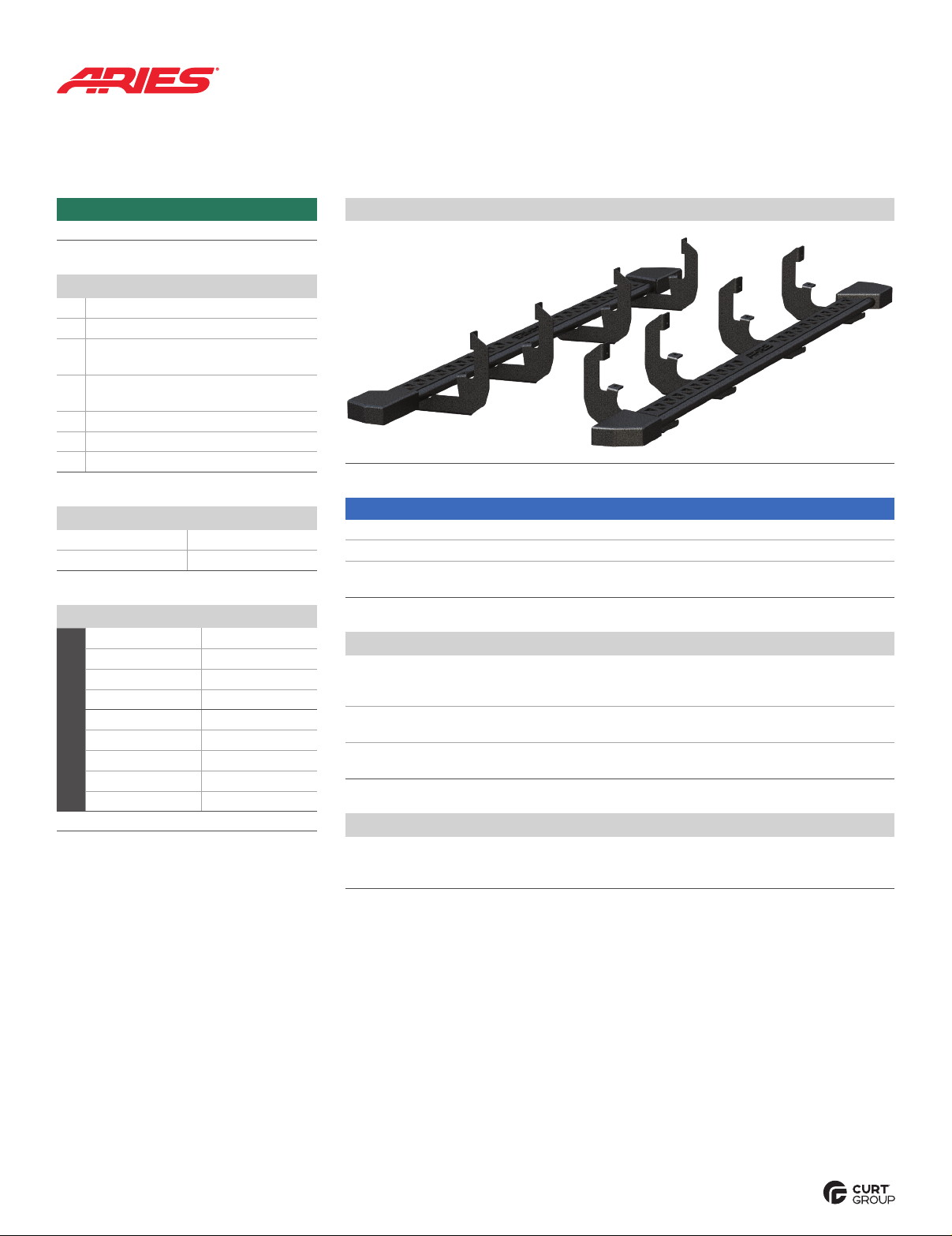

ARIESAUTOMOTIVE.COM •NEED ASSISTANCE? •8 7 7. 2 8 7. 8 6 3 4 •2074113-INS-RA •PAGE 1

INSTALLATION MANUAL 2074113

Parts List

1Driver / left Rocker Step

1Passenger / right Rocker Step

4Driver / left

mounting bracket, universal

4Passenger / right

mounting bracket, universal

16 Flat washer, M8

16 Lock washer, M8

16 Hex bolt, M8

Tools Required

Torque wrench Wrench

Socket, 13mm Flathead screwdriver

Maintenance

To protect the product, wax after installing. Regular waxing is recommended

to add a protective layer over the finish. Do not use any type of polish or wax

that may contain abrasives that could damage the finish.

For polished, gloss and other smooth finishes,

polish may be used to clear small scratches and scuffs on the finish.

Mild automotive detergent may be used to clean the product. Do not use dish detergent, abrasive

cleaners, abrasive pads, wire brushes or other similar products that may damage the ﬁnish.

Product Photo

Front

Rear

Level of Difﬁculty

Easy

NOTICE

Before you begin installation, read all instructions thoroughly.

Proper tools will improve the quality of installation and reduce the time required.

To help prevent damage to the product or vehicle, refer to the specified

torque specifications when securing hardware during the installation process.

Product Registration and Warranty

CURT Group stands behind our products with industry-leading warranties.

Provide feedback and help us to improve our products by registering your purchase at:

warranty.curtgroup.com/surveys

Torque Speciﬁcations*

Metric

M6 bolt 3 ft-lbs.

M8 bolt 7 ft-lbs.

M10 bolt 16 ft-lbs.

M12 bolt 28 ft-lbs.

SAE

1/4" bolt 3 ft-lbs.

5/16" bolt 7 ft-lbs.

3/8" bolt 16 ft-lbs.

7/16" bolt 20 ft-lbs.

1/2" bolt 28 ft-lbs.

Use above torque setting unless otherwise noted

ARIESAUTOMOTIVE.COM •NEED ASSISTANCE? •8 7 7. 2 8 7. 8 6 3 4 •2074113-INS-RA •PAGE 2

Step 1

Starting on the driver side, locate

the four mounting points along the

rocker panel of the vehicle.

Step 2

Lift the Rocker Step into position and

align the brackets on the Rocker Step

with the mounting points on the vehicle.

Secure all mounting points using two

M8 hex bolts, lock washers and flat washers.

Tighten all hardware to the

recommended torque specifications

listed in the table on the first page.

Step 3

Repeat steps 1 through 2 on the

passenger side of the vehicle.

Congratulations on the installation

of your new ARIES Rocker Steps.

With the rocker steps installed, periodic

inspections should be performed to ensure

all mounting hardware remains tight.

To protect your investment, see the

'Notes and Maintenance' section on

the first page of this instruction manual.
