Curt Manufacturing 12113 Bedienungsanleitung

PERIODICALLY CHECK THIS RECEIVER HITCH TO ENSURE ALL FASTENERS ARE TIGHT AND ALL STRUCTURAL COMPONENTS ARE SOUND

CURT Manufacturing LLC. warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, Curt Manufacturing LLC. may repair or replace

the product at their option, when the product is returned, prepaid, with proof of purchase. Alteration to, misuse of, or improper installation of this product voids the warranty. Curt Manufacturing LLC.'s liability is limited to repair or replacement

of products found to be defective, and specifically excludes liability for incidental or consequential loss or damage.

For more information log onto www.curtmfg.com, & for helpful towing tips log onto www.hitchinfo.com

MAKE: STYLE:

WARNING: NEVER EXCEED YOUR VEHICLE MANUFACTURER'S RECOMMENDED TOWING CAPACITY

WEIGHT CARRYING:

INSTALLATION TIPS:

INSTALLATION REQUIRES:

VEHICLE PHOTO:

HITCH ILLUSTRATION:

REPRESENTATIVE PHOTO

MAKE SURE YOUR HITCH MATCHES

LEVEL OF DIFFICULTY:

MODERATE

EASY MODERATE CHALLENGING

1. BEFORE YOU BEGIN INSTALLATION, READ ALL

INSTRUCTIONS THOROUGHLY.

2. TO EASE INSTALLATION, 2 PEOPLE MAY BE

REQUIRED.

3. USING PROPER TOOLS WILL GREATLY IMPROVE

THE QUALITY OF THE INSTALL AND REDUCE THE

TIME REQUIRED.

4. NEED HELP OR HAVE SOME QUESTIONS?

CALL TECHNICAL SUPPORT AT 800.798.0813

Safety glasses should be

worn at all times while

installing this product

YEARS: 2014-2015 KIA MODEL: SORENTO SUV

3500

350

TRAILER WEIGHT:

TONGUE WEIGHT:

12113 INSTALLATION INSTRUCTIONS

LBS.

7/25/2018

WARNING:

WE RECOMMEND THE USE OF 18050 STABILIZING STRAPS FOR ALL NON-TRAILER

(WHEEL-LESS) LOADS. PLEASE SEE THE CURT CATALOG OR VISIT US ONLINE AT

WWW.CURTMFG.COM FOR FURTHER INFORMATION.

40 MIN.

MIN.

PRO INSTALL TIME:

NOVICE INSTALL TIME:

IF YOU ARE HESITANT TO UNDERTAKE

THIS TASK ON YOUR OWN, CONTACT AN AUTHORIZED

CURT INSTALLER FOR ADDITIONAL ASSISTANCE.

YEARS: 2013-2018

MAKE:

HYUNDAI MODEL: SANTA FE (2.0 / 2.4L 4 CYL ONLY)

- NO DRILLING REQUIRED

- LOWER SPARE & UNDER

BODY PANELS

RATCHET

TORQUE

WRENCH SOCKET

EXTENSION

SOCKET

7/16"

3/4"

17mm

SCREW

DRIVER

SAFETY

GLASSES

- CLEAN EXISTING

WELDNUTS

- LOWER EXHAUST

INSTALLATION WALKTHROUGH:

For more information log onto www.curtmfg.com, & for helpful towing tips log onto www.hitchinfo.com

Parts List

DESCRIPTION

PART NUMBER

QTY

ITEM

CARRIAGE BOLT1/2-13 x 4 1/241

HEX FLANGE NUTHFN 1213, GR842

HEX BOLTM10 - 1.25 x 25

CONICAL TOOTHED WASHER3/8"

.188" SPACER PLATE12113-SP

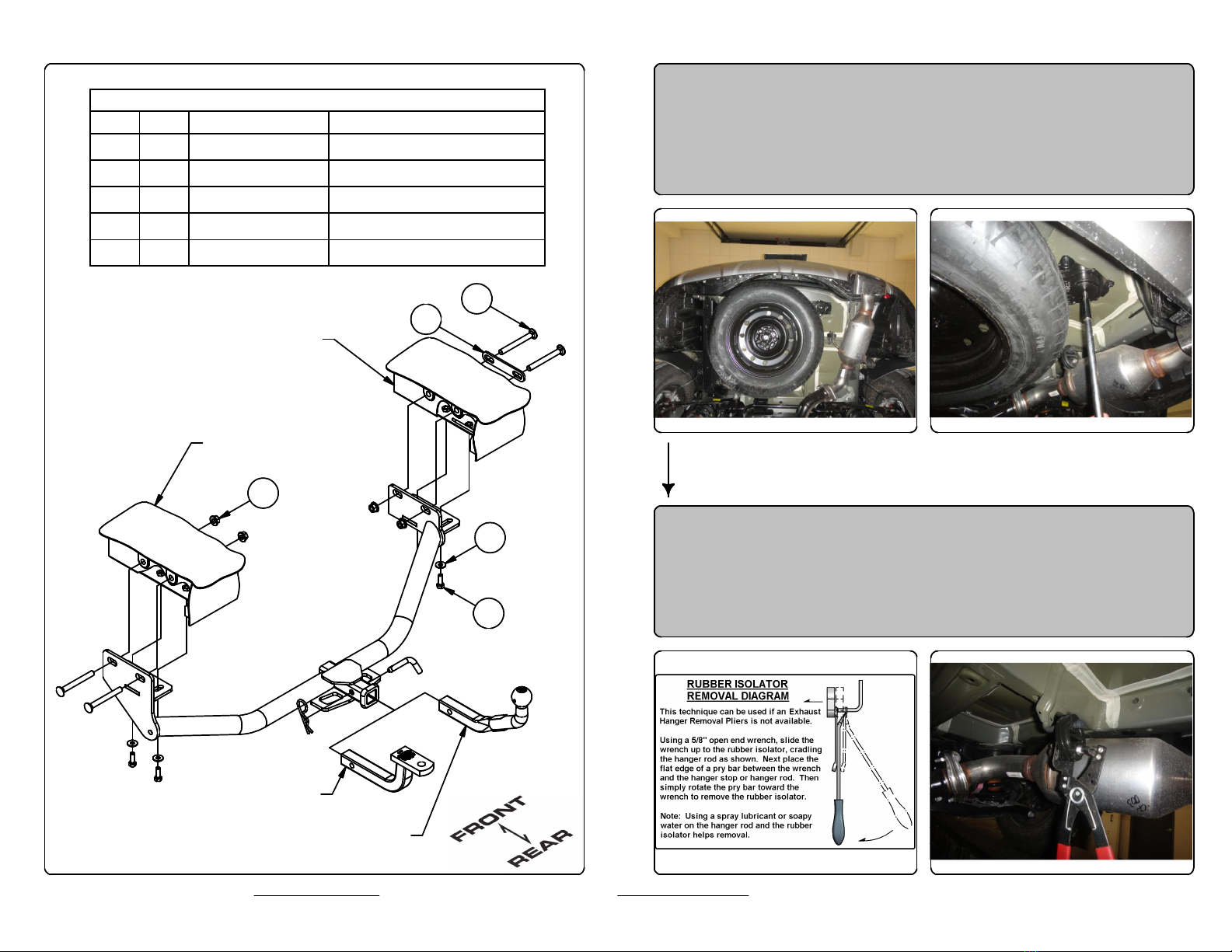

1. Lower and remove spare tire.

2. Lower exhaust by removing (3) rubber isolators.

DRIVER SIDE

FRAME RAIL

PASSENGER SIDE

FRAME RAIL

DESIGNED FOR USE WITH

BALLMOUNT #45520/D-20

DESIGNED FOR USE WITH EURO BALLMOUNT

#45561 (1 7/8" BALL) OR #45562 (2" BALL)

INSTALLATION WALKTHROUGH:

For more information log onto www.curtmfg.com, & for helpful towing tips log onto www.hitchinfo.com

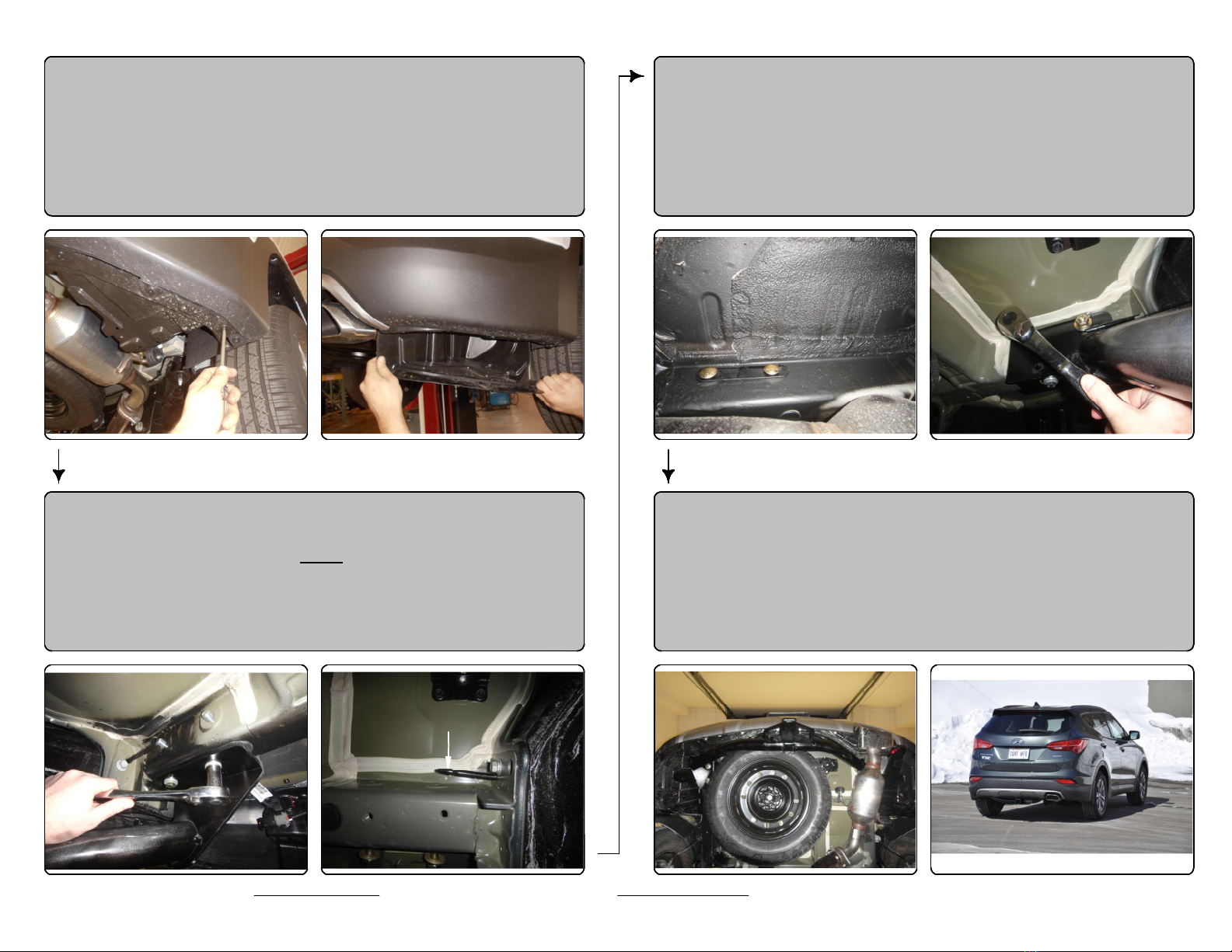

3. Remove the plastic under body panel from the passenger

side and the driver side frame rails. Remove (3) fascia

screws from the passenger side and (4) from the driver

side. Carefully pull down and set aside.

4. Raise hitch into position and secure to the existing

weldnuts with M10-1.25 x 25mm bolts and 3/8"

conical toothed washers. Note:The bumper locator

pin may interfere with the hitch hardware. You may

need to bend or trim it to allow hardware clearance.

5. Insert 1/2-13 x 4 1/2" carriage bolts through the driver side

plate and frame rail, secure using 1/2-13 flange nuts. Insert

1/2-13 x 4 1/2" carriage bolts through the 12113-SP spacer,

in the passenger side frame rail and out the passenger side

plate, secure using 1/2-13 flange nuts.

6. Torque all 1/2" hardware to 110 ft-lbs.

Torque all 10mm hardware to 48 ft-lbs.

Raise exhaust and spare tire back into position.

Reinstall passenger side and driver side under

body panels removed in Step (3).

BUMPER LOCATOR PIN

GROSS LOAD CAPACITY WHEN USED AS A WEIGHT CARRYING HITCH: LBS. TRAILER WEIGHT & LBS. TONGUE WEIGHT.

***DO NOT EXCEED VEHICLE MANUFACTURER'S RECOMMENDED TOWING CAPACITY.***

HAVING INSTALLATION QUESTIONS? CALL TECHNICAL SUPPORT AT 1-800-798-0813

INSTALLATION STEPS

PERIODICALLY CHECK THIS RECEIVER HITCH TO ENSURE THAT ALL FASTENERS

ARE TIGHT AND THAT ALL STRUCTURAL COMPONENTS ARE SOUND.

Curt Manufacturing LLC., warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective,

Curt Manufacturing LLC., may repair or replace the product, at their option, when the product is returned, prepaid, with proof of purchase. Alteration to, misuse of, or improper installation of

this product voids the warranty. Curt Manufacturing LLC.'s liability is limited to repair or replacement of products found to be defective, and specifically excludes liability for incidental or

consequential loss or damage.

3500 350

KIA SORENTO & HYUNDAI SANTA FE

7/20/2017

12113

HITCH WEIGHT: LBS.

INSTALL TIME

PROFESSIONAL: MINUTES

NOVICE (DIY): MINUTES

INSTALL NOTES:

39615

Parts List

DESCRIPTION

PART NUMBER

QTY

ITEM

CARRIAGE BOLT1/2-13 x 4 1/241

HEX FLANGE NUTHFN 1213, GR842

HEX BOLTM10 - 1.25 x 2543

CONICAL TOOTHED WASHER3/8"

.188" SPACER PLATE12113-SP

1. Lower and remove spare tire.

2. Lower exhaust by removing (3) rubber isolators.

3. Remove the plastic under body panel from the passenger side and the driver side frame rails.

Remove (3) fascia screws from the passenger side and (4) from the driver side.

Carefully pull down and set aside.

4. Raise hitch into position and secure to the existing weldnuts with M10-1.25 x 25mm bolts and

3/8" conical toothed washers.

5. Insert 1/2-13 x 4 1/2" carriage bolts through the driver side plate and frame rail, secure using 1/2-13 flange nuts.

Insert 1/2-13 x 4 1/2" carriage bolts through the 12113-SP spacer, in the passenger side frame rail and out the

passenger side plate, secure using 1/2-13 flange nuts. Note:The bumper locator pin may interfere with the hitch

hardware. You may need to bend or trim it to allow hardware clearance.

6. Torque all 1/2" hardware to 110 ft-lbs.

Torque all 10mm hardware to 48 ft-lbs.

7. Raise exhaust and spare tire back into position. Reinstall passenger side and driver side under body panels

removed in Step (3).

EXISTING WELD NUT

(BOTH SIDES)

DRIVER SIDE

FRAME RAIL

PASSENGER SIDE

FRAME RAIL

BUMPER LOCATOR PIN

(BOTH SIDES)

- NO DRILL

- LOWER SPARE

- LOWER EXHAUST

- LOWER UNDER BODY PANELS

TOOLS REQUIRED

RATCHET

TORQUE WRENCH

6" SOCKET EXTENSION

7/16" SOCKET

3/4" SOCKET

17mm SOCKET

SCREW DRIVER

SAFETY GLASSES

DESIGNED FOR USE WITH

BALLMOUNT #45520/D-20

DESIGNED FOR USE WITH

EURO BALLMOUNT

#45561 (1 7/8" BALL) OR

#45562 (2" BALL)
