CYP QU-14S-4K22 Bedienungsanleitung
3
DISCLAIMERS
The information in this manual has been carefully checked and is
believed to be accurate. CYP (UK) Ltd assumes no responsibility for any
infringements of patents or other rights of third parties which may result
from its use.
CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be
contained in this document. CYP (UK) Ltd also makes no commitment to
update or to keep current the information contained in this document.
CYP (UK) Ltd reserves the right to make improvements to this document
and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed,
stored in a retrieval system, or any of its part translated into any language
or computer le, in any form or by any means—electronic, mechanical,
magnetic, optical, chemical, manual, or otherwise—without express
written permission and consent from CYP (UK) Ltd.
© Copyright 2011 by CYP (UK) Ltd.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
4
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate
this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts inside
the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if
it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sucient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE SUMMARY OF CHANGE
v1.00 17/04/2015 First release
5
CONTENTS
1. Introduction...........................................6
2. Applications ...........................................6
3. Package Contents ..................................6
4. System Requirements ...........................6
5. Features..................................................7
6. Operation Controls and Functions.......8
6.1 Front Panel................................................... 8
6.2 Rear Panel..................................................... 9
7. Connection Diagram .......................... 10
8. Specications...................................... 11
8.1 Technical Specications ........................11
8.2 Supported Resolutions.........................12
9. Acronyms............................................. 13
6
1. INTRODUCTION
The QU-12S-4K Distribution Amplier (splitter) accepts one HDMI input
and splits this signal to two identical outputs. This device is v1.4 HDMI
compliant and supports HDCP (including HDCP 2.2), 3D Video signals,
‘Deep Colour', and 4K resolutions, together with High Denition Audio.
Each buered output can run 1080p/8-bit up to 20 metres and can also
be cascaded up to 3 layers.
2. APPLICATIONS
Simultaneously display an HDMI source on 2 TVs/projectors
Showroom display
University lecture hall display
Retail sales displays
3. PACKAGE CONTENTS
1×1 by 2 HDMI 4K UHD Splitter
1×5V/2.6A Power Adaptor
1×Operation Manual
4. SYSTEM REQUIREMENTS
HDMI source device such as a DVD/Blu-ray player and HDMI equipped
display (TVs/monitors) with High Speed HDMI cables.
7
5. FEATURES
v1.4 HDMI, HDCP compliant (including HDCP 2.2) and DVI 1.0
compliant
HDMI 1 to 2 Splitter
Supports resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz
(RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz
(RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon
the output display’s EDID settings
High Denition Audio supported: Dolby TrueHD, Dolby Digital Plus
and DTS-HD Master Audio plus LPCM
Auto signal amplication & equalisation improves signal transmission
distances
Supports CEC bypass
Supports Deep Colour
Power LED indicator
Supports xvYCC
Supports 3D signals
Note: For playback of 4K2K HDMI source signals, a 4K2K capable display and
High Speed HDMI cables are required.
8
6. OPERATION CONTROLS AND FUNCTIONS

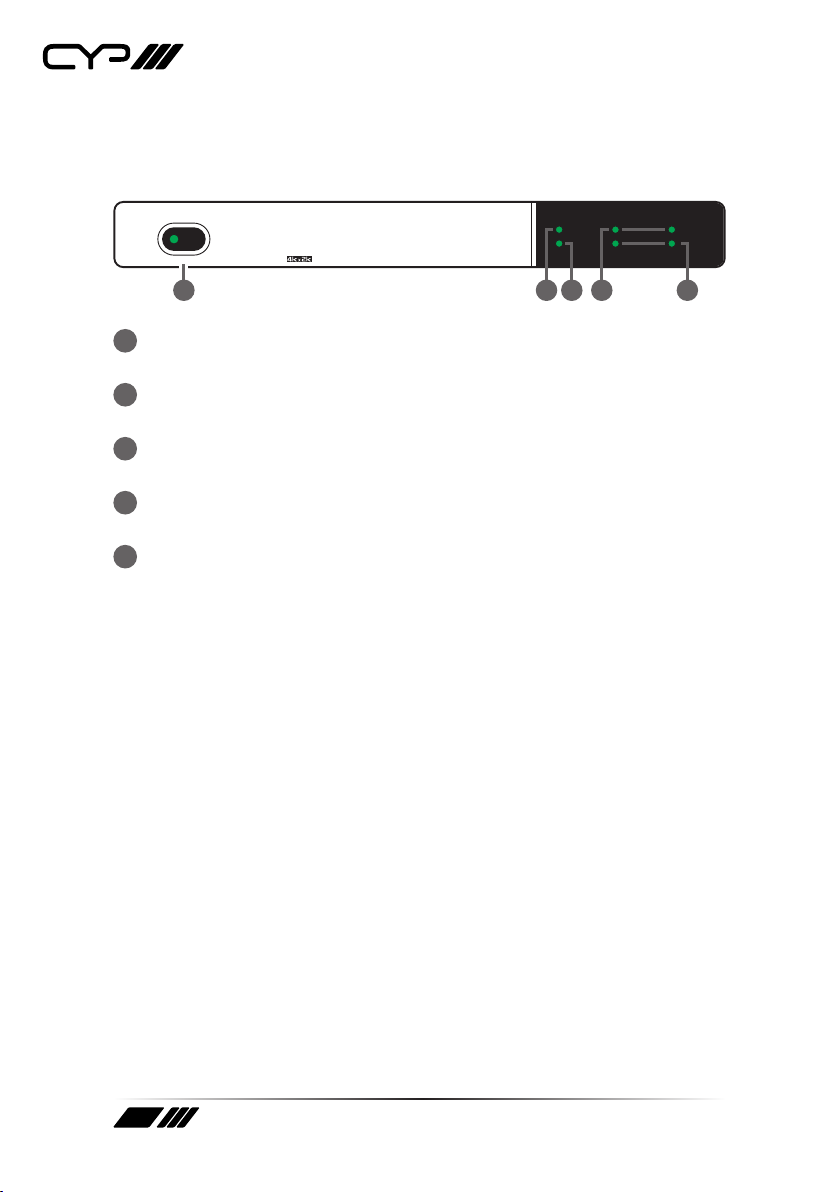

6.1 Front Panel
HDMI 1x2 SPLITTER
SYNC
HDCP 2.2
21IN
12 3 4 5
1
POWER: This LED will illuminate when the unit is connected to an
active power supply and switched on.
2
SYNC IN: This LED will illuminate when the unit is connected with
active signal from the source device.
3
HDCP 2.2 IN: This LED will illuminate when the source signal is HDCP
2.2 encrypted.
4
SYNC OUT 1~2: These LEDs will illuminate when the output detects a
connected display.
5
HDCP 2.2 OUT 1~2: These LEDs will illuminate when the connected
HDMI display are HDCP 2.2 compatible.
9

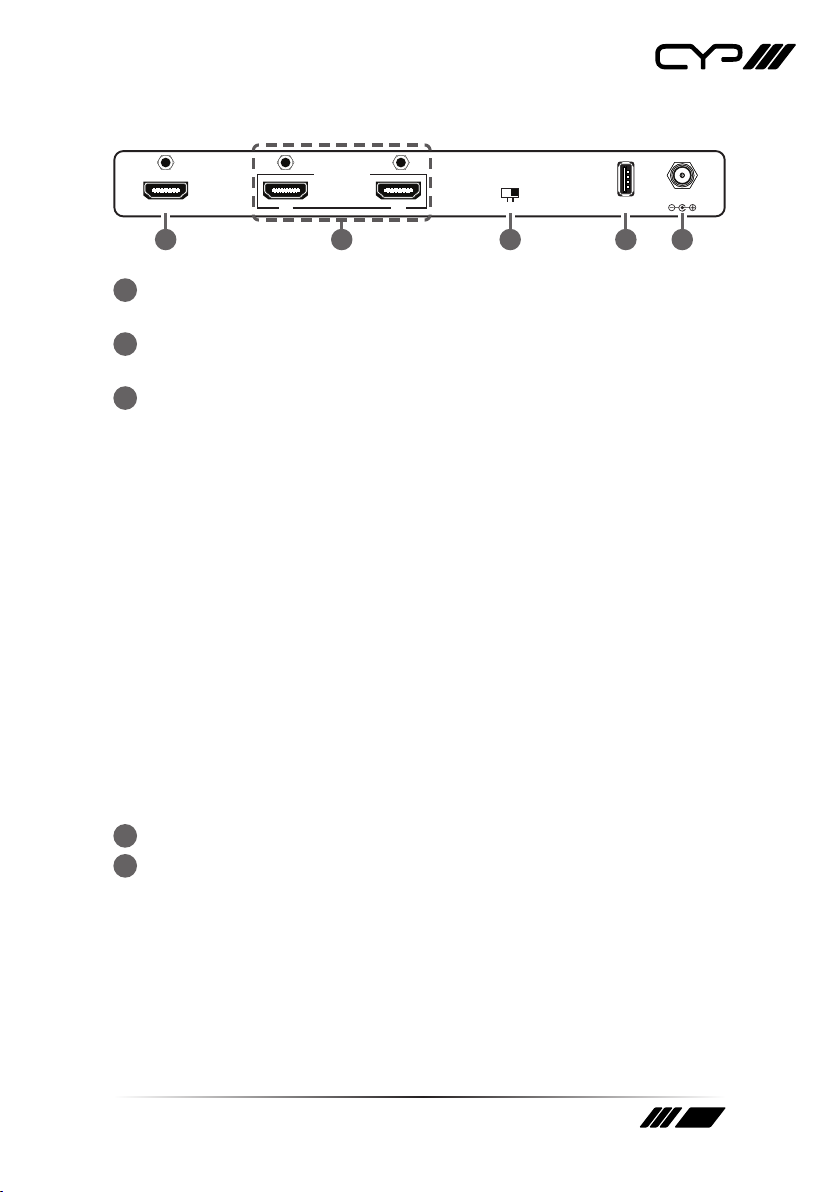

6.2 Rear Panel
HDMI IN
EDID
STD TV
DC 5V
12
HDMI OUT
FIRMWARE
1 52 3 4
1
HDMI IN: Connect this input to the HDMI or DVI output of your source
device such as a DVD player or Set-top Box with an HDMI cable.
2
HDMI OUT 1~2: Connect to an HDMI equipped display (TV/monitor)
or HD Amplier for simultaneous HDMI distribution.
3
EDID TV/STD: Use this switch to set HDMI EDID setting.
TV: When in 'TV' mode, the unit will read the EDID settings of the
display connected to HDMI OUT 1. If it detects a 4K2K capable EDID
setting it will transmit the signal in that format to all outputs. If no
4K2K capable EDID setting is detected then the unit will output the
best resolution that all displays can support.
Note: When Output 1 is connected to a 4K2K display and Output 2 is
connected to non-4K2K display no picture may be displayed. To ensure
proper display all screens must all be capable of displaying the same
resolution.
STD: When in 'STD' mode, the unit will use its own built-in EDID
settings. In this mode, the video output will be set to 1080p@60Hz
and the audio output at LPCM 2CH Stereo. Use this mode if there are
display problems in 'TV' Mode.
Note: The unit will retain and use the EDID settings of the last display
connected to the HDMI OUT 1 output if no display is connected to this
output even after switching EDID modes or a power cycle.
4
FIRMWARE: Manufacturer use only.
5
DC 5V: Plug the supplied power supply into the unit and connect the
adaptor to an AC outlet.
10
7. CONNECTION DIAGRAM
HDMI IN
EDID
STDTV
DC 5V
12
HDMI OUT
FIRMWARE
DVD/Blu-ray Player
HDTVProjector
Power
Supply
HDMI
Input
Simultaneous
HDMI Outputs
