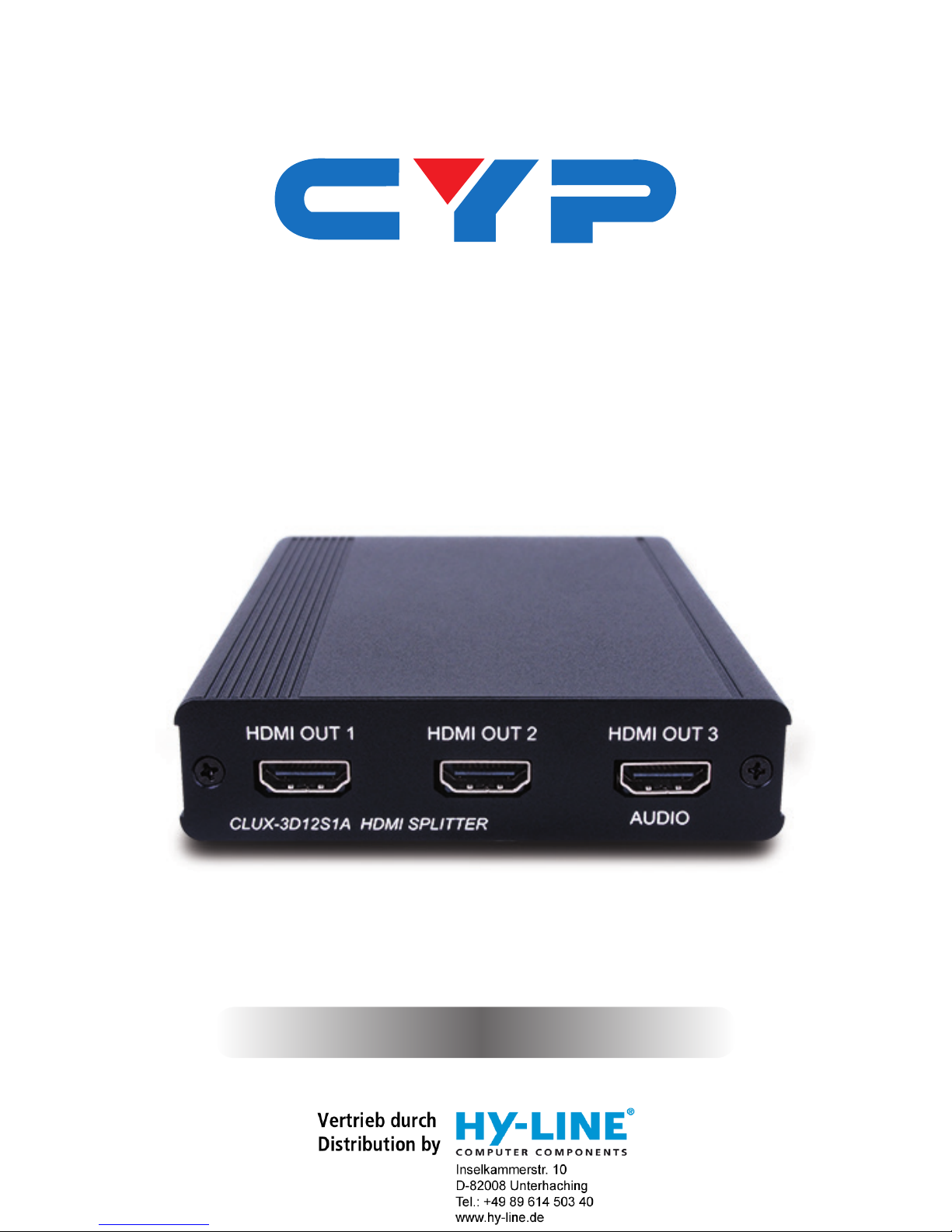

CYP CLUX-3D12S1A Bedienungsanleitung

CLUX-3D12S1A

1 × 2 HDMI Splitter with 3D Audio to Amplier

Operation Manual

DISCLAIMERS

The information in this manual has been carefully checked and

is believed to be accurate. Cypress Technology assumes no

responsibility for any infringements of patents or other rights of third

parties which may result from its use.

Cypress Technology assumes no responsibility for any inaccuracies

that may be contained in this document. Cypress also makes no

commitment to update or to keep current the information contained

in this document.

Cypress Technology reserves the right to make improvements to this

document and/or product at any time and without notice.

No part of this document may be reproduced, transmitted,

transcribed, stored in a retrieval system, or any of its part translated

into any language or computer le, in any form or by any means—

electronic, mechanical, magnetic, optical, chemical, manual, or

otherwise—without express written permission and consent from

Cypress Technology.

Version 1.1 August 2011

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document may be

trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or

operate this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

• Always follow basic safety precautions to reduce the risk of re,

electrical shock and injury to persons.

• To prevent re or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any

openings or empty slots in the unit, as you may damage parts

inside the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the PSU

if it is damaged.

• Do not allow anything to rest on the power cabling or allow any

weight to be placed upon it or any person walk on it.

• To protect the unit from overheating, do not block any vents or

openings in the unit housing that provide ventilation and allow for

sufcient space for air to circulate around the unit.

REVISION HISTORY

VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE

VS1 23/02/12 First Release

VR2 02/04/12 Add HDMI Cable Distance

CONTENTS

1. Introduction............................................ 1

2. Applications........................................... 1

3. Package Contents ................................ 1

4. System Requirements............................ 1

5. Features.................................................. 2

6. Operation Controls and Functions....... 3

6.1 Front Panel ........................................3

6.2 Rear Panel.........................................4

7. Connection Diagram ............................ 5

8. Specications ........................................ 6

9. Acronyms ............................................... 7

1. INTRODUCTION

The 1 x 2 HDMI Splitter with audio is fully compliant with HDMI and

allows the output from any HDMI equipped device to be split and

allow connection to up to two HDTV displays e.g. an LCD TV and a

projector in the same room. The third HDMI output is an audio with

blue screen output, which means it can be connected to an AV

Receiver that does not support 3D signal.

2. APPLICATIONS

• Showroom environment

• Education demo

• Installation usage

• Home entertainment

3. PACKAGE CONTENTS

• 1 x 2 HDMI Splitter with audio

• 5 V/1 A DC power supply adaptor

• Operation Manual

4. SYSTEM REQUIREMENTS

Input source equipment with HDMI ouputs and HDMI equipped

displays and/or AV Receivers.

5. FEATURES

• HDMI, HDCP1.1 and DVI 1.0 compliant Receiver

• Deep Color video up to 12-bit, 1080p@24/60 Hz

• One HDMI source to connect up to two HDMI displays

simultaneously

• One audio-only HDMI output connected to AVR

• Splits a HDMI source to two outputs without signal loss

• Supports DVI source and DVI display by using HDMI to/from DVI

adaptor cable

• Supports LPCM 7.1CH, Dolby Digital and Dolby Digital Plus Audio

transmission (32–192 kHz Fs sample rate)

• Supports a wide range of PC and HDTV resolutions from VGA to

WUXGA and 480i to 1080p

• HDMI cable distance test with 1080p/8-bit or 12-bit resolution, the

Input/Output distance can run up to 15 meters

• Supports EDID functionality. This device will detect the video's EDID

information based on HDMI OUT 1 and the audio's EDID based

on HDMI OUT 3.

Note: If both HDMI OUT 1 & HDMI OUT 2 are connected and HDMI

OUT 1 is unplugged, the device will retain the EDID information for

that device.

6. OPERATION CONTROLS AND FUNCTIONS

6.1 Front Panel

HDMI OUT 1 HDMI OUT 2HDMI OUT 3

AUDIO

CLUX-3D12S1A HDMI SPLITTER

1 2

HDMI OUT 1 & 2

Connect each of the output ports to a HDMI equipped video

display such as TV or projector. HDMI OUT 1 is the master video

port and the device will send the video content according to that

connected display's EDID information. If more than one output is

connected, both HDMI OUT 1 and HDMI OUT 2 output identical

video signals simultaneously based on the EDID information of the

display connected to HDMI OUT 1.

HDMI OUT 3

Connect the HDMI audio output port to the AV Receiver. HDMI

OUT 3 is the master audio port and the device will send the audio

content according to the connected device's EDID information

to all HDMI outputs. Meanwhile, the display will show a blank BLUE

screen.

Note: A master port will replicate the highest resolution settings of

the connected device. Any device connected to a non-master

port that does not meet the master device's EDID settings there

may be no output from that port. For example, when the device

connected to HDMI OUT 3 supports 7.1CH audio but OUT 1 & 2

supports only 2CH, then there will be no audio output from the

HDMI OUT 1 and HDMI OUT 2 ports.

Similarly, when a 3D capable display is connected to HDMI OUT 1

and a non-3D capable display is connected to HDMI OUT 2 there

may be no video displayed on the device connected to HDMI

OUT 2 when 3D video is playing.

6.2 Rear Panel

HDMI IN

3D DC 5V

POWER

1 2 3

HDMI IN

Connect the HDMI or DVI output of your source equipment such as

3D Blu-ray player or set-top box.

POWER/3D INDICATOR

When the system is ON the RED LED will illuminate when the system

detects a 3D formatted video signal the GREEN LED will illuminate.

DC POWER JACK

Plug the DC 5V power supply into the splitter and connect the

adaptor to AC wall outlet.

7. CONNECTION DIAGRAM

HDMI OUT 1 HDMI OUT 2HDMI OUT 3

AUDIO

CLUX-3D12S1A HDMI SPLITTER

HDMI IN

3D DC 5V

POWER

Rear

Front

AVR with HDMI Input

(Non-3D Ready)

Projector

3D DVD or Blu-ray Player

Power

Supply

HDMI

3D Ready TV

In this example, when the input signal is of 3D format, only HDMI OUT

1 will have picture, while HDMI OUT 2 won't because the projector is

non 3D-ready. When the input signal is of 2D format, both HDMI output

port 1 and 2 will have picture.
